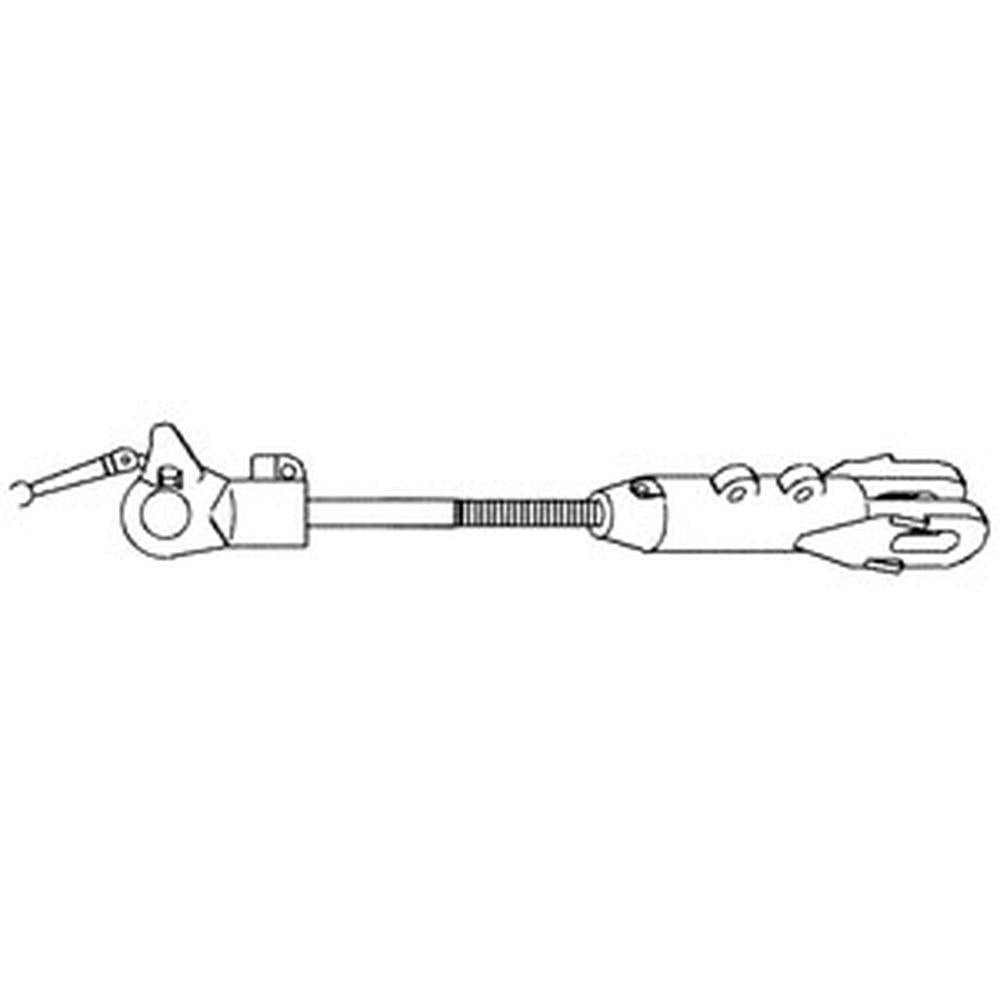

AR44552 Lift Link Assembly – Fits John Deere
AR44552 Lift Link Assembly – Fits John Deere – additional image 2

NC-120715 · Lift Arms

AR44552 Lift Link Assembly – Fits John Deere

CAD 320.06

Availability to confirm

Lift Link Assembly – reference AR44552. Catalogue-listed applications: John Deere. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-120715
Reference numbers
AR44552, L28374, L2837415, R3122, RE16370, R48595, WN-AR44552
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Lift Link Assembly AR44552 Fits John Deere 1020 1120 1130 1140 1520 1530.

Configuration: Lift Link Assembly for John Deere TractorsThis adjustable right-hand (RH) lift link assembly -- also known as a leveling box assembly -- is a Category 1 three-point hitch component used to raise, lower, and level implements on John Deere tractors. Designed for use with telescoping 3-point pull arms, it provides the adjustable link between the tractor hitch and the implement.
Specifications Right Hand (RH) Category 1, 3-Point Hitch Adjustable Closed Length: 21-1/4" Extended Length: 27-1/2" Housing Assembly: 15" I.D. of Fork: 1" Diameter of Bore Hole in Ball Joint: 3/4" Compatible ModelsJohn Deere Utility Tractors: 820, 830, 920, 930, 940, 1020, 1030, 1040, 1120, 1130, 1140, 1520, 1530, 1630, 1830, 2020, 2030, 2040, 2120, 2130, 2150, 2155, 2240, 2255, 2350, 2355, 2440, 2550, 2555, 2630, 2640, 2750, 2755, 2840, 2855, 2940, 2955, 3055, 3150, 3155, 3255John Deere Industrial/Utility: 300, 300B, 301, 302, 310, 400, 401, 410, 820, 830
Replaces Part Number(s):AR44552, L28374, L2837415, R3122, RE16370, R48595, T24908Aftermarket Interchange NumbersA-AR44552, WN-AR44552, MTCC-AR44552New aftermarket replacement part - not remanufactured, not used.

Reference numbers: AR44552, L28374, L2837415, R3122, RE16370, R48595, WN-AR44552
Application notes
  • One New Aftermarket Replacement Lift Link Assembly for John Deere TractorsThis adjustable right-hand (RH) lift link assembly -- also known as a leveling box assembly -- is a Category 1 three-point hitch component used to raise, lower, and level implements on John Deere tractors. Designed for use with telescoping 3-point pull arms, it provides the adjustable link between the tractor hitch and the implement.Specifications Right Hand (RH) Category 1, 3-Point Hitch Adjustable Closed Length: 21-1/4" Extended Length: 27-1/2" Housing Assembly: 15" I.D. of Fork: 1" Diameter of Bore Hole in Ball Joint: 3/4" Compatible ModelsJohn Deere Utility Tractors: 820, 830, 920, 930, 940, 1020, 1030, 1040, 1120, 1130, 1140, 1520, 1530, 1630, 1830, 2020, 2030, 2040, 2120, 2130, 2150, 2155, 2240, 2255, 2350, 2355, 2440, 2550, 2555, 2630, 2640, 2750, 2755, 2840, 2855, 2940, 2955, 3055, 3150, 3155, 3255John Deere Industrial/Utility: 300, 300B, 301, 302, 310, 400, 401, 410, 820, 830 Replaces Part Number(s):AR44552, L28374, L2837415, R3122, RE16370, R48595, T24908Aftermarket Interchange NumbersA-AR44552, WN-AR44552, MTCC-AR44552New aftermarket replacement part - not remanufactured, not used.
