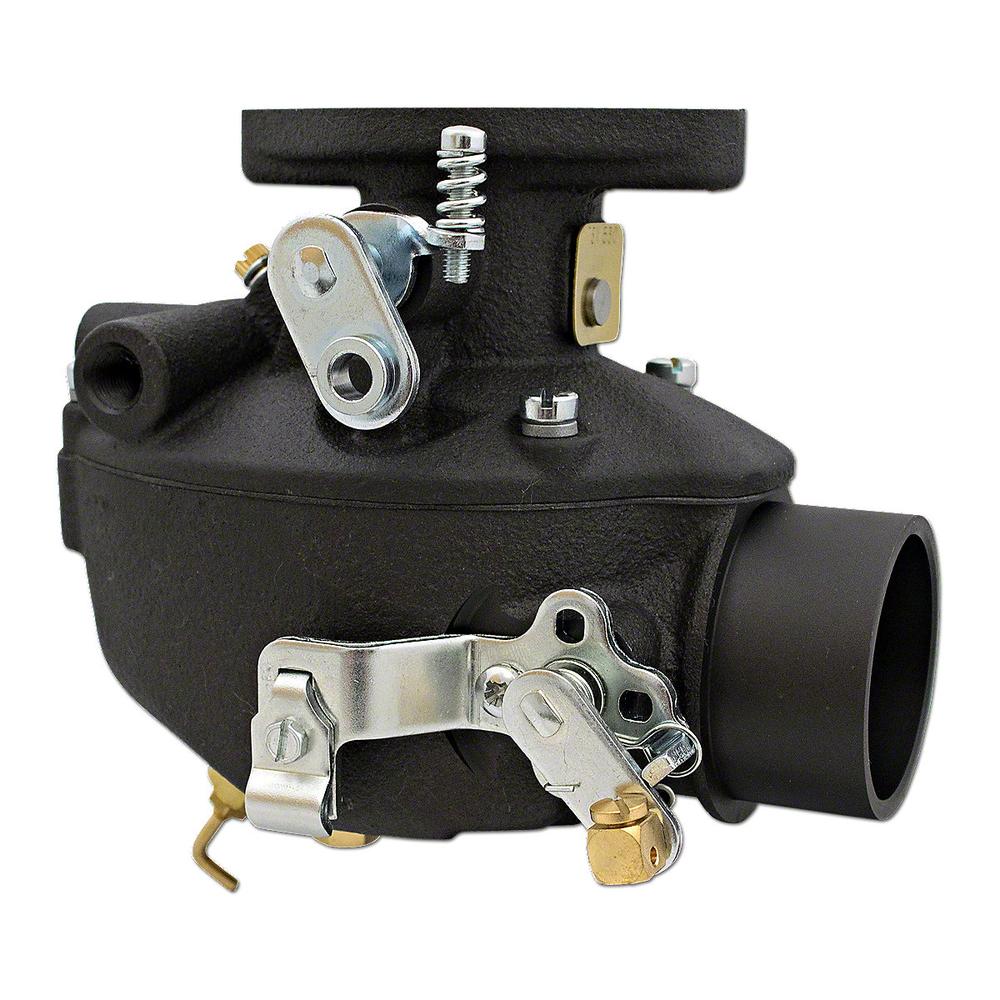

AM1794T Marvel-Schebler Design Carburetor – Fits John Deere

NC-119360 · Fuel System Parts & Components

AM1794T Marvel-Schebler Design Carburetor – Fits John Deere

CAD 906.87

Availability to confirm

Marvel-Schebler Design Carburetor – reference AM1794T. Catalogue-listed applications: John Deere. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-119360
Reference numbers
AM1794T, AM366T, AM1613T, AM2067T, RE19402, TSX530CARB, TSX245CARB, TSX530, TSX475
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Fits John Deere M MC MI MT MTN MTW Carburetor Original Design Marvel TSX245 TSX5.

Configuration: Marvel-Schebler Design Carburetor Fits John Deere TractorsThis aftermarket replacement carburetor is built to the original Marvel-Schebler design, replicating the TSX245 and TSX530 carburetor specifications used on Fits John Deere M-series and numbered utility tractors. It mounts with a 2-11/16" center-to-center bolt pattern and includes a mounting gasket. This carburetor will also replace TSX475 and TSX562 all-fuel/distillate carburetors on machines that have been converted to run on gasoline.Specifications Carburetor type: Marvel-Schebler original design Mounting bolt pattern: 2-11/16" center-to-center Includes mounting gasket Replaces TSX245 and TSX530; also replaces TSX475 and TSX562 all-fuel/distillate carburetors when converted to gasoline Compatible Models
Fits John Deere M Series: M, MC, MI, MT, MTN, MTWFits John Deere Utility/Row-Crop Tractors: 40, 40C, 40H, 40S, 40T, 40U, 40V, 40W, 320, 320S, 320U, 320V, 330, 330S, 330U, 330VReplaces Part Number(s):AM1794T, AM366T, AM1613T, AM2067T, RE19402, TSX530CARB, TSX245CARB, RE19402CARBAftermarket Interchange NumbersMarvel-Schebler carburetor numbers: TSX245, TSX530, TSX475, TSX562New aftermarket replacement part - not remanufactured, not used.

Reference numbers: AM1794T, AM366T, AM1613T, AM2067T, RE19402, TSX530CARB, TSX245CARB, TSX530, TSX475
Application notes
  • One New Aftermarket Replacement Marvel-Schebler Design Carburetor Fits John Deere TractorsThis aftermarket replacement carburetor is built to the original Marvel-Schebler design, replicating the TSX245 and TSX530 carburetor specifications used on Fits John Deere M-series and numbered utility tractors. It mounts with a 2-11/16" center-to-center bolt pattern and includes a mounting gasket. This carburetor will also replace TSX475 and TSX562 all-fuel/distillate carburetors on machines that have been converted to run on gasoline.Specifications Carburetor type: Marvel-Schebler original design Mounting bolt pattern: 2-11/16" center-to-center Includes mounting gasket Replaces TSX245 and TSX530; also replaces TSX475 and TSX562 all-fuel/distillate carburetors when converted to gasoline Compatible Models Fits John Deere M Series: M, MC, MI, MT, MTN, MTWFits John Deere Utility/Row-Crop Tractors: 40, 40C, 40H, 40S, 40T, 40U, 40V, 40W, 320, 320S, 320U, 320V, 330, 330S, 330U, 330VReplaces Part Number(s):AM1794T, AM366T, AM1613T, AM2067T, RE19402, TSX530CARB, TSX245CARB, RE19402CARBAftermarket Interchange NumbersMarvel-Schebler carburetor numbers: TSX245, TSX530, TSX475, TSX562New aftermarket replacement part - not remanufactured, not used.
