AM107759 Bucket Seat with Slide Rails & Operator Presence Switch – Fits John Deere
AM107759 Bucket Seat with Slide Rails & Operator Presence Switch – Fits John Deere – additional image 2AM107759 Bucket Seat with Slide Rails & Operator Presence Switch – Fits John Deere – additional image 3

NC-116849 · Complete Seats & Seat Cushions

AM107759 Bucket Seat with Slide Rails & Operator Presence Switch – Fits John Deere

CAD 507.23

Availability to confirm

Bucket Seat with Slide Rails & Operator Presence Switch – reference AM107759. Catalogue-listed applications: John Deere 415, 455, F725, F735, G100, L130, LT150. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-116849
Reference numbers
AM107759, AT63325, AT315073, AT327447, AT344971, GG420-32536, GG420-33192, GG420-33358
Product information and configuration
Replacement part: Bucket Seat with Slide Rails & Operator Presence Switch Fits John Deere.

Configuration: Bucket Seat with Slide Rails & Operator Presence Switch
Tech Info: -Uni Pro Bucket Seat(Black) -

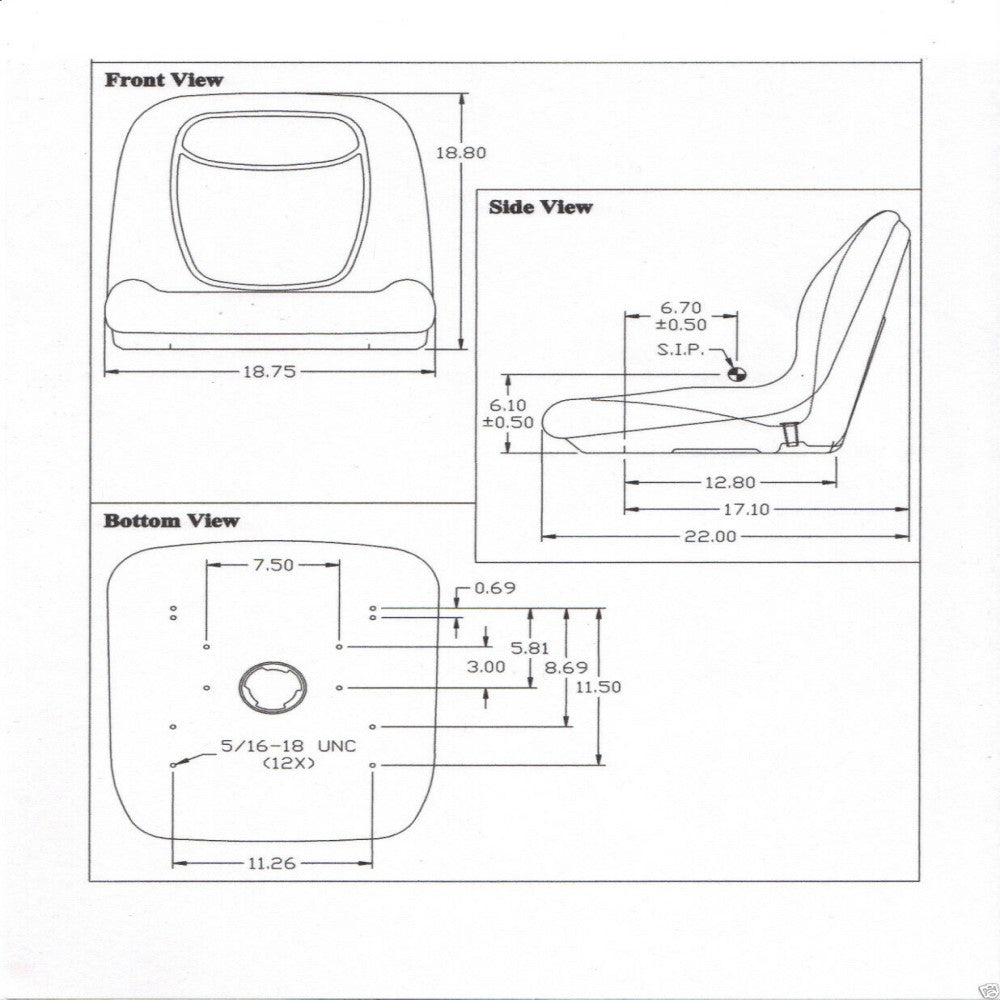

Tech Info: -Waterproof black vinyl -Vacuum formed with centralized drain hole -Durable blow molded plastic frame is corrosion resistant -19" high-back seat which will replace both original 16" and 19" high-back seats -Accepts operator presence switch -Seat dimensions: 18.75" x 18.8" (W x H) -Multiple mounting patterns -Uses standard 5/16 18UNC bolts -Replaces: AT63325, AT315073, AT327447, AT344971, GG420-32536, GG420-33192, GG420-33358 - -Pair of Slide Rails -Replaces: 6043 - -Operators Presence Switch Kit -Replaces: 8666
Fits John Deere: Backhoe
Models: 415 Model Breaks: 415 (s/n 70001-later) Replaces Part Number(s): AM107759, AT63325, AT315073, AT327447, AT344971, GG420-32536, GG420-33192, GG420-33358 Crawler
Models: 455 Replaces Part Number(s): AM107759, AT63325, AT315073, AT327447, AT344971, GG420-32536, GG420-33192, GG420-33358 Other (Lawn & Garden)
Models: F725, F735, G100, L130, LT150, LX266, LX288, X720, X724, Z465, 165, 240, 245, 260, 265, 285, 318, 320, 325, 345, 415, 425, 445, 455 Model Breaks: F725 (s/n 090001-later), 325 (s/n 70001-later), 345 (s/n 70001-later), 415 (s/n 70001-later), 425 (s/n 70001-later) Replaces Part Number(s): AM107759, AT63325, AT315073, AT327447, AT344971, GG420-32536, GG420-33192, GG420-33358 Skid Steer Loader
Models: 260, 325 (s/n 70001-later) Model Breaks: 325 (s/n 70001-later) Replaces Part Number(s): AM107759, AT63325, AT315073, AT327447, AT344971, GG420-32536, GG420-33192, GG420-33358 Telehandler
Models: 4400, 4500 Replaces Part Number(s): AM107759, AT63325, AT315073, AT327447, AT344971, GG420-32536, GG420-33192, GG420-33358 Tractor
Models: 4105, 4200, 4210, 4300, 4310, 4400, 4410, 4500, 4510, 4600, 4610, 4700, 4710 Replaces Part Number(s): AM107759, AT63325, AT315073, AT327447, AT344971, GG420-32536, GG420-33192, GG420-33358 ATV/RTV/UTV
Models: Gator Diesel, Gator HPX4x2, Gator HPX4x4, Gator TH 6x4, Gator Trail, Gator Trail HPX4x4, Gator Turf, Gator TX, Gator TX Turf, Gator Worksite, Gator XUV Model Breaks: Gator Diesel (s/n 2298-later) Replaces Part Number(s): AM107759, AT63325, AT315073, AT327447, AT344971, GG420-32536, GG420-33192, GG420-33358

Reference numbers: AM107759, AT63325, AT315073, AT327447, AT344971, GG420-32536, GG420-33192, GG420-33358

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • John Deere 415
  • John Deere 455
  • John Deere F725
  • John Deere F735
  • John Deere G100
  • John Deere L130
  • John Deere LT150
  • John Deere LX266
  • John Deere LX288
  • John Deere X720
  • John Deere X724
  • John Deere Z465
  • John Deere 165
  • John Deere 240
  • John Deere 245
  • John Deere 260
  • John Deere 265
  • John Deere 285
  • John Deere 318
  • John Deere 320
  • John Deere 325
  • John Deere 345
  • John Deere 425
  • John Deere 445
  • John Deere 325 (s/n 70001-later)
  • John Deere 4400
  • John Deere 4500
  • John Deere 4105
  • John Deere 4200
  • John Deere 4210
  • John Deere 4300
  • John Deere 4310
  • John Deere 4410
  • John Deere 4510
  • John Deere 4600
  • John Deere 4610
  • John Deere 4700
  • John Deere 4710
  • John Deere Gator HPX4x2
  • John Deere Gator HPX4x4
  • John Deere Gator TH 6x4
  • John Deere Gator Trail HPX4x4
Application notes
  • Aftermarket Bucket Seat with Slide Rails & Operator Presence Switch
  • Tech Info: -Waterproof black vinyl -Vacuum formed with centralized drain hole -Durable blow molded plastic frame is corrosion resistant -19" high-back seat which will replace both original 16" and 19" high-back seats -Accepts operator presence switch -Seat dimensions: 18.75" x 18.8" (W x H) -Multiple mounting patterns -Uses standard 5/16 18UNC bolts -Replaces: AT63325, AT315073, AT327447, AT344971, GG420-32536, GG420-33192, GG420-33358 - -Pair of Slide Rails -Replaces: 6043 - -Operators Presence Switch Kit -Replaces: 8666 Fits John Deere: Backhoe
  • Models: 415 Model Breaks: 415 (s/n 70001-later) Replaces Part Number(s): AM107759, AT63325, AT315073, AT327447, AT344971, GG420-32536, GG420-33192, GG420-33358 Crawler
  • Models: F725, F735, G100, L130, LT150, LX266, LX288, X720, X724, Z465, 165, 240, 245, 260, 265, 285, 318, 320, 325, 345, 415, 425, 445, 455 Model Breaks: F725 (s/n 090001-later), 325 (s/n 70001-later), 345 (s/n 70001-later), 415 (s/n 70001-later), 425 (s/n 70001-later) Replaces Part Number(s): AM107759, AT63325, AT315073, AT327447, AT344971, GG420-32536, GG420-33192, GG420-33358 Skid Steer Loader
  • Models: 260, 325 (s/n 70001-later) Model Breaks: 325 (s/n 70001-later) Replaces Part Number(s): AM107759, AT63325, AT315073, AT327447, AT344971, GG420-32536, GG420-33192, GG420-33358 Telehandler
  • Models: Gator Diesel, Gator HPX4x2, Gator HPX4x4, Gator TH 6x4, Gator Trail, Gator Trail HPX4x4, Gator Turf, Gator TX, Gator TX Turf, Gator Worksite, Gator XUV Model Breaks: Gator Diesel (s/n 2298-later) Replaces Part Number(s): AM107759, AT63325, AT315073, AT327447, AT344971, GG420-32536, GG420-33192, GG420-33358
