TX12433 12V,CW,9T,D/D,BO

Quantity indicated in catalogue: 1

Replacement part: 12V,CW,9T,D/D,BO.

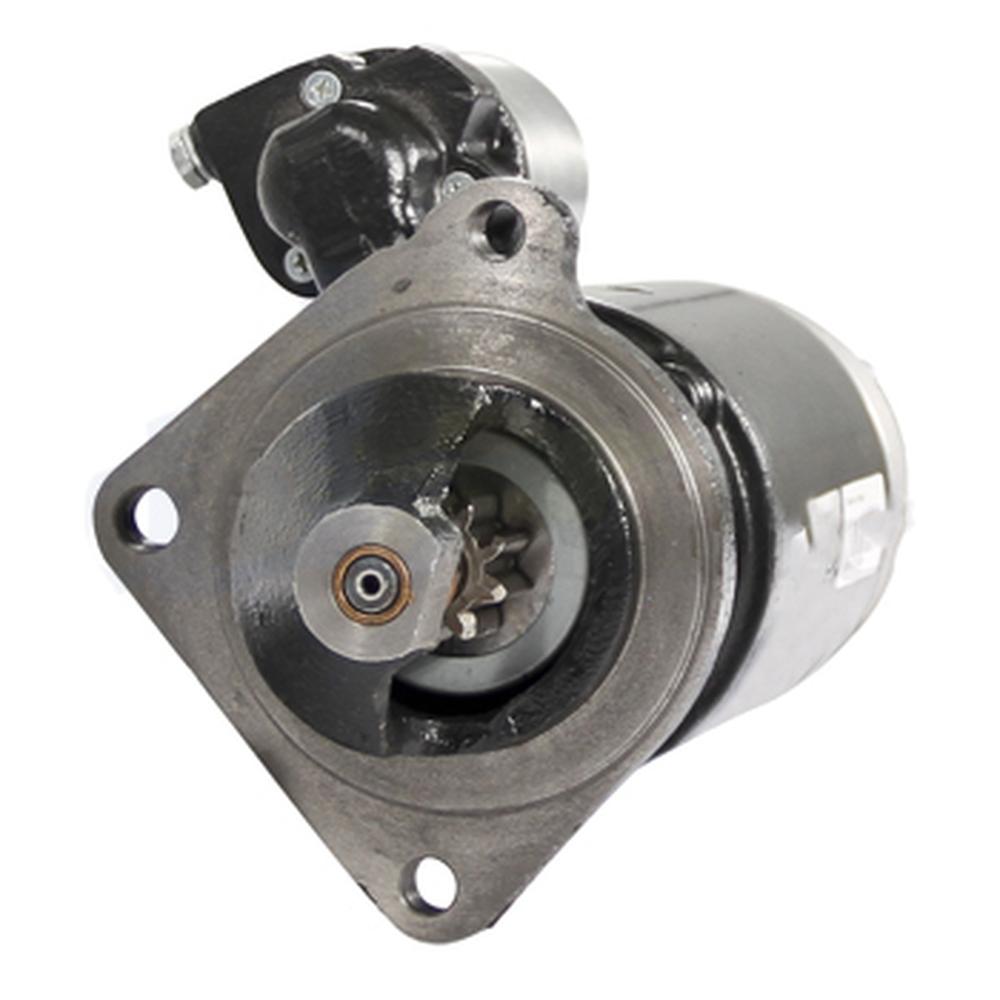

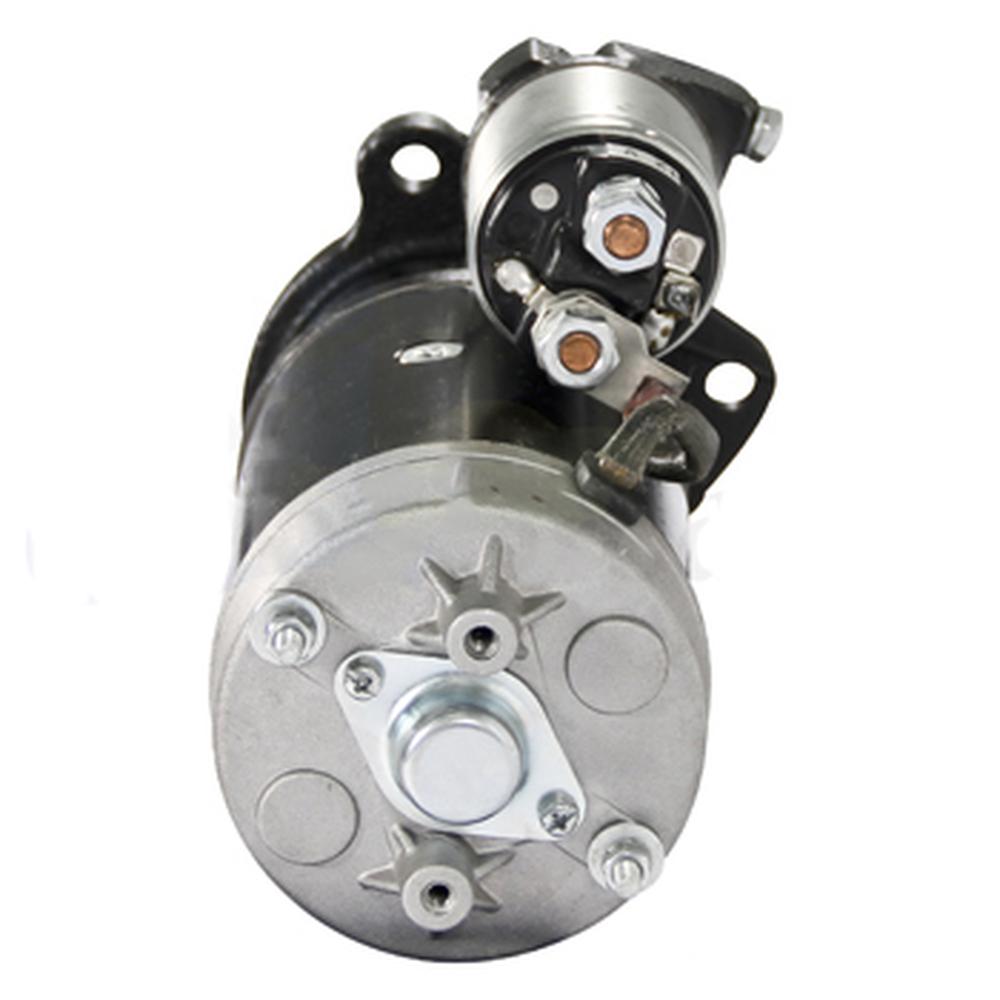

Configuration: 12V Starter for Fiat, Long, Fits Ford/New Holland, White, Oliver, Fits Case/IH, Fits Allis Chalmers, and Goldoni TractorsThis aftermarket direct-drive (DD) starter motor replaces the original Fits Bosch-type starter on a wide range of Fiat-powered agricultural tractors sold under multiple brand names. Rated at 12 volts, 3.0 kW, with clockwise rotation and a 9-tooth drive pinion, it is a direct-fit replacement for the starting systems on Long, Fiat, Fits Ford/New Holland TN/TK/TD series, White, Oliver, Fits Allis Chalmers, Goldoni, and Fits Case/International Harvester models listed below. Note: Not for 2-cylinder engine models. Not Fits Mitsubishi-powered units. Uses TX13149 solenoid.Specifications Voltage: 12V Power: 3.0 kW Rotation: Clockwise (CW) Type: Direct Drive (DD) - Fits Bosch Type Teeth: 9 Length (bolt housing to end): 10-3/4 in. Full Length: 13-1/2 in. Pinion OD: 35 mm / 1.378 in. Mounting Holes: 11.7 mm ID unthreaded (3 holes) Compatible ModelsLong: 260, 350, 360, 445, 453, 460, 483, 510, 530, 532, 533, 550, 553, 560, 610, 640, 642, 643, 683, 700, 703, 740, 833, 850, 1033 II, 1010 II, 1045, 1250A, 1255, 1265, 1270, 2360, 2360 DTC, 2460, 2460 DTC, 2510, 2610, 3010S, 3435, 3830, 3935, 4010S, 4030, 4230, 4330V, 4430, 4430N, 4835, 5010S, 5040, 5530, 5635, 6530, 6635, 7530, 7635
Fits Ford/New Holland TN/TK/TD Series: TN55, TN55D, TN55S, TN60A, TN60D, TN60DA, TN60SA, TN60VA, TN65, TN65D, TN65F, TN65S, TN65V, TN70, TN70A, TN70D, TN70DA, TN70F, TN70NA, TN70S, TN70SA, TN70VA, TN75, TN75A, TN75D, TN75DA, TN75F, TN75FA, TN75S, TN75SA, TN75V, TN75VA, TN80F, TN85FA, TN90F, TN95F, TN95FA, TN95VA, TD60D, TD70D, TD75D, TD80D, TD90D, TD95D, TK75, TK75F, TK75FA, TK75M, TK75MA, TK75V, TK76, TK80A, TK80MA, TK85, TK85M, TK90A, TK90MA, TK100A, TL70, TL80, TL90, TL100, TT55, TT60A, TT65, TT75, TT75A, JX55, JX60, JX65, JX70, JX70U, JX75, JX80, JX80U, JX85, JX90, JX90U, JX95, JX1060C, JX1070C, JX1070N, JX1075C, JX1075N, JX1095N, LB75, LB75CP, LB90, LB95, LB110, LB115.B, LM430, LM640Fiat: 500, 600, 640, 650, 700, 740, 850, 55-46, 55-56, 55-66, 55-88, 55-90, 60-56, 60-75, 60-88, 60-90, 65-46, 65-46DT, 65-90, 65-90DT, 65-93, 65-93DT, 65-94, 65-94DT, 70-56, 70-56DT, 70-66, 70-66DT, 70-66LP, 70-66S, 70-66SDT, 70-66V, 70-76, 70-76DT, 70-76F, 70-76FDT, 70-76LP, 70-76LPDT, 70-76V, 70-88, 70-88DT, 70-90, 70-90DT, 72-85, 72-85M, 72-86LPDT, 72-93, 72-93DT, 72-94, 72-94DT, 80-66, 80-66DT, 80-66F, 80-66FDT, 80-76, 80-76DT, 80-76F, 80-88, 80-88DT, 80-90, 80-90DT, 82-93, 82-93DT, 82-94, 82-94DT, 85-90, 85-90DT, 88-93, 88-93DT, 88-94, 88-94DT, 90-90, 115-90, 130-90, 180-90, 180-90DT, L65White Oliver: 2-50, 2-60, 1255, 1265, 1270, 1365, 1370
Fits Case/International Harvester: 310, 340, 350, 360, 453, 460, 500, 510, 530, 532, 533, 550, 553, 600, 610, 640, 642, 643, 683, 700, 703, 740, 833, 850Goldoni: See models list
Replaces Part Number(s):TX12433, 4703751, 4699705, 4702248, 4737755, 4755109, 4807375, 4832942, 4988513, 5111319, 5119319, 99999950, 99449112, 99449113, 82093256, 20887287, 2088728-7, 500338952, 500338953, 500338953R, 504059251, 504059251R, 5801441814, 5801441816, 0001367014, 0 001 367 014, 0001367028, 0 001 359 091, 0001359021, 0001359102, 17184, 26394, 26394A/D, 27430, 27430A, 27440, 27440A, S0847, S4537, SR914X, 63216825, 63216826, 63216827, 63217121, MT68AA, MT68AB, MT68AC, MT71Z, 11.130.127, 11.130.198, 11.130.409, 11.130.510, 11.130.618, 11.139.361, AZJ3115, AZJ3145, AZJ3195, AZJ3516, AZJ3534, AZJ3907, 9-144-744, IS0409, IS1387, MS192, 30-3043509, 31-2904907New aftermarket replacement part - not remanufactured, not used.

Reference numbers: TX12433, 4703751, 4699705, 4702248, 4737755, 4755109, 4807375, 4832942, 4988513, 5111319, 5119319, 99999950, 99449112, 99449113, 82093256, 20887287, 500338952, 500338953, 500338953R, 504059251, 504059251R, 5801441814, 5801441816, 0001367014, 0001367028, 0001359021, 0001359102, 17184, 26394, 26394A/D, 27430, 27430A, 27440, 27440A, S0847, S4537, SR914X, 63216825, 63216826, 63216827, 63217121, MT68AA, MT68AB, MT68AC, MT71Z, 11.130.127, 11.130.198, 11.130.409, 11.130.510, 11.130.618, 11.139.361, AZJ3115, AZJ3145, AZJ3195, AZJ3516, AZJ3534, AZJ3907, 9-144-744, IS0409, IS1387, MS192, 30-3043509

• One New Aftermarket Replacement 12V Starter for Fiat, Long, Fits Ford/New Holland, White, Oliver, Fits Case/IH, Fits Allis Chalmers, and Goldoni TractorsThis aftermarket direct-drive (DD) starter motor replaces the original Fits Bosch-type starter on a wide range of Fiat-powered agricultural tractors sold under multiple brand names. Rated at 12 volts, 3.0 kW, with clockwise rotation and a 9-tooth drive pinion, it is a direct-fit replacement for the starting systems on Long, Fiat, Fits Ford/New Holland TN/TK/TD series, White, Oliver, Fits Allis Chalmers, Goldoni, and Fits Case/International Harvester models listed below. Note: Not for 2-cylinder engine models. Not Fits Mitsubishi-powered units. Uses TX13149 solenoid.Specifications Voltage: 12V Power: 3.0 kW Rotation: Clockwise (CW) Type: Direct Drive (DD) - Fits Bosch Type Teeth: 9 Length (bolt housing to end): 10-3/4 in. Full Length: 13-1/2 in. Pinion OD: 35 mm / 1.378 in. Mounting Holes: 11.7 mm ID unthreaded (3 holes) Compatible ModelsLong: 260, 350, 360, 445, 453, 460, 483, 510, 530, 532, 533, 550, 553, 560, 610, 640, 642, 643, 683, 700, 703, 740, 833, 850, 1033 II, 1010 II, 1045, 1250A, 1255, 1265, 1270, 2360, 2360 DTC, 2460, 2460 DTC, 2510, 2610, 3010S, 3435, 3830, 3935, 4010S, 4030, 4230, 4330V, 4430, 4430N, 4835, 5010S, 5040, 5530, 5635, 6530, 6635, 7530, 7635 Fits Ford/New Holland TN/TK/TD Series: TN55, TN55D, TN55S, TN60A, TN60D, TN60DA, TN60SA, TN60VA, TN65, TN65D, TN65F, TN65S, TN65V, TN70, TN70A, TN70D, TN70DA, TN70F, TN70NA, TN70S, TN70SA, TN70VA, TN75, TN75A, TN75D, TN75DA, TN75F, TN75FA, TN75S, TN75SA, TN75V, TN75VA, TN80F, TN85FA, TN90F, TN95F, TN95FA, TN95VA, TD60D, TD70D, TD75D, TD80D, TD90D, TD95D, TK75, TK75F, TK75FA, TK75M, TK75MA, TK75V, TK76, TK80A, TK80MA, TK85, TK85M, TK90A, TK90MA, TK100A, TL70, TL80, TL90, TL100, TT55, TT60A, TT65, TT75, TT75A, JX55, JX60, JX65, JX70, JX70U, JX75, JX80, JX80U, JX85, JX90, JX90U, JX95, JX1060C, JX1070C, JX1070N, JX1075C, JX1075N, JX1095N, LB75, LB75CP, LB90, LB95, LB110, LB115.B, LM430, LM640Fiat: 500, 600, 640, 650, 700, 740, 850, 55-46, 55-56, 55-66, 55-88, 55-90, 60-56, 60-75, 60-88, 60-90, 65-46, 65-46DT, 65-90, 65-90DT, 65-93, 65-93DT, 65-94, 65-94DT, 70-56, 70-56DT, 70-66, 70-66DT, 70-66LP, 70-66S, 70-66SDT, 70-66V, 70-76, 70-76DT, 70-76F, 70-76FDT, 70-76LP, 70-76LPDT, 70-76V, 70-88, 70-88DT, 70-90, 70-90DT, 72-85, 72-85M, 72-86LPDT, 72-93, 72-93DT, 72-94, 72-94DT, 80-66, 80-66DT, 80-66F, 80-66FDT, 80-76, 80-76DT, 80-76F, 80-88, 80-88DT, 80-90, 80-90DT, 82-93, 82-93DT, 82-94, 82-94DT, 85-90, 85-90DT, 88-93, 88-93DT, 88-94, 88-94DT, 90-90, 115-90, 130-90, 180-90, 180-90DT, L65White Oliver: 2-50, 2-60, 1255, 1265, 1270, 1365, 1370 Fits Case/International Harvester: 310, 340, 350, 360, 453, 460, 500, 510, 530, 532, 533, 550, 553, 600, 610, 640, 642, 643, 683, 700, 703, 740, 833, 850Goldoni: See models list Replaces Part Number(s):TX12433, 4703751, 4699705, 4702248, 4737755, 4755109, 4807375, 4832942, 4988513, 5111319, 5119319, 99999950, 99449112, 99449113, 82093256, 20887287, 2088728-7, 500338952, 500338953, 500338953R, 504059251, 504059251R, 5801441814, 5801441816, 0001367014, 0 001 367 014, 0001367028, 0 001 359 091, 0001359021, 0001359102, 17184, 26394, 26394A/D, 27430, 27430A, 27440, 27440A, S0847, S4537, SR914X, 63216825, 63216826, 63216827, 63217121, MT68AA, MT68AB, MT68AC, MT71Z, 11.130.127, 11.130.198, 11.130.409, 11.130.510, 11.130.618, 11.139.361, AZJ3115, AZJ3145, AZJ3195, AZJ3516, AZJ3534, AZJ3907, 9-144-744, IS0409, IS1387, MS192, 30-3043509, 31-2904907New aftermarket replacement part - not remanufactured, not used.
