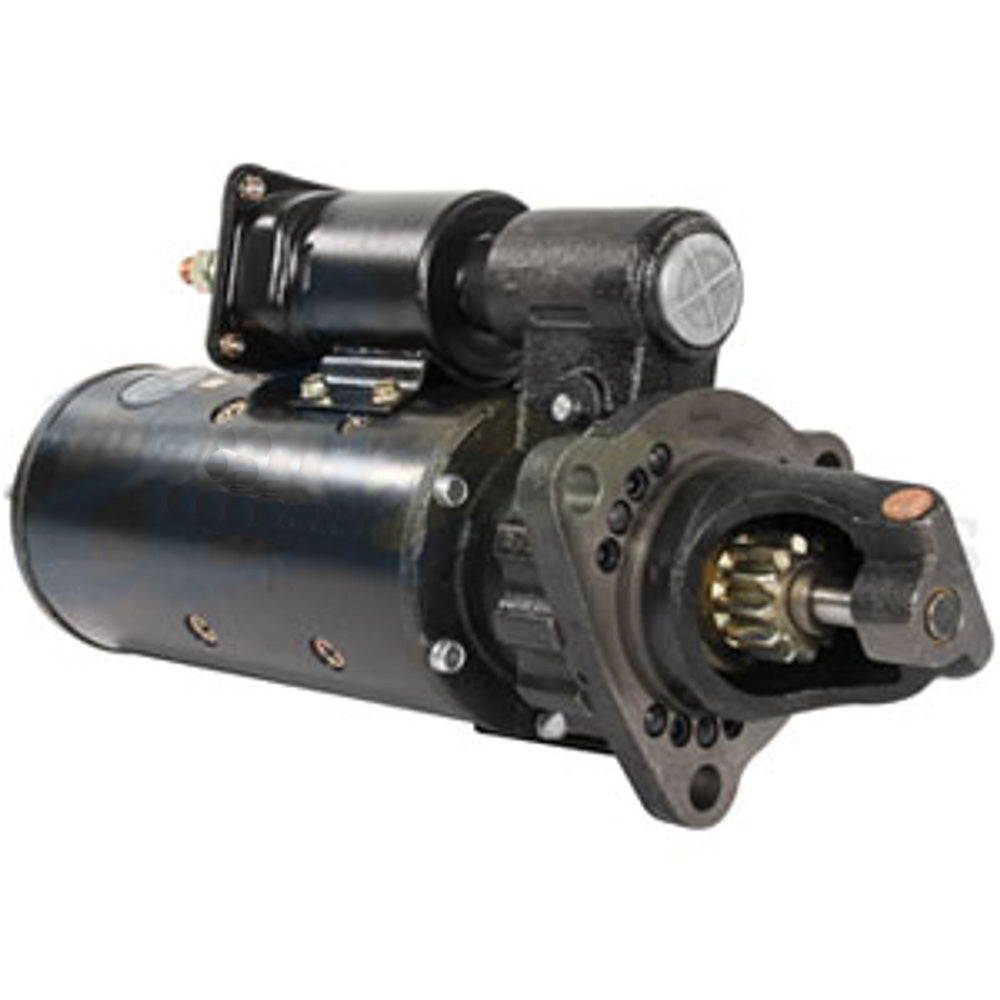

RE53695 Starter

Quantity indicated in catalogue: 1

Replacement part: Starter, Fits Delco.

Configuration: Direct Drive Starter for John Deere, Case/International Harvester, Caterpillar, Ford/New Holland, and Cummins EquipmentThis 12-volt, 7.3 kW direct drive (DD) Delco-style replacement starter fits a wide range of John Deere (JD) tractors, forage harvesters, and wheel loaders, as well as Case/IH (International Harvester) tractors, Caterpillar (Cat) engines and equipment, Ford/New Holland tractors, and Cummins-powered machines. It features clockwise rotation, an 11-tooth drive gear with a 2.201-inch (55.9 mm) gear OD, and overcrank protection. The solenoid is positioned at 82 degrees on a rotatable drive-end housing for flexible installation. Primary OEM reference number is RE53695 (John Deere) and 140855A2 (Case/IH).Specifications Voltage: 12V Power: 7.300 kW (9.789 HP) Type: Direct Drive (DD), Delco Style Rotation: Clockwise (CW) Number of Teeth: 11 Gear OD: 2.201 in / 55.900 mm Solenoid Position: 82 degrees (rotatable DE housing) Length: 19.728 in / 501.100 mm Mount Hole ID 1 and 2: 0.660 in (unthreaded); Mount Hole 3: unthreaded Overcrank Protection: Yes Compatible ModelsJohn Deere Tractors: 530, 531, 535, 540, 541, 545, 570, 630, 631, 632, 634, 640, 641, 642, 644, 8560, 8570, 8630, 8760, 8770, 8850, 8870, 8960, 8970, 6950John Deere Forage Harvesters: 5730, 5830John Deere Industrial/Construction: 580, 580C, 580CK, 530CK, W3Case/IH Tractors: 9170, 9180, 9250, 9260, 9270, 9280, 9350, 9370, 9380, 9390, 9480, 9482, 9680, 9682, STX375, STX425, STX450, 580CKSteiger/Case IH Articulateds: CR1225 Steiger, CR1280 Steiger, KR1225 Steiger, KR1280 Steiger, PTA251 Steiger, PTA270 Steiger, PTA280 Steiger, PTA297 Steiger, PTA310 Steiger, PTA325 Steiger, PT225 Steiger, PT270 Steiger, 9170, 9180, 9280, 9380, 9480, BEARCAT, COUGAR, LION, PANTHER, TIGERCaterpillar (Cat) Engines: C10, C12, C13, C15, C16, 3406, 3408, 3412Ford/New Holland: 2100, 2115Cummins-Powered Equipment: Various Cummins-engine applications per engine model reference numbers belowAdditional Models (from catalog): 530, 570, 876V, 856V, 936V, 946V, 1156, 1156VReplaces Part Number(s):RE53695, 140855A2, 107717A1, 263819C91, 0R2191, 2N2761, 3E7863, 8C3652, 783833, 83977056, 89706425, 89804367, 9706425, 9804367, D8HZ11002C, E2HT11001DA, E3HZ11002A, E3HZ11002B, E3HZ11002C, E6HT11001CA, E6HZ11002C, E6HZ11002D, F0HT11001AA, F0HT11001AB, F0HZ11002A, F6HT11001AA, F6HT11001GA, F6HZ11002AA, F6HZ11002GA, V905, V90562, 10461028, 10461055, 10461096, 10461183, 10461232, 10461511, 10461512, 10461778, 10462155, 10462196, 10478824, 10478964, 10479000, 10479030, 10479038, 10479062, 10479082, 10479151, 10479157, 10479194, 10479255, 10479266, 1990355, 1990391, 1990392, 1990393, 1990421, 1990426, 1990428, 1990449, 1990484, 1993776, 1993836, 323-864, 323-902, 63255VL, 8300035, RE24305, RE41754, TY6728, 3604665R, 3604665RX, 6513, 6548, 20-2383T91, 20-2384T91Aftermarket Interchange NumbersSE501451, SDR0010, SA756, SA756A, SA778, SA796, SA823, SA829, 1673725C91, 202383T91, 202384T91, 0R-4261, 8C-3593, 3604322RX, V102746, V90563, BSX1440039, TS-1501, TS-1700New aftermarket replacement part - not remanufactured, not used.

Reference numbers: RE53695, 140855A2, 107717A1, 263819C91, 0R2191, 2N2761, 3E7863, 8C3652, 783833, 83977056, 89706425, 89804367, 9706425, 9804367, D8HZ11002C, E2HT11001DA, E3HZ11002A, E3HZ11002B, E3HZ11002C, E6HT11001CA, E6HZ11002C, E6HZ11002D, F0HT11001AA, F0HT11001AB, F0HZ11002A, F6HT11001AA, F6HT11001GA, F6HZ11002AA, F6HZ11002GA, V905, V90562, 10461028, 10461055, 10461096, 10461183, 10461232, 10461511, 10461512, 10461778, 10462155, 10462196, 10478824, 10478964, 10479000, 10479030, 10479038, 10479062, 10479082, 10479151, 10479157, 10479194, 10479255, 10479266, 1990355, 1990391, 1990392, 1990393, 1990421, 1990426, 1990428, 1990449, 1990484, 1993776, 1993836, 323-864, 323-902, 63255VL, 8300035, RE24305, RE41754, TY6728, 3604665R, 3604665RX, 6513, 6548, 20-2383T91, SDR0010, SA756, SA756A, SA778, SA796, SA823, SA829, 1673725C91, 202384T91, 0R-4261, 8C-3593, 3604322RX, V102746, V90563, BSX1440039, TS-1501

• One New Aftermarket Replacement Direct Drive Starter for John Deere, Case/International Harvester, Caterpillar, Ford/New Holland, and Cummins EquipmentThis 12-volt, 7.3 kW direct drive (DD) Delco-style replacement starter fits a wide range of John Deere (JD) tractors, forage harvesters, and wheel loaders, as well as Case/IH (International Harvester) tractors, Caterpillar (Cat) engines and equipment, Ford/New Holland tractors, and Cummins-powered machines. It features clockwise rotation, an 11-tooth drive gear with a 2.201-inch (55.9 mm) gear OD, and overcrank protection. The solenoid is positioned at 82 degrees on a rotatable drive-end housing for flexible installation. Primary OEM reference number is RE53695 (John Deere) and 140855A2 (Case/IH).Specifications Voltage: 12V Power: 7.300 kW (9.789 HP) Type: Direct Drive (DD), Delco Style Rotation: Clockwise (CW) Number of Teeth: 11 Gear OD: 2.201 in / 55.900 mm Solenoid Position: 82 degrees (rotatable DE housing) Length: 19.728 in / 501.100 mm Mount Hole ID 1 and 2: 0.660 in (unthreaded); Mount Hole 3: unthreaded Overcrank Protection: Yes Compatible ModelsJohn Deere Tractors: 530, 531, 535, 540, 541, 545, 570, 630, 631, 632, 634, 640, 641, 642, 644, 8560, 8570, 8630, 8760, 8770, 8850, 8870, 8960, 8970, 6950John Deere Forage Harvesters: 5730, 5830John Deere Industrial/Construction: 580, 580C, 580CK, 530CK, W3Case/IH Tractors: 9170, 9180, 9250, 9260, 9270, 9280, 9350, 9370, 9380, 9390, 9480, 9482, 9680, 9682, STX375, STX425, STX450, 580CKSteiger/Case IH Articulateds: CR1225 Steiger, CR1280 Steiger, KR1225 Steiger, KR1280 Steiger, PTA251 Steiger, PTA270 Steiger, PTA280 Steiger, PTA297 Steiger, PTA310 Steiger, PTA325 Steiger, PT225 Steiger, PT270 Steiger, 9170, 9180, 9280, 9380, 9480, BEARCAT, COUGAR, LION, PANTHER, TIGERCaterpillar (Cat) Engines: C10, C12, C13, C15, C16, 3406, 3408, 3412Ford/New Holland: 2100, 2115Cummins-Powered Equipment: Various Cummins-engine applications per engine model reference numbers belowAdditional Models (from catalog): 530, 570, 876V, 856V, 936V, 946V, 1156, 1156VReplaces Part Number(s):RE53695, 140855A2, 107717A1, 263819C91, 0R2191, 2N2761, 3E7863, 8C3652, 783833, 83977056, 89706425, 89804367, 9706425, 9804367, D8HZ11002C, E2HT11001DA, E3HZ11002A, E3HZ11002B, E3HZ11002C, E6HT11001CA, E6HZ11002C, E6HZ11002D, F0HT11001AA, F0HT11001AB, F0HZ11002A, F6HT11001AA, F6HT11001GA, F6HZ11002AA, F6HZ11002GA, V905, V90562, 10461028, 10461055, 10461096, 10461183, 10461232, 10461511, 10461512, 10461778, 10462155, 10462196, 10478824, 10478964, 10479000, 10479030, 10479038, 10479062, 10479082, 10479151, 10479157, 10479194, 10479255, 10479266, 1990355, 1990391, 1990392, 1990393, 1990421, 1990426, 1990428, 1990449, 1990484, 1993776, 1993836, 323-864, 323-902, 63255VL, 8300035, RE24305, RE41754, TY6728, 3604665R, 3604665RX, 6513, 6548, 20-2383T91, 20-2384T91Aftermarket Interchange NumbersSE501451, SDR0010, SA756, SA756A, SA778, SA796, SA823, SA829, 1673725C91, 202383T91, 202384T91, 0R-4261, 8C-3593, 3604322RX, V102746, V90563, BSX1440039, TS-1501, TS-1700New aftermarket replacement part - not remanufactured, not used.
