4796534 Water Pump with Gaskets
4796534 Water Pump with Gaskets – additional image 24796534 Water Pump with Gaskets – additional image 34796534 Water Pump with Gaskets – additional image 44796534 Water Pump with Gaskets – additional image 5

NC-114888 · Water Pumps, Pulleys & Gaskets

4796534 Water Pump with Gaskets

CAD 448.59

Availability to confirm

Water Pump with Gaskets – reference 4796534. Catalogue-listed applications: Fiat, Hesston. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-114888
Reference numbers
4796534, 4727139, 1931072, 130-106
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Water Pump with Gaskets Fits Fiat Tractors.

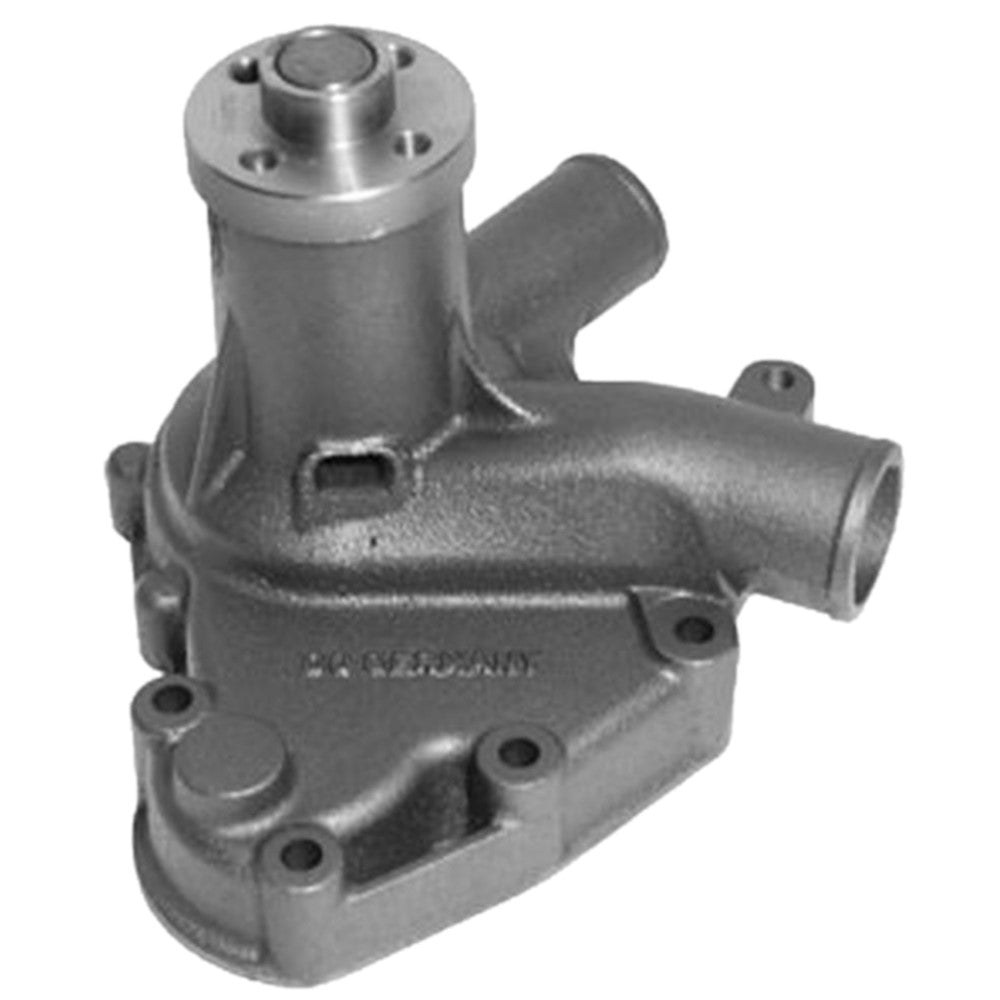

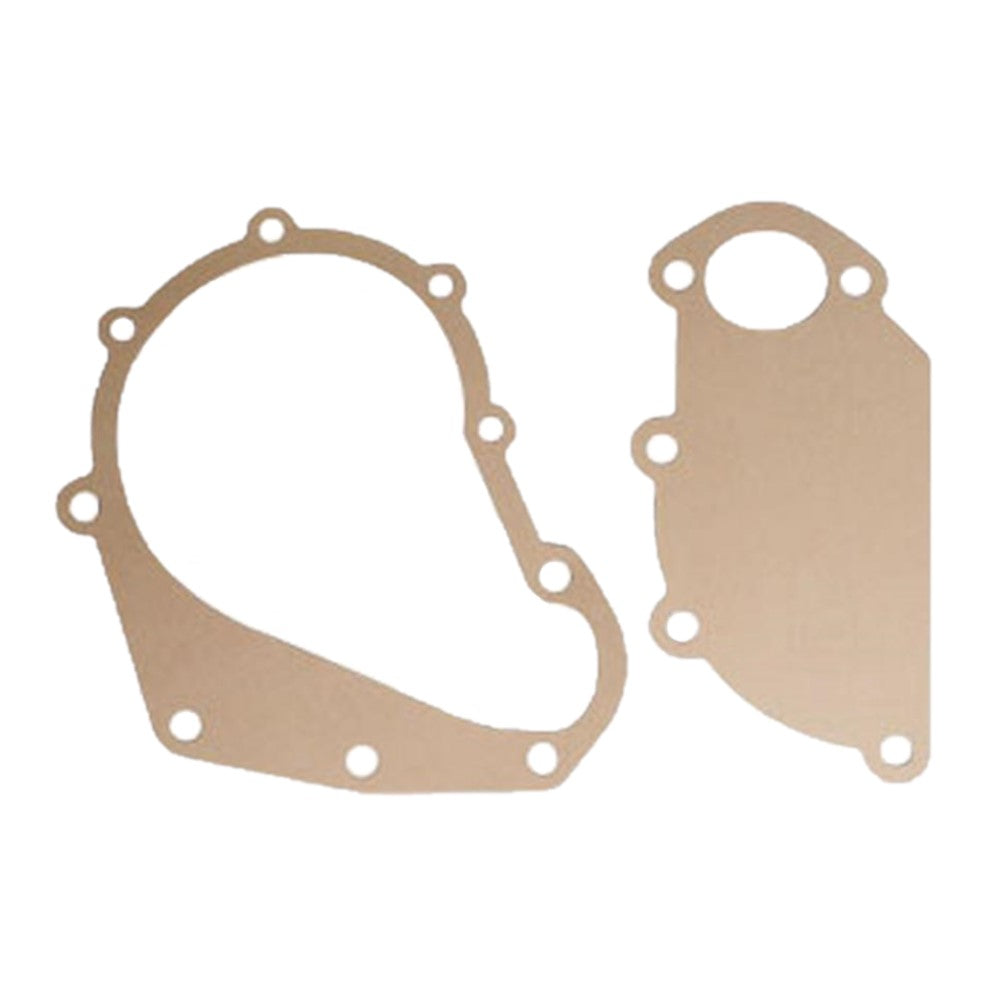

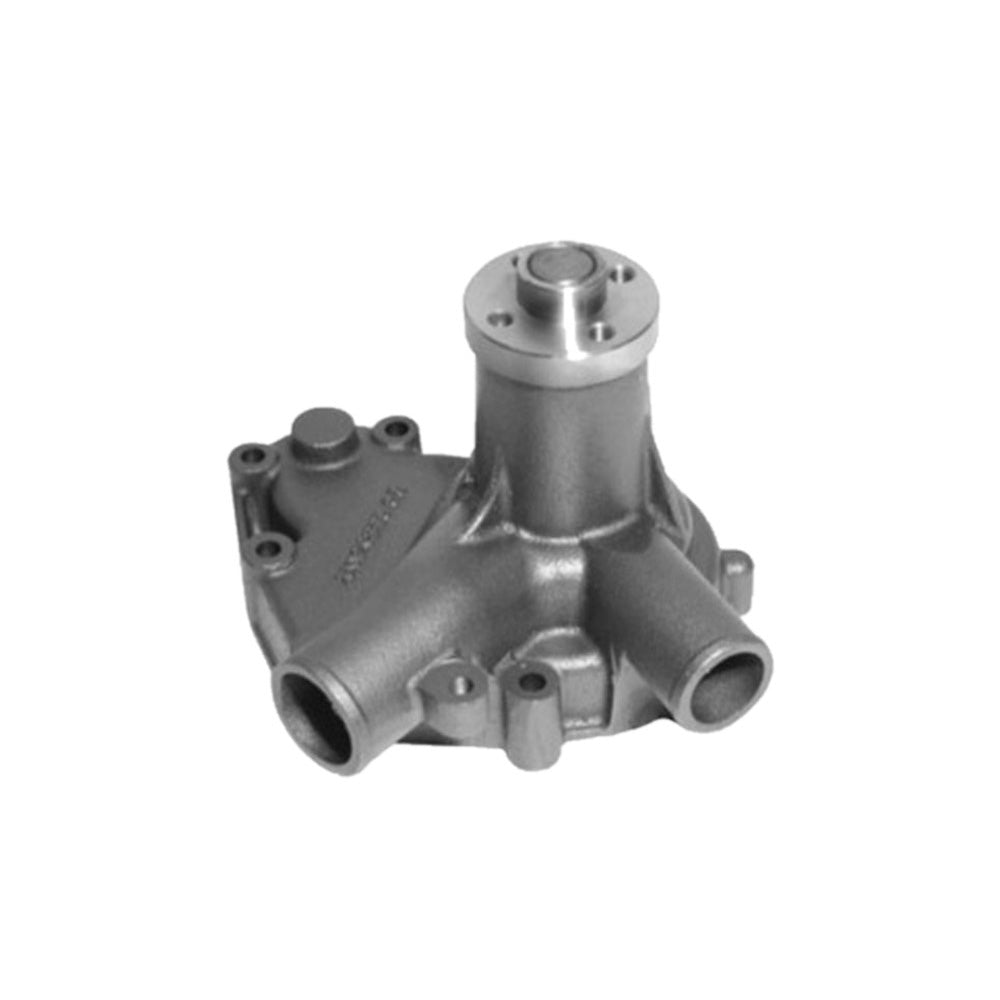

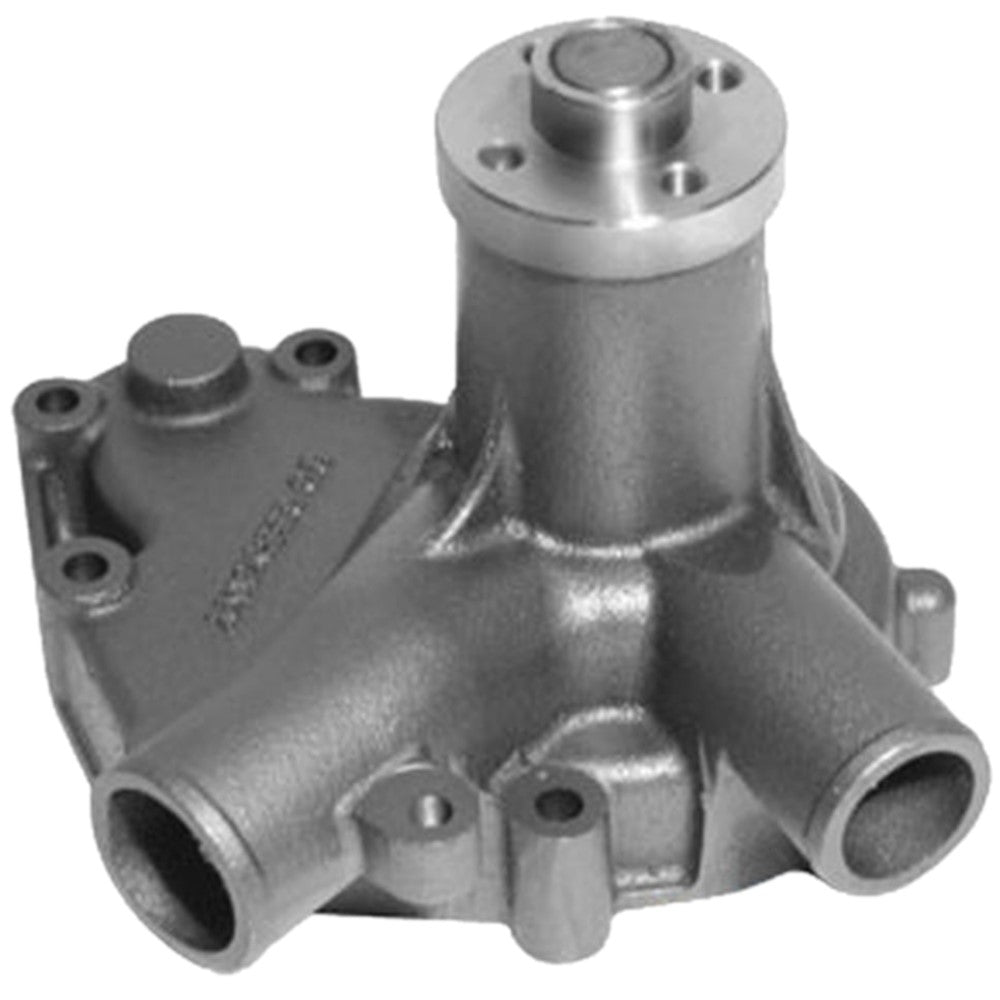

Configuration: Water Pump with Gaskets for Fiat TractorsThis aftermarket replacement water pump services the engine cooling system on Fiat (Fiatagri) large-frame agricultural tractors equipped with the Fiat 8035.05 diesel engine. The kit includes all required mounting gaskets, making it a complete, ready-to-install cooling system repair. Compatible with both standard and dual-traction (DT) configurations.Specifications Impeller Diameter: 76.92 mm Hub Holes: 4 Overall Height: 180 mm Overall Length: 165 mm PCD: 55 mm Pulley Included: No Gaskets Included: Yes Compatible ModelsFiat (Fiatagri) / Hesston-Fiat: 1580, 1880, 160-90, 160-90DT, 180-90, 180-90DTReplaces Part Number(s):4796534, 4727139, 1931072, 130-106, 504065104Aftermarket Interchange NumbersFT58999, S.58999New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 4796534, 4727139, 1931072, 130-106
Application notes
  • One New Aftermarket Replacement Water Pump with Gaskets for Fiat TractorsThis aftermarket replacement water pump services the engine cooling system on Fiat (Fiatagri) large-frame agricultural tractors equipped with the Fiat 8035.05 diesel engine. The kit includes all required mounting gaskets, making it a complete, ready-to-install cooling system repair. Compatible with both standard and dual-traction (DT) configurations.Specifications Impeller Diameter: 76.92 mm Hub Holes: 4 Overall Height: 180 mm Overall Length: 165 mm PCD: 55 mm Pulley Included: No Gaskets Included: Yes Compatible ModelsFiat (Fiatagri) / Hesston-Fiat: 1580, 1880, 160-90, 160-90DT, 180-90, 180-90DTReplaces Part Number(s):4796534, 4727139, 1931072, 130-106, 504065104Aftermarket Interchange NumbersFT58999, S.58999New aftermarket replacement part - not remanufactured, not used.
