W334109-A of Cross & Bearing 32MM x 36MM Caps x 88.8 MM x 106 MM Long – Fits Walterscheid
W334109-A of Cross & Bearing 32MM x 36MM Caps x 88.8 MM x 106 MM Long – Fits Walterscheid – additional image 2

NC-113880 · Bearings, Bushings, Seals

W334109-A of Cross & Bearing 32MM x 36MM Caps x 88.8 MM x 106 MM Long – Fits Walterscheid

CAD 550.39

Availability to confirm

of Cross & Bearing 32MM x 36MM Caps x 88.8 MM x 106 MM Long – reference W334109-A. Catalogue-listed applications: Walterscheid. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-113880
Reference numbers
W334109-A
Listed package quantity
2
Product information and configuration
Quantity indicated in catalogue: 2

Replacement part: of Cross & Bearing 32MM x 36MM Caps x 88.8 MM x 106 MM Long.

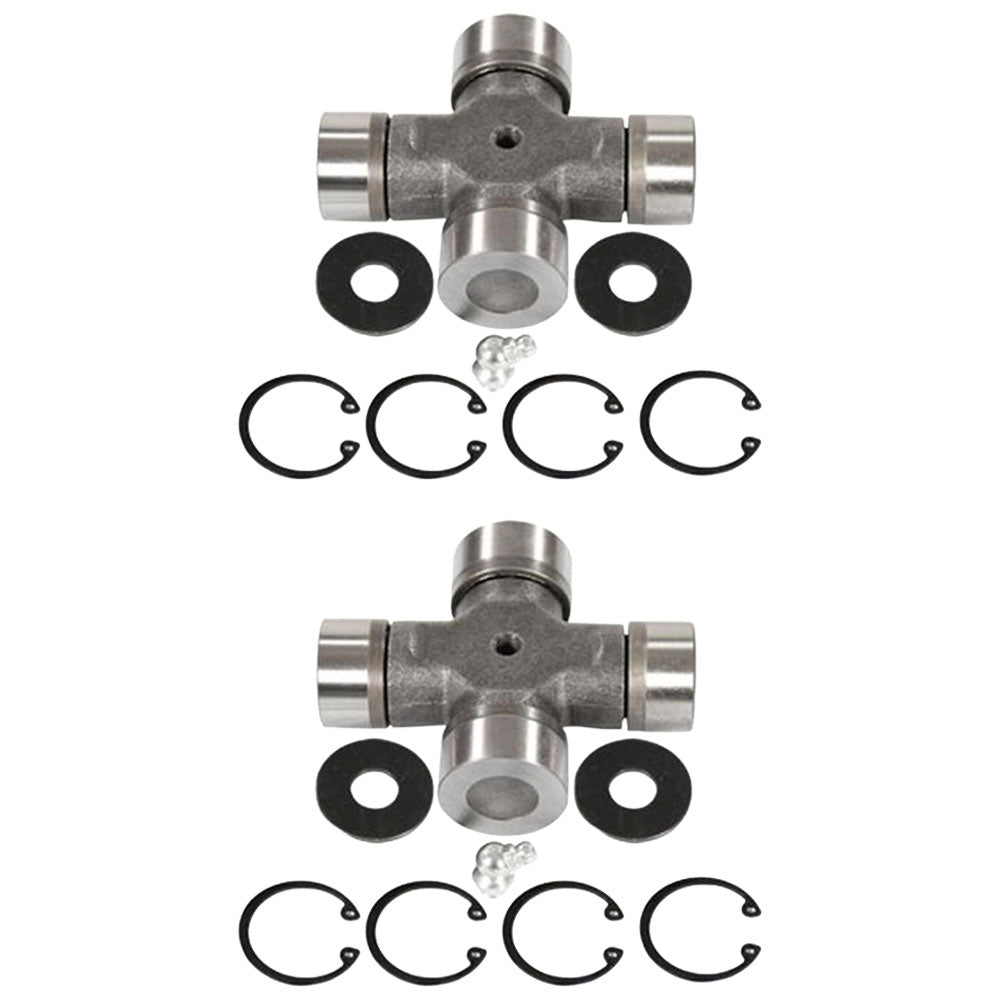

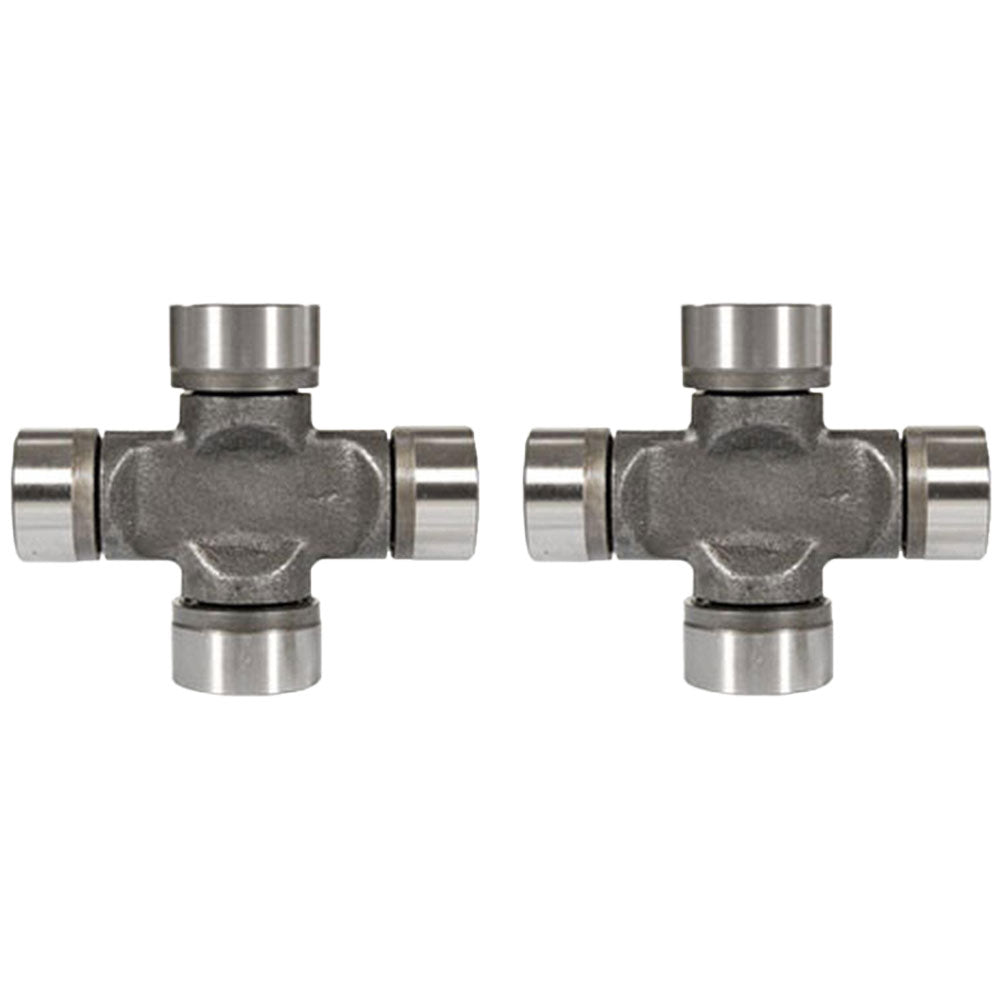

Configuration: Two New Cross & Bearing Kits for Walterscheid PTO DrivelinesThis listing includes two (2) aftermarket replacement Cross and Bearing Kits designed for Walterscheid WWE and WWZ Series 2580 constant velocity (CV) PTO drivelines. These U-joint cross kits are used on the CV end of the driveline and are a direct replacement for worn or damaged universal joint crosses. Each kit features dual-sized needle bearing caps, a center grease zerk for easy lubrication, and an external snap ring that locates in the yoke. Rated at 90 HP at 540 RPM and 139 HP at 1,000 RPM.Specifications (per kit) Cap Diameter (A): 32.0 mm (1.259") Cap Diameter (B): 36.0 mm (1.41") Cross Length (C): 88.8 mm - 89.0 mm (3.49" - 3.50") Cross Length (D): 106.0 mm (4.17") Snap Ring Location: External - located in yoke Grease Zerk Location: Center Quantity: 2 kits included Compatible ModelsWalterscheid WWE Series: 2580Walterscheid WWZ Series: 2580
Replaces Part Number(s):W334109-A, W334109-A-ANew aftermarket replacement part - not remanufactured, not used.

Reference numbers: W334109-A
Application notes
  • Two New Aftermarket Replacement Cross & Bearing Kits for Walterscheid PTO DrivelinesThis listing includes two (2) aftermarket replacement Cross and Bearing Kits designed for Walterscheid WWE and WWZ Series 2580 constant velocity (CV) PTO drivelines. These U-joint cross kits are used on the CV end of the driveline and are a direct replacement for worn or damaged universal joint crosses. Each kit features dual-sized needle bearing caps, a center grease zerk for easy lubrication, and an external snap ring that locates in the yoke. Rated at 90 HP at 540 RPM and 139 HP at 1,000 RPM.Specifications (per kit) Cap Diameter (A): 32.0 mm (1.259") Cap Diameter (B): 36.0 mm (1.41") Cross Length (C): 88.8 mm - 89.0 mm (3.49" - 3.50") Cross Length (D): 106.0 mm (4.17") Snap Ring Location: External - located in yoke Grease Zerk Location: Center Quantity: 2 kits included Compatible ModelsWalterscheid WWE Series: 2580Walterscheid WWZ Series: 2580 Replaces Part Number(s):W334109-A, W334109-A-ANew aftermarket replacement part - not remanufactured, not used.
