F1392R T-Bolt & Clutch Dog Toggle Kit – Fits John Deere
F1392R T-Bolt & Clutch Dog Toggle Kit – Fits John Deere – additional image 2F1392R T-Bolt & Clutch Dog Toggle Kit – Fits John Deere – additional image 3F1392R T-Bolt & Clutch Dog Toggle Kit – Fits John Deere – additional image 4F1392R T-Bolt & Clutch Dog Toggle Kit – Fits John Deere – additional image 5F1392R T-Bolt & Clutch Dog Toggle Kit – Fits John Deere – additional image 6F1392R T-Bolt & Clutch Dog Toggle Kit – Fits John Deere – additional image 7

NC-113328 · Gasket, Seals, Tools & Other

F1392R T-Bolt & Clutch Dog Toggle Kit – Fits John Deere

CAD 500.24

Availability to confirm

T-Bolt & Clutch Dog Toggle Kit – reference F1392R. Catalogue-listed applications: John Deere 70, 720, 730. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-113328
Reference numbers
F1392R, C74R, D355R, 14H862, A352R, C434R
Product information and configuration

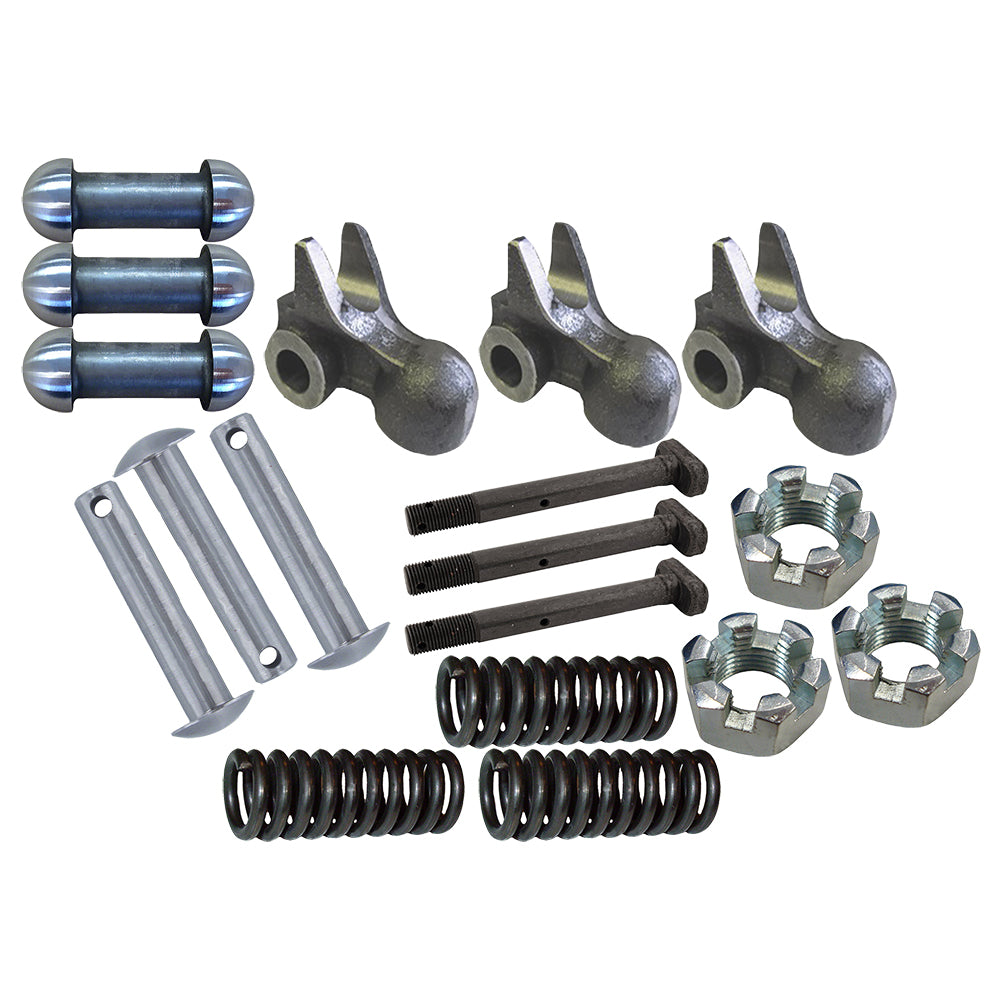

Replacement part: T-Bolt & Clutch Dog Toggle Kit Fits John Deere 70 720 730.

Configuration: T-Bolt & Clutch Dog Toggle Kit

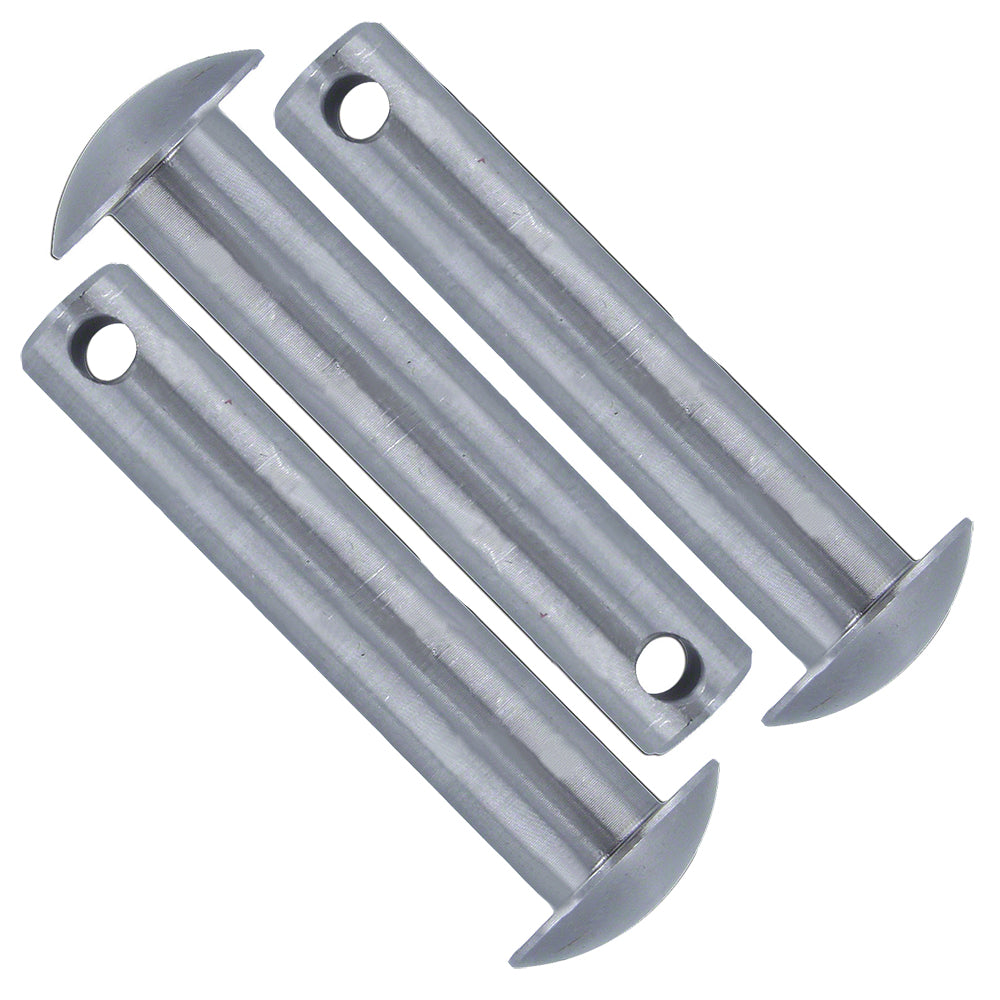

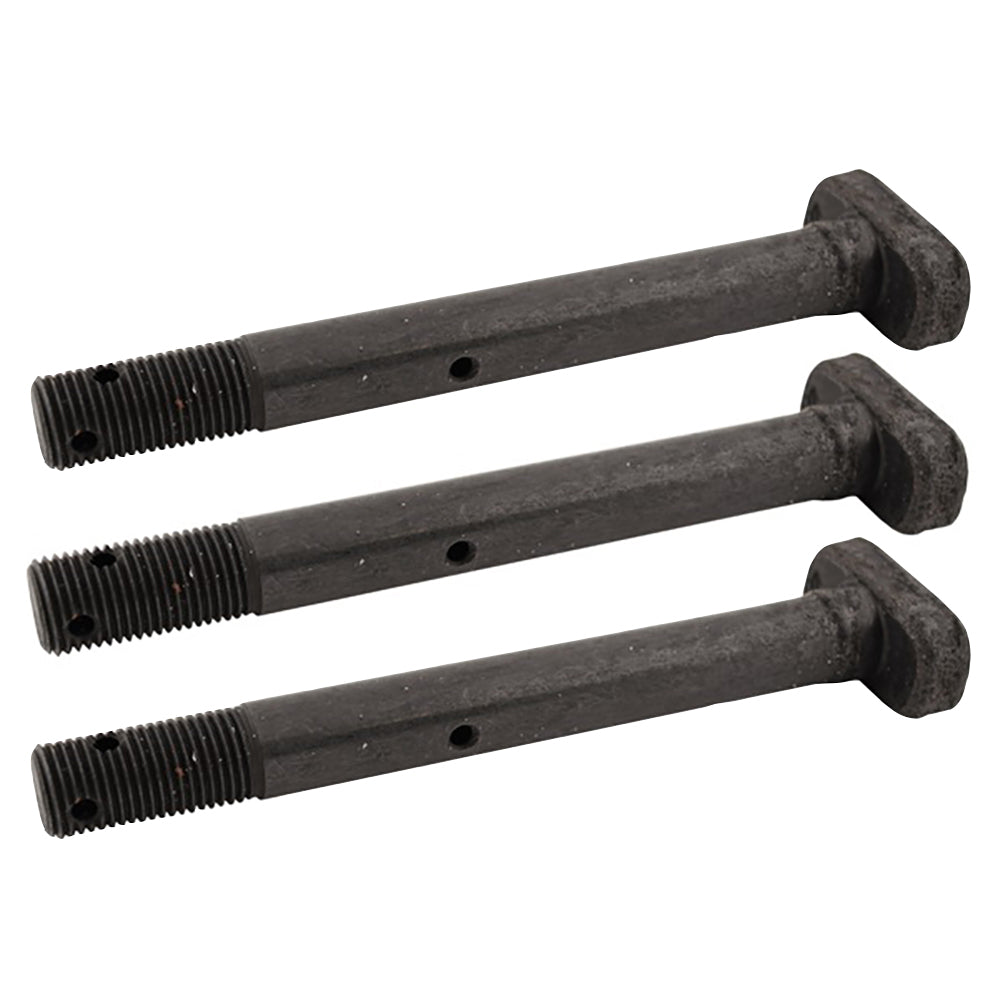

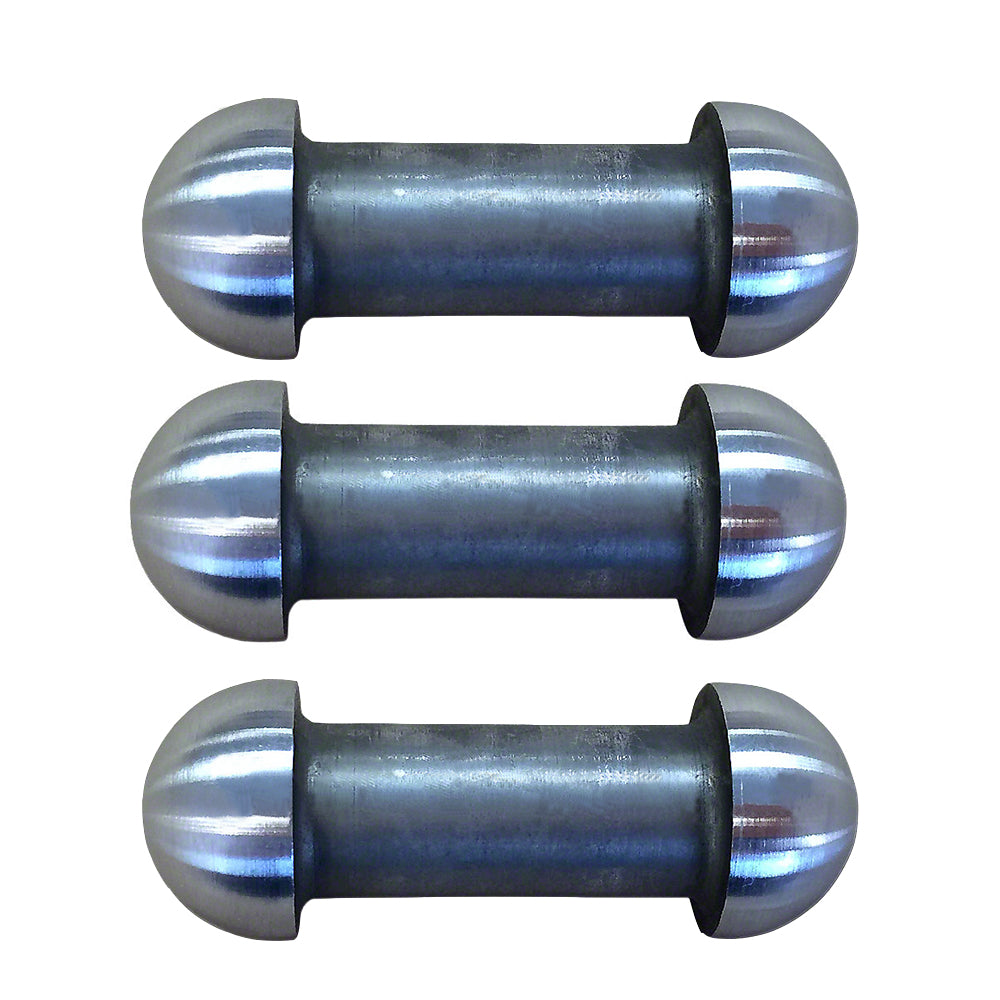

Tech Info: -(3) Clutch Operating T-Bolts -3 used per tractor -9/16" diameter -5-9/16" overall length -Replaces: F1392R - -(3) Clutch Dogs -3 required per tractor -Replaces: C74R - -(3) Clutch Dog Pins -0.495" Diameter -2.500" Usable length -3 Used per tractor -Replaces: D355R - -(3) Clutch Adjusting Nuts -9/16" - 18 NF -Grade 5 -Slotted hex nut, 9/16" -3 used per tractor -Replaces: 14H862, D2789R, R20228 - -(3) Clutch Disc Adjusting Springs -Length: 1.915" -Outer Diameter: 0.740" -Inner Diameter: 0.500" -Wire Thickness: 0.120" -Mounts to the Outer Cast Iron Adjusting Disc -The clutch disc adjusting spring mounts to the outer cast iron adjusting disc -Replaces: A352R - -(3) Clutch Dog Toggles -1.999" overall length -Three (3) used per tractor -Note: When installing, the end with the hole fits into the clutch dog -Replaces: C434R, JDS3372
Fits John Deere: Tractor
Models: 70, 720, 730 Replaces Part Number(s): F1392R, C74R, D355R, 14H862, A352R, C434R

Reference numbers: F1392R, C74R, D355R, 14H862, A352R, C434R

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • John Deere 70
  • John Deere 720
  • John Deere 730
Application notes
  • Aftermarket T-Bolt & Clutch Dog Toggle Kit
  • Tech Info: -(3) Clutch Operating T-Bolts -3 used per tractor -9/16" diameter -5-9/16" overall length -Replaces: F1392R - -(3) Clutch Dogs -3 required per tractor -Replaces: C74R - -(3) Clutch Dog Pins -0.495" Diameter -2.500" Usable length -3 Used per tractor -Replaces: D355R - -(3) Clutch Adjusting Nuts -9/16" - 18 NF -Grade 5 -Slotted hex nut, 9/16" -3 used per tractor -Replaces: 14H862, D2789R, R20228 - -(3) Clutch Disc Adjusting Springs -Length: 1.915" -Outer Diameter: 0.740" -Inner Diameter: 0.500" -Wire Thickness: 0.120" -Mounts to the Outer Cast Iron Adjusting Disc -The clutch disc adjusting spring mounts to the outer cast iron adjusting disc -Replaces: A352R - -(3) Clutch Dog Toggles -1.999" overall length -Three (3) used per tractor -Note: When installing, the end with the hole fits into the clutch dog -Replaces: C434R, JDS3372 Fits John Deere: Tractor
