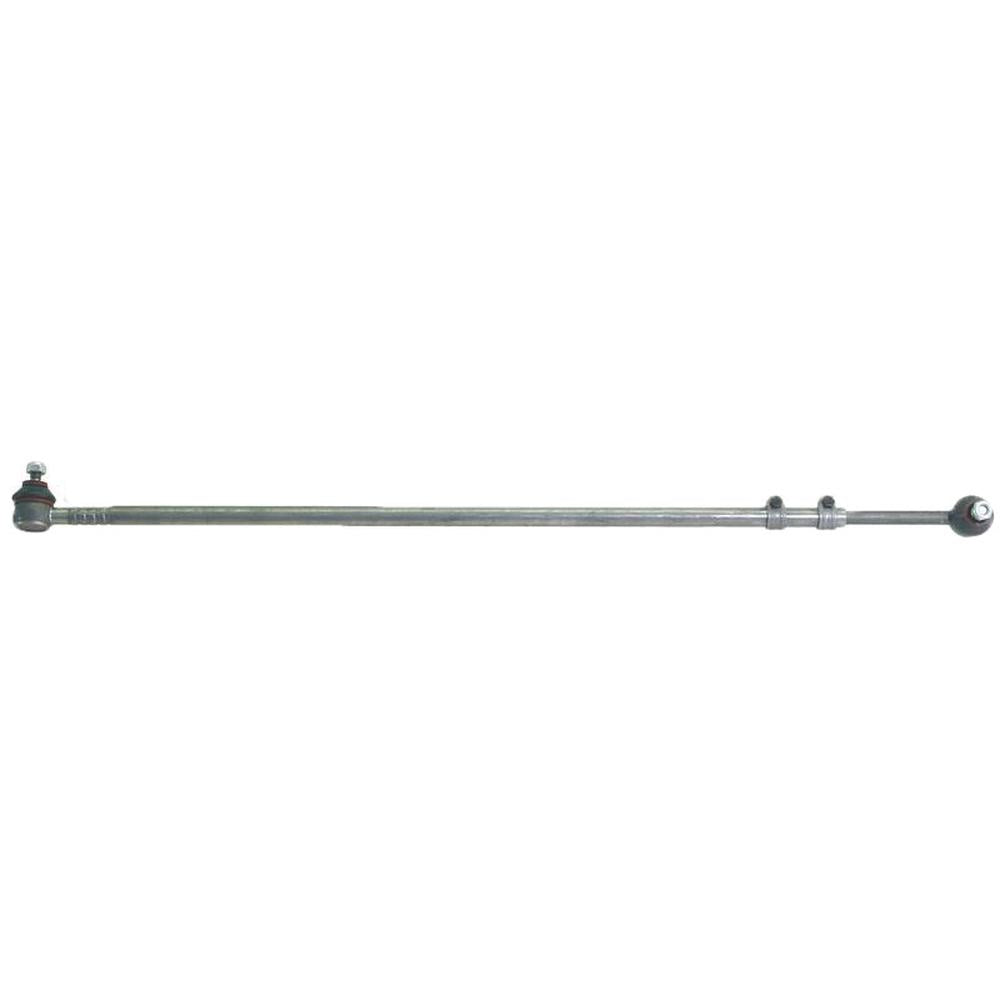

02382774 Tie Rod/Drag Link Assembly, Length: 290 - 860mm
02382774 Tie Rod/Drag Link Assembly, Length: 290 - 860mm – additional image 2

NC-110917 · Tie Rods, Draglinks & Ball Joints

02382774 Tie Rod/Drag Link Assembly, Length: 290 - 860mm

CAD 515.26

In stock

Tie Rod/Drag Link Assembly, Length: 290 - 860mm – reference 02382774. Catalogue-listed applications: Deutz-Fahr, Deutz 40, 4005, 4006, 4506, 4507, 5206, 5207. View photos, specifications, CAD pricing and delivery options from NorthCore.

Standard delivery: 3–7 business days. Other services and estimates are shown at checkout. Minimum online order: CAD 100 in parts, excluding shipping and tax. Add this part to your cart to calculate delivery and review your order.

Ask about this part

Part specifications and references

NorthCore code
NC-110917
Reference numbers
02382774, 2382774
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Tie Rod/Drag Link Assembly, Length: 290 - 860mm Fits Deutz-Fahr.

Configuration: Tie Rod/Drag Link Assembly, Length: 290 - 860mm Fits Deutz-Fahr
Models: 40, 4005, 4006, 4506, 4507, 5206, 5207, 5506, 6206, 6207, 6507, 6806, 7007, 7206, D 4006, D 4007, D 4506, D 4507, D 4807, D 5006, D 5206, D 5207

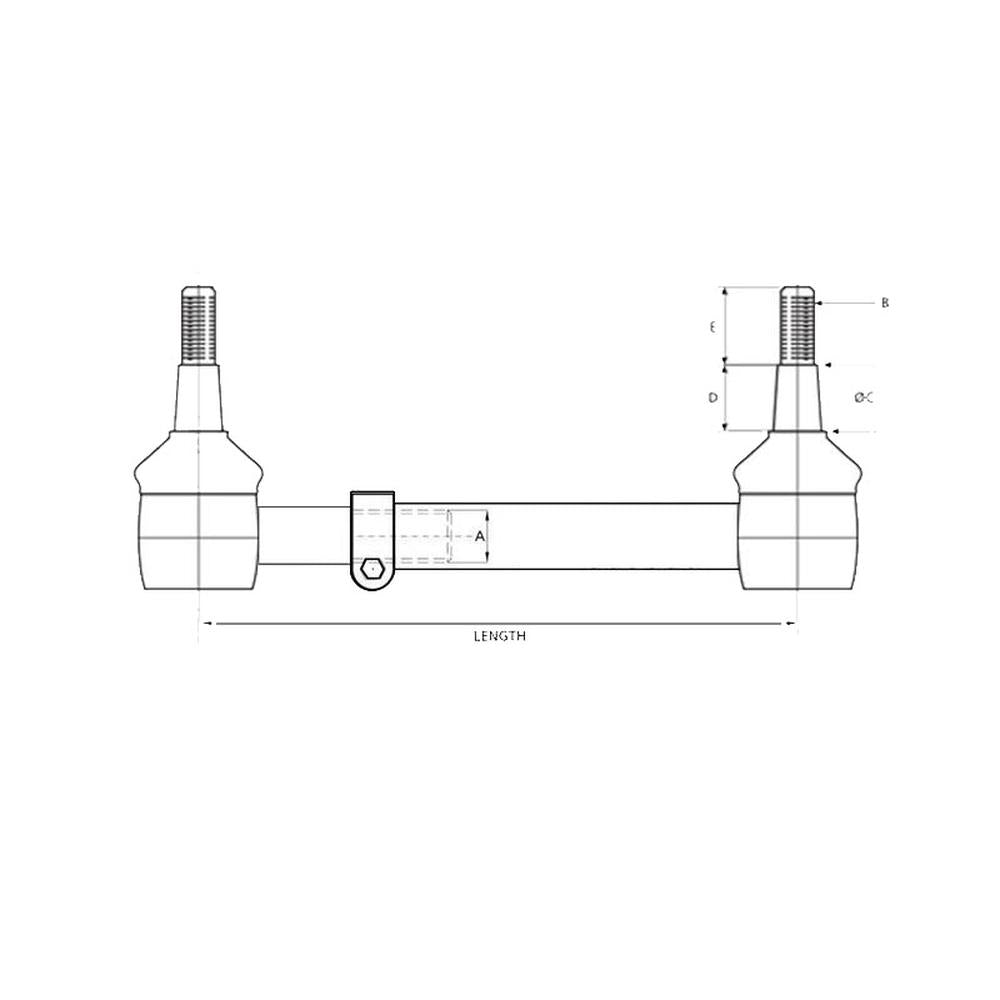

Tech Info: -C mm: 14.5 to 16.5 -Inner side thread A mm: 22 -Length mm: 290 - 860 -Outer side thread B mm: M12 x 1.5 -Taper C mm: 16.5 - 14.5 -Taper length D mm: 14.5 -Thread length E mm: 18 Replaces Part Number(s): 02382774, 2382774

Reference numbers: 02382774, 2382774

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Deutz-Fahr 40
  • Deutz-Fahr 4005
  • Deutz-Fahr 4006
  • Deutz-Fahr 4506
  • Deutz-Fahr 4507
  • Deutz-Fahr 5206
  • Deutz-Fahr 5207
  • Deutz-Fahr 5506
  • Deutz-Fahr 6206
  • Deutz-Fahr 6207
  • Deutz-Fahr 6507
  • Deutz-Fahr 6806
  • Deutz-Fahr 7007
  • Deutz-Fahr 7206
  • Deutz-Fahr D 4006
  • Deutz-Fahr D 4007
  • Deutz-Fahr D 4506
  • Deutz-Fahr D 4507
  • Deutz-Fahr D 4807
  • Deutz-Fahr D 5006
  • Deutz-Fahr D 5206
  • Deutz-Fahr D 5207
Application notes
  • One New Aftermarket Tie Rod/Drag Link Assembly, Length: 290 - 860mm Fits Deutz-Fahr
