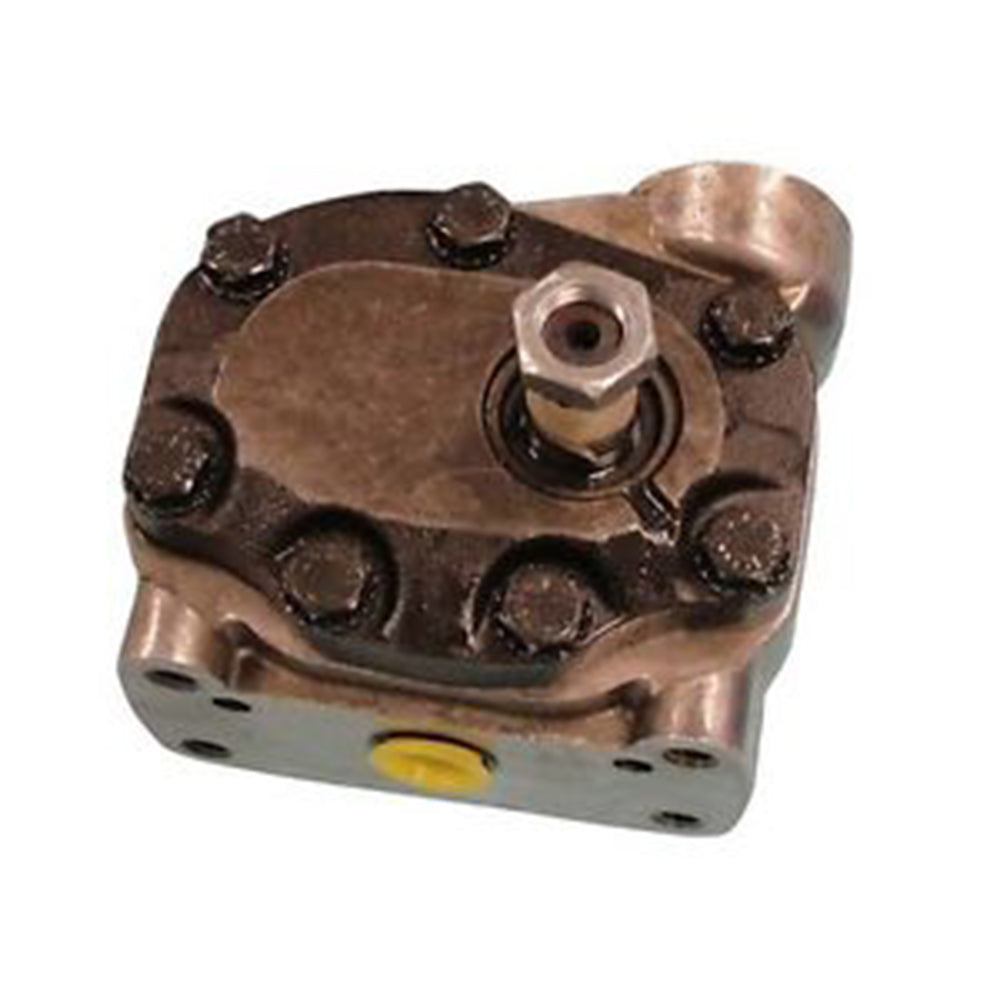

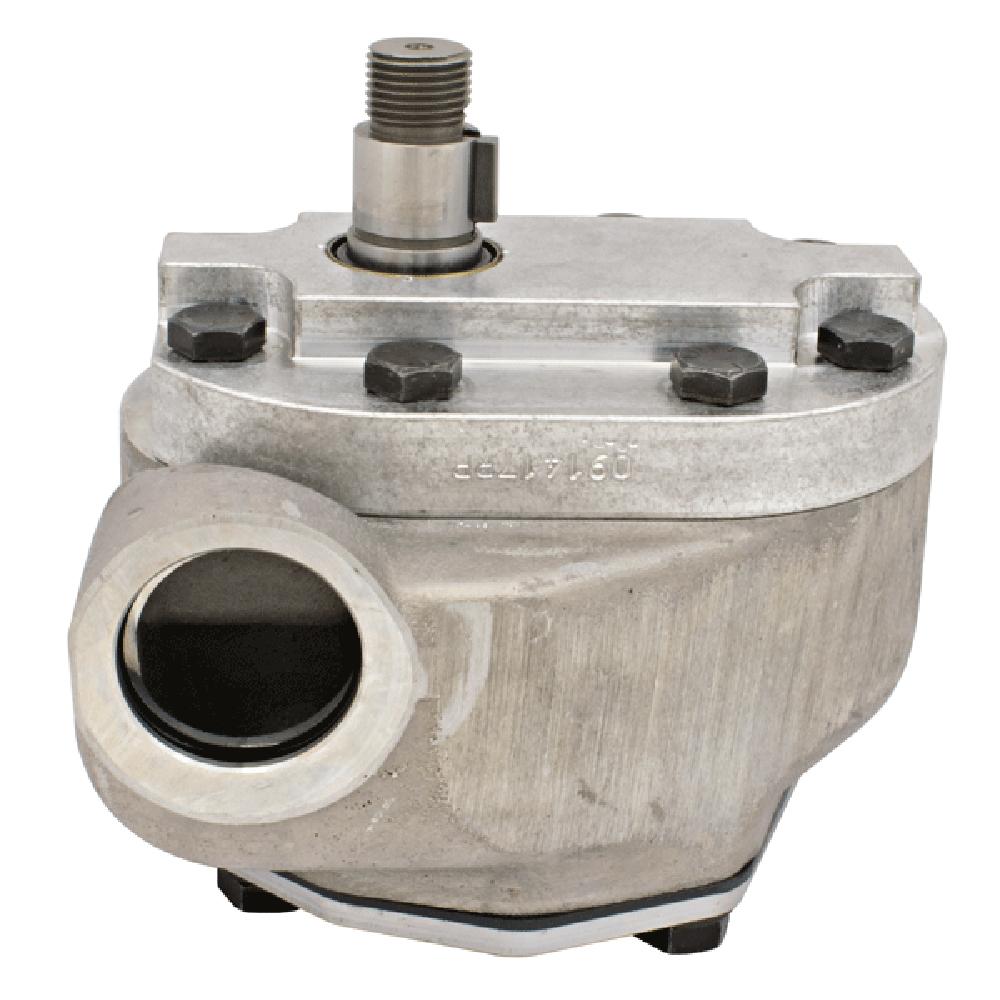

70932C91 Pump - Main Hitch Hydraulic

Quantity indicated in catalogue: 1

Replacement part: Pump - Main Hitch Hydraulic Fits International 1566 1586 3688 886 1486 986 1086.

Configuration: Main Hitch Hydraulic Pump Fits International Harvester (IH) / Fits Case IH TractorsThis is a new aftermarket replacement main hitch hydraulic pump Fits International Harvester (IH) and Fits Case IH tractors. Mounted in the rear frame, this closed-back single gear pump supplies hydraulic power to the hitch and auxiliary valve circuits. It is rated at 15 GPM with a maximum operating pressure of 2,250 PSI and features a keyed shaft drive. Note: Relief valve is not included. Before installation, flush the hydraulic system completely and refill with clean, new fluid.IMPORTANT SERIAL NUMBER FITMENT RESTRICTION: This pump applies to specific serial number ranges on certain models. 986 Hi-Clear: s/n to 23999 and 28000 & up. 1066 Hi-Clear: s/n to 47999 and 55000 & up. 1486: s/n to 25999 and 29150 & up. 1586: s/n to 20999. 3088, 3288, 3688: models equipped with draft control and/or auxiliary valves only. Verify your serial number and equipment configuration before ordering.Specifications Pump Type: Single gear pump, closed-back design Flow Rate: 15 GPM Maximum Pressure: 2,250 PSI Displacement: 20 cc Drive Type: Keyed shaft Relief Valve: Not included Weight: approx. 7.4 lbs Compatible Models
Fits International Harvester (IH) / Fits Case IH Tractors: 460, 656, 664, 666, 686, 706, 756, 766, 786, 806, 826, 856, 886, 966, 986 (Hi-Clear - see s/n restriction), 1026, 1066 (Hi-Clear - see s/n restriction), 1086, 1206, 1256, 1456, 1466, 1468, 1486 (see s/n restriction), 1566, 1568, 1586 (see s/n restriction), 3088 (w/ draft control and/or aux valves), 3288 (w/ draft control and/or aux valves), 3388, 3488, 3588, 3688 (w/ draft control and/or aux valves), 3788, 6388, 6588, 6788, HYDRO 186
Fits International Harvester Industrial/Construction: 2706, 2756, 2806, 2826, 2856, 21026, 21206, 21256, 21456
Replaces Part Number(s):70932C91, 70932C91-AAftermarket Interchange Numbers1949300C1New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 70932C91

• One New Aftermarket Replacement Main Hitch Hydraulic Pump Fits International Harvester (IH) / Fits Case IH TractorsThis is a new aftermarket replacement main hitch hydraulic pump Fits International Harvester (IH) and Fits Case IH tractors. Mounted in the rear frame, this closed-back single gear pump supplies hydraulic power to the hitch and auxiliary valve circuits. It is rated at 15 GPM with a maximum operating pressure of 2,250 PSI and features a keyed shaft drive. Note: Relief valve is not included. Before installation, flush the hydraulic system completely and refill with clean, new fluid.IMPORTANT SERIAL NUMBER FITMENT RESTRICTION: This pump applies to specific serial number ranges on certain models. 986 Hi-Clear: s/n to 23999 and 28000 & up. 1066 Hi-Clear: s/n to 47999 and 55000 & up. 1486: s/n to 25999 and 29150 & up. 1586: s/n to 20999. 3088, 3288, 3688: models equipped with draft control and/or auxiliary valves only. Verify your serial number and equipment configuration before ordering.Specifications Pump Type: Single gear pump, closed-back design Flow Rate: 15 GPM Maximum Pressure: 2,250 PSI Displacement: 20 cc Drive Type: Keyed shaft Relief Valve: Not included Weight: approx. 7.4 lbs Compatible Models Fits International Harvester (IH) / Fits Case IH Tractors: 460, 656, 664, 666, 686, 706, 756, 766, 786, 806, 826, 856, 886, 966, 986 (Hi-Clear - see s/n restriction), 1026, 1066 (Hi-Clear - see s/n restriction), 1086, 1206, 1256, 1456, 1466, 1468, 1486 (see s/n restriction), 1566, 1568, 1586 (see s/n restriction), 3088 (w/ draft control and/or aux valves), 3288 (w/ draft control and/or aux valves), 3388, 3488, 3588, 3688 (w/ draft control and/or aux valves), 3788, 6388, 6588, 6788, HYDRO 186 Fits International Harvester Industrial/Construction: 2706, 2756, 2806, 2826, 2856, 21026, 21206, 21256, 21456 Replaces Part Number(s):70932C91, 70932C91-AAftermarket Interchange Numbers1949300C1New aftermarket replacement part - not remanufactured, not used.
