AM877740 Alternator

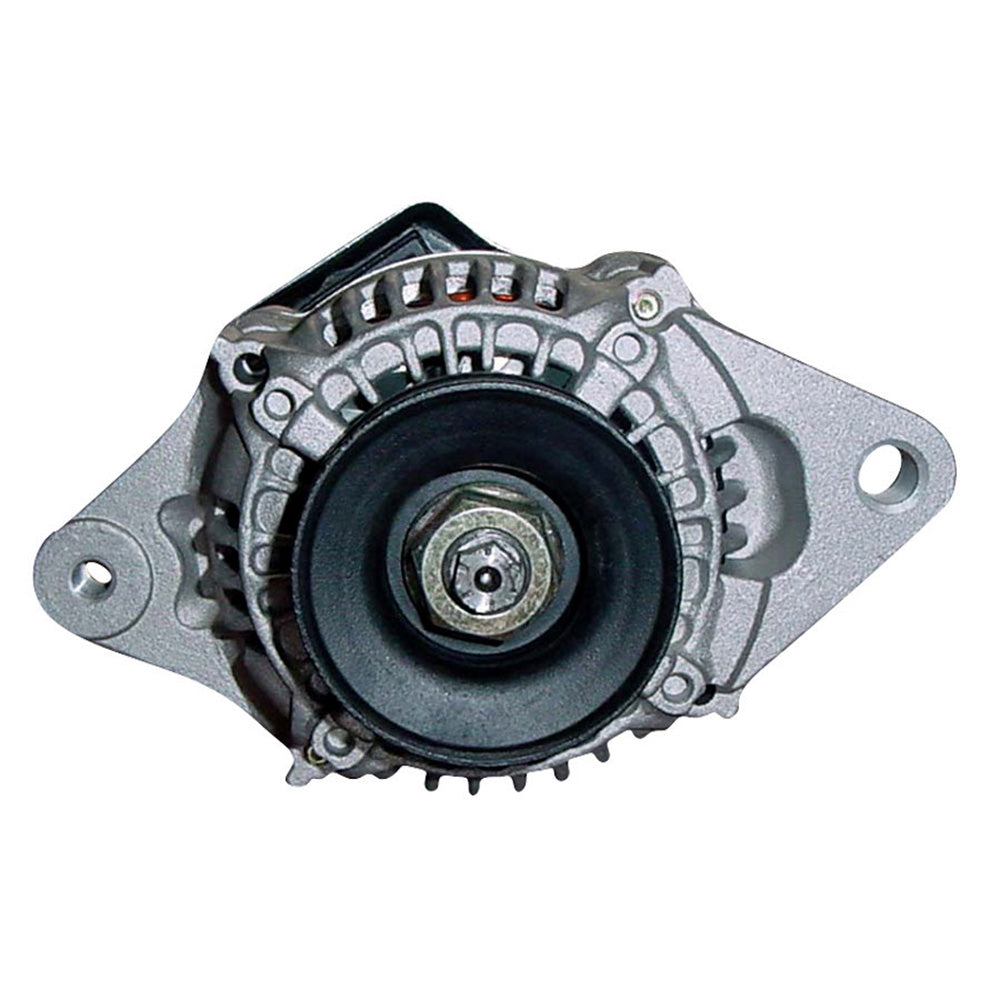

AM877740 Alternator – additional image 2AM877740 Alternator – additional image 3

NC-109258 · Alternator/Generator

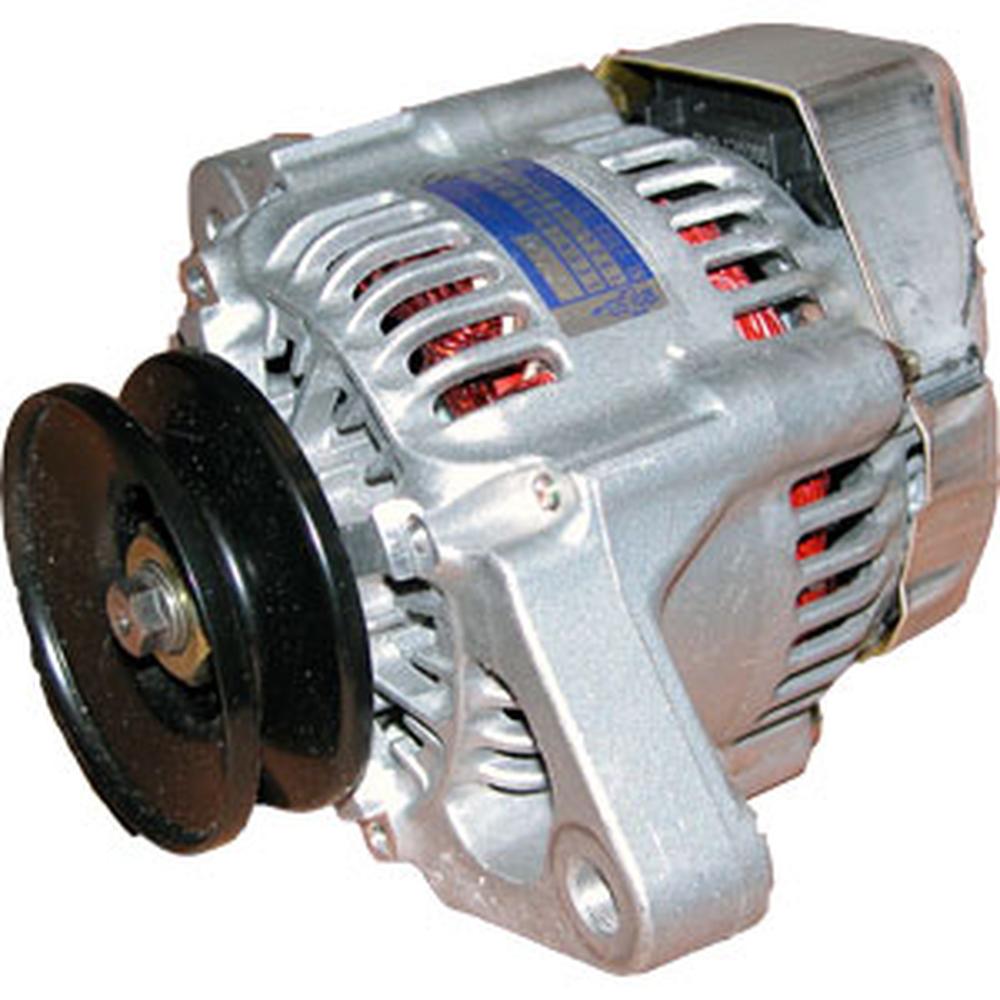

AM877740 Alternator

CAD 221.74

In stock

Alternator – reference AM877740. Catalogue-listed applications: Cub Cadet, John Deere, Komatsu. View photos, specifications, CAD pricing and delivery options from NorthCore.

Standard delivery: 3–7 business days. Other services and estimates are shown at checkout. Minimum online order: CAD 100 in parts, excluding shipping and tax. Add this part to your cart to calculate delivery and review your order.

Ask about this part

Part specifications and references

NorthCore code
NC-109258
Reference numbers
AM877740, AM877740-A, SE501824, AM100808, 119620-77201, 119620-77202, 419620-77201, 119620-77210, CY-119620-77201, 100211-453, 100211-4530, 100211-4531
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: NEW Alternator Fits John Deere Tractor 570 655 675 755 855 955 3005 4005.

Configuration: Alternator Fits John Deere (Fits JD) Tractors, Mowers, Crawlers, and Fits Gator Utility VehiclesThis Fits Denso-type aftermarket replacement alternator fits a wide range of Fits John Deere (Fits JD) diesel-powered compact tractors, front mount mowers, fairway mowers, crawlers, skid steer loaders, and Fits Gator utility vehicles equipped with Yanmar engines and the original Fits Denso 40-amp charging system. It is a direct-fit replacement for OEM part number AM877740, supplying 12-volt, 40-amp output to keep the electrical system fully charged under load. The unit features an internal fan, internal regulator, clockwise rotation, and a single-groove V-belt pulley.Specifications Voltage: 12V Amperage: 40 Amps Rotation: Clockwise (CW) Design: IR/IF (Internal Regulator / Internal Fan) Pulley: Single-groove V-belt Polarity: Negative ground Plug code: IG, L (ignition and lamp spade terminals) Mounting ear 1: M8-1.25 threaded Mounting ear 2: 10.3mm unthreaded Weight: approx. 7.58 lbs Serial Number Restrictions 655: from serial number 025202 (1993-1995) 755: from serial number 0030104 (1993-1995) 855: from serial number 009849 (1995) Compatible Models
Fits John Deere Compact Tractors: 570, 575, 655, 755, 756, 855, 856, 955, 3005, 4005, 4010, 4110, 430, 455
Fits John Deere Front Mount / Fairway Mowers: F912, F915, F925, F935, F1145, 3215A, 3215B, 3225B, 3225C, 3235, 3235A, 3235B, 3235CFits John Deere Wide-Area Mowers: 1600, 1620
Fits John Deere X-Series Lawn Tractors: X495, X495, X595, X740, X748, X749
Fits John Deere Fits Gator Utility Vehicles: 6x4 Diesel, TH 6x4, Trail 6x4, HPX 815E, XUV 850 D, XUV 855 DFits John Deere Skid Steer / Crawler: 675, 675BFits John Deere Military: M-A1 Military, M-A2 Military 4x4, M-A3 Military 4x4Yanmar Engines: 3TNA72, 3TNA72E (as equipped on compatible Fits John Deere machines)
Replaces Part Number(s):AM877740, AM877740-A, SE501824, AM100808, 119620-77201, 119620-77202, 419620-77201, 119620-77210, CY-119620-77201, 100211-453, 100211-4530, 100211-4531, 9660218-453Aftermarket Interchange Numbers
Fits Denso type: 100211-4530, 100211-4531. Also cross-references: 12188. Verify your OEM part number from the original unit before ordering.New aftermarket replacement part - not remanufactured, not used.

Reference numbers: AM877740, AM877740-A, SE501824, AM100808, 119620-77201, 119620-77202, 419620-77201, 119620-77210, CY-119620-77201, 100211-453, 100211-4530, 100211-4531
Application notes
  • One New Aftermarket Replacement Alternator Fits John Deere (Fits JD) Tractors, Mowers, Crawlers, and Fits Gator Utility VehiclesThis Fits Denso-type aftermarket replacement alternator fits a wide range of Fits John Deere (Fits JD) diesel-powered compact tractors, front mount mowers, fairway mowers, crawlers, skid steer loaders, and Fits Gator utility vehicles equipped with Yanmar engines and the original Fits Denso 40-amp charging system. It is a direct-fit replacement for OEM part number AM877740, supplying 12-volt, 40-amp output to keep the electrical system fully charged under load. The unit features an internal fan, internal regulator, clockwise rotation, and a single-groove V-belt pulley.Specifications Voltage: 12V Amperage: 40 Amps Rotation: Clockwise (CW) Design: IR/IF (Internal Regulator / Internal Fan) Pulley: Single-groove V-belt Polarity: Negative ground Plug code: IG, L (ignition and lamp spade terminals) Mounting ear 1: M8-1.25 threaded Mounting ear 2: 10.3mm unthreaded Weight: approx. 7.58 lbs Serial Number Restrictions 655: from serial number 025202 (1993-1995) 755: from serial number 0030104 (1993-1995) 855: from serial number 009849 (1995) Compatible Models Fits John Deere Compact Tractors: 570, 575, 655, 755, 756, 855, 856, 955, 3005, 4005, 4010, 4110, 430, 455 Fits John Deere Front Mount / Fairway Mowers: F912, F915, F925, F935, F1145, 3215A, 3215B, 3225B, 3225C, 3235, 3235A, 3235B, 3235CFits John Deere Wide-Area Mowers: 1600, 1620 Fits John Deere X-Series Lawn Tractors: X495, X495, X595, X740, X748, X749 Fits John Deere Fits Gator Utility Vehicles: 6x4 Diesel, TH 6x4, Trail 6x4, HPX 815E, XUV 850 D, XUV 855 DFits John Deere Skid Steer / Crawler: 675, 675BFits John Deere Military: M-A1 Military, M-A2 Military 4x4, M-A3 Military 4x4Yanmar Engines: 3TNA72, 3TNA72E (as equipped on compatible Fits John Deere machines) Replaces Part Number(s):AM877740, AM877740-A, SE501824, AM100808, 119620-77201, 119620-77202, 419620-77201, 119620-77210, CY-119620-77201, 100211-453, 100211-4530, 100211-4531, 9660218-453Aftermarket Interchange Numbers Fits Denso type: 100211-4530, 100211-4531. Also cross-references: 12188. Verify your OEM part number from the original unit before ordering.New aftermarket replacement part - not remanufactured, not used.
