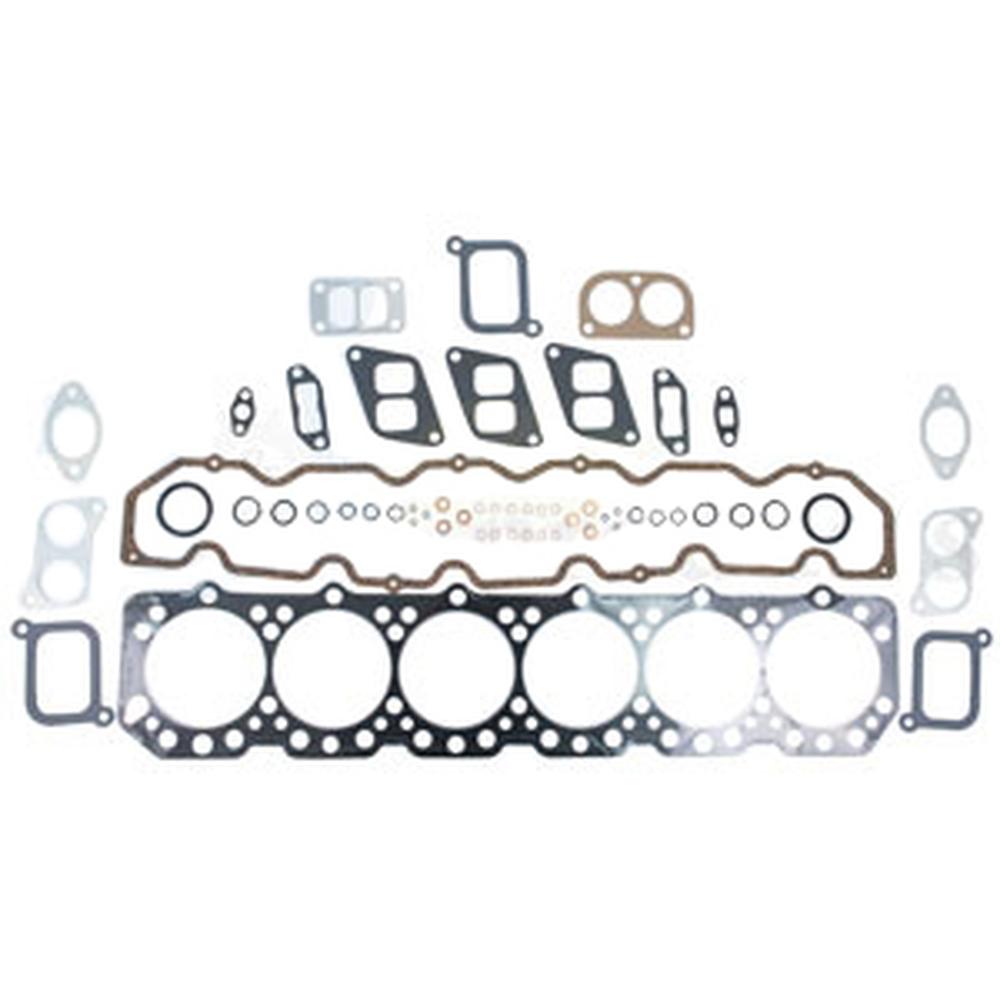

AR63270 Head Gasket Set – Fits John Deere

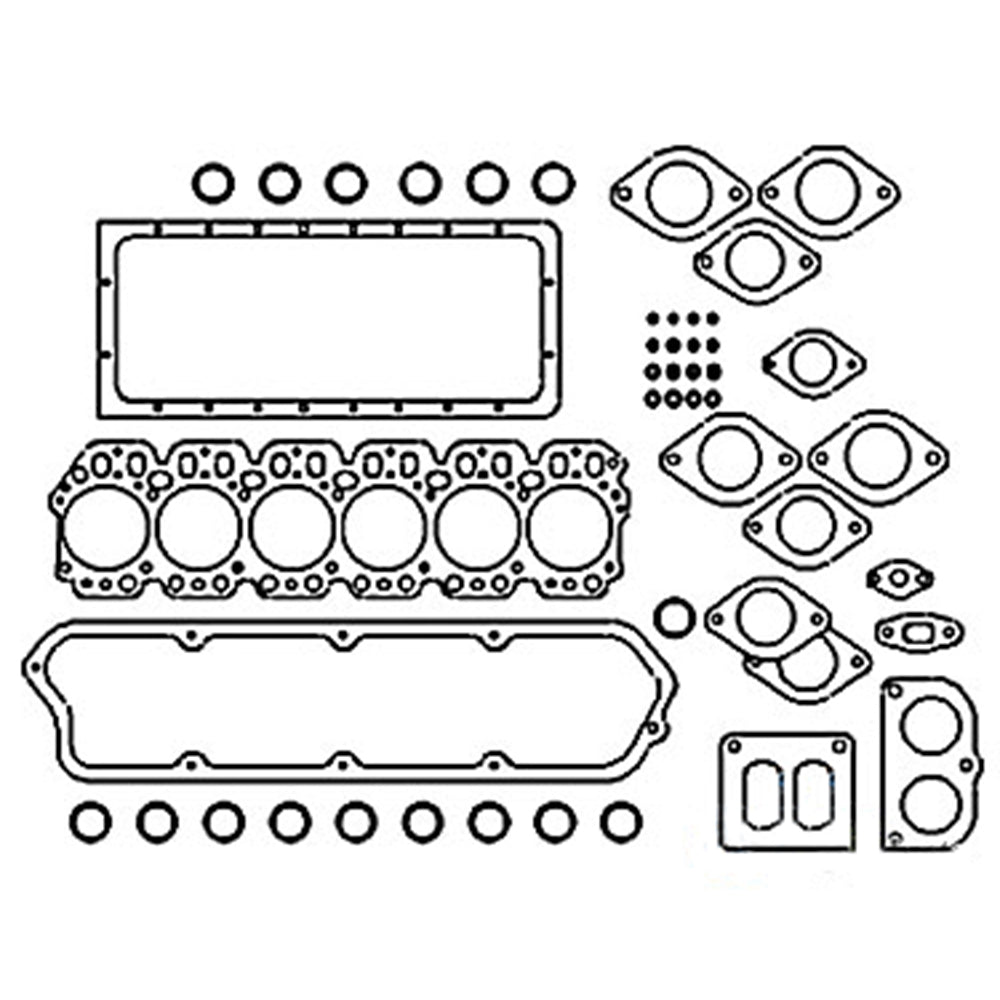

AR63270 Head Gasket Set – Fits John Deere – additional image 2

NC-108183 · Gaskets & Gasket Sets

AR63270 Head Gasket Set – Fits John Deere

CAD 222.73

In stock

Head Gasket Set – reference AR63270. Catalogue-listed applications: John Deere 646 (Block # R43310, R45980, R47020 or R47110), 693B (Block # R49470, R49650, R59850, R72128, R87558), 740 (Block # R49470, R49650, R59850, R72128, R87558). View photos, specifications, CAD pricing and delivery options from NorthCore.

Standard delivery: 3–7 business days. Other services and estimates are shown at checkout. Minimum online order: CAD 100 in parts, excluding shipping and tax. Add this part to your cart to calculate delivery and review your order.

Ask about this part

Part specifications and references

NorthCore code
NC-108183
Reference numbers
AR63270, RE524429, RG27876, 71-158
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Head Gasket Set Fits John Deere 6.404T/A AR63270 RG524429 RG27876 4430 4520 690B.

Configuration: Head Gasket Set Fits John Deere Combine: 6600SH (After S/N # 305672 - Block # R49470, R49650, R59850, R72128, R87558) 6602 (After S/N # 163500 - Block # R49470, R49650, R59850, R72128, R87558) 7700 (After S/N # 8000 - Block # R49470, R49650, R59850, R72128, R87558) Fits John Deere Compactor: 646 (Block # R43310, R45980, R47020 or R47110) Fits John Deere Excavator
Models: 690B (Block # R49470, R49650, R59850, R72128, R87558) 690 (Block # R43310, R45980, R47020 or R47110) 690A (Block # R43310, R45980, R47020 or R47110) Fits John Deere Feller Buncher
Models: 693B (Block # R49470, R49650, R59850, R72128, R87558) Fits John Deere Forage Harvester
Models: 5200 (Up to ESN # 335845 - Block # R43310, R45980, R47020 or R47110) 5200 (After ESN # 335846 - Block # R49470, R49650, R59850, R72128, R87558) 5440 (Block # R49470, R49650, R59850, R72128, R87558) Fits John Deere Log Skidder Model: 740 (Block # R49470, R49650, R59850, R72128, R87558) Fits John Deere Tractor
Models: 4320 (Block # R43310, R45980, R47020 or R47110) 4430 (Block # R49470, R49650, R59850, R72128, R87558) 4520 (Block # R43310, R45980, R47020 or R47110) 4620 (Block # R43310, R45980, R47020 or R47110) 4630 (Block # R49470, R49650, R59850, R72128, R87558) 7020 (Up to ESN # 335845 - Block # R43310, R45980, R47020 or R47110) 7020 (After ESN # 335846 - Block # R49470, R49650, R59850, R72128, R87558) Fits John Deere Wheel Loader
Models: 644 (Block # R43310, R45980, R47020 or R47110) 644A (Block # R43310, R45980, R47020 or R47110)
Tech Info: Contains All Gaskets Necessary to Replace The Cylinder Head (Valve Seals Not Included) The model numbers listed are for reference only. Please consult your service manual and verify your original part number(s) before ordering. Replaces Part Numbers: AR63270, RE524429, RG27876, 71-158

Reference numbers: AR63270, RE524429, RG27876, 71-158

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • John Deere 646 (Block # R43310, R45980, R47020 or R47110)
  • John Deere 693B (Block # R49470, R49650, R59850, R72128, R87558)
  • John Deere 740 (Block # R49470, R49650, R59850, R72128, R87558)
Application notes
  • One New Aftermarket Replacement Head Gasket Set Fits John Deere Combine: 6600SH (After S/N # 305672 - Block # R49470, R49650, R59850, R72128, R87558) 6602 (After S/N # 163500 - Block # R49470, R49650, R59850, R72128, R87558) 7700 (After S/N # 8000 - Block # R49470, R49650, R59850, R72128, R87558) Fits John Deere Compactor: 646 (Block # R43310, R45980, R47020 or R47110) Fits John Deere Excavator
  • Models: 5200 (Up to ESN # 335845 - Block # R43310, R45980, R47020 or R47110) 5200 (After ESN # 335846 - Block # R49470, R49650, R59850, R72128, R87558) 5440 (Block # R49470, R49650, R59850, R72128, R87558) Fits John Deere Log Skidder Model: 740 (Block # R49470, R49650, R59850, R72128, R87558) Fits John Deere Tractor
  • Models: 4320 (Block # R43310, R45980, R47020 or R47110) 4430 (Block # R49470, R49650, R59850, R72128, R87558) 4520 (Block # R43310, R45980, R47020 or R47110) 4620 (Block # R43310, R45980, R47020 or R47110) 4630 (Block # R49470, R49650, R59850, R72128, R87558) 7020 (Up to ESN # 335845 - Block # R43310, R45980, R47020 or R47110) 7020 (After ESN # 335846 - Block # R49470, R49650, R59850, R72128, R87558) Fits John Deere Wheel Loader
  • Tech Info: Contains All Gaskets Necessary to Replace The Cylinder Head (Valve Seals Not Included) The model numbers listed are for reference only. Please consult your service manual and verify your original part number(s) before ordering. Replaces Part Numbers: AR63270, RE524429, RG27876, 71-158
