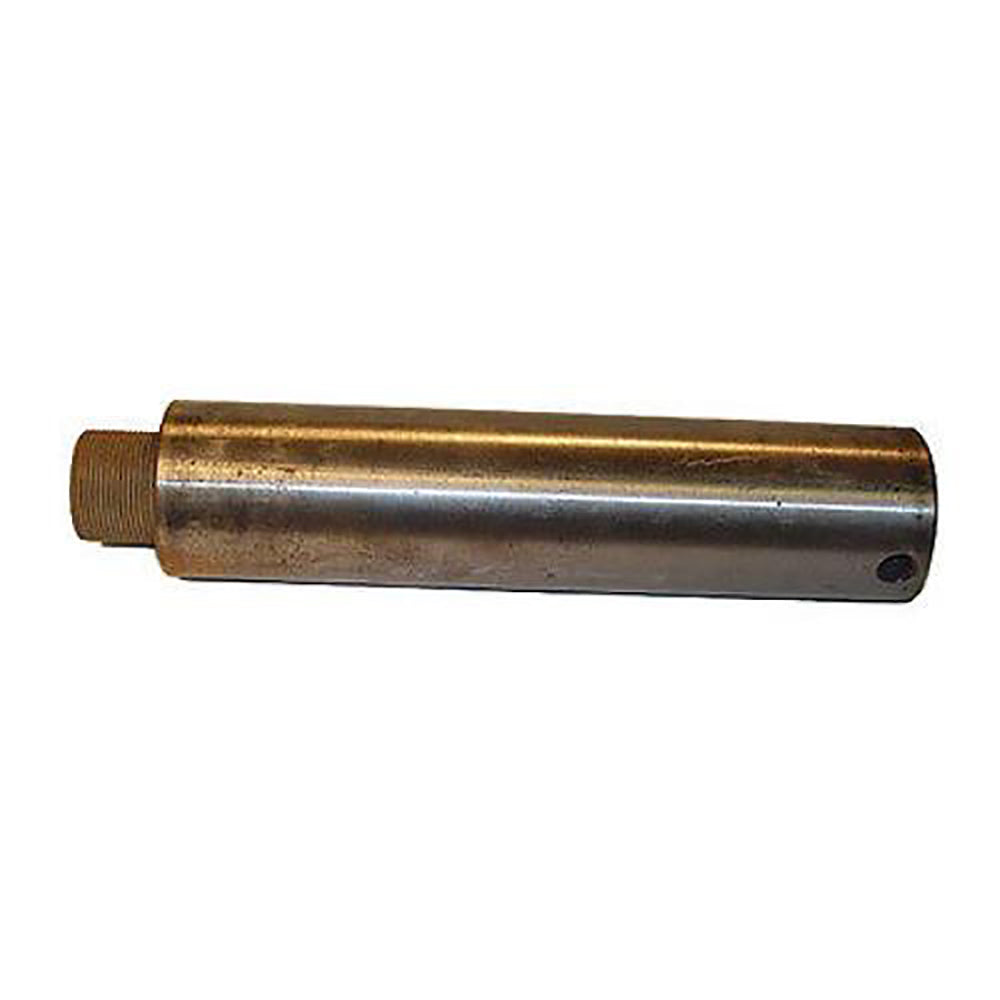

Pin boom to dipper – Fits Case

NC-106949 · Hardware & Other

Pin boom to dipper – Fits Case

CAD 181.32

In stock

Pin boom to dipper. Catalogue-listed applications: Case 580K, 580SK, 580L, 580SL, 580M, 580SM, 580 Super L. View photos, specifications, CAD pricing and delivery options from NorthCore.

Standard delivery: 3–7 business days. Other services and estimates are shown at checkout. Minimum online order: CAD 100 in parts, excluding shipping and tax. Add this part to your cart to calculate delivery and review your order.

Ask about this part

Part specifications and references

NorthCore code
NC-106949
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Pin boom to dipper Fits Case 580K, 580SK.

Configuration: Boom-to-Dipper Pin Fits Case Backhoe LoadersThis boom-to-dipper pivot pin connects the main boom to the dipper stick (stick arm) on Fits Case 580 series backhoe loaders. It is a structural hinge pin in the backhoe excavator linkage, subject to heavy cyclical load, and is a common wear item requiring periodic replacement.
Specifications
Outside Diameter: 2.75" (70mm) Length: 13.03" (331mm)
Weight: approx. 20 lbs. Compatible Models
Fits Case Backhoe Loaders: 580K, 580SK, 580L, 580L Series II, 580SL, 580SL Series II, 580M, 580M Series II, 580M Series III, 580SM, 580SM Series II, 580SM Series III, 580SM+ Series II, 580SM+ Series III, 580 Super L, 580 Super MFits Case Landscaper / Construction & Industrial: 570LXT, 570LXT Series IIReplaces Part Number(s):D132494Aftermarket Interchange NumbersAtlantic Quality Parts 1713-1402New aftermarket replacement part - not remanufactured, not used.

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Case 580K
  • Case 580SK
  • Case 580L
  • Case 580SL
  • Case 580M
  • Case 580SM
  • Case 580 Super L
  • Case 580L Series II
  • Case 580SL Series II
  • Case 580M Series II
  • Case 580M Series III
  • Case 580SM Series II
  • Case 580SM Series III
  • Case 580SM+ Series II
  • Case 580SM+ Series III
  • Case 570LXT Series II
Application notes
  • One New Aftermarket Replacement Boom-to-Dipper Pin Fits Case Backhoe LoadersThis boom-to-dipper pivot pin connects the main boom to the dipper stick (stick arm) on Fits Case 580 series backhoe loaders. It is a structural hinge pin in the backhoe excavator linkage, subject to heavy cyclical load, and is a common wear item requiring periodic replacement.Specifications Outside Diameter: 2.75" (70mm) Length: 13.03" (331mm) Weight: approx. 20 lbs. Compatible Models Fits Case Backhoe Loaders: 580K, 580SK, 580L, 580L Series II, 580SL, 580SL Series II, 580M, 580M Series II, 580M Series III, 580SM, 580SM Series II, 580SM Series III, 580SM+ Series II, 580SM+ Series III, 580 Super L, 580 Super MFits Case Landscaper / Construction & Industrial: 570LXT, 570LXT Series IIReplaces Part Number(s):D132494Aftermarket Interchange NumbersAtlantic Quality Parts 1713-1402New aftermarket replacement part - not remanufactured, not used.
