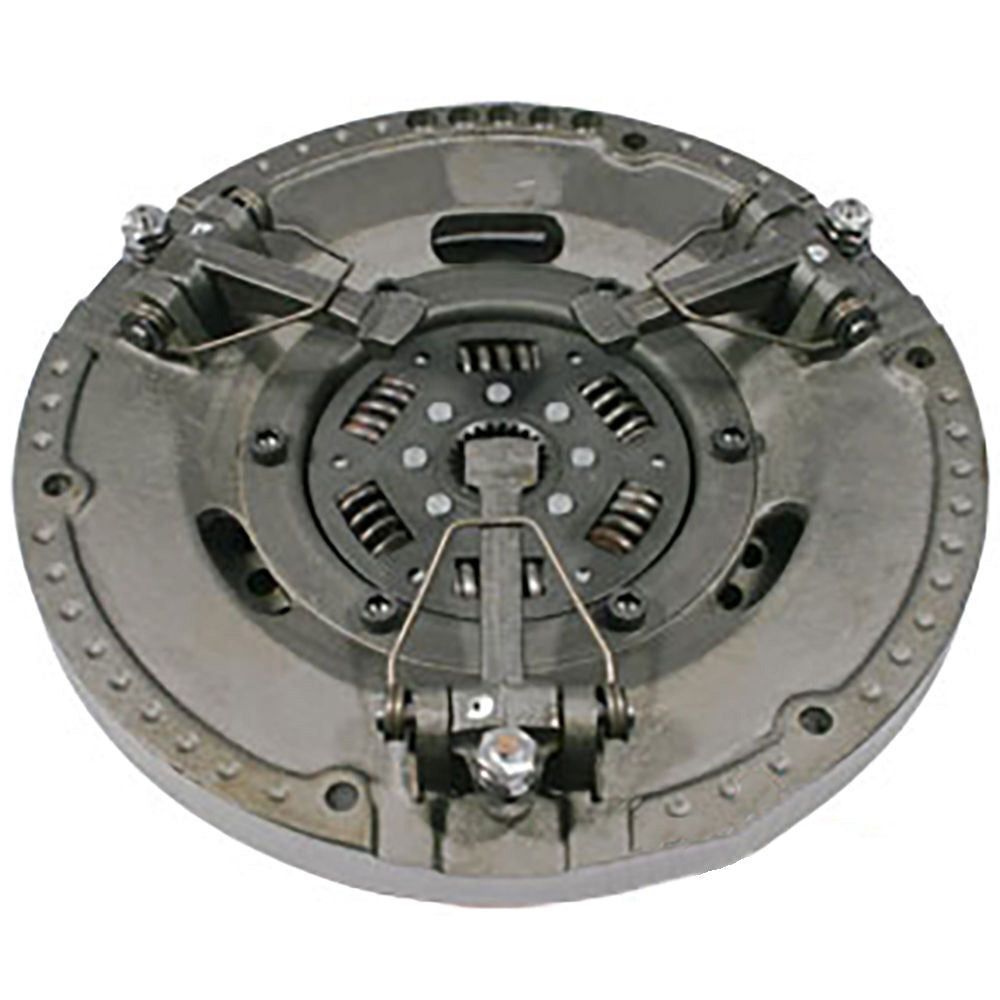

AL120023 Pressure Plate: single, cast iron, w/o release plate – Fits John Deere

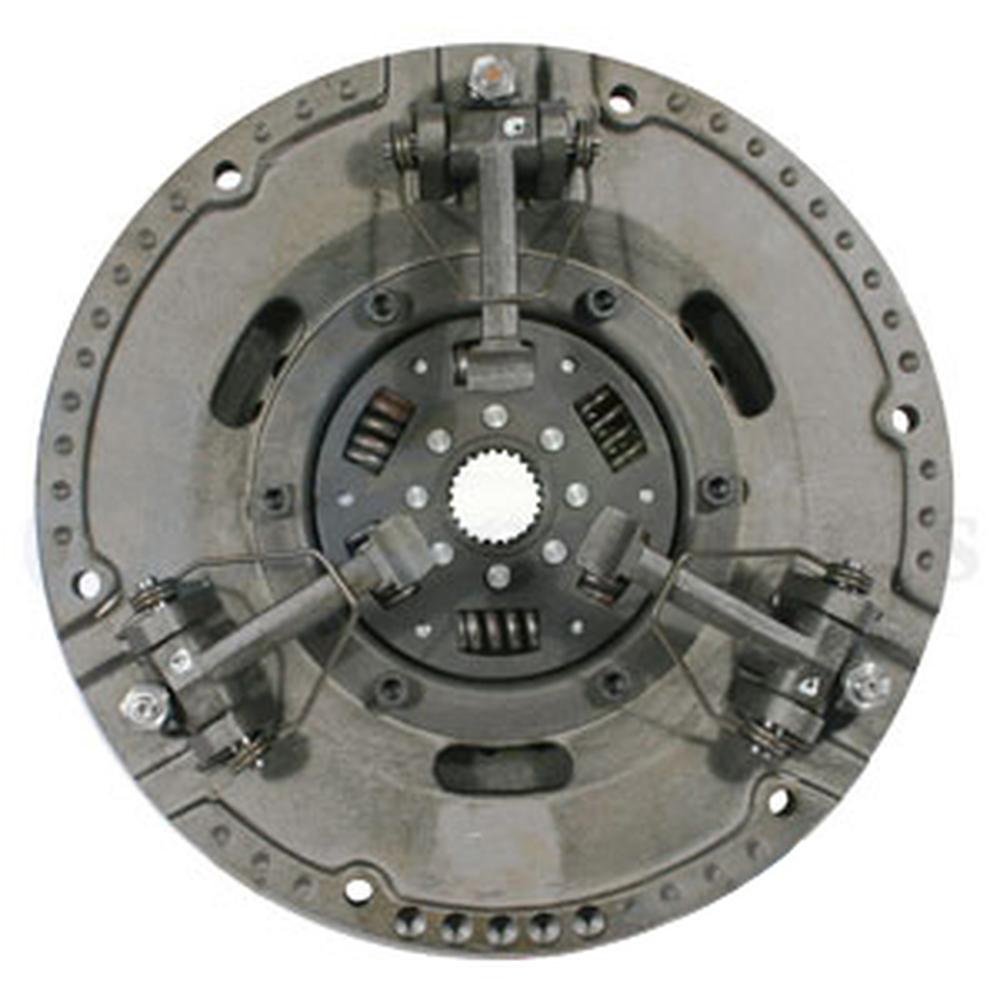

AL120023 Pressure Plate: single, cast iron, w/o release plate – Fits John Deere – additional image 2

NC-104794 · Clutch Assemblies

AL120023 Pressure Plate: single, cast iron, w/o release plate – Fits John Deere

CAD 705.84

In stock

Pressure Plate: single, cast iron, w/o release plate – reference AL120023. Catalogue-listed applications: John Deere. View photos, specifications, CAD pricing and delivery options from NorthCore.

Standard delivery: 3–7 business days. Other services and estimates are shown at checkout. Minimum online order: CAD 100 in parts, excluding shipping and tax. Add this part to your cart to calculate delivery and review your order.

Ask about this part

Part specifications and references

NorthCore code
NC-104794
Reference numbers
AL120023, AL19084, AL32965, AL36374, AL37192, AL37707, AL39452, AL39618, AL39935, AL5616
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Pressure Plate: single, cast iron, w/o release plate.

Configuration: 11" Single Clutch Pressure Plate Fits John Deere Tractors and SwathersThis cast iron, single-stage IPTO clutch pressure plate replaces OEM part AL39618 and its successors in the Fits John Deere clutch system. It mounts to the flywheel and applies clamping force to the clutch disc, transferring engine power to the drivetrain. Sold without a release plate. Note: release levers may need adjustment to 1.780" after installation to the flywheel.Specifications Outside Diameter: 11" Type: Single stage, cast iron, IPTO Number of Fingers: 16 Spline Diameter: 1.500" (1-1/2") Spline Count: 23 Flywheel Step: 2.200" - 2.210" Release Plate: Not included Compatible Models
Fits John Deere Tractors: 830, 840, 930, 930VU, 940, 940V, 1020, 1030, 1030OU, 1030VU, 1035, 1035EF, 1035EV, 1040, 1040V, 1120, 1130, 1140, 1140F, 1140V, 1530, 1630, 1630OU, 1630VU, 1635, 1635EF, 1635EV, 1640, 1640F, 1750V, 1830, 1840, 1840F, 1850, 1850F, 1850V, 1950, 1950F, 2020, 2030, 2030OU, 2035, 2035EF, 2040, 2040F, 2120, 2150, 2240, 2255, 2350
Fits John Deere Compact Tractors / Specialty: 840 Scraper
Fits John Deere Swather/Windrower: Machine type confirmed via CSV; verify specific swather model compatibility before ordering.Replaces Part Number(s):AL120023, AL19084, AL32965, AL36374, AL37192, AL37707, AL39452, AL39618, AL39935, AL5616, AL56167New aftermarket replacement part - not remanufactured, not used.

Reference numbers: AL120023, AL19084, AL32965, AL36374, AL37192, AL37707, AL39452, AL39618, AL39935, AL5616
Application notes
  • One New Aftermarket Replacement 11" Single Clutch Pressure Plate Fits John Deere Tractors and SwathersThis cast iron, single-stage IPTO clutch pressure plate replaces OEM part AL39618 and its successors in the Fits John Deere clutch system. It mounts to the flywheel and applies clamping force to the clutch disc, transferring engine power to the drivetrain. Sold without a release plate. Note: release levers may need adjustment to 1.780" after installation to the flywheel.Specifications Outside Diameter: 11" Type: Single stage, cast iron, IPTO Number of Fingers: 16 Spline Diameter: 1.500" (1-1/2") Spline Count: 23 Flywheel Step: 2.200" - 2.210" Release Plate: Not included Compatible Models Fits John Deere Tractors: 830, 840, 930, 930VU, 940, 940V, 1020, 1030, 1030OU, 1030VU, 1035, 1035EF, 1035EV, 1040, 1040V, 1120, 1130, 1140, 1140F, 1140V, 1530, 1630, 1630OU, 1630VU, 1635, 1635EF, 1635EV, 1640, 1640F, 1750V, 1830, 1840, 1840F, 1850, 1850F, 1850V, 1950, 1950F, 2020, 2030, 2030OU, 2035, 2035EF, 2040, 2040F, 2120, 2150, 2240, 2255, 2350 Fits John Deere Compact Tractors / Specialty: 840 Scraper Fits John Deere Swather/Windrower: Machine type confirmed via CSV; verify specific swather model compatibility before ordering.Replaces Part Number(s):AL120023, AL19084, AL32965, AL36374, AL37192, AL37707, AL39452, AL39618, AL39935, AL5616, AL56167New aftermarket replacement part - not remanufactured, not used.
