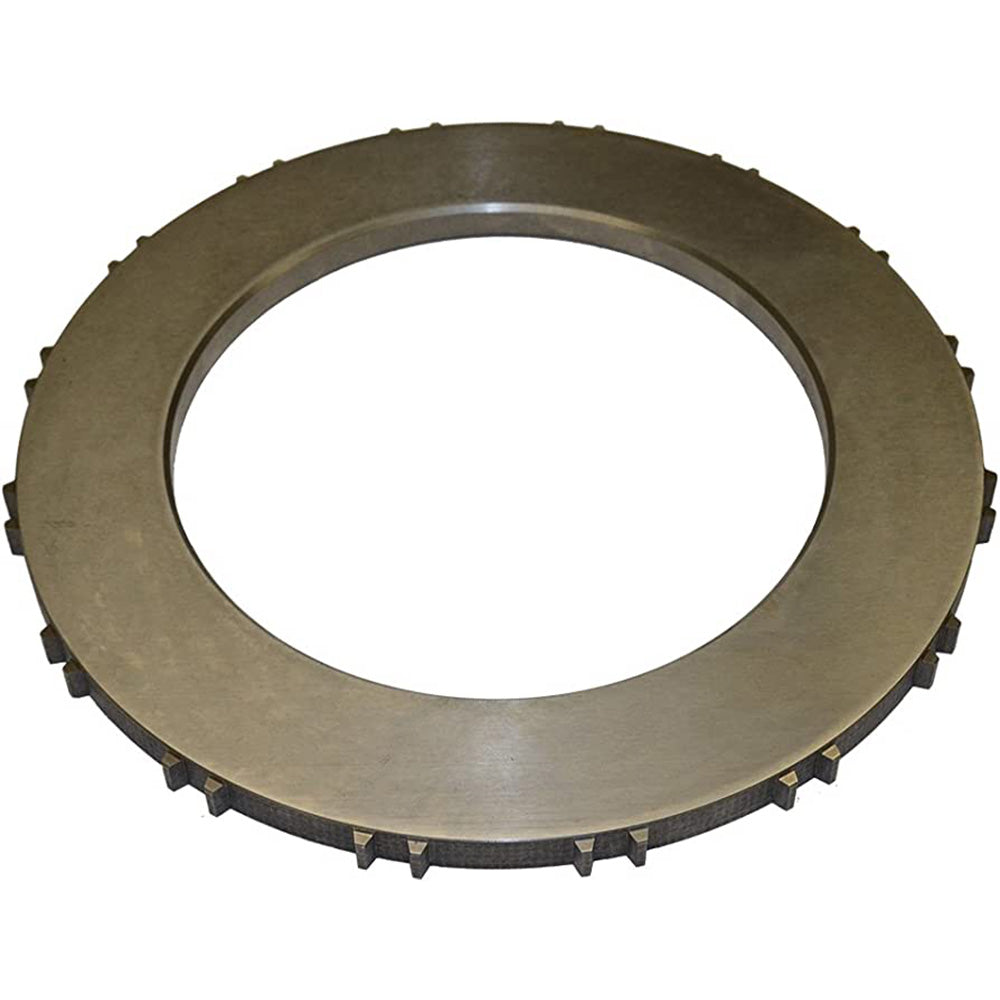

85808317 Plate, Brake Inner

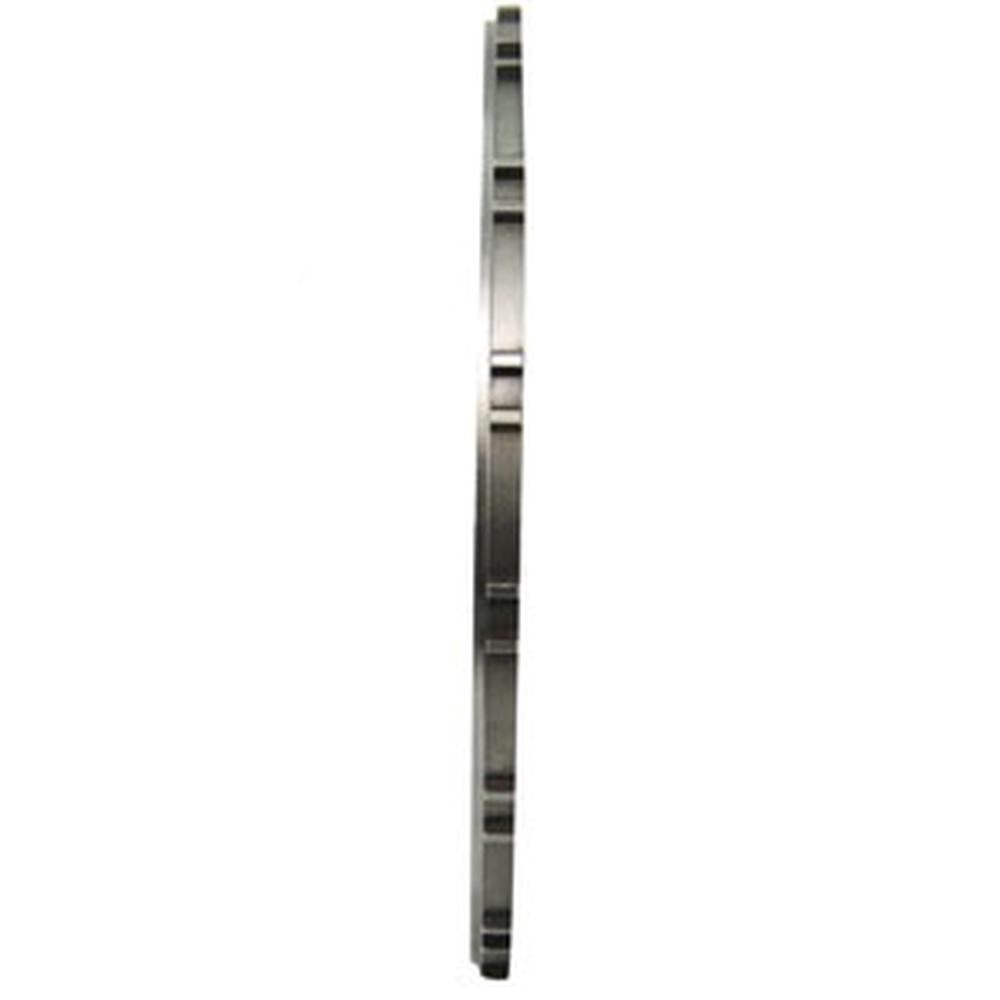

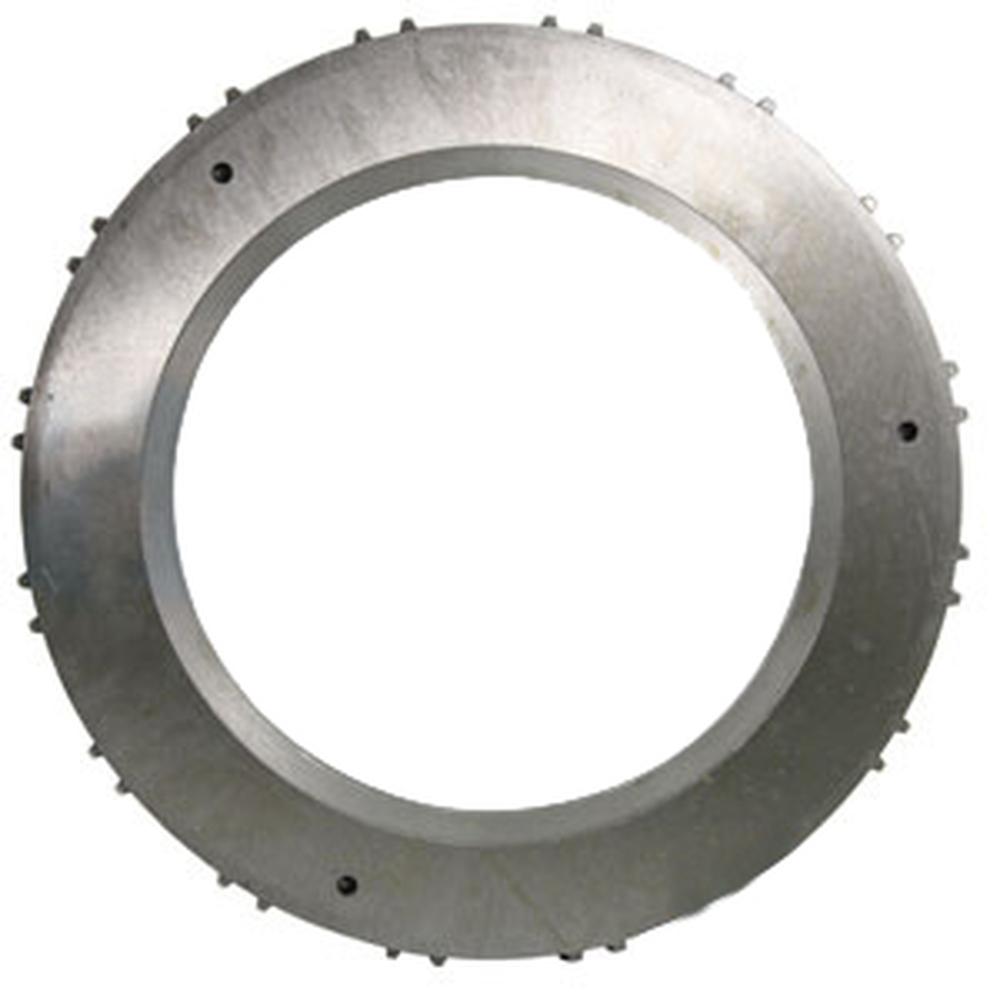

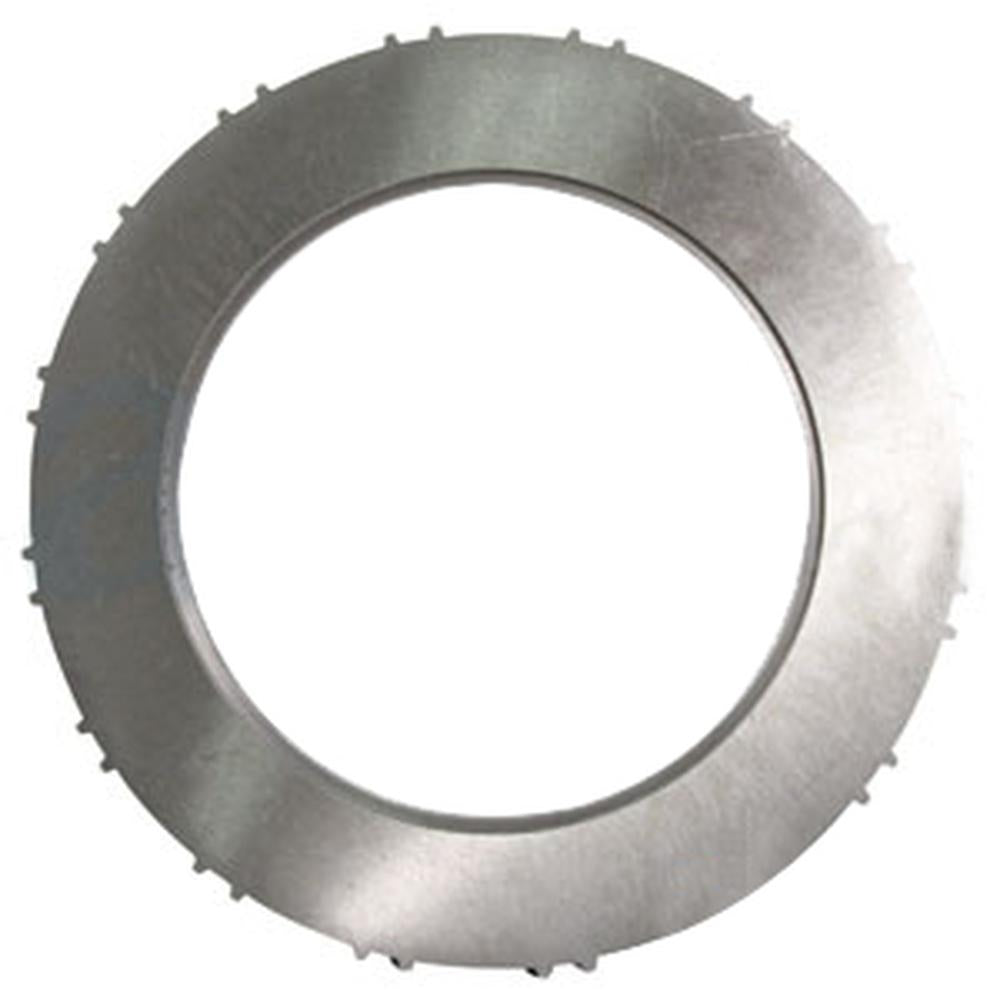

85808317 Plate, Brake Inner – additional image 285808317 Plate, Brake Inner – additional image 385808317 Plate, Brake Inner – additional image 4

NC-104763 · Shoes, Discs, Drums

85808317 Plate, Brake Inner

CAD 100.62

In stock

Plate, Brake Inner – reference 85808317. Catalogue-listed applications: Case IH, Case / International Harvester, International Harvester 570LXT, 570LXT (Series 2), 570MXT, 570MXT (Series 3), 580L, 580L (Series 2), 580M. View photos, specifications, CAD pricing and delivery options from NorthCore.

Standard delivery: 3–7 business days. Other services and estimates are shown at checkout. Minimum online order: CAD 100 in parts, excluding shipping and tax. Add this part to your cart to calculate delivery and review your order.

Ask about this part

Part specifications and references

NorthCore code
NC-104763
Reference numbers
85808317
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Plate, Brake Inner.

Configuration: Inner Brake Plate Fits Case / Fits Case IH Backhoe Loaders and ForkliftsThis inner friction brake plate (also called a brake piston plate) is a steel disc located between the two friction discs in the wet brake assembly on Fits Case (Fits Case IH) backhoe loaders, loader landscapers, and forklifts. It features a non-stepped center design and fits both early-style and late-style brake assemblies, making it a widely compatible replacement for aging or worn brake components in the rear axle braking system.Specifications Inside Diameter: 6" (152.5 mm) Outside Diameter: 9-1/16" (230 mm) Teeth: 32 Style: Non-stepped center Compatible Models
Fits Case / Fits Case IH Backhoe Loaders: 570LXT, 570LXT (Series 2), 570MXT, 570MXT (Series 3), 580L, 580L (Series 2), 580M, 580M (Series 2), 580 Super L, 580 Super L (Series 2), 580 Super M, 580 Super M (Series 2)
Fits Case / Fits Case IH Forklifts: 585G, 586, 586G, 586G (Series 3), 588G, 588G (Series 3)
Fits New Holland / Fits Case IH (LB-Series Backhoe Loaders): LB115, LB115BReplaces Part Number(s):85808317, 237022A1New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 85808317

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Case IH 570LXT
  • Case IH 570LXT (Series 2)
  • Case IH 570MXT
  • Case IH 570MXT (Series 3)
  • Case IH 580L
  • Case IH 580L (Series 2)
  • Case IH 580M
  • Case IH 580M (Series 2)
  • Case IH 580 Super L
  • Case IH 580 Super L (Series 2)
  • Case IH 580 Super M
  • Case IH 580 Super M (Series 2)
  • Case IH 585G
  • Case IH 586
  • Case IH 586G
  • Case IH 586G (Series 3)
  • Case IH 588G
  • Case IH 588G (Series 3)
Application notes
  • One New Aftermarket Replacement Inner Brake Plate Fits Case / Fits Case IH Backhoe Loaders and ForkliftsThis inner friction brake plate (also called a brake piston plate) is a steel disc located between the two friction discs in the wet brake assembly on Fits Case (Fits Case IH) backhoe loaders, loader landscapers, and forklifts. It features a non-stepped center design and fits both early-style and late-style brake assemblies, making it a widely compatible replacement for aging or worn brake components in the rear axle braking system.Specifications Inside Diameter: 6" (152.5 mm) Outside Diameter: 9-1/16" (230 mm) Teeth: 32 Style: Non-stepped center Compatible Models Fits Case / Fits Case IH Backhoe Loaders: 570LXT, 570LXT (Series 2), 570MXT, 570MXT (Series 3), 580L, 580L (Series 2), 580M, 580M (Series 2), 580 Super L, 580 Super L (Series 2), 580 Super M, 580 Super M (Series 2) Fits Case / Fits Case IH Forklifts: 585G, 586, 586G, 586G (Series 3), 588G, 588G (Series 3) Fits New Holland / Fits Case IH (LB-Series Backhoe Loaders): LB115, LB115BReplaces Part Number(s):85808317, 237022A1New aftermarket replacement part - not remanufactured, not used.
