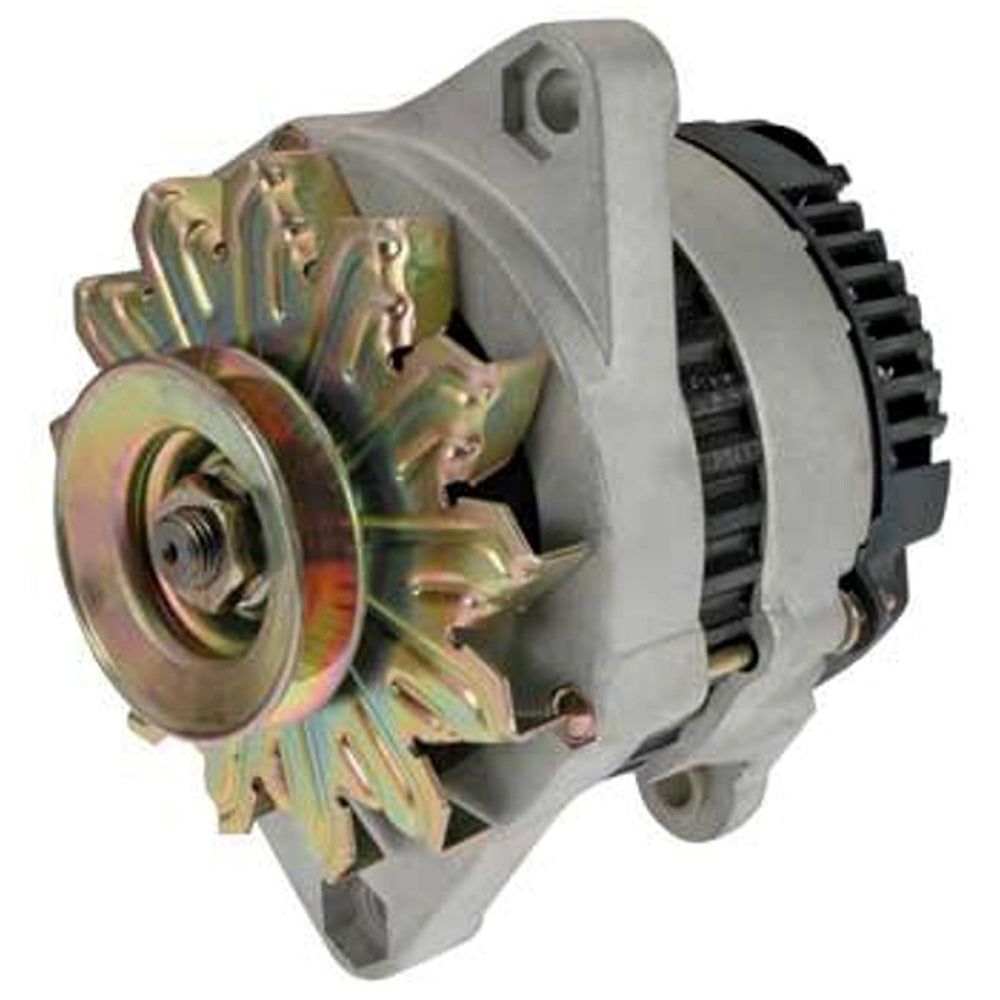

4242730 AMP 33 ALTERNATOR

NC-104731 · Alternator/Generator

4242730 AMP 33 ALTERNATOR

CAD 517.27

In stock

AMP 33 ALTERNATOR – reference 4242730. Catalogue-listed applications: Allis Chalmers, Fiat, Ford. View photos, specifications, CAD pricing and delivery options from NorthCore.

Standard delivery: 3–7 business days. Other services and estimates are shown at checkout. Minimum online order: CAD 100 in parts, excluding shipping and tax. Add this part to your cart to calculate delivery and review your order.

Ask about this part

Part specifications and references

NorthCore code
NC-104731
Reference numbers
4242730, 4720502, 4762563, 4766127, 4772683, 4787598, 4799364, 4808498, 4808500, 4808504, 4998353, 5101645, 8029593, 9972269, 72091669, 0-120-339-516, 0-120-339-523, 0-120-339-527, 0-120-339-528
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: AMP 33 ALTERNATOR.

Configuration: 33 Amp Alternator for Fiat, Fits Ford/New Holland, and Fits Allis Chalmers TractorsThis aftermarket replacement alternator (Iskra/Marelli style) fits a wide range of Fiat, Fits Ford/New Holland, and Fits Allis Chalmers (AC) agricultural tractors. It replaces the Fits Bosch-style and Marelli-style OEM units originally fitted to these machines and provides reliable charging system output for diesel-powered tractors in this series.Specifications Voltage: 12V Amperage: 33 Amps Regulator: Internal Fan Type: External Rotation: Clockwise Pulley: 90 mm, Single Groove Pulley Shaft Type: Hex Shaft Length: 25.3 mm Mounting: Two-hole, 12.2 mm mounting hole diameter Connection Type: Ring Terminal, Hex Nut Height: 182 mm Length: 162 mm Compatible ModelsFiat Tractors: 45-66, 55-66, 60-66, 65-66, 65-90, 70-66, 70-90, 80-66, 80-90, 85-90, 466, 540, 550, 566, 580, 640, 666, 680, 766, 780, L60, L65, L75, L85, L95, 4330, 4330 Vineyard, 4430, 4430 Orchard, 4835, 5045, 5050, 6635
Fits Ford/New Holland Tractors: 3830, 4030, 4230, 4330, 4330V, 4430, 4835, 5635, 6635, 7635
Fits Allis Chalmers Tractors: 5050
Replaces Part Number(s):4242730, 4720502, 4762563, 4766127, 4772683, 4787598, 4799364, 4808498, 4808500, 4808504, 4998353, 5101645, 8029593, 9972269, 72091669, 72091686Aftermarket Interchange Numbers
Fits Bosch: 0-120-339-515, 0-120-339-516, 0-120-339-523, 0-120-339-527, 0-120-339-528; Iskra/Marelli style unit also known as interchange 12029, IA 0037, IA 0336, IA 0405, IA 9430New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 4242730, 4720502, 4762563, 4766127, 4772683, 4787598, 4799364, 4808498, 4808500, 4808504, 4998353, 5101645, 8029593, 9972269, 72091669, 0-120-339-516, 0-120-339-523, 0-120-339-527, 0-120-339-528
Application notes
  • One New Aftermarket Replacement 33 Amp Alternator for Fiat, Fits Ford/New Holland, and Fits Allis Chalmers TractorsThis aftermarket replacement alternator (Iskra/Marelli style) fits a wide range of Fiat, Fits Ford/New Holland, and Fits Allis Chalmers (AC) agricultural tractors. It replaces the Fits Bosch-style and Marelli-style OEM units originally fitted to these machines and provides reliable charging system output for diesel-powered tractors in this series.Specifications Voltage: 12V Amperage: 33 Amps Regulator: Internal Fan Type: External Rotation: Clockwise Pulley: 90 mm, Single Groove Pulley Shaft Type: Hex Shaft Length: 25.3 mm Mounting: Two-hole, 12.2 mm mounting hole diameter Connection Type: Ring Terminal, Hex Nut Height: 182 mm Length: 162 mm Compatible ModelsFiat Tractors: 45-66, 55-66, 60-66, 65-66, 65-90, 70-66, 70-90, 80-66, 80-90, 85-90, 466, 540, 550, 566, 580, 640, 666, 680, 766, 780, L60, L65, L75, L85, L95, 4330, 4330 Vineyard, 4430, 4430 Orchard, 4835, 5045, 5050, 6635 Fits Ford/New Holland Tractors: 3830, 4030, 4230, 4330, 4330V, 4430, 4835, 5635, 6635, 7635 Fits Allis Chalmers Tractors: 5050 Replaces Part Number(s):4242730, 4720502, 4762563, 4766127, 4772683, 4787598, 4799364, 4808498, 4808500, 4808504, 4998353, 5101645, 8029593, 9972269, 72091669, 72091686Aftermarket Interchange Numbers Fits Bosch: 0-120-339-515, 0-120-339-516, 0-120-339-523, 0-120-339-527, 0-120-339-528; Iskra/Marelli style unit also known as interchange 12029, IA 0037, IA 0336, IA 0405, IA 9430New aftermarket replacement part - not remanufactured, not used.
