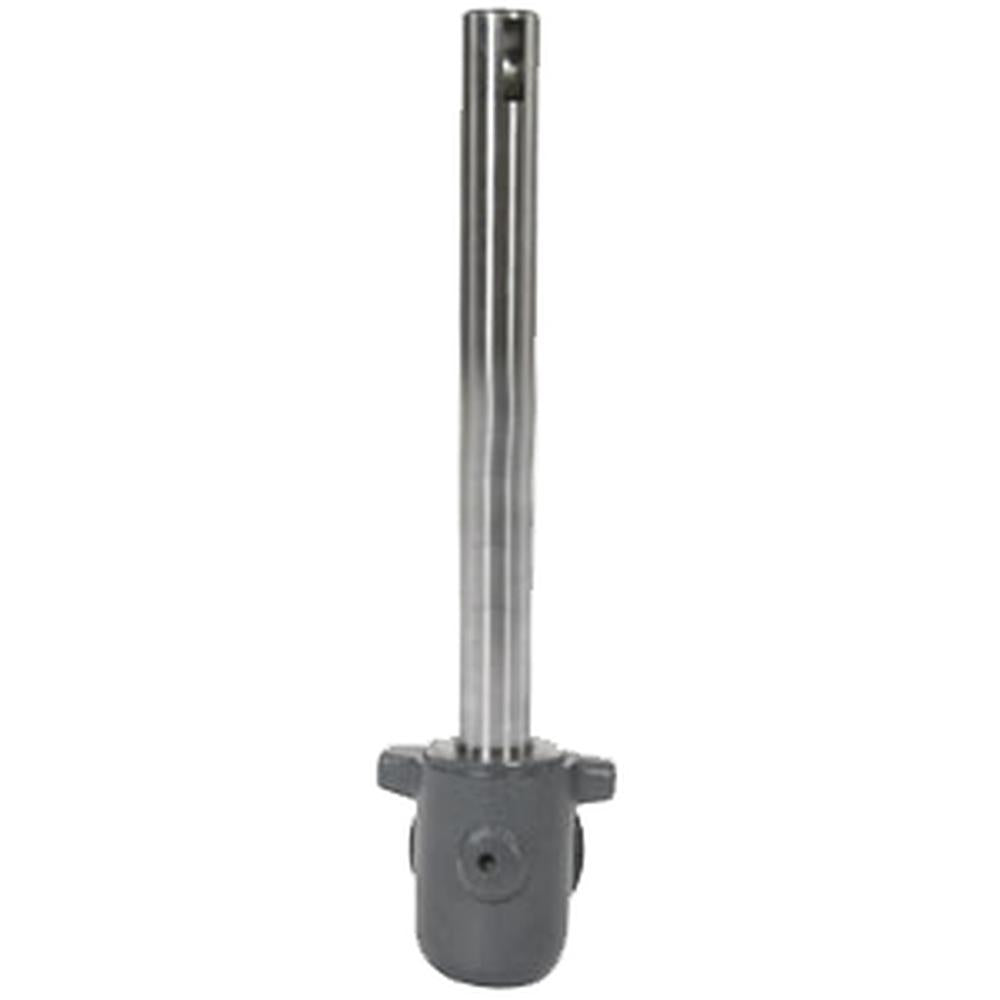

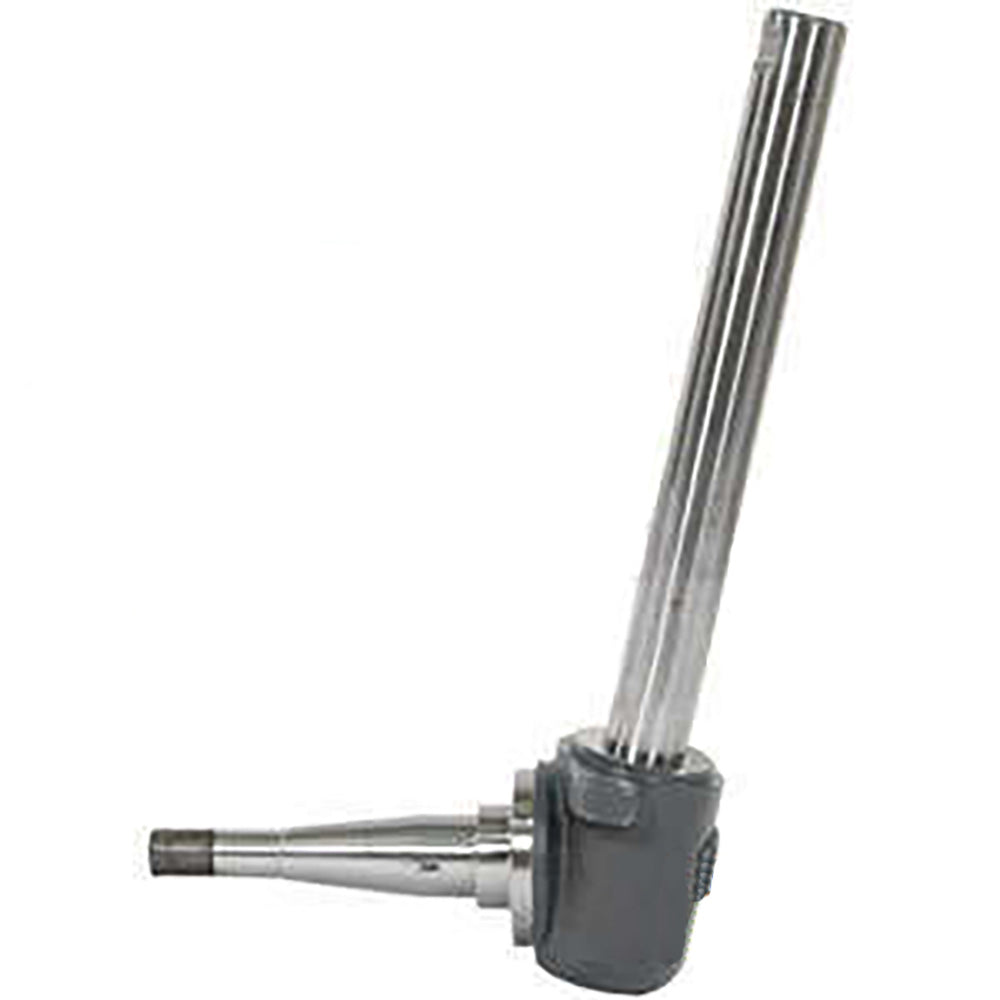

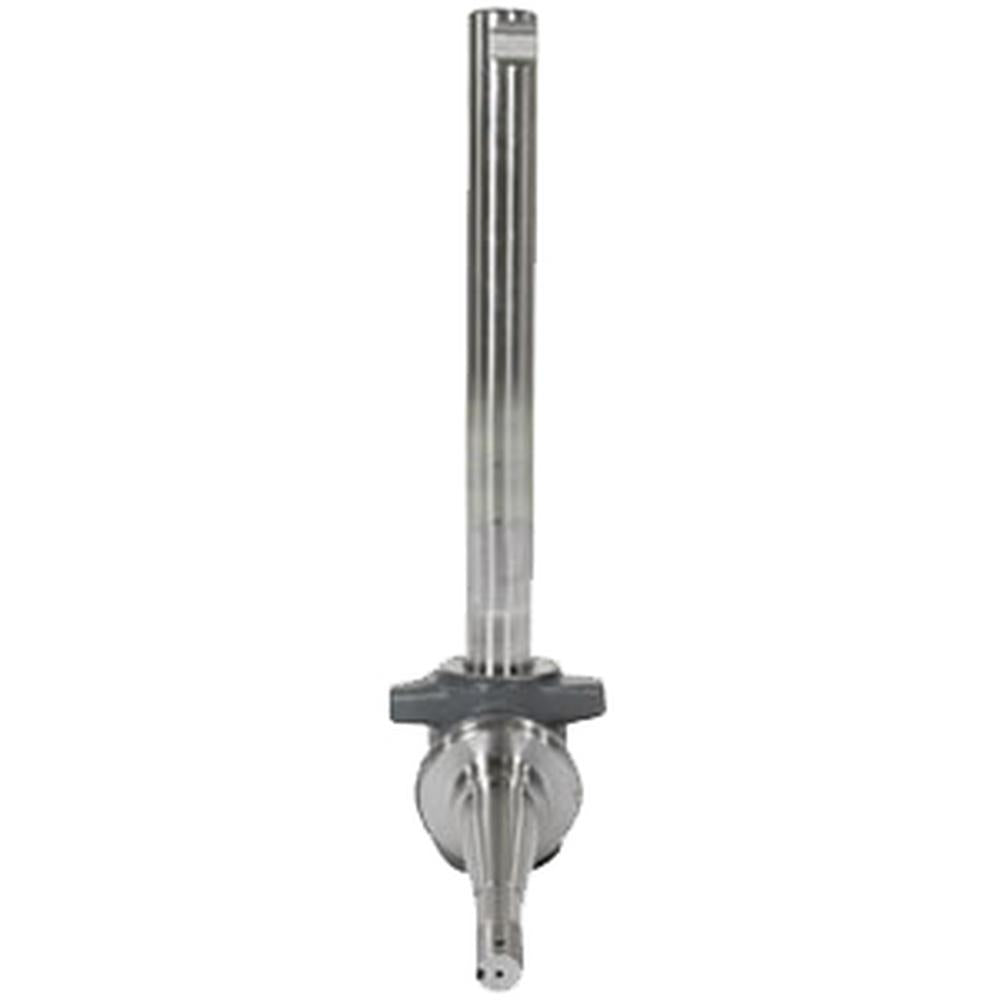

180349M92 LH Spindle – Fits Massey Ferguson
180349M92 LH Spindle – Fits Massey Ferguson – additional image 2180349M92 LH Spindle – Fits Massey Ferguson – additional image 3

NC-104697 · Hub & Spindle Assembly

180349M92 LH Spindle – Fits Massey Ferguson

CAD 242.58

In stock

LH Spindle – reference 180349M92. Catalogue-listed applications: Massey Ferguson. Position: Left. View photos, specifications, CAD pricing and delivery options from NorthCore.

Standard delivery: 3–7 business days. Other services and estimates are shown at checkout. Minimum online order: CAD 100 in parts, excluding shipping and tax. Add this part to your cart to calculate delivery and review your order.

Ask about this part

Part specifications and references

NorthCore code
NC-104697
Reference numbers
180349M92, 180349M1, 897411M91, 897415M91HD, VPJ1004
Listed package quantity
1
Position
Left
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: LH Spindle.

Configuration: Left Hand (LH) Spindle Fits Massey Ferguson TractorsThis left-hand front axle spindle (also referred to as a stub axle) is a direct replacement for the original equipment part on Fits Massey Ferguson TE20-series and MF 35-series tractors. It mounts in the front axle assembly and supports the front wheel hub and bearing assembly on the left side.Specifications Side: Left Hand (LH) Shaft Length (Dim A): 11.00" Shaft Diameter - Large (Dim B): 1.250" Shaft Diameter - Large Race (Dim C): 1.250" Shaft Diameter - Small Race (Dim D): 0.750" Thread: 3/4" UNF Keyway Position: 11:30 Clamp Notch Position: 5:30 Compatible Models
Fits Massey Ferguson / Fits Ferguson: TE20, TEA20, TED20, TEF20, TO20, TO30, TO35, FE35, 35, 35XReplaces Part Number(s):180349M92, 180349M1, 897415M91Aftermarket Interchange Numbers180349V92, 897411M91, 897415M91HD, VPJ1004, S.15984New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 180349M92, 180349M1, 897411M91, 897415M91HD, VPJ1004
Application notes
  • One New Aftermarket Replacement Left Hand (LH) Spindle Fits Massey Ferguson TractorsThis left-hand front axle spindle (also referred to as a stub axle) is a direct replacement for the original equipment part on Fits Massey Ferguson TE20-series and MF 35-series tractors. It mounts in the front axle assembly and supports the front wheel hub and bearing assembly on the left side.Specifications Side: Left Hand (LH) Shaft Length (Dim A): 11.00" Shaft Diameter - Large (Dim B): 1.250" Shaft Diameter - Large Race (Dim C): 1.250" Shaft Diameter - Small Race (Dim D): 0.750" Thread: 3/4" UNF Keyway Position: 11:30 Clamp Notch Position: 5:30 Compatible Models Fits Massey Ferguson / Fits Ferguson: TE20, TEA20, TED20, TEF20, TO20, TO30, TO35, FE35, 35, 35XReplaces Part Number(s):180349M92, 180349M1, 897415M91Aftermarket Interchange Numbers180349V92, 897411M91, 897415M91HD, VPJ1004, S.15984New aftermarket replacement part - not remanufactured, not used.
