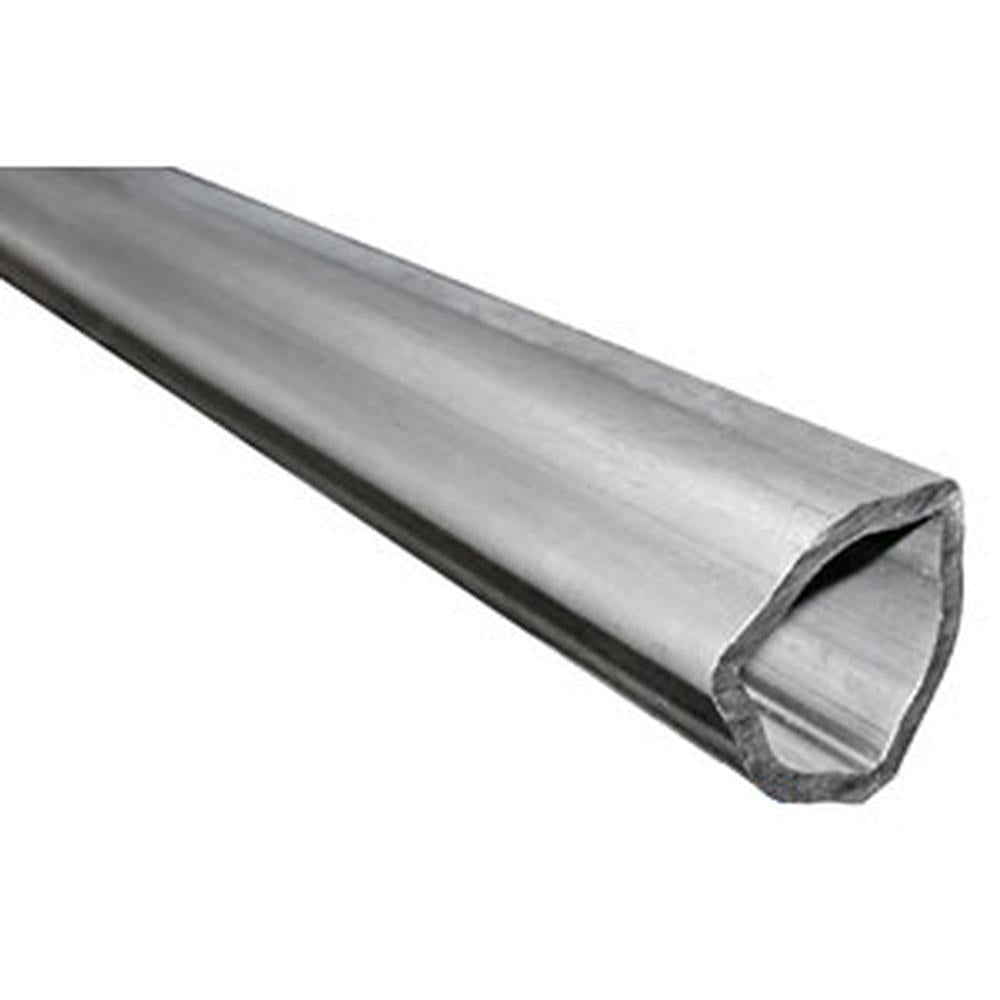

400-6436 Weasler 59-1/16" x 36 MM Tri-lobe Inner Profile Tubing 4 Series Farmer – Fits Bondioli & Pavesi

Quantity indicated in catalogue: 1

Replacement part: Weasler 59-1/16" x 36 MM Tri-lobe Inner Profile Tubing 4 Series 400-6436 Farmer.

Configuration: Tri-lobe Inner Profile Tubing for Bondioli & Pavesi 4 Series PTO DrivelinesThis 59-1/16" x 36 MM tri-lobe (Italian-style bell-shaped) inner profile tubing is a replacement component for Bondioli & Pavesi (B&P) Series 4 metric PTO driveline assemblies. The inner tube slides telescopically inside the outer profile tube, allowing the PTO shaft to extend and compress during operation. It is sold as a single length that can be cut to the required finished shaft length.Specifications Length: 59-1/16 in (approximately 5 ft) Profile Diameter: 36 MM Profile Shape: Tri-lobe (Italian/Bondioli & Pavesi style) Series: 4 (Size 4) U-Joint Cap Size: 27.0 MM / 1-1/16" (1.063") Cap to Cap: 74.6 MM / 2-15/16" (2.937") Material: Steel Compatible ModelsBondioli & Pavesi: Series 4 / Size 4 metric PTO drivelinesNote: Tri-lobe profile tubing is the Italian-style metric driveline format. Verify your existing tubing profile shape before ordering - this tube is NOT compatible with German-style (Walterscheid) lemon or star profile drivelines, or with North American square/hex/splined profile drivelines.Replaces Part Number(s):400-6436, 400 6436, 4006436Aftermarket Interchange Numbers12507, 2660400-6436, 274238, 33052, 343-1404, 4-04M1.5, 40241322, 7-05-07, 971-4006436, 9714006436, BT36-4, BT364, BYQ7-23-1-138, BYQ7231138, PM400-6436, DRF30-0089New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 400-6436, 400, 6436, 2660400-6436, 274238, 33052, 343-1404, 4-04M1.5, 40241322, 7-05-07, 971-4006436, BT36-4, BYQ7-23-1-138, PM400-6436

• One New Aftermarket Replacement Tri-lobe Inner Profile Tubing for Bondioli & Pavesi 4 Series PTO DrivelinesThis 59-1/16" x 36 MM tri-lobe (Italian-style bell-shaped) inner profile tubing is a replacement component for Bondioli & Pavesi (B&P) Series 4 metric PTO driveline assemblies. The inner tube slides telescopically inside the outer profile tube, allowing the PTO shaft to extend and compress during operation. It is sold as a single length that can be cut to the required finished shaft length.Specifications Length: 59-1/16 in (approximately 5 ft) Profile Diameter: 36 MM Profile Shape: Tri-lobe (Italian/Bondioli & Pavesi style) Series: 4 (Size 4) U-Joint Cap Size: 27.0 MM / 1-1/16" (1.063") Cap to Cap: 74.6 MM / 2-15/16" (2.937") Material: Steel Compatible ModelsBondioli & Pavesi: Series 4 / Size 4 metric PTO drivelinesNote: Tri-lobe profile tubing is the Italian-style metric driveline format. Verify your existing tubing profile shape before ordering - this tube is NOT compatible with German-style (Walterscheid) lemon or star profile drivelines, or with North American square/hex/splined profile drivelines.Replaces Part Number(s):400-6436, 400 6436, 4006436Aftermarket Interchange Numbers12507, 2660400-6436, 274238, 33052, 343-1404, 4-04M1.5, 40241322, 7-05-07, 971-4006436, 9714006436, BT36-4, BT364, BYQ7-23-1-138, BYQ7231138, PM400-6436, DRF30-0089New aftermarket replacement part - not remanufactured, not used.
