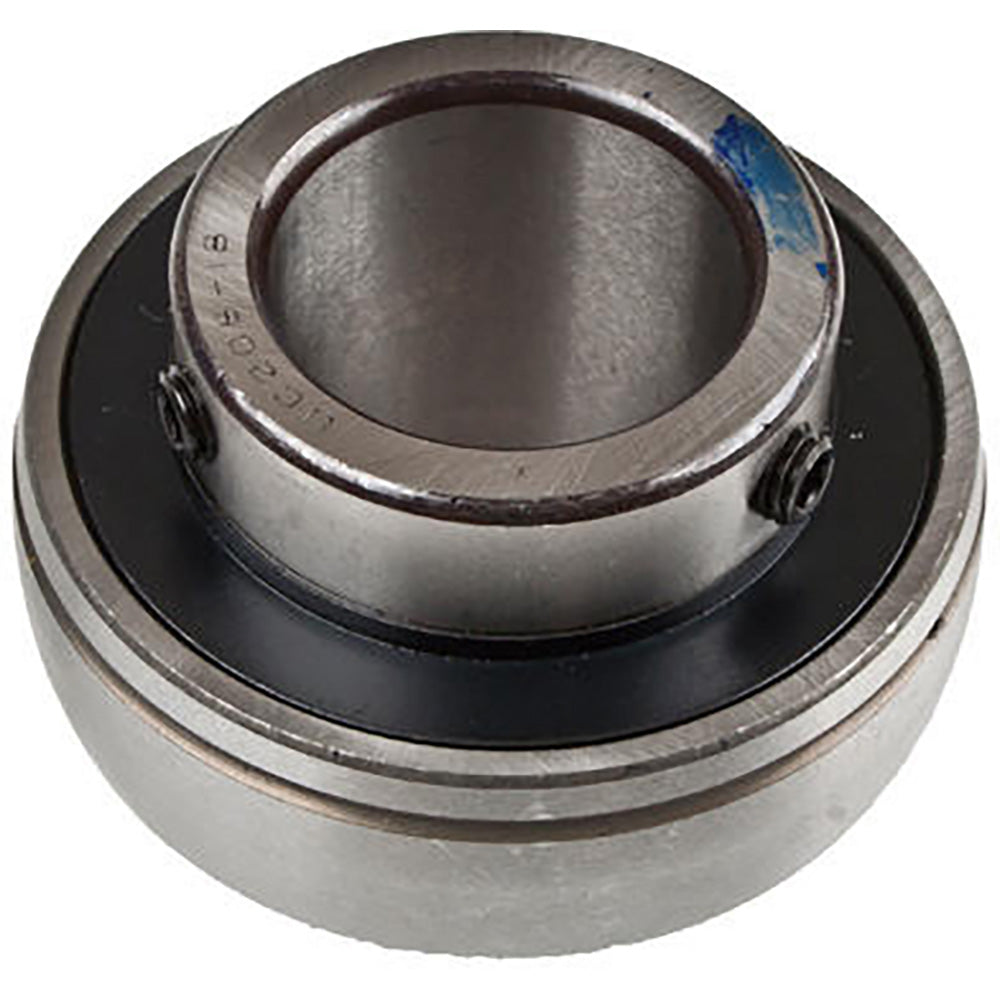

INS-SC-102 Bearing

Quantity indicated in catalogue: 1

Replacement part: Bearing for Universal Products.

Configuration: UC206-18 Insert Ball Bearing - 1-1/8" BoreThe UC206-18 is a radial insert ball bearing (also known as a wide inner ring insert bearing) with a 1-1/8" bore. It features set-screw locking on the extended inner ring to secure the bearing onto a shaft, a self-aligning spherical outer ring, and a single lip seal with factory pre-lubrication. The UC206-18 is part of the UC200 Series and serves as the insert for pillow block, 2-bolt flange, 3-bolt flange, 4-bolt flange, and take-up unit housings. It is widely used in agricultural equipment, construction equipment, conveyor systems, forestry machinery, and other industrial applications.Specifications Bearing Type: Radial Insert Ball Bearing (UC200 Series) Bore (Inner Diameter): 1-1/8" (28.575 mm) Outer Diameter: 62 mm Overall Width (B): 38.1 mm Outer Ring Width (C): 19 mm Locking Method: Set screw (two set screws on extended inner ring) Sealing: Single lip seal, pre-lubricated with grease, relubricatable Self-aligning spherical outer ring Compatible Housing UnitsThis insert bearing fits the following housing types (sold separately): Pillow Block (P206 housing, UCP206-18), 2-Bolt Flange, 3-Bolt Flange, 4-Bolt Flange, and Take-Up Units. Suitable for use in agricultural machinery, construction equipment, conveyor systems, forestry equipment, and general industrial drive applications requiring a 1-1/8" shaft bore.Replaces Part Number(s):UC206-18Aftermarket Interchange NumbersVS-218, INS-SC-102, GY1102KRRB, YW250-1-1/8, UG218NL, UC206-102D1, YAR206-102, UC206.18New aftermarket replacement part - not remanufactured, not used.

Reference numbers: INS-SC-102, GY1102KRRB, YW250-1-1/8, UG218NL, UC206-102D1, YAR206-102

• One New Aftermarket Replacement UC206-18 Insert Ball Bearing - 1-1/8" BoreThe UC206-18 is a radial insert ball bearing (also known as a wide inner ring insert bearing) with a 1-1/8" bore. It features set-screw locking on the extended inner ring to secure the bearing onto a shaft, a self-aligning spherical outer ring, and a single lip seal with factory pre-lubrication. The UC206-18 is part of the UC200 Series and serves as the insert for pillow block, 2-bolt flange, 3-bolt flange, 4-bolt flange, and take-up unit housings. It is widely used in agricultural equipment, construction equipment, conveyor systems, forestry machinery, and other industrial applications.Specifications Bearing Type: Radial Insert Ball Bearing (UC200 Series) Bore (Inner Diameter): 1-1/8" (28.575 mm) Outer Diameter: 62 mm Overall Width (B): 38.1 mm Outer Ring Width (C): 19 mm Locking Method: Set screw (two set screws on extended inner ring) Sealing: Single lip seal, pre-lubricated with grease, relubricatable Self-aligning spherical outer ring Compatible Housing UnitsThis insert bearing fits the following housing types (sold separately): Pillow Block (P206 housing, UCP206-18), 2-Bolt Flange, 3-Bolt Flange, 4-Bolt Flange, and Take-Up Units. Suitable for use in agricultural machinery, construction equipment, conveyor systems, forestry equipment, and general industrial drive applications requiring a 1-1/8" shaft bore.Replaces Part Number(s):UC206-18Aftermarket Interchange NumbersVS-218, INS-SC-102, GY1102KRRB, YW250-1-1/8, UG218NL, UC206-102D1, YAR206-102, UC206.18New aftermarket replacement part - not remanufactured, not used.
