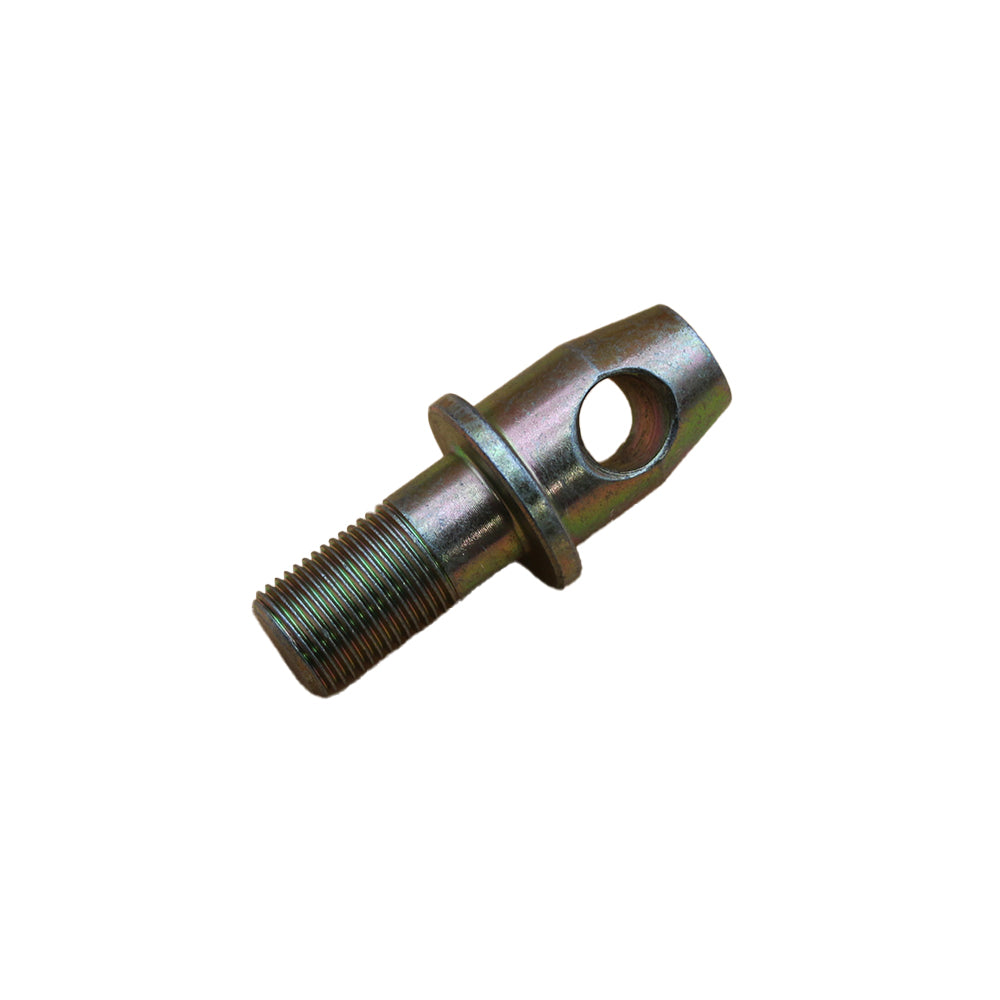

186802M1 Stabilizer Bar Pin Hitch 135 150 165 175 180 235 265 270 275 65 85 88 – Fits Massey Ferguson

NC-099430 · Pins

186802M1 Stabilizer Bar Pin Hitch 135 150 165 175 180 235 265 270 275 65 85 88 – Fits Massey Ferguson

CAD 33.31

Availability to confirm

Stabilizer Bar Pin Hitch 135 150 165 175 180 235 265 270 275 65 85 88 – reference 186802M1. Catalogue-listed applications: Massey Ferguson. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-099430
Reference numbers
186802M1, 186802M1-A, 278SMP100013121, 278SMP100013121-A, 893420M1
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Stabilizer Bar Pin Hitch 135 150 165 175 180 235 265 270 275 65 85 88, 186802M1.

Configuration: Stabilizer Bar Pin (Lower Pull Arm Pin) Fits Massey Ferguson TractorsThis stabilizer bar pin -- also known as the lower pull arm pin or lower link hitch pin -- secures the lower pull arm of the three-point hitch stabilizer assembly on Fits Massey Ferguson tractors. It is a zinc-finish hardened pin used in the rear hitch linkage to control lateral movement of the lower links.Specifications Overall Length: 3.125 in. Pin Diameter: 0.875 in. (7/8 in.) Pin Hole Diameter: 0.500 in. (1/2 in.) Thread Diameter: 0.750 in. (3/4 in.) Thread Length: 1.000 in. Finish: Zinc Yellow Compatible Models
Fits Massey Ferguson Tractors: 65, 85, 88, Super 90, 135, 150, 165, 175, 178, 180, 185, 235, 245, 255, 265, 270, 275
Replaces Part Number(s):186802M1, 186802M1-A, 278SMP100013121, 278SMP100013121-A, 893420M1, 893 420M1New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 186802M1, 186802M1-A, 278SMP100013121, 278SMP100013121-A, 893420M1
Application notes
  • One New Aftermarket Replacement Stabilizer Bar Pin (Lower Pull Arm Pin) Fits Massey Ferguson TractorsThis stabilizer bar pin -- also known as the lower pull arm pin or lower link hitch pin -- secures the lower pull arm of the three-point hitch stabilizer assembly on Fits Massey Ferguson tractors. It is a zinc-finish hardened pin used in the rear hitch linkage to control lateral movement of the lower links.Specifications Overall Length: 3.125 in. Pin Diameter: 0.875 in. (7/8 in.) Pin Hole Diameter: 0.500 in. (1/2 in.) Thread Diameter: 0.750 in. (3/4 in.) Thread Length: 1.000 in. Finish: Zinc Yellow Compatible Models Fits Massey Ferguson Tractors: 65, 85, 88, Super 90, 135, 150, 165, 175, 178, 180, 185, 235, 245, 255, 265, 270, 275 Replaces Part Number(s):186802M1, 186802M1-A, 278SMP100013121, 278SMP100013121-A, 893420M1, 893 420M1New aftermarket replacement part - not remanufactured, not used.
