G109424 Hydraulic Cylinder Seal Repair Kit

NC-092895 · O-Rings, Bearings, Gaskets & Seals

G109424 Hydraulic Cylinder Seal Repair Kit

CAD 96.22

Availability to confirm

Hydraulic Cylinder Seal Repair Kit – reference G109424. Catalogue-listed applications: Case, Case IH 35A, 35C, 35C WL, 35 WL, WL, W14, W14L. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-092895
Reference numbers
G109424
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Hydraulic Cylinder Seal Repair Kit Fits Case 580D 580SE Backhoe Loader.

Configuration: Fits Case Backhoe Bucket & Dipper 1pc Cylinder Seal Kit Fits the following Machines: Fits Case Backhoe Loaders Bucket: 480D, 480D LL, 580D, 580 Super D, 580 Super E and Crawler / Dozers Backhoe Bucket: 850C, 855C with Backhoe Models 35A, 35C, 35C WL, 35 WL, 850D with Backhoe Models 35C, 35C, WL, W14, W14L, W14H Fits Case-IH Dozer Lift
Models: 650, W30; Angle Dozer
Models: 1150E, 1155E; Stabilizer Backhoe
Models: 850D, 850E, 855D, 855E, 850C, 855C, 580D, 580, 580G, 450B, 450C, 455B, 455C, 580C, 580B, 850, 450; Loader Lift
Models: 850B, W14, W14H; Loader Clam
Models: 580F

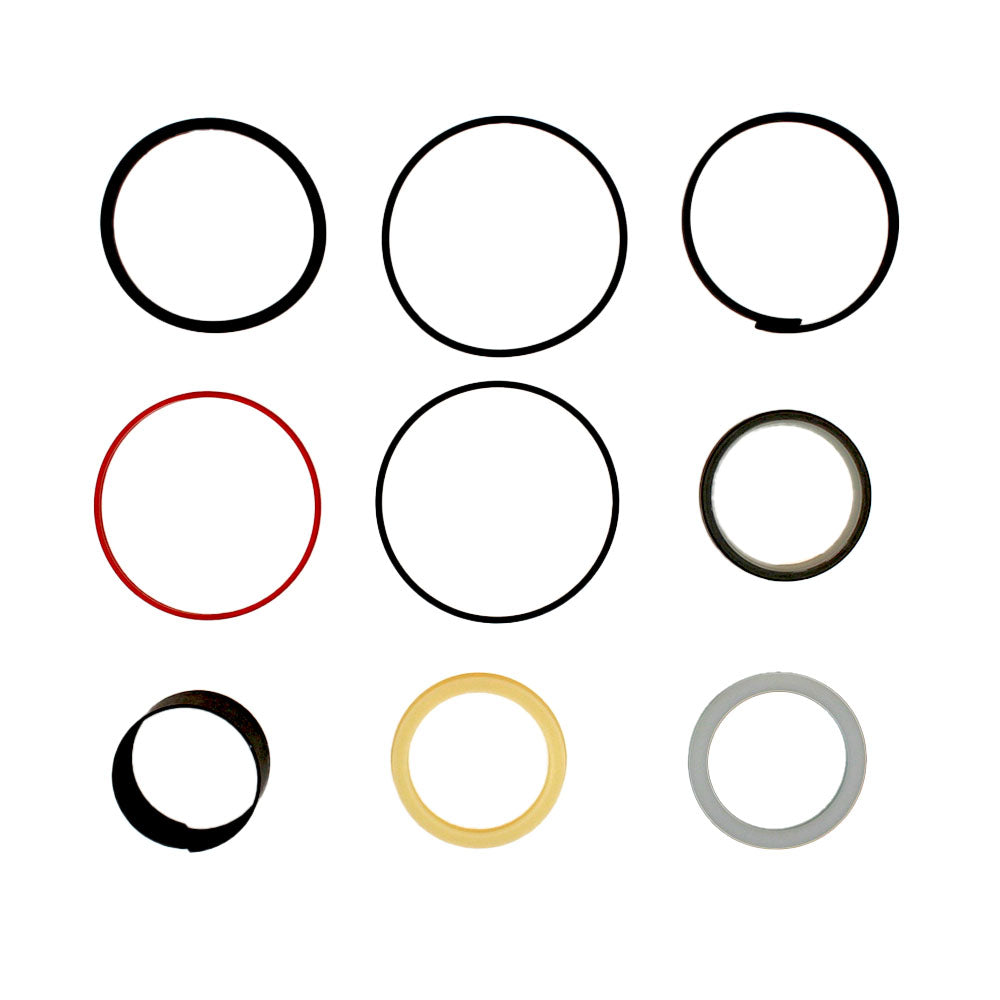

Tech Info: Rod: 2 1/2", Bore: 4". ACTUAL PHOTO OF SEAL KIT.
Replaces Part Number: G109424

Reference numbers: G109424

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Case 35A
  • Case 35C
  • Case 35C WL
  • Case 35 WL
  • Case WL
  • Case W14
  • Case W14L
  • Case W14H
  • Case IH 650
  • Case IH W30
  • Case IH 1150E
  • Case IH 1155E
  • Case IH 850D
  • Case IH 850E
  • Case IH 855D
  • Case IH 855E
  • Case IH 850C
  • Case IH 855C
  • Case IH 580D
  • Case IH 580
  • Case IH 580G
  • Case IH 450B
  • Case IH 450C
  • Case IH 455B
  • Case IH 455C
  • Case IH 580C
  • Case IH 580B
  • Case IH 850
  • Case IH 450
  • Case IH 850B
  • Case IH W14
  • Case IH W14H
  • Case IH 580F
Application notes
  • One New Replacement Fits Case Backhoe Bucket & Dipper 1pc Cylinder Seal Kit Fits the following Machines: Fits Case Backhoe Loaders Bucket: 480D, 480D LL, 580D, 580 Super D, 580 Super E and Crawler / Dozers Backhoe Bucket: 850C, 855C with Backhoe Models 35A, 35C, 35C WL, 35 WL, 850D with Backhoe Models 35C, 35C, WL, W14, W14L, W14H Fits Case-IH Dozer Lift
