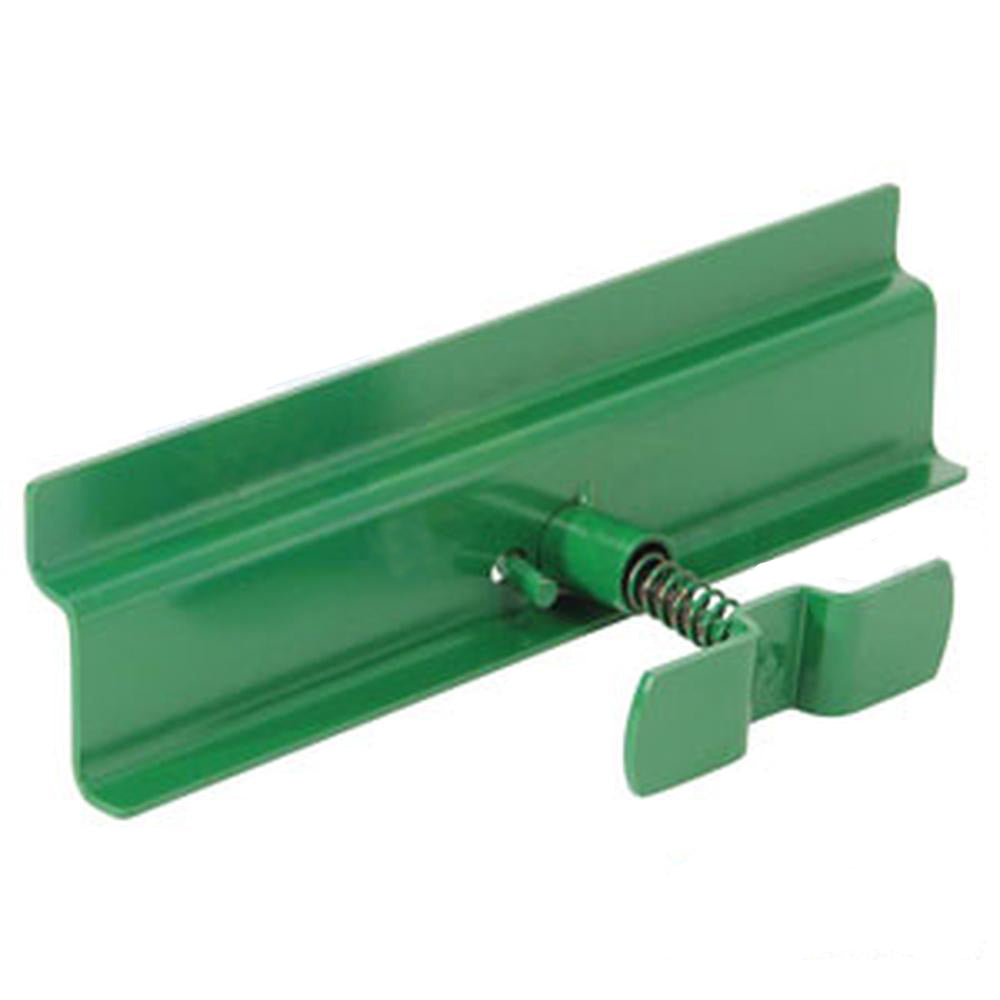

AH170741 ASSY FILLER COVER – Fits John Deere

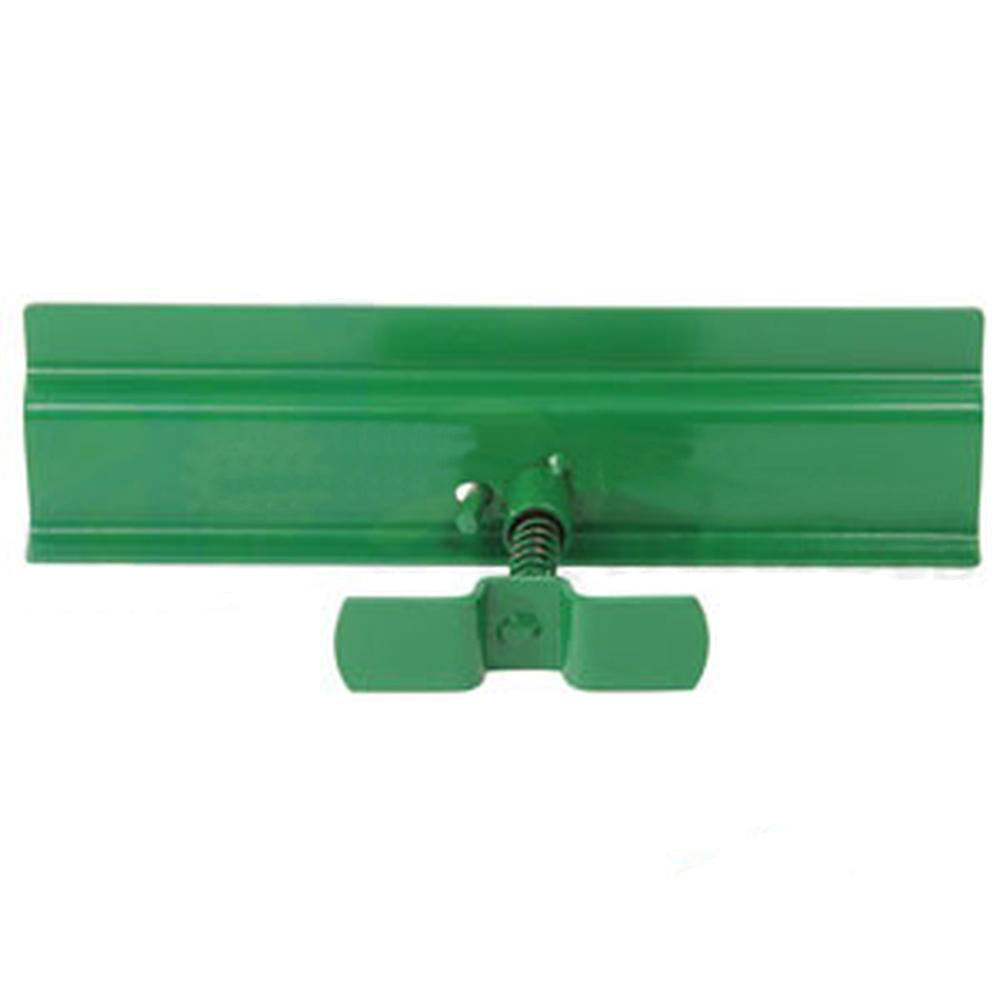

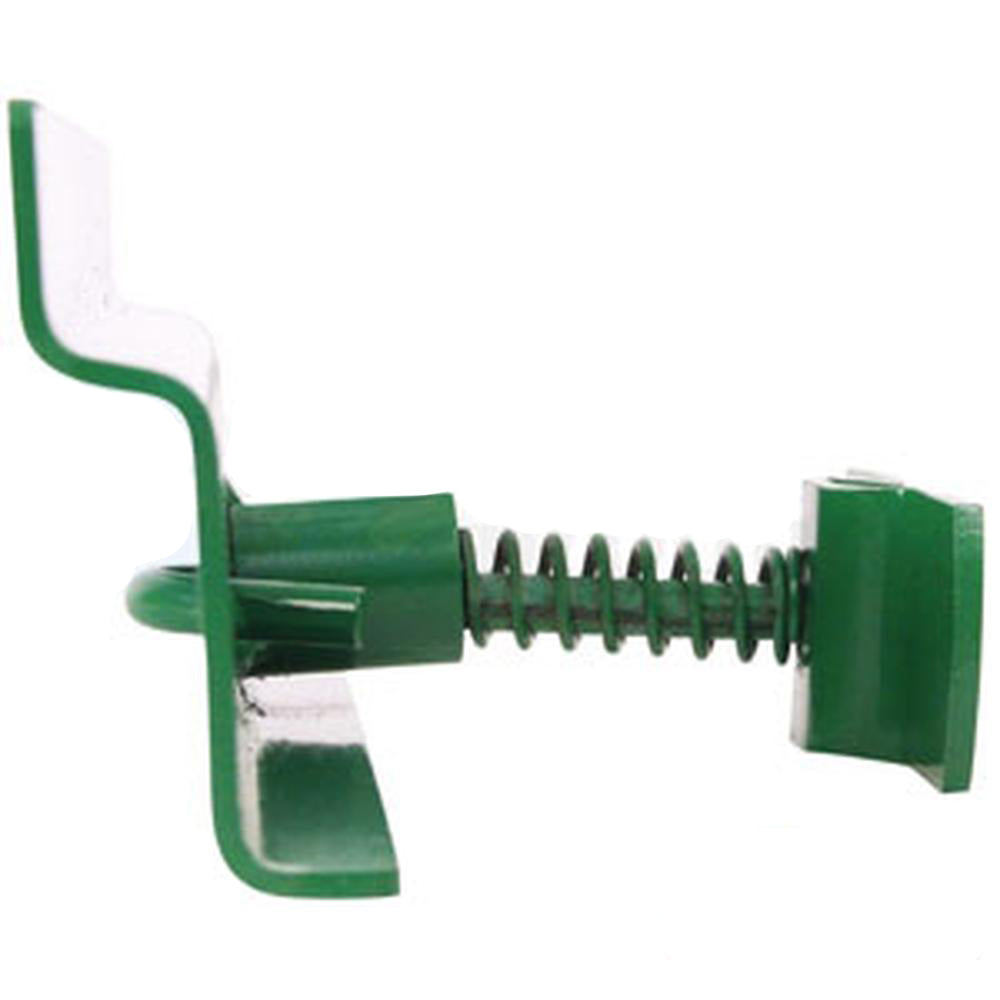

AH170741 ASSY FILLER COVER – Fits John Deere – additional image 2AH170741 ASSY FILLER COVER – Fits John Deere – additional image 3

NC-087613 · Threshing

AH170741 ASSY FILLER COVER – Fits John Deere

CAD 105.10

Availability to confirm

ASSY FILLER COVER – reference AH170741. Catalogue-listed applications: John Deere 9650 STS, 9660 STS, 9670 STS, 9750 STS, 9760 STS, 9770 STS, 9860 STS. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-087613
Reference numbers
AH170741, S660, S670, S680, S680HM, S690
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: ASSY FILLER COVER.

Configuration: Concave Grate Cover Fits John Deere STS and S Series CombinesThis aftermarket replacement concave grate cover (also known as a separator grate filler cover) fits into the threshing and separation area of Fits John Deere STS and S Series combines. These covers clip into the concave grate assembly to blank off unused grate openings, helping optimize threshing performance and grain separation for the crop being harvested. Replaces OEM part number AH170741, which has been superseded by AXE50778.Compatible Models
Fits John Deere STS Series: 9650 STS, 9660 STS, 9670 STS, 9750 STS, 9760 STS, 9770 STS, 9860 STS, 9870 STSFits John Deere S Series: S650, S660, S670, S670HM (Hillmaster), S680, S680HM, S690, S690HMReplaces Part Number(s):AH170741, AXE50778New aftermarket replacement part - not remanufactured, not used.

Reference numbers: AH170741, S660, S670, S680, S680HM, S690

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • John Deere 9650 STS
  • John Deere 9660 STS
  • John Deere 9670 STS
  • John Deere 9750 STS
  • John Deere 9760 STS
  • John Deere 9770 STS
  • John Deere 9860 STS
  • John Deere S670HM (Hillmaster)
  • John Deere S690HM
Application notes
  • One New Aftermarket Replacement Concave Grate Cover Fits John Deere STS and S Series CombinesThis aftermarket replacement concave grate cover (also known as a separator grate filler cover) fits into the threshing and separation area of Fits John Deere STS and S Series combines. These covers clip into the concave grate assembly to blank off unused grate openings, helping optimize threshing performance and grain separation for the crop being harvested. Replaces OEM part number AH170741, which has been superseded by AXE50778.Compatible Models Fits John Deere STS Series: 9650 STS, 9660 STS, 9670 STS, 9750 STS, 9760 STS, 9770 STS, 9860 STS, 9870 STSFits John Deere S Series: S650, S660, S670, S670HM (Hillmaster), S680, S680HM, S690, S690HMReplaces Part Number(s):AH170741, AXE50778New aftermarket replacement part - not remanufactured, not used.
