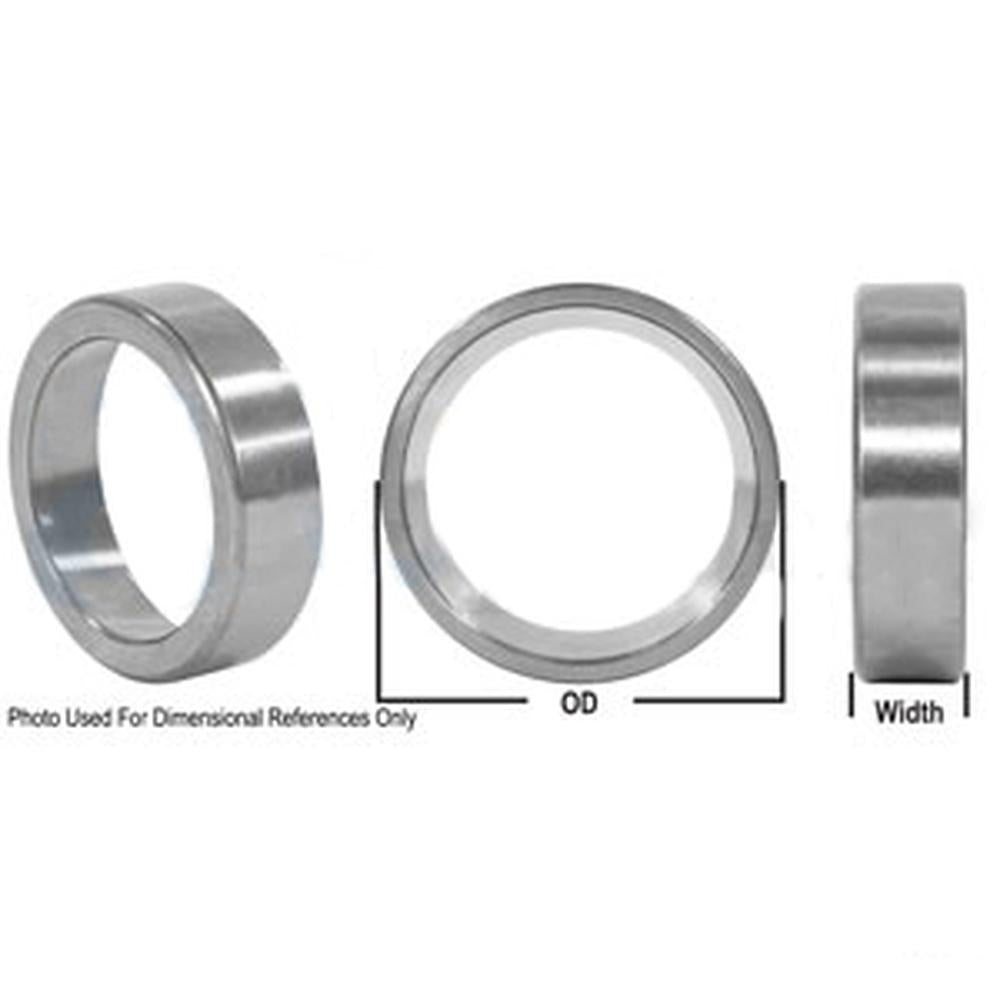

14276 Bearing Cup ( )

Quantity indicated in catalogue: 1

Replacement part: Bearing Cup (14276).

Configuration: Tapered Roller Bearing Cup (14276) for Agricultural, Construction, and Industrial EquipmentThis tapered roller bearing cup (outer race) is a direct replacement for OEM part number 14276. The cup seats in the housing or casing and provides the precision raceway surface on which the tapered rollers ride, working together with a matching cone assembly to support both radial and axial loads across a wide range of agricultural and industrial machinery. Compatible cone numbers include 14116, 14117A, 14118, 14124, 14125A, 14130, 14131, 14137A, 14138A, and 14139.Specifications Type: Single Tapered Roller Bearing Cup (Outer Race) Outside Diameter: 2.717 in. Cup Width: 0.625 in. Fillet Radius: 0.050 in. Material: Chrome/Fits Case Carburized Steel Lubrication Hole: None Finish: Uncoated Compatible Equipment
Fits Case IH Combines: 1640, 1644, 1660, 1666, 1680, 1688, 2166, 2188, 2344, 2366, 2377, 2388, 2577, 2588
Fits John Deere: 335, 445, 503, 504C, 504F, 504G, 504H, 504I, 504I SILAGE, 504L, 505I, 505L, 554XL, 555XL, 602, 604J, 604K, 604L, 604XL, 605F, 605G, 605H, 605J, 605K, 605L, 605XL, 615, 670, 715, 815Minneapolis-Moline: 5 STAR, JET STAR 3, JET STAR 4, G1000, M5
Fits Allis Chalmers: 82, 84, 95, 303, 403, 403F, 403G, 615
Fits Massey Ferguson: 1400Multi-Brand / Universal Fit: Also fits select models from Vermeer, Fits Woods, Amco, Fits Ford/New Holland, Krause, Fits Case/International Harvester, Taylorway, Bush Hog, GEHL, Rhino, Fits Caterpillar (Fits CAT), Riverside Tractor, Hesston, Kewanee (see models: R-21, R-23, 4901-4938, 5400 REBEL, 5500 REBEL)
Replaces Part Number(s):14276, 14276TIM, X5623, A29977, 54628A, 9N744, 10261, 80105, 70025, 116210, 113BH, 520031, 016234X1, JD7409, W33, W10A7575, 8J0422, 1715019, 70209890, 74253284, 710350, 203021New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 14276, 14276TIM, X5623, A29977, 54628A, 9N744, 10261, 80105, 70025, 116210, 113BH, 520031, 016234X1, JD7409, W33, W10A7575, 8J0422, 1715019, 70209890, 74253284, 710350, 14117A, 14118, 14124, 14125A, 14130, 14131, 14137A, 14138A

• One New Aftermarket Replacement Tapered Roller Bearing Cup (14276) for Agricultural, Construction, and Industrial EquipmentThis tapered roller bearing cup (outer race) is a direct replacement for OEM part number 14276. The cup seats in the housing or casing and provides the precision raceway surface on which the tapered rollers ride, working together with a matching cone assembly to support both radial and axial loads across a wide range of agricultural and industrial machinery. Compatible cone numbers include 14116, 14117A, 14118, 14124, 14125A, 14130, 14131, 14137A, 14138A, and 14139.Specifications Type: Single Tapered Roller Bearing Cup (Outer Race) Outside Diameter: 2.717 in. Cup Width: 0.625 in. Fillet Radius: 0.050 in. Material: Chrome/Fits Case Carburized Steel Lubrication Hole: None Finish: Uncoated Compatible Equipment Fits Case IH Combines: 1640, 1644, 1660, 1666, 1680, 1688, 2166, 2188, 2344, 2366, 2377, 2388, 2577, 2588 Fits John Deere: 335, 445, 503, 504C, 504F, 504G, 504H, 504I, 504I SILAGE, 504L, 505I, 505L, 554XL, 555XL, 602, 604J, 604K, 604L, 604XL, 605F, 605G, 605H, 605J, 605K, 605L, 605XL, 615, 670, 715, 815Minneapolis-Moline: 5 STAR, JET STAR 3, JET STAR 4, G1000, M5 Fits Allis Chalmers: 82, 84, 95, 303, 403, 403F, 403G, 615 Fits Massey Ferguson: 1400Multi-Brand / Universal Fit: Also fits select models from Vermeer, Fits Woods, Amco, Fits Ford/New Holland, Krause, Fits Case/International Harvester, Taylorway, Bush Hog, GEHL, Rhino, Fits Caterpillar (Fits CAT), Riverside Tractor, Hesston, Kewanee (see models: R-21, R-23, 4901-4938, 5400 REBEL, 5500 REBEL) Replaces Part Number(s):14276, 14276TIM, X5623, A29977, 54628A, 9N744, 10261, 80105, 70025, 116210, 113BH, 520031, 526WD, 7069WD, 016234X1, JD7409, W33, W10A7575, 8J0422, 1715019, 70209890, 74253284, 710350, 203021New aftermarket replacement part - not remanufactured, not used.
