3016-2040CL 2040 Extended Pitch Conn. Link (Import) – Fits John Deere

NC-087052 · Chain Links and Parts

3016-2040CL 2040 Extended Pitch Conn. Link (Import) – Fits John Deere

CAD 2.37

Availability to confirm

2040 Extended Pitch Conn. Link (Import) – reference 3016-2040CL. Catalogue-listed applications: John Deere. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-087052
Reference numbers
3016-2040CL, 2040CL, A2040CL, ACL2040
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: 2040 Extended Pitch Conn. Link (Import).

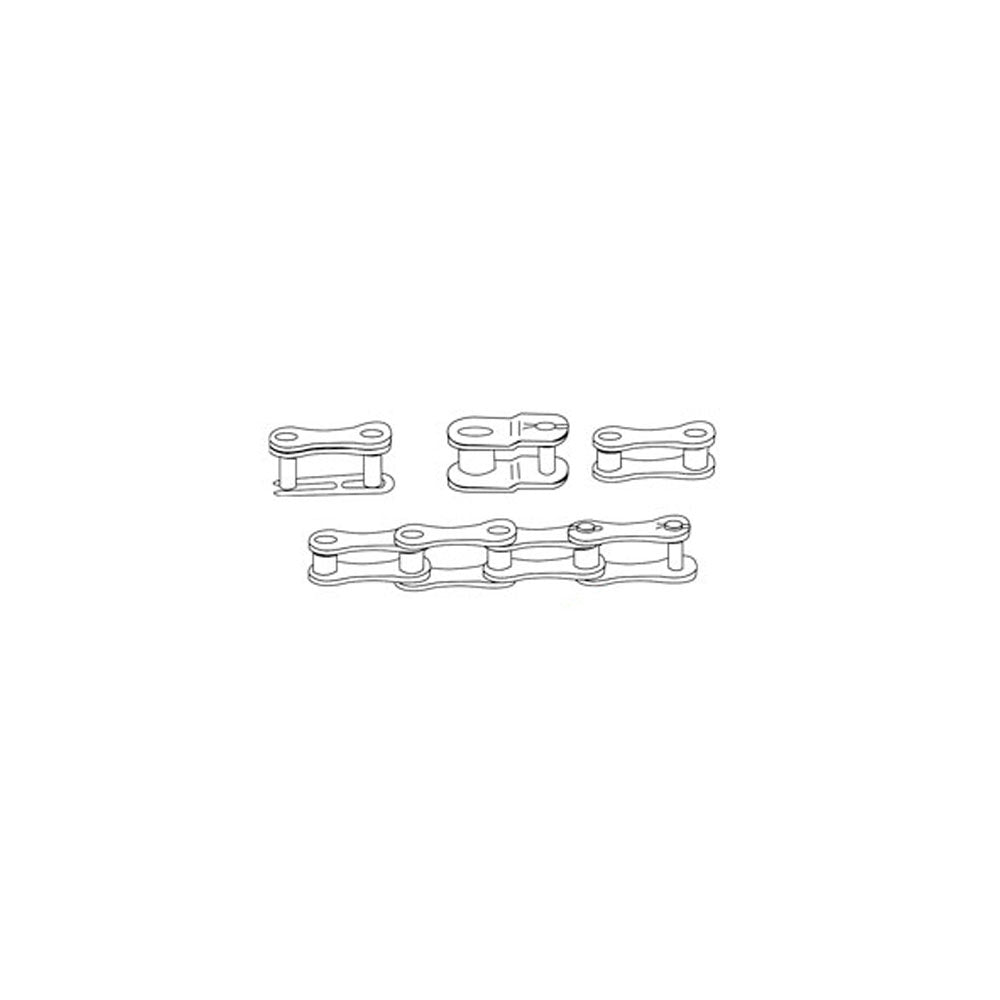

Configuration: 2040 Extended Pitch Connector Link (Import) for A2040 Roller ChainThis connector link (also called a master link) is used to join the ends of ANSI #2040 double-pitch extended pitch roller chain. It secures with a spring clip and is compatible with any standard A2040 roller chain used in agricultural equipment, conveyors, and industrial drive systems. The #2040 double-pitch chain features a 1-inch pitch and is widely used across farm machinery, grain handling equipment, and material handling conveyors.Specifications Chain Size: #2040 (ANSI double-pitch / extended pitch) Pitch: 1.000 in. Width: 0.3125 in. Pin Diameter: 0.156 in. Link Plate Thickness: 0.060 in. Clip Type: Spring clip Material: Carbon/Alloy Steel Industry Standard: ANSI B29.1 Compatible Applications
Fits any equipment using ANSI #2040 double-pitch extended pitch roller chain, including agricultural conveyors, grain elevators, row crop equipment, and general industrial chain drives.Replaces Part Number(s):3016-2040CL, 2040CL, A2040CL, 457113R91Aftermarket Interchange Numbers
Fits Stens 3016-2040CL, ACL2040, 673-CL2040 (A&I), RCCLA2040 (Edcor), SW2040COUS (Fits John Deere)New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 3016-2040CL, 2040CL, A2040CL, ACL2040
Application notes
  • One New Aftermarket Replacement 2040 Extended Pitch Connector Link (Import) for A2040 Roller ChainThis connector link (also called a master link) is used to join the ends of ANSI #2040 double-pitch extended pitch roller chain. It secures with a spring clip and is compatible with any standard A2040 roller chain used in agricultural equipment, conveyors, and industrial drive systems. The #2040 double-pitch chain features a 1-inch pitch and is widely used across farm machinery, grain handling equipment, and material handling conveyors.Specifications Chain Size: #2040 (ANSI double-pitch / extended pitch) Pitch: 1.000 in. Width: 0.3125 in. Pin Diameter: 0.156 in. Link Plate Thickness: 0.060 in. Clip Type: Spring clip Material: Carbon/Alloy Steel Industry Standard: ANSI B29.1 Compatible Applications Fits any equipment using ANSI #2040 double-pitch extended pitch roller chain, including agricultural conveyors, grain elevators, row crop equipment, and general industrial chain drives.Replaces Part Number(s):3016-2040CL, 2040CL, A2040CL, 457113R91Aftermarket Interchange Numbers Fits Stens 3016-2040CL, ACL2040, 673-CL2040 (A&I), RCCLA2040 (Edcor), SW2040COUS (Fits John Deere)New aftermarket replacement part - not remanufactured, not used.
