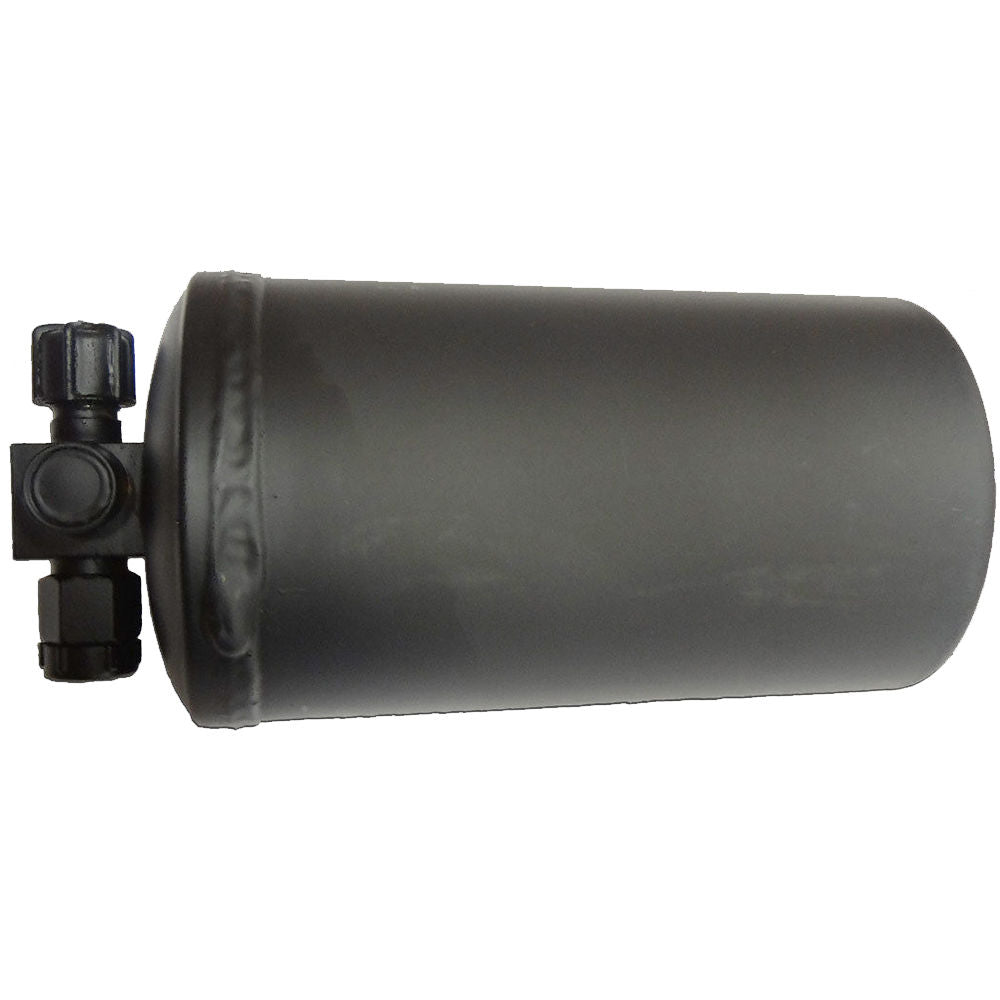

AT162848 Receiver/Drier – Fits John Deere

Quantity indicated in catalogue: 1

Replacement part: Receiver/Drier.

Configuration: Receiver/Drier Fits John Deere EquipmentThis aftermarket replacement A/C receiver/drier fits a wide range of Fits John Deere agricultural, construction, and forestry equipment. The receiver/drier is a critical component of the air conditioning system, containing desiccant to remove moisture from the refrigerant and filter media to capture contaminants such as wear metals from the compressor. Compatible with both R12 and R134a refrigerant systems. Features a top/side sight glass and moisture indicator. Replace the receiver/drier whenever the A/C compressor is replaced, any time the system has been open to atmosphere, or at minimum annually.Specifications Canister Diameter: 4" Overall Height: 9" Inlet: #6, 3/8" Female O-Ring Outlet: #6, 3/8" Male O-Ring Refrigerant: R12 and R134a Compatible Sight Glass: Top/Side with Moisture Indicator Mounting Position: Vertical/Upright Compatible Models
Fits John Deere Combines: CTS (SN 610401>), CTS II, 2054, 2056, 2058, 2064, 2066, 4425, 4435, 6620 (SN 600001>), 6620 Titan II, 6622, 7720 (SN 600001>), 7720 Titan II, 7722, 8820, 8820 Titan II, 9400, 9410, 9450, 9500, 9510, 9510 SH, 9550, 9550 SH, 9560, 9560 SH, 9560 STS, 9600, 9610, 9640, 9650, 9650 CTS, 9650 STS, 9660, 9660 CTS, 9660 STS, 9670 STS, 9680, 9760, 9760 STS, 9770 STS, 9780 CTS, 9780HM CTS, 9860 STS, 9870 STS, 9880 STS, 9940, 9950, 9960, 9965, 9970, 9976, 9986, 9996
Fits John Deere Backhoes: 300D, 310C, 310D, 310E, 310G, 310SE, 310SG, 315C, 315D, 315SE, 315SG, 325, 410B, 410D, 410E, 410G, 510B, 510C, 510D, 710D, 710GFits John Deere Tractors: 7200, 7250, 7300, 7350, 7400, 7450, 7500, 7550, 7700, 7750, 7800, 7850, 8100, 8110, 8200, 8210, 8300, 8310, 8400, 8410
Fits John Deere Motor Graders: 670B, 670C, 670CH, 670D, 672B, 672CH, 672D, 726B, 750C, 750C II, 762, 770B, 770BH, 770C, 770CH, 772B, 772BH, 772CH, 772D, 850C, 850C II, 870D, 872DFits John Deere Crawlers/Dozers: 450H, 450J, 550H, 550J, 650H, 650J, 700H, 750C, 750C II, 750J, 850C, 850C II, 850JFits John Deere Wheel Loaders: 444H, 444J, 524K, 544E, 544G, 544J, 624E, 624G, 624J, 644G, 644H, TC44H, TC54HFits John Deere Skid Steer Loaders: 317, 320, 325, 328, 332, CT322, CT332
Fits John Deere Forestry/Skidders: 540E, 540G, 548E, 548G, 640E, 640G, 648E, 648G, 740E, 740G, 748E, 748GFits John Deere Forage Harvesters: 5720, 5730, 5820, 5830, 6610, 6650, 6710, 6810, 6910, 7400, 7500, 7800
Fits John Deere Articulated Dump Trucks: 260E, 310E, 360DC, 360DG, 410D, 460DC, 460DGFits John Deere Cotton Pickers/Strippers: 9986, 9996
Fits John Deere Sprayers/Other: 3430, 3800, 3830, 4700, 4710, C670
Replaces Part Number(s):AT162848, AT151981, AT125596, AT63170, AT114865, AH162848, AH114865, AH137486, AH211387, AH234099, AXE53638, 804-1890Aftermarket Interchange Numbers07-5032A, 804-532, 825-5176, 800-5316, 7392, 37-13541, 37-13541-AM, 37-13739, 60-1-0004New aftermarket replacement part - not remanufactured, not used.

Reference numbers: AT162848, AT151981, AT125596, AT63170, AT114865, AH162848, AH114865, AH137486, AH211387, AH234099, AXE53638, 804-532, 825-5176, 800-5316, 7392, 37-13541, 37-13541-AM, 37-13739

• One New Aftermarket Replacement Receiver/Drier Fits John Deere EquipmentThis aftermarket replacement A/C receiver/drier fits a wide range of Fits John Deere agricultural, construction, and forestry equipment. The receiver/drier is a critical component of the air conditioning system, containing desiccant to remove moisture from the refrigerant and filter media to capture contaminants such as wear metals from the compressor. Compatible with both R12 and R134a refrigerant systems. Features a top/side sight glass and moisture indicator. Replace the receiver/drier whenever the A/C compressor is replaced, any time the system has been open to atmosphere, or at minimum annually.Specifications Canister Diameter: 4" Overall Height: 9" Inlet: #6, 3/8" Female O-Ring Outlet: #6, 3/8" Male O-Ring Refrigerant: R12 and R134a Compatible Sight Glass: Top/Side with Moisture Indicator Mounting Position: Vertical/Upright Compatible Models Fits John Deere Combines: CTS (SN 610401>), CTS II, 2054, 2056, 2058, 2064, 2066, 4425, 4435, 6620 (SN 600001>), 6620 Titan II, 6622, 7720 (SN 600001>), 7720 Titan II, 7722, 8820, 8820 Titan II, 9400, 9410, 9450, 9500, 9510, 9510 SH, 9550, 9550 SH, 9560, 9560 SH, 9560 STS, 9600, 9610, 9640, 9650, 9650 CTS, 9650 STS, 9660, 9660 CTS, 9660 STS, 9670 STS, 9680, 9760, 9760 STS, 9770 STS, 9780 CTS, 9780HM CTS, 9860 STS, 9870 STS, 9880 STS, 9940, 9950, 9960, 9965, 9970, 9976, 9986, 9996 Fits John Deere Backhoes: 300D, 310C, 310D, 310E, 310G, 310SE, 310SG, 315C, 315D, 315SE, 315SG, 325, 410B, 410D, 410E, 410G, 510B, 510C, 510D, 710D, 710GFits John Deere Tractors: 7200, 7250, 7300, 7350, 7400, 7450, 7500, 7550, 7700, 7750, 7800, 7850, 8100, 8110, 8200, 8210, 8300, 8310, 8400, 8410 Fits John Deere Motor Graders: 670B, 670C, 670CH, 670D, 672B, 672CH, 672D, 726B, 750C, 750C II, 762, 770B, 770BH, 770C, 770CH, 772B, 772BH, 772CH, 772D, 850C, 850C II, 870D, 872DFits John Deere Crawlers/Dozers: 450H, 450J, 550H, 550J, 650H, 650J, 700H, 750C, 750C II, 750J, 850C, 850C II, 850JFits John Deere Wheel Loaders: 444H, 444J, 524K, 544E, 544G, 544J, 624E, 624G, 624J, 644G, 644H, TC44H, TC54HFits John Deere Skid Steer Loaders: 317, 320, 325, 328, 332, CT322, CT332 Fits John Deere Forestry/Skidders: 540E, 540G, 548E, 548G, 640E, 640G, 648E, 648G, 740E, 740G, 748E, 748GFits John Deere Forage Harvesters: 5720, 5730, 5820, 5830, 6610, 6650, 6710, 6810, 6910, 7400, 7500, 7800 Fits John Deere Articulated Dump Trucks: 260E, 310E, 360DC, 360DG, 410D, 460DC, 460DGFits John Deere Cotton Pickers/Strippers: 9986, 9996 Fits John Deere Sprayers/Other: 3430, 3800, 3830, 4700, 4710, C670 Replaces Part Number(s):AT162848, AT151981, AT125596, AT63170, AT114865, AH162848, AH114865, AH137486, AH211387, AH234099, AXE53638, 804-1890Aftermarket Interchange Numbers07-5032A, 804-532, 825-5176, 800-5316, 7392, 37-13541, 37-13541-AM, 37-13739, 60-1-0004New aftermarket replacement part - not remanufactured, not used.
