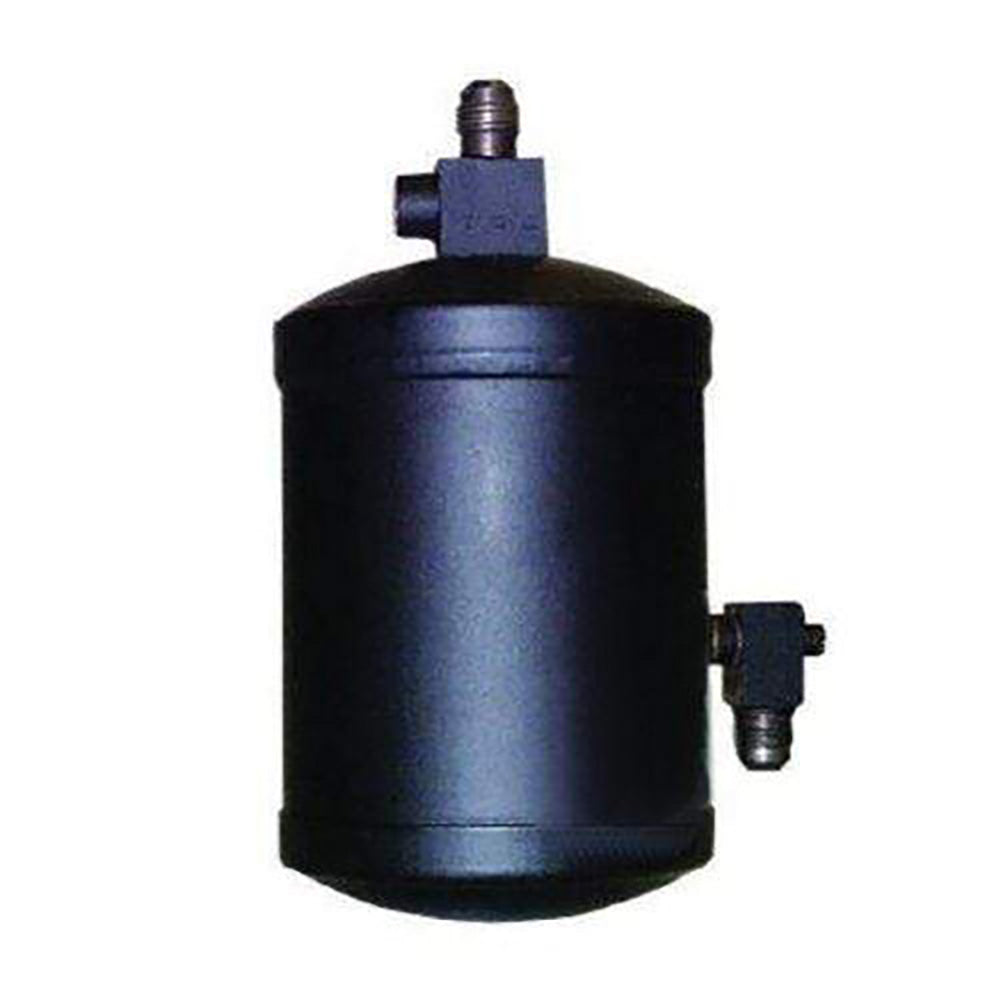

AH84591 Receiver Drier

Quantity indicated in catalogue: 1

Replacement part: Receiver Drier.

Configuration: A/C Receiver Drier Fits John Deere Combines, Harvesters, and WindrowersThis aftermarket replacement A/C receiver drier Fits John Deere (Fits JD) combines, forage harvesters, and windrowers equipped with R12 or R134a air conditioning systems. Located on the high-pressure side of the A/C loop between the condenser and expansion valve, the receiver drier stores liquid refrigerant and removes moisture and debris from the system using an internal desiccant and filter. It should be replaced any time the A/C system is opened for service.Specifications Diameter: 4 in. Length/Height: 8 in. Inlet/Outlet: 3/8 in. Male Flare Sight Glass: Side-mounted Compatible Refrigerant: R12, R134a Compatible Models
Fits John Deere Combines: 3300, 4400, 6600, 7700
Fits John Deere Forage Harvesters: 5200, 5400
Fits John Deere Hydrostatic Drive Windrowers: 2250, 2270White Combines: 7300, 7600, 8600, 8700, 8800, 8900, 8920
Replaces Part Number(s):AH84591, AH234097, AH84394, AH80693, AR80693, 312750057, 31-2750057, 804-478New aftermarket replacement part - not remanufactured, not used.

Reference numbers: AH84591, AH234097, AH84394, AH80693, AR80693, 312750057

• One New Aftermarket Replacement A/C Receiver Drier Fits John Deere Combines, Harvesters, and WindrowersThis aftermarket replacement A/C receiver drier Fits John Deere (Fits JD) combines, forage harvesters, and windrowers equipped with R12 or R134a air conditioning systems. Located on the high-pressure side of the A/C loop between the condenser and expansion valve, the receiver drier stores liquid refrigerant and removes moisture and debris from the system using an internal desiccant and filter. It should be replaced any time the A/C system is opened for service.Specifications Diameter: 4 in. Length/Height: 8 in. Inlet/Outlet: 3/8 in. Male Flare Sight Glass: Side-mounted Compatible Refrigerant: R12, R134a Compatible Models Fits John Deere Combines: 3300, 4400, 6600, 7700 Fits John Deere Forage Harvesters: 5200, 5400 Fits John Deere Hydrostatic Drive Windrowers: 2250, 2270White Combines: 7300, 7600, 8600, 8700, 8800, 8900, 8920 Replaces Part Number(s):AH84591, AH234097, AH84394, AH80693, AR80693, 312750057, 31-2750057, 804-478New aftermarket replacement part - not remanufactured, not used.
