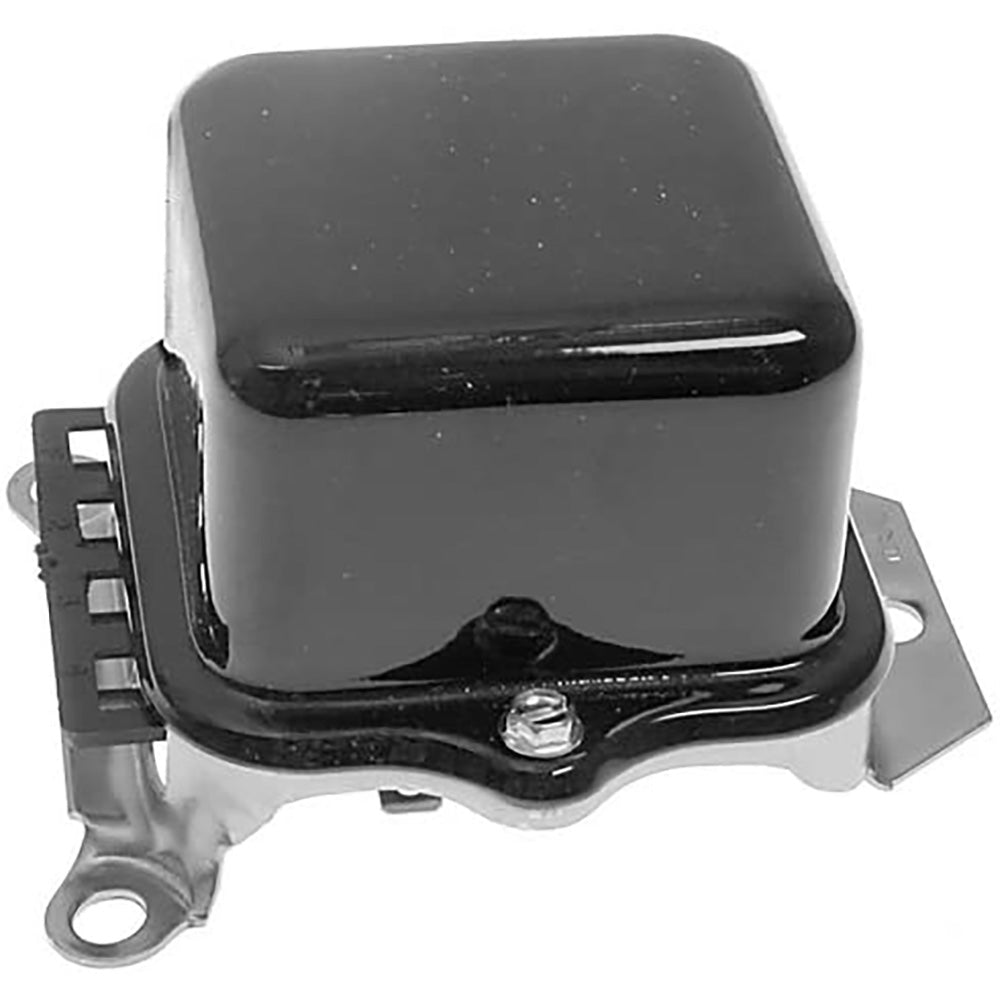

65303C1 Voltage Regulator (12 Volt)

Quantity indicated in catalogue: 1

Replacement part: Voltage Regulator (12 Volt).

Configuration: Voltage Regulator (12 Volt) for International Harvester, Massey Ferguson, Allis Chalmers, Oliver, Minneapolis-Moline and MoreThis external 12-volt voltage regulator is designed for use with Delco 10DN and 20DN alternator systems requiring an external regulator. It regulates charging system output to protect the battery and electrical accessories across a wide range of agricultural tractors, combines, construction equipment, and industrial machines from multiple major manufacturers. The 4-terminal configuration uses the standard F (Field), 2 (Stator), 3 (B+), and 4 (Light) terminal layout common to Delco external-regulator charging systems.
Specifications Voltage: 12-Volt Terminals: 4 - (F-Field) / (2-Stator) / (3-B+) / (4-Light) Type: External voltage regulator Designed for use only in 12-volt alternator systems with external regulator Compatible ModelsAllis Chalmers Tractors: D19, D21, 160, 170, 175, 180, 185, 190, 190XT, 200, 210, 220Cockshutt / CO-OP Tractors: 30Gleaner Combines: E, E3, F, F2, F3, G, KInternational Harvester (IH) Tractors: 504, 544, 606, 706, 756, 766, 806, 826, 856, 966, 1026, 1066, 1206, 1256, 1456, 1466, 2444, 2504, 2544, 2606, 2706, 2756, 2806, 2826, 2856, 4100, 4156, 21026, 21206, 21256, 21456International Harvester Backhoe Loaders: 2444, 2504International Combines: 205, 315, 403, 503, 615, 715, 815, 915International Harvester Equipment: 616, 622Massey Ferguson Tractors: 20, 30, 31, 40, 50, 70, 80, 130, 135, 150, 165, 175, 178, 180, 302, 304, 1080, 1100, 1130, 1150, 1500, 1800, 2200Massey Ferguson Combines: 205, 300, 410, 510, 540Massey Ferguson Backhoe Loaders / Construction / Industrial: 20, 31, 40, 50, 70, 80, 205, 302, 304, 320, 2200, 2500Massey Harris Tractors: 50AMinneapolis-Moline Tractors: G, G750, G900, G1000, G1000 Vista, Jet Star 3, Jet Star 3 Super, JetStar 3, M670, M670 SuperOliver Tractors: 77, Super 77, 90, 770, 880, 1255, 1355, 1550, 1555, 1650, 1655, 1750, 1755, 1850, 1855, 1950, 1950T, 1955, 2050, 2150, 2155White / Oliver Tractors: 2-50A, 4100Additional models (from catalog): Several 12-Volt Delco alternator applications - see Replaces Part Numbers below for full cross-reference.Replaces Part Number(s):65303C1, 65303C1GV, 65302C1, 65304C1, 967867R91, 384988R91, 1119507, 1119515, 1119516, 1031060M1, 1031060M91, 1031060M92, 1031060V92, 1071060M91, 182548M1, 508522M91, 10P3009, W10P3009, 243986, 70243986, 72072955, 21A654, 21A621, NR-151, RAB12-10, RAB12A10, 7702, 7702-002, 1702-002, 0211702-280, 30-3001806, 303001806, 158732AS, 157651AS, 166626A, 1119207, 1119502, 1119506, 1119508, 1119512, 1119513, 1119519, 79004814-4, D630, D632, D635, D663, 1102943, 1102944, 1102945New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 65303C1, 65303C1GV, 65302C1, 65304C1, 967867R91, 384988R91, 1119515, 1119516, 1031060M1, 1031060M91, 1031060M92, 1031060V92, 1071060M91, 182548M1, 508522M91, 10P3009, W10P3009, 243986, 70243986, 72072955, 21A654, 21A621, NR-151, RAB12-10, RAB12A10, 7702, 7702-002, 1702-002, 0211702-280, 30-3001806, 158732AS, 157651AS, 166626A, 1119207, 1119502, 1119506, 1119508, 1119512, 1119513, 1119519, 79004814-4, D630, D632, D635, D663, 1119507, 1102943, 1102944

• One New Aftermarket Replacement Voltage Regulator (12 Volt) for International Harvester, Massey Ferguson, Allis Chalmers, Oliver, Minneapolis-Moline and MoreThis external 12-volt voltage regulator is designed for use with Delco 10DN and 20DN alternator systems requiring an external regulator. It regulates charging system output to protect the battery and electrical accessories across a wide range of agricultural tractors, combines, construction equipment, and industrial machines from multiple major manufacturers. The 4-terminal configuration uses the standard F (Field), 2 (Stator), 3 (B+), and 4 (Light) terminal layout common to Delco external-regulator charging systems.Specifications Voltage: 12-Volt Terminals: 4 - (F-Field) / (2-Stator) / (3-B+) / (4-Light) Type: External voltage regulator Designed for use only in 12-volt alternator systems with external regulator Compatible ModelsAllis Chalmers Tractors: D19, D21, 160, 170, 175, 180, 185, 190, 190XT, 200, 210, 220Cockshutt / CO-OP Tractors: 30Gleaner Combines: E, E3, F, F2, F3, G, KInternational Harvester (IH) Tractors: 504, 544, 606, 706, 756, 766, 806, 826, 856, 966, 1026, 1066, 1206, 1256, 1456, 1466, 2444, 2504, 2544, 2606, 2706, 2756, 2806, 2826, 2856, 4100, 4156, 21026, 21206, 21256, 21456International Harvester Backhoe Loaders: 2444, 2504International Combines: 205, 315, 403, 503, 615, 715, 815, 915International Harvester Equipment: 616, 622Massey Ferguson Tractors: 20, 30, 31, 40, 50, 70, 80, 130, 135, 150, 165, 175, 178, 180, 302, 304, 1080, 1100, 1130, 1150, 1500, 1800, 2200Massey Ferguson Combines: 205, 300, 410, 510, 540Massey Ferguson Backhoe Loaders / Construction / Industrial: 20, 31, 40, 50, 70, 80, 205, 302, 304, 320, 2200, 2500Massey Harris Tractors: 50AMinneapolis-Moline Tractors: G, G750, G900, G1000, G1000 Vista, Jet Star 3, Jet Star 3 Super, JetStar 3, M670, M670 SuperOliver Tractors: 77, Super 77, 90, 770, 880, 1255, 1355, 1550, 1555, 1650, 1655, 1750, 1755, 1850, 1855, 1950, 1950T, 1955, 2050, 2150, 2155White / Oliver Tractors: 2-50A, 4100Additional models (from catalog): Several 12-Volt Delco alternator applications - see Replaces Part Numbers below for full cross-reference.Replaces Part Number(s):65303C1, 65303C1GV, 65302C1, 65304C1, 967867R91, 384988R91, 1119507, 1119515, 1119516, 1031060M1, 1031060M91, 1031060M92, 1031060V92, 1071060M91, 182548M1, 508522M91, 10P3009, W10P3009, 243986, 70243986, 72072955, 21A654, 21A621, NR-151, RAB12-10, RAB12A10, 7702, 7702-002, 1702-002, 0211702-280, 30-3001806, 303001806, 158732AS, 157651AS, 166626A, 1119207, 1119502, 1119506, 1119508, 1119512, 1119513, 1119519, 79004814-4, D630, D632, D635, D663, 1102943, 1102944, 1102945New aftermarket replacement part - not remanufactured, not used.
