14276 CUP

NC-086735 · Other Steering Components

14276 CUP

CAD 9.89

Availability to confirm

CUP – reference 14276. Catalogue-listed applications: Massey Ferguson, Allis Chalmers, Amco 14116, 14117A, 14118, 14118AS, 14124, 14125A, 14130. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-086735
Reference numbers
14276, 14276TIM, 10261, A29977, 710350, 70209890, 74253284, 80105, 9N744, 116210, W10A7575, 520031, 1715019, 203021, 8J0422, X5623, 54628A, 016234X1, 113BH, JD7409, 70025
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: CUP.

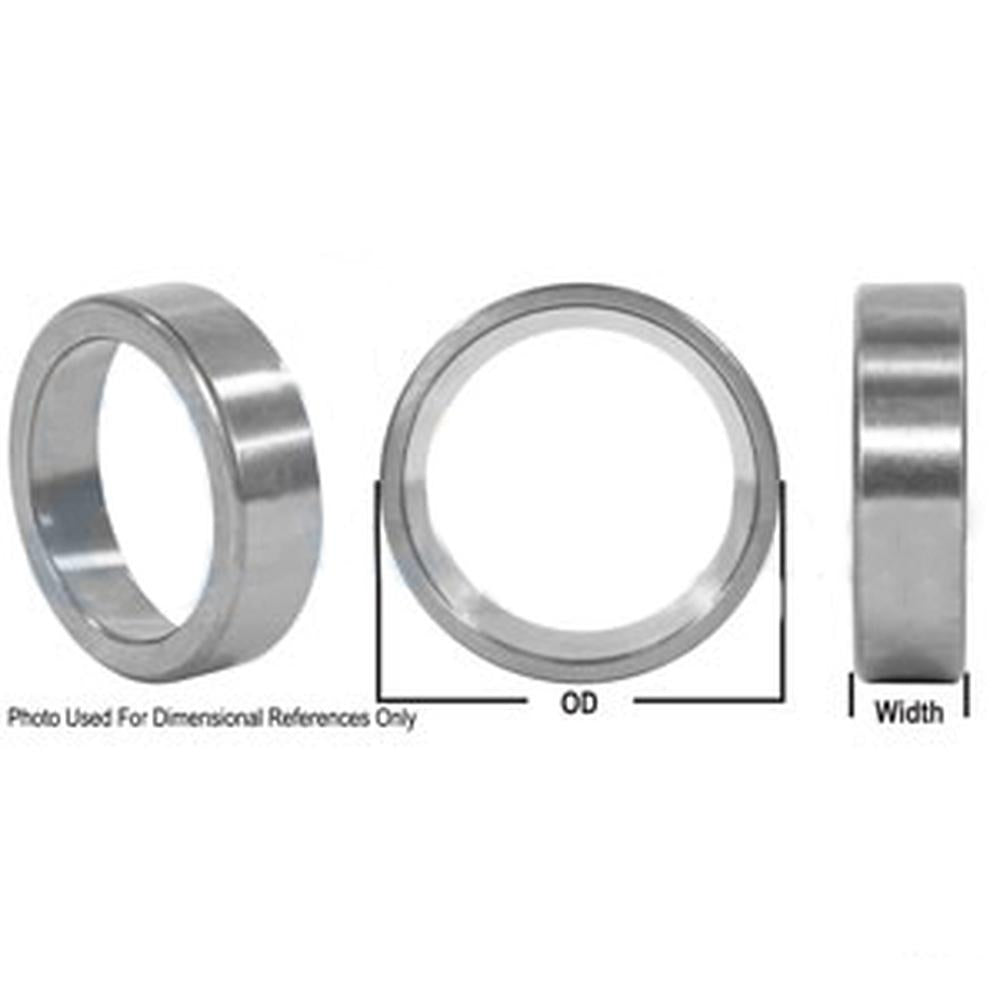

Configuration: Tapered Roller Bearing Cup Fits Case IH, Fits John Deere, Fits Massey Ferguson and MoreThis tapered roller bearing cup (outer race) is a high-demand, multi-brand replacement used across a wide range of agricultural equipment including tractors, combines, balers, disc harrows, rotary cutters, and more. The cup seats in the housing bore and provides the precision raceway surface for the tapered rollers, working in tandem with a matching cone assembly to handle both radial and axial loads. Compatible cones include: 14116, 14117A, 14118, 14118AS, 14124, 14125A, 14130, 14131, 14137A, 14138A, and 14139.Specifications Type: Single Tapered Roller Bearing Cup (Outer Race) Outside Diameter: 2.717 in. Cup Width: 0.625 in. Fillet Radius: 0.05 in. Material: Fits Case Carburized Steel Lubrication Hole: None Finish: Uncoated Compatible Models
Fits Case / Fits Case IH: 1400, 1640, 1644, 1660, 1666, 1680, 1688, 2166, 2188, 2344, 2366, 2377, 2388, 2577, 2588, 503, 503I, 504C, 504F, 504G, 504H, 504I, 504I SILAGE, 504L, 505I, 505L, 715, 815
Fits John Deere: 82, 84, 95, 303, 335, 403, 403F, 403G, 445, 602, 604J, 604K, 604L, 604XL, 605F, 605G, 605H, 605J, 605K, 605L, 605XL, 615, 670Minneapolis-Moline: 5 STAR, JET STAR 3, JET STAR 4, G1000, M5, R-21, R-23Multi-Brand / Universal Application: 554XL, 555XL, 4901-4938, 5400 REBEL, 5500 REBEL (verify fitment by cross-referencing part numbers below)
Replaces Part Number(s):14276, 14276TIM, 10261, A29977, 710350, 70209890, 74253284, 80105, 9N744, 116210, W10A7575, 520031, 1715019, 203021, 8J0422, X5623, 54628A, 016234X1, 113BH, JD7409, 70025, W33New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 14276, 14276TIM, 10261, A29977, 710350, 70209890, 74253284, 80105, 9N744, 116210, W10A7575, 520031, 1715019, 203021, 8J0422, X5623, 54628A, 016234X1, 113BH, JD7409, 70025

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Massey Ferguson 14116
  • Massey Ferguson 14117A
  • Massey Ferguson 14118
  • Massey Ferguson 14118AS
  • Massey Ferguson 14124
  • Massey Ferguson 14125A
  • Massey Ferguson 14130
  • Massey Ferguson 14131
  • Massey Ferguson 14137A
  • Massey Ferguson 14138A
  • Massey Ferguson and 14139
Application notes
  • One New Aftermarket Replacement Tapered Roller Bearing Cup Fits Case IH, Fits John Deere, Fits Massey Ferguson and MoreThis tapered roller bearing cup (outer race) is a high-demand, multi-brand replacement used across a wide range of agricultural equipment including tractors, combines, balers, disc harrows, rotary cutters, and more. The cup seats in the housing bore and provides the precision raceway surface for the tapered rollers, working in tandem with a matching cone assembly to handle both radial and axial loads. Compatible cones include: 14116, 14117A, 14118, 14118AS, 14124, 14125A, 14130, 14131, 14137A, 14138A, and 14139.Specifications Type: Single Tapered Roller Bearing Cup (Outer Race) Outside Diameter: 2.717 in. Cup Width: 0.625 in. Fillet Radius: 0.05 in. Material: Fits Case Carburized Steel Lubrication Hole: None Finish: Uncoated Compatible Models Fits Case / Fits Case IH: 1400, 1640, 1644, 1660, 1666, 1680, 1688, 2166, 2188, 2344, 2366, 2377, 2388, 2577, 2588, 503, 503I, 504C, 504F, 504G, 504H, 504I, 504I SILAGE, 504L, 505I, 505L, 715, 815 Fits John Deere: 82, 84, 95, 303, 335, 403, 403F, 403G, 445, 602, 604J, 604K, 604L, 604XL, 605F, 605G, 605H, 605J, 605K, 605L, 605XL, 615, 670Minneapolis-Moline: 5 STAR, JET STAR 3, JET STAR 4, G1000, M5, R-21, R-23Multi-Brand / Universal Application: 554XL, 555XL, 4901-4938, 5400 REBEL, 5500 REBEL (verify fitment by cross-referencing part numbers below) Replaces Part Number(s):14276, 14276TIM, 10261, A29977, 710350, 70209890, 74253284, 80105, 9N744, 116210, W10A7575, 526WD, 7069WD, 520031, 1715019, 203021, 8J0422, X5623, 54628A, 016234X1, 113BH, JD7409, 70025, W33New aftermarket replacement part - not remanufactured, not used.
