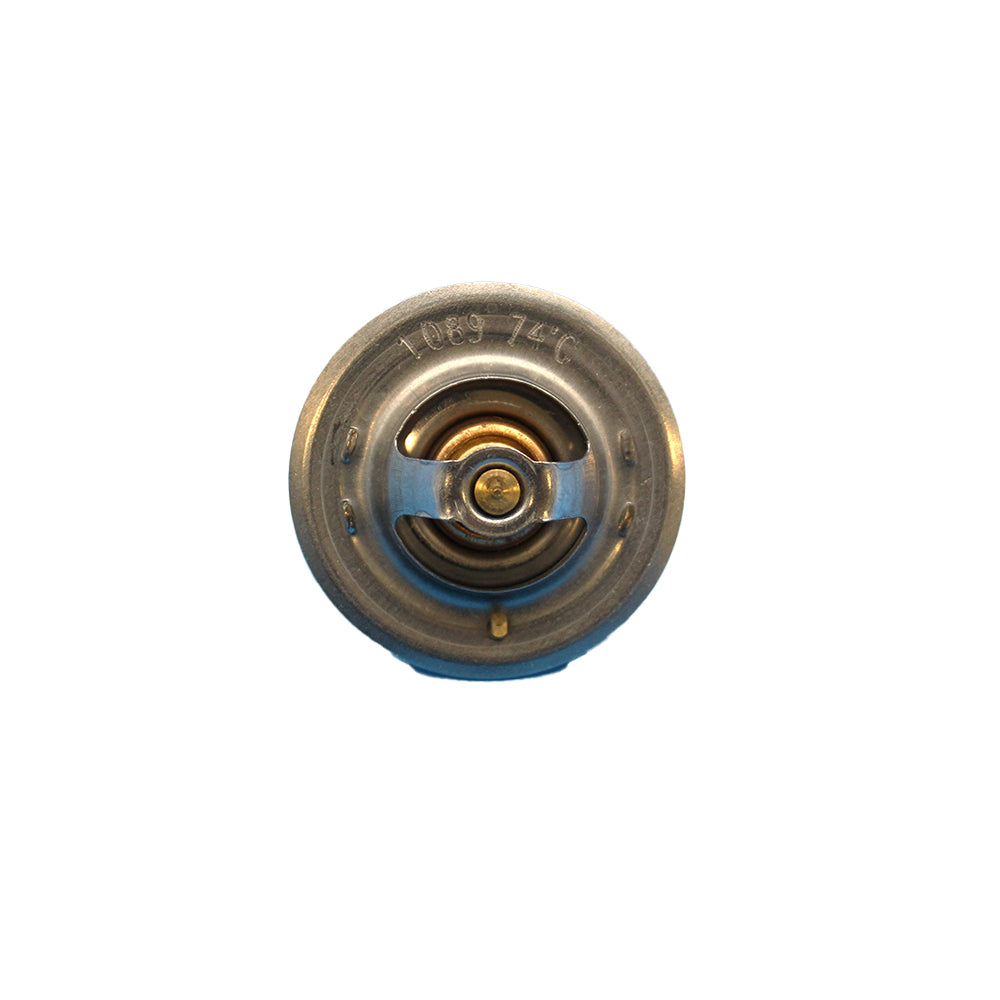

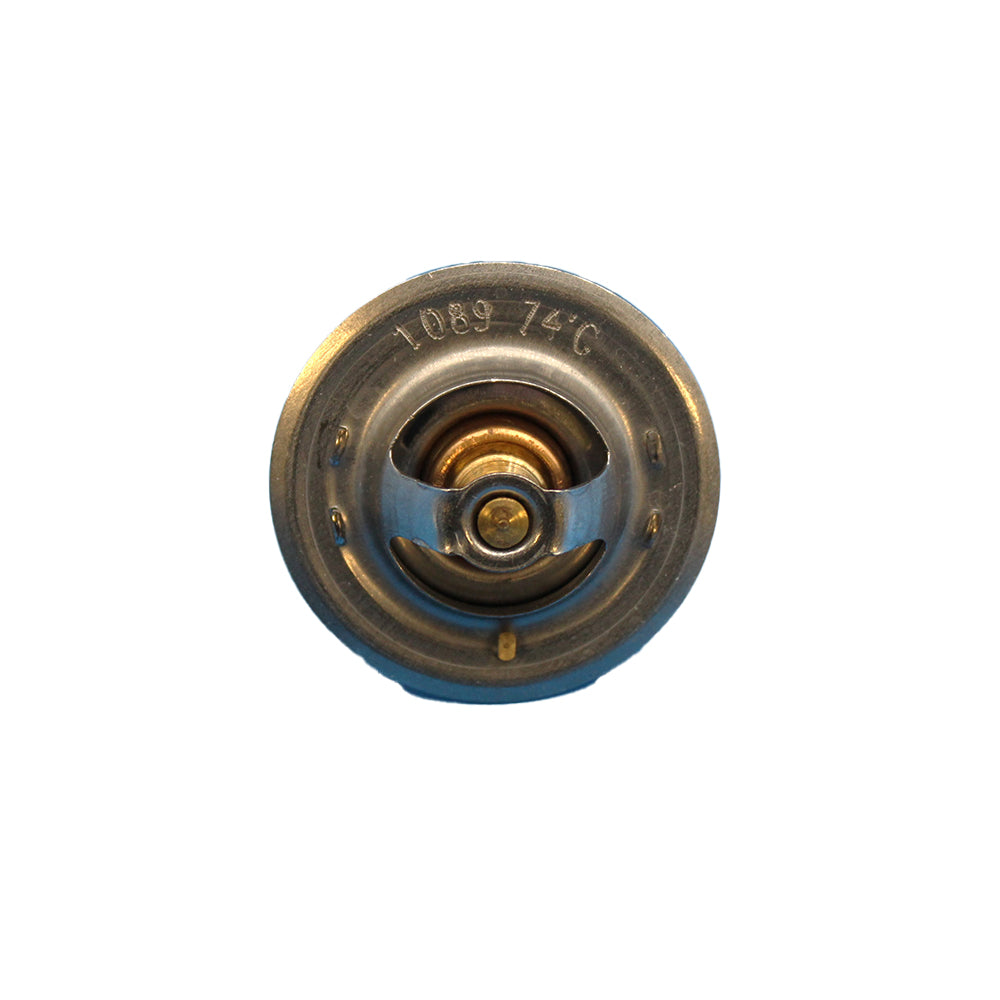

209720 Degree Thermostat – Fits Allis Chalmers
209720 Degree Thermostat – Fits Allis Chalmers – additional image 2209720 Degree Thermostat – Fits Allis Chalmers – additional image 3209720 Degree Thermostat – Fits Allis Chalmers – additional image 4

NC-082682 · Caps, Thermostats & Components

209720 Degree Thermostat – Fits Allis Chalmers

CAD 27.77

Availability to confirm

Degree Thermostat – reference 209720. Catalogue-listed applications: Allis Chalmers B, IB, C, CA, D17, D21, 180. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-082682
Reference numbers
209720, 220027, 272322, 70209720, 70220027, 70272322, 72080437, 74025103
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Degree Thermostat Fits Allis Chalmers.

Configuration: 168 Degree Thermostat
Fits Allis Chalmers: Tractor
Models: B, IB, C, CA, D17, D21, 180, 185, 190, 190XT, 210, 220, 4W220, 6060, 6070, 6080, 7000, 7010, 7020, 7030, 7040, 7045, 7050, 7060, 7080, 7580, 8010, 8030, 8050, 8070 Model Breaks: B (engine SN: BE23815 to B126210, with 2 bolt cast iron thermostat housing, must reuse spacer spring), IB (up to tractor SN: 3237, with 2 bolt cast iron thermostat housing, must reuse spacer spring), C (engine SN: BE23815 to CR60156, with 2 bolt cast iron thermostat housing, must reuse spacer spring), CA (engine SN: BE23815 to CE195135, with 2 bolt cast iron thermostat housing, must reuse spacer spring), D17 (diesel only, engine SN: 119938 and up), D21 (Some applications require 2 thermostats, sold individually), 180 (Some applications require 2 thermostats, sold individually), 185 (Some applications require 2 thermostats, sold individually), 190 (Some applications require 2 thermostats, sold individually), 190XT (Some applications require 2 thermostats, sold individually), 210 (Some applications require 2 thermostats, sold individually), 220 (Some applications require 2 thermostats, sold individually), 4W220 (Some applications require 2 thermostats, sold individually), 6060 (Some applications require 2 thermostats, sold individually), 6070 (Some applications require 2 thermostats, sold individually), 6080 (Some applications require 2 thermostats, sold individually), 7000 (Some applications require 2 thermostats, sold individually), 7010 (Some applications require 2 thermostats, sold individually), 7020 (Some applications require 2 thermostats, sold individually), 7030 (Some applications require 2 thermostats, sold individually), 7040 (Some applications require 2 thermostats, sold individually), 7045 (Some applications require 2 thermostats, sold individually), 7050 (Some applications require 2 thermostats, sold individually), 7060 (Some applications require 2 thermostats, sold individually), 7080 (Some applications require 2 thermostats, sold individually), 7580 (Some applications require 2 thermostats, sold individually), 8010 (Some applications require 2 thermostats, sold individually), 8030 (Some applications require 2 thermostats, sold individually), 8050 (Some applications require 2 thermostats, sold individually), 8070 (Some applications require 2 thermostats, sold individually) Replaces Part Number(s): 209720, 220027, 272322, 70209720, 70220027, 70272322, 72080437, 74025103 Combine
Models: 60, 60H, 60A, 66 Model Breaks: 60 (engine SN: BE23815 to B106377, with 2 bolt cast iron thermostat housing, must reuse spacer spring and gasket), 60H (engine SN: BE23815 to B106377, with 2 bolt cast iron thermostat housing, must reuse spacer spring and gasket), 60A (engine SN: BE23815 to B106377, with 2 bolt cast iron thermostat housing, must reuse spacer spring and gasket), 66 (engine SN: BE23815 to B106377, with 2 bolt cast iron thermostat housing, must reuse spacer spring and gasket) Replaces Part Number(s): 209720, 220027, 272322, 70209720, 70220027, 70272322, 72080437, 74025103 Industrial/Construction
Models: B125, B15, HD4, HD5, TL6 Model Breaks: B125 (engine SN: BE23815 to B106377, with 2 bolt cast iron thermostat housing, must reuse spacer spring and gasket, Power Unit), B15 (engine SN: BE23815 to B106377, with 2 bolt cast iron thermostat housing, must reuse spacer spring and gasket, Power Unit), HD4 (Some applications require 2 thermostats, sold individually, Crawler), HD5 (Some applications require 2 thermostats, sold individually, Crawler), TL6 (engine SN: BE23815 to B126210, with 2 bolt cast iron thermostat housing, must reuse spacer spring and gasket, Loader) Replaces Part Number(s): 209720, 220027, 272322, 70209720, 70220027, 70272322, 72080437, 74025103

Reference numbers: 209720, 220027, 272322, 70209720, 70220027, 70272322, 72080437, 74025103

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Allis Chalmers B
  • Allis Chalmers IB
  • Allis Chalmers C
  • Allis Chalmers CA
  • Allis Chalmers D17
  • Allis Chalmers D21
  • Allis Chalmers 180
  • Allis Chalmers 185
  • Allis Chalmers 190
  • Allis Chalmers 190XT
  • Allis Chalmers 210
  • Allis Chalmers 220
  • Allis Chalmers 4W220
  • Allis Chalmers 6060
  • Allis Chalmers 6070
  • Allis Chalmers 6080
  • Allis Chalmers 7000
  • Allis Chalmers 7010
  • Allis Chalmers 7020
  • Allis Chalmers 7030
  • Allis Chalmers 7040
  • Allis Chalmers 7045
  • Allis Chalmers 7050
  • Allis Chalmers 7060
  • Allis Chalmers 7080
  • Allis Chalmers 7580
  • Allis Chalmers 8010
  • Allis Chalmers 8030
  • Allis Chalmers 8050
  • Allis Chalmers 8070
  • Allis Chalmers 60
  • Allis Chalmers 60H
  • Allis Chalmers 60A
  • Allis Chalmers 66
  • Allis Chalmers B125
  • Allis Chalmers B15
  • Allis Chalmers HD4
  • Allis Chalmers HD5
  • Allis Chalmers TL6
Application notes
  • Aftermarket 168 Degree Thermostat Fits Allis Chalmers: Tractor
  • Models: B, IB, C, CA, D17, D21, 180, 185, 190, 190XT, 210, 220, 4W220, 6060, 6070, 6080, 7000, 7010, 7020, 7030, 7040, 7045, 7050, 7060, 7080, 7580, 8010, 8030, 8050, 8070 Model Breaks: B (engine SN: BE23815 to B126210, with 2 bolt cast iron thermostat housing, must reuse spacer spring), IB (up to tractor SN: 3237, with 2 bolt cast iron thermostat housing, must reuse spacer spring), C (engine SN: BE23815 to CR60156, with 2 bolt cast iron thermostat housing, must reuse spacer spring), CA (engine SN: BE23815 to CE195135, with 2 bolt cast iron thermostat housing, must reuse spacer spring), D17 (diesel only, engine SN: 119938 and up), D21 (Some applications require 2 thermostats, sold individually), 180 (Some applications require 2 thermostats, sold individually), 185 (Some applications require 2 thermostats, sold individually), 190 (Some applications require 2 thermostats, sold individually), 190XT (Some applications require 2 thermostats, sold individually), 210 (Some applications require 2 thermostats, sold individually), 220 (Some applications require 2 thermostats, sold individually), 4W220 (Some applications require 2 thermostats, sold individually), 6060 (Some applications require 2 thermostats, sold individually), 6070 (Some applications require 2 thermostats, sold individually), 6080 (Some applications require 2 thermostats, sold individually), 7000 (Some applications require 2 thermostats, sold individually), 7010 (Some applications require 2 thermostats, sold individually), 7020 (Some applications require 2 thermostats, sold individually), 7030 (Some applications require 2 thermostats, sold individually), 7040 (Some applications require 2 thermostats, sold individually), 7045 (Some applications require 2 thermostats, sold individually), 7050 (Some applications require 2 thermostats, sold individually), 7060 (Some applications require 2 thermostats, sold individually), 7080 (Some applications require 2 thermostats, sold individually), 7580 (Some applications require 2 thermostats, sold individually), 8010 (Some applications require 2 thermostats, sold individually), 8030 (Some applications require 2 thermostats, sold individually), 8050 (Some applications require 2 thermostats, sold individually), 8070 (Some applications require 2 thermostats, sold individually) Replaces Part Number(s): 209720, 220027, 272322, 70209720, 70220027, 70272322, 72080437, 74025103 Combine
  • Models: 60, 60H, 60A, 66 Model Breaks: 60 (engine SN: BE23815 to B106377, with 2 bolt cast iron thermostat housing, must reuse spacer spring and gasket), 60H (engine SN: BE23815 to B106377, with 2 bolt cast iron thermostat housing, must reuse spacer spring and gasket), 60A (engine SN: BE23815 to B106377, with 2 bolt cast iron thermostat housing, must reuse spacer spring and gasket), 66 (engine SN: BE23815 to B106377, with 2 bolt cast iron thermostat housing, must reuse spacer spring and gasket) Replaces Part Number(s): 209720, 220027, 272322, 70209720, 70220027, 70272322, 72080437, 74025103 Industrial/Construction
  • Models: B125, B15, HD4, HD5, TL6 Model Breaks: B125 (engine SN: BE23815 to B106377, with 2 bolt cast iron thermostat housing, must reuse spacer spring and gasket, Power Unit), B15 (engine SN: BE23815 to B106377, with 2 bolt cast iron thermostat housing, must reuse spacer spring and gasket, Power Unit), HD4 (Some applications require 2 thermostats, sold individually, Crawler), HD5 (Some applications require 2 thermostats, sold individually, Crawler), TL6 (engine SN: BE23815 to B126210, with 2 bolt cast iron thermostat housing, must reuse spacer spring and gasket, Loader) Replaces Part Number(s): 209720, 220027, 272322, 70209720, 70220027, 70272322, 72080437, 74025103
