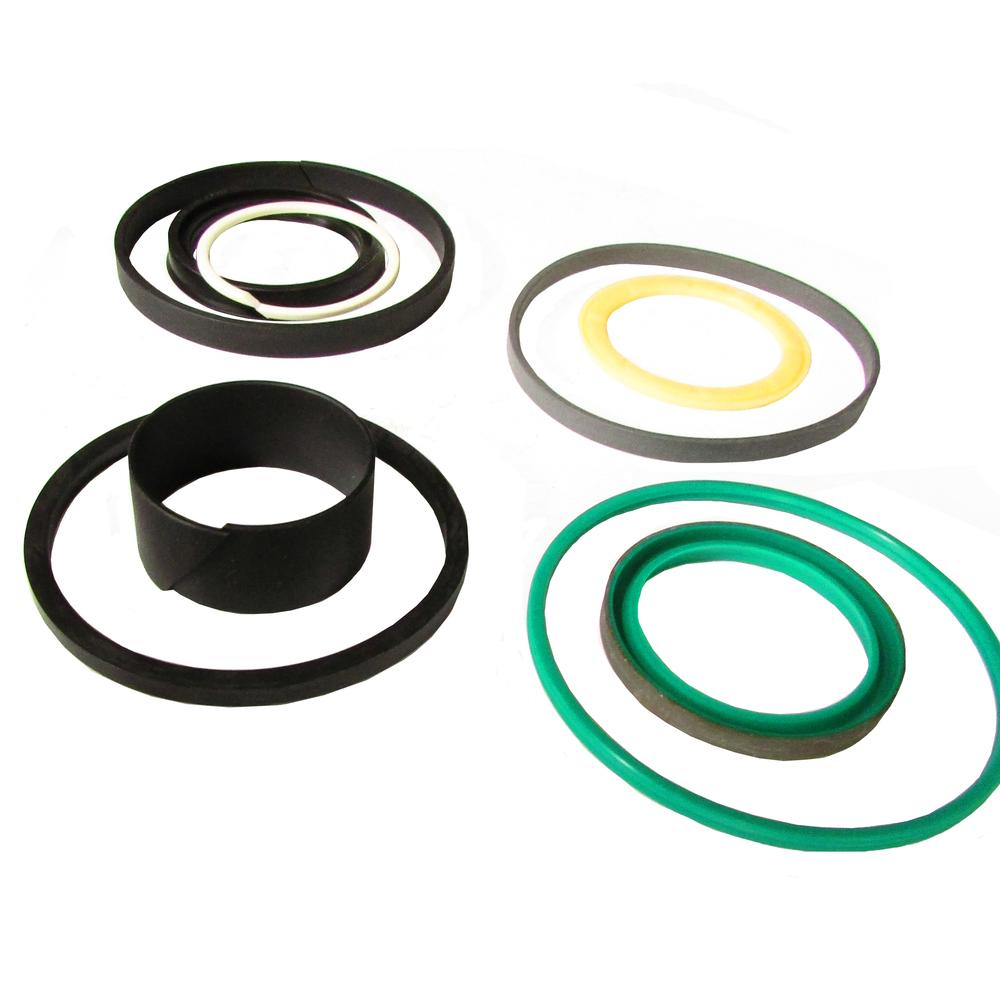

1543269C1 Seal Repair Kit – Fits Case

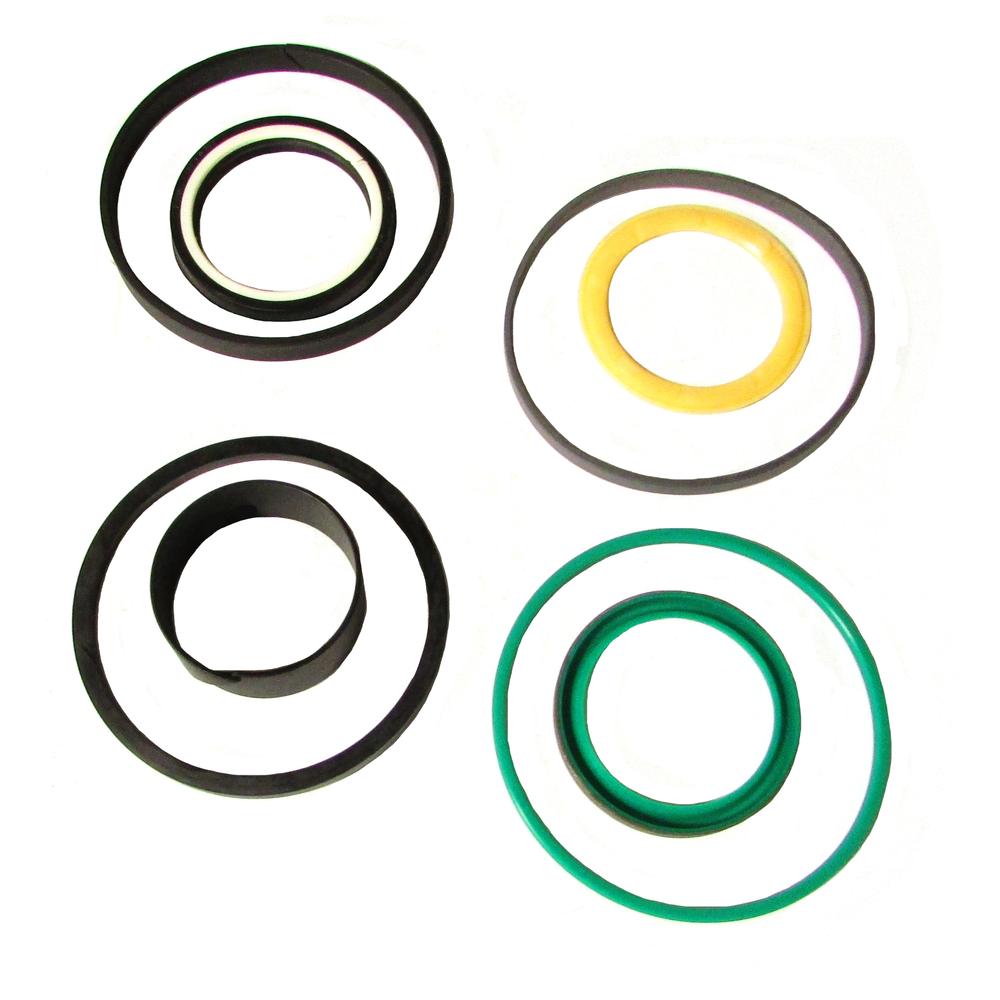

1543269C1 Seal Repair Kit – Fits Case – additional image 21543269C1 Seal Repair Kit – Fits Case – additional image 3

NC-081508 · Cylinders

1543269C1 Seal Repair Kit – Fits Case

CAD 70.47

Availability to confirm

Seal Repair Kit – reference 1543269C1. Catalogue-listed applications: Case 570LXT, 580K (Side Shift Swing), 580L (Stabilizer, Cylinders 143574A1, 143575A1, 195503A1, 195504A1), 580M (Stabilizer LH & RH, SN 02/08 and After, Cylinder 195503A1), 580SM, 580SM+, 590SM. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-081508
Reference numbers
1543269C1, 1542994C1
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Seal Repair Kit Fits Case 580L, 580M, 570LXT.

Configuration: Hydraulic Cylinder Seal Kit Fits Case Backhoe Loaders, Wheel Loaders, Excavators, and CrawlersThis aftermarket replacement hydraulic cylinder seal kit Fits Case OEM part number 1543269C1. It services the stabilizer, swing, side-shift swing, and steering cylinders across a wide range of Fits Case Construction equipment. The kit fits a 2" rod and 4" bore cylinder (101.6 mm bore, 50.8 mm rod OD).
Specifications
Rod Diameter: 2" (50.8 mm)
Bore Diameter: 4" (101.6 mm) Compatible Models
Fits Case Backhoe Loaders: 570LXT, 570LXT Series 2, 580K (Side Shift Swing), 580L (Stabilizer - Cylinders 143574A1, 143575A1, 195503A1, 195504A1), 580L Series 2, 580M (Stabilizer LH & RH - SN 02/08 and After, Cylinder 195503A1), 580M Series 2, 580M Series 3, 580SM, 580SM+, 590SM, 590SM+, 680L (Swing - Cylinder 1978339C1)
Fits Case Wheel Loaders: 921 (Steering - SN 1346267C1, 1346268C1, and 1346269C1 Gland, Cylinder 1346169C2), 921B, 921C (Steering - All SNs, Cylinder 1346169C4)
Fits Case Excavators: 1085C (Extended Dipper / Extendahoe)
Fits Case Crawlers: 850C, 850D (with Backhoe - Models 35A, 35WL, 35C, 35C WL, Cylinder 1346044C1)
Replaces Part Number(s):1543269C1, 84155087Aftermarket Interchange NumbersG110054, 1542994C1, ASI 25060New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 1543269C1, 1542994C1

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Case 570LXT
  • Case 580K (Side Shift Swing)
  • Case 580L (Stabilizer, Cylinders 143574A1, 143575A1, 195503A1, 195504A1)
  • Case 580M (Stabilizer LH & RH, SN 02/08 and After, Cylinder 195503A1)
  • Case 580SM
  • Case 580SM+
  • Case 590SM
  • Case 590SM+
  • Case 680L (Swing, Cylinder 1978339C1)
  • Case 921 (Steering, SN 1346267C1, 1346268C1, and 1346269C1 Gland, Cylinder 1346169C2)
  • Case 921B
  • Case 921C (Steering, All SNs, Cylinder 1346169C4)
  • Case 1085C (Extended Dipper / Extendahoe)
  • Case 850C
  • Case 570LXT Series 2
  • Case 580L (Stabilizer - Cylinders 143574A1, 143575A1, 195503A1, 195504A1)
  • Case 580L Series 2
  • Case 580M (Stabilizer LH & RH - SN 02/08 and After, Cylinder 195503A1)
  • Case 580M Series 2
  • Case 580M Series 3
  • Case 680L (Swing - Cylinder 1978339C1)
  • Case 921 (Steering - SN 1346267C1, 1346268C1, and 1346269C1 Gland, Cylinder 1346169C2)
  • Case 921C (Steering - All SNs, Cylinder 1346169C4)
  • Case 35A
  • Case 35WL
  • Case 35C
  • Case 35C WL
Application notes
  • One New Aftermarket Replacement Hydraulic Cylinder Seal Kit Fits Case Backhoe Loaders, Wheel Loaders, Excavators, and CrawlersThis aftermarket replacement hydraulic cylinder seal kit Fits Case OEM part number 1543269C1. It services the stabilizer, swing, side-shift swing, and steering cylinders across a wide range of Fits Case Construction equipment. The kit fits a 2" rod and 4" bore cylinder (101.6 mm bore, 50.8 mm rod OD).Specifications Rod Diameter: 2" (50.8 mm) Bore Diameter: 4" (101.6 mm) Compatible Models Fits Case Backhoe Loaders: 570LXT, 570LXT Series 2, 580K (Side Shift Swing), 580L (Stabilizer - Cylinders 143574A1, 143575A1, 195503A1, 195504A1), 580L Series 2, 580M (Stabilizer LH & RH - SN 02/08 and After, Cylinder 195503A1), 580M Series 2, 580M Series 3, 580SM, 580SM+, 590SM, 590SM+, 680L (Swing - Cylinder 1978339C1) Fits Case Wheel Loaders: 921 (Steering - SN 1346267C1, 1346268C1, and 1346269C1 Gland, Cylinder 1346169C2), 921B, 921C (Steering - All SNs, Cylinder 1346169C4) Fits Case Excavators: 1085C (Extended Dipper / Extendahoe) Fits Case Crawlers: 850C, 850D (with Backhoe - Models 35A, 35WL, 35C, 35C WL, Cylinder 1346044C1) Replaces Part Number(s):1543269C1, 84155087Aftermarket Interchange NumbersG110054, 1542994C1, ASI 25060New aftermarket replacement part - not remanufactured, not used.
