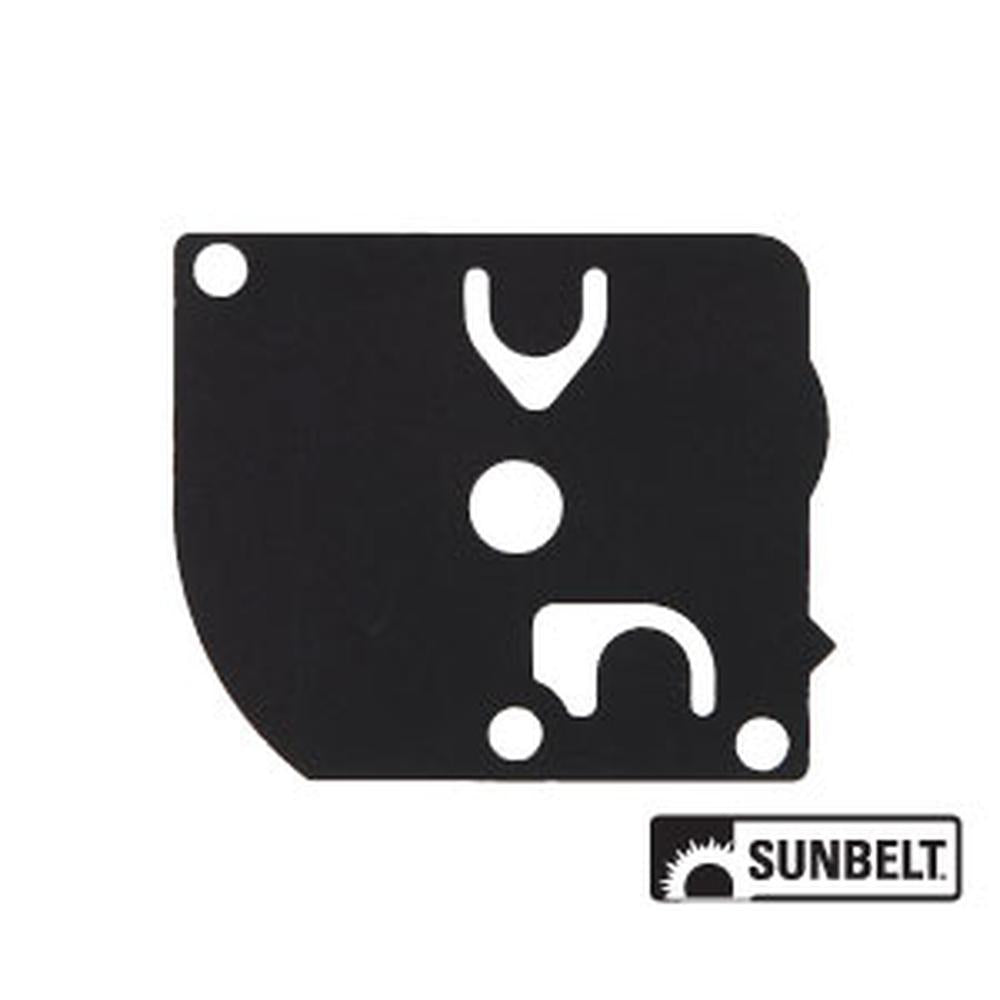

B10015050 Pump Diaphragm

NC-059721 · Fuel System Parts & Components

B10015050 Pump Diaphragm

CAD 11.47

In stock

Pump Diaphragm – reference B10015050. View photos, specifications, CAD pricing and delivery options from NorthCore.

Standard delivery: 3–7 business days. Other services and estimates are shown at checkout. Minimum online order: CAD 100 in parts, excluding shipping and tax. Add this part to your cart to calculate delivery and review your order.

Ask about this part

Part specifications and references

NorthCore code
NC-059721
Reference numbers
B10015050, A-B10015050, A-B10015050-AI
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Fits Zama PUMP DIAPHRAGM.

Configuration: Pump Diaphragm Fits Zama C1Q Series CarburetorsThis pump diaphragm is a direct replacement for the fuel delivery section of Fits Zama C1Q series diaphragm carburetors, commonly found on two-stroke outdoor power equipment including chainsaws, string trimmers, leaf blowers, and other small engine applications. The pump diaphragm flexes in response to crankcase pressure pulses to draw fuel from the tank and deliver it to the metering chamber. A worn or stiff diaphragm causes hard starting, rough idle, lean running, and stalling under load.Specifications Material: PET film Thickness: 0.05 mm Fits Zama C1Q series diaphragm carburetors Compatible Carburetor Series
Fits Zama C1Q Series: C1Q series carburetors used on Fits Stihl and other major OEM two-stroke outdoor power equipment including chainsaws, trimmers, blowers, and hedge trimmers. Verify your specific carburetor model number before ordering.Replaces Part Number(s):B10015050, A-B10015050, A-B10015050-AI, 0015050Aftermarket Interchange Numbers
Fits Stens 615-309New aftermarket replacement part - not remanufactured, not used.

Reference numbers: B10015050, A-B10015050, A-B10015050-AI
Application notes
  • One New Aftermarket Replacement Pump Diaphragm Fits Zama C1Q Series CarburetorsThis pump diaphragm is a direct replacement for the fuel delivery section of Fits Zama C1Q series diaphragm carburetors, commonly found on two-stroke outdoor power equipment including chainsaws, string trimmers, leaf blowers, and other small engine applications. The pump diaphragm flexes in response to crankcase pressure pulses to draw fuel from the tank and deliver it to the metering chamber. A worn or stiff diaphragm causes hard starting, rough idle, lean running, and stalling under load.Specifications Material: PET film Thickness: 0.05 mm Fits Zama C1Q series diaphragm carburetors Compatible Carburetor Series Fits Zama C1Q Series: C1Q series carburetors used on Fits Stihl and other major OEM two-stroke outdoor power equipment including chainsaws, trimmers, blowers, and hedge trimmers. Verify your specific carburetor model number before ordering.Replaces Part Number(s):B10015050, A-B10015050, A-B10015050-AI, 0015050Aftermarket Interchange Numbers Fits Stens 615-309New aftermarket replacement part - not remanufactured, not used.
