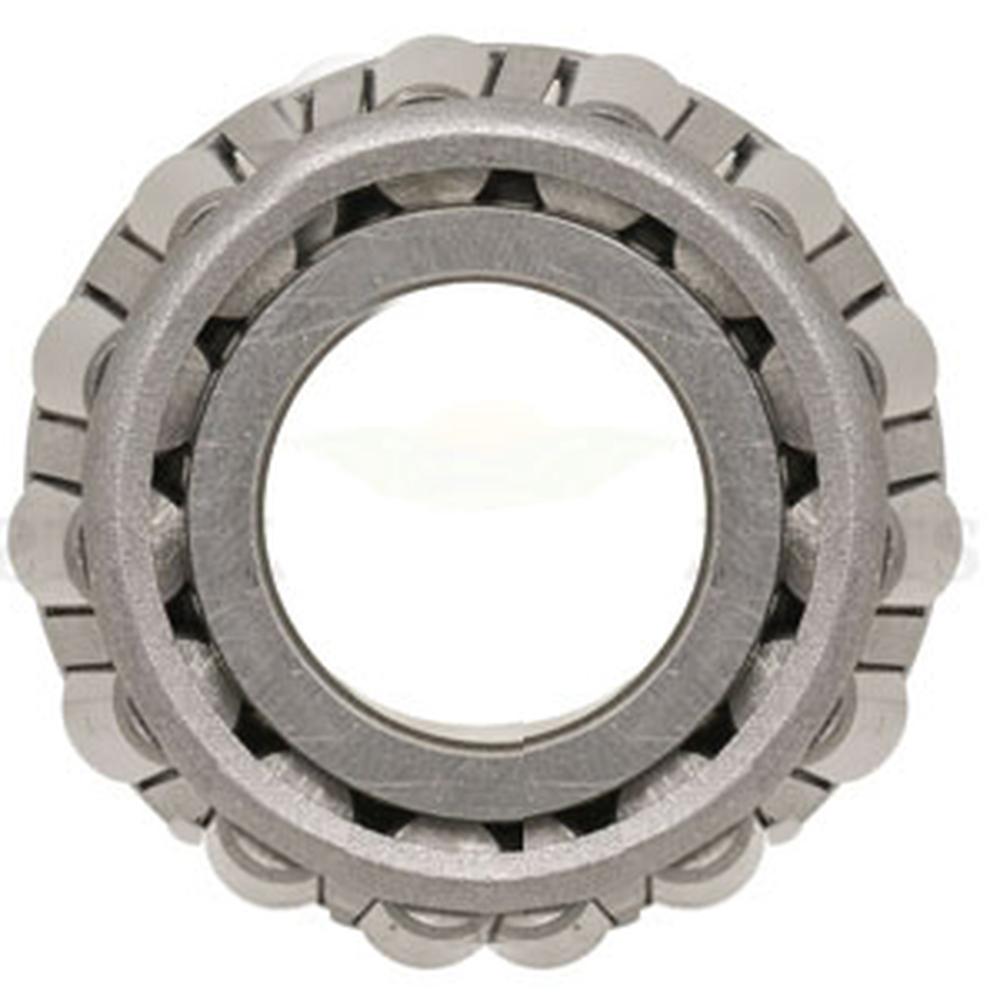

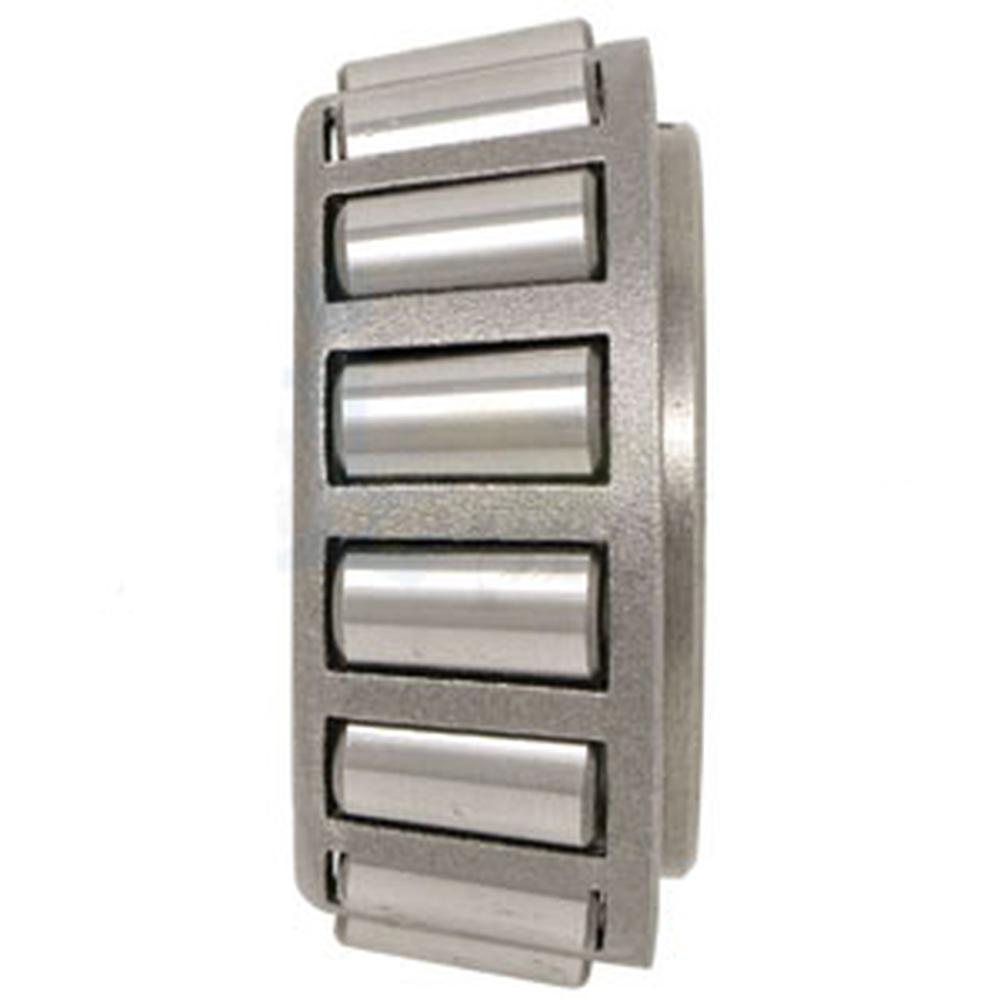

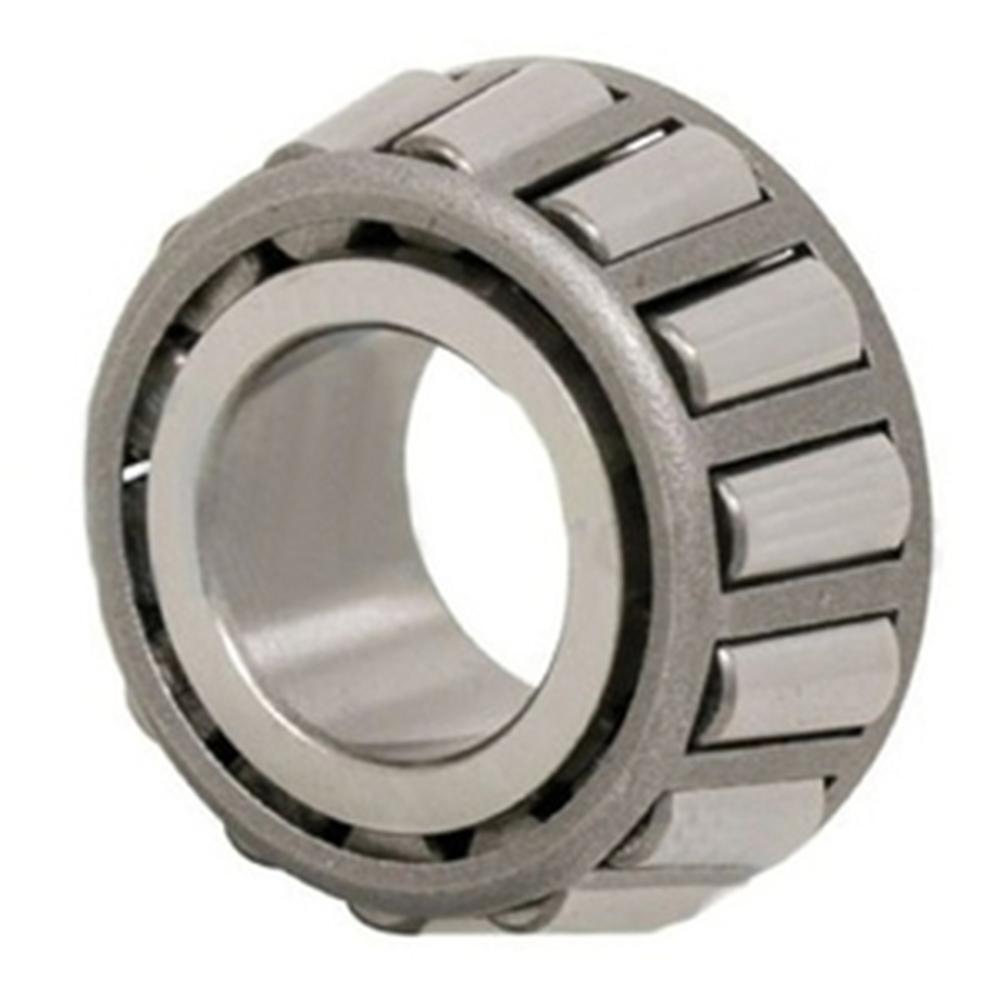

D5NN1215A Bearing Cone (LM11949)

Quantity indicated in catalogue: 1

Replacement part: Bearing Cone (LM11949).

Configuration: Tapered Roller Bearing Cone (LM11949) Fits Ford, Fits Massey Ferguson, Fits Case/IH, Fits John Deere, Vermeer, and MoreThis LM11949 tapered roller bearing cone is a single-cone inner ring assembly used in wheel hubs, axles, and implement spindles across a wide range of agricultural tractors, rotary cutters, round balers, combines, and industrial equipment. It is designed to handle both radial and axial loads and is typically mounted in opposing pairs on a shaft. The matching cup (outer ring) is LM11910, sold separately.Specifications Type: Tapered Roller Bearing Cone (Single) Bore (Inner Diameter): 0.750 in (19.05 mm) Cone Width: 0.655 in (16.64 mm) Corner Radius: 0.05 in Outer Diameter: 1.781 in (45.24 mm) Matching Cup: LM11910 Compatible Models
Fits Ford/New Holland: 2000, 2100, 2110, 2120, 2150, 2300, 2310, 2400A, 2404, 2444, 2500, 2504, 2600, 2610, 2653, 2810, 2904, 2910, 3000, 3100, 3110, 3120, 3190, 3230, 3300, 3310, 3330, 3550, 3600, 3610, 3900, 3910, 3930, 4000, 4031, 4100, 4110, 4120, 4130, 4131, 4190, 4200, 4330, 4340, 4410, 4500, 4600, 4610, 4630, 4830, 5030, 5110, 6000, 6610, 6710, 6810, 7410, 7610, 7700, 7710, 600 Series, 600B, 700 Series, 800 Series, 900 Series, 500B, Dexta, Super Dexta
Fits Massey Ferguson: 135, 140, 150, 165, 175, 180, 185, 200, 202, 203, 204, 205, 230, 230A, 231, 233, 234, 235, 240, 245, 255, 265, 275, 285, 300, 303, 315, 330, 333, 334, 335, 340, 403, 404, 424, 430, 431, 444, 451, 454, 461, 470, 503, 504, 530, 531, 541, 543, 550, 570, 584, 601, 615, 620, 621, 630, 631, 640, 641, 650, 651, 660, 674, 815, 915
Fits Case/International Harvester: 84, 185, 200, 333, 444, 503, 504, 2031, 2111, 2131, 2243, 2424, 2444, 2653, PH13, PH15
Fits John Deere: 66Vermeer Round Balers: 403F, 403G, 503I, 504I, 504I Silage (SN <2389), 505I (SN <482)White: Models per makes_key listing
Fits Woods: Models per makes_key listingNew Idea: Models per makes_key listing
Replaces Part Number(s): D5NN1215A, D5NN1216A, 204E1216A, 204E1217A, 36724, 8A1216B, 81708383, 81708395, 83910704, 83910705, 83992410, 651815R1, 651815R91, G10815, 1650003, 1650005, 831055M1, 1851799M91, JD8188, 102840AAftermarket Interchange NumbersLM11949, 4T-LM11949, X5639, LM11949TIM, VPJ2410, W102840A, 327527, 146161BH, 895322M91, 835107M1, 652071R91, 652077R91, 202503C91, 202515C91, 457829R91, 594875R91, 827472C91, 831973R91New aftermarket replacement part - not remanufactured, not used.

Reference numbers: D5NN1215A, D5NN1216A, 204E1216A, 204E1217A, 36724, 8A1216B, 81708383, 81708395, 83910704, 83910705, 83992410, 651815R1, 651815R91, G10815, 1650003, 1650005, 831055M1, 1851799M91, JD8188, 4T-LM11949, X5639, LM11949TIM, VPJ2410, W102840A, 327527, 146161BH, 895322M91, 835107M1, 652071R91, 652077R91, 202503C91, 202515C91, 457829R91, 594875R91, 827472C91

• One New Aftermarket Replacement Tapered Roller Bearing Cone (LM11949) Fits Ford, Fits Massey Ferguson, Fits Case/IH, Fits John Deere, Vermeer, and MoreThis LM11949 tapered roller bearing cone is a single-cone inner ring assembly used in wheel hubs, axles, and implement spindles across a wide range of agricultural tractors, rotary cutters, round balers, combines, and industrial equipment. It is designed to handle both radial and axial loads and is typically mounted in opposing pairs on a shaft. The matching cup (outer ring) is LM11910, sold separately.Specifications Type: Tapered Roller Bearing Cone (Single) Bore (Inner Diameter): 0.750 in (19.05 mm) Cone Width: 0.655 in (16.64 mm) Corner Radius: 0.05 in Outer Diameter: 1.781 in (45.24 mm) Matching Cup: LM11910 Compatible Models Fits Ford/New Holland: 2000, 2100, 2110, 2120, 2150, 2300, 2310, 2400A, 2404, 2444, 2500, 2504, 2600, 2610, 2653, 2810, 2904, 2910, 3000, 3100, 3110, 3120, 3190, 3230, 3300, 3310, 3330, 3550, 3600, 3610, 3900, 3910, 3930, 4000, 4031, 4100, 4110, 4120, 4130, 4131, 4190, 4200, 4330, 4340, 4410, 4500, 4600, 4610, 4630, 4830, 5030, 5110, 6000, 6610, 6710, 6810, 7410, 7610, 7700, 7710, 600 Series, 600B, 700 Series, 800 Series, 900 Series, 500B, Dexta, Super Dexta Fits Massey Ferguson: 135, 140, 150, 165, 175, 180, 185, 200, 202, 203, 204, 205, 230, 230A, 231, 233, 234, 235, 240, 245, 255, 265, 275, 285, 300, 303, 315, 330, 333, 334, 335, 340, 403, 404, 424, 430, 431, 444, 451, 454, 461, 470, 503, 504, 530, 531, 541, 543, 550, 570, 584, 601, 615, 620, 621, 630, 631, 640, 641, 650, 651, 660, 674, 815, 915 Fits Case/International Harvester: 84, 185, 200, 333, 444, 503, 504, 2031, 2111, 2131, 2243, 2424, 2444, 2653, PH13, PH15 Fits John Deere: 66Vermeer Round Balers: 403F, 403G, 503I, 504I, 504I Silage (SN <2389), 505I (SN <482)White: Models per makes_key listing Fits Woods: Models per makes_key listingNew Idea: Models per makes_key listing Replaces Part Number(s):D5NN1215A, D5NN1216A, 204E1216A, 204E1217A, 36724, 8A1216B, 81708383, 81708395, 83910704, 83910705, 83992410, 2304WD, 651815R1, 651815R91, G10815, 1650003, 1650005, 831055M1, 1851799M91, JD8188, 102840AAftermarket Interchange NumbersLM11949, 4T-LM11949, X5639, LM11949TIM, VPJ2410, W102840A, 327527, 146161BH, 895322M91, 835107M1, 652071R91, 652077R91, 202503C91, 202515C91, 457829R91, 594875R91, 827472C91, 831973R91New aftermarket replacement part - not remanufactured, not used.
