A-PHA2W1224-AI 1/2" Hydraulic Hose Assembly, Rigid x Rigid Male NPT, 24"

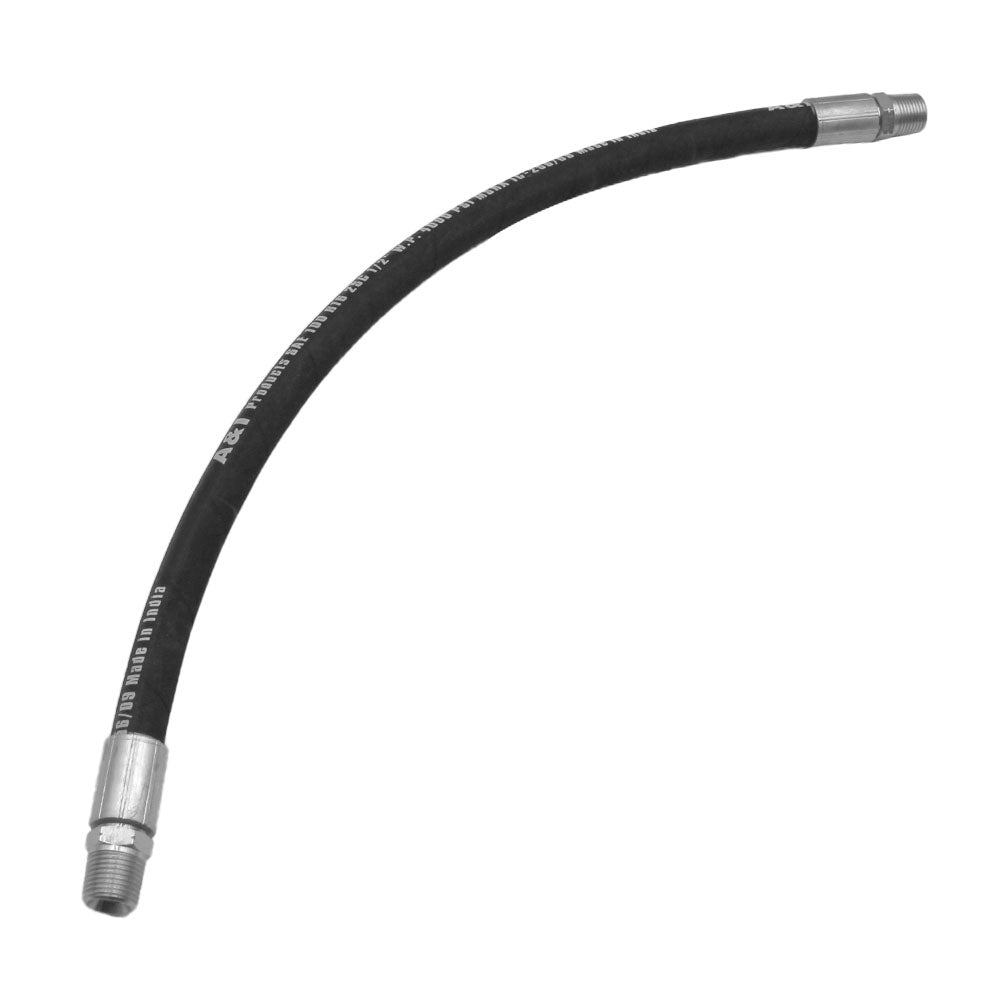

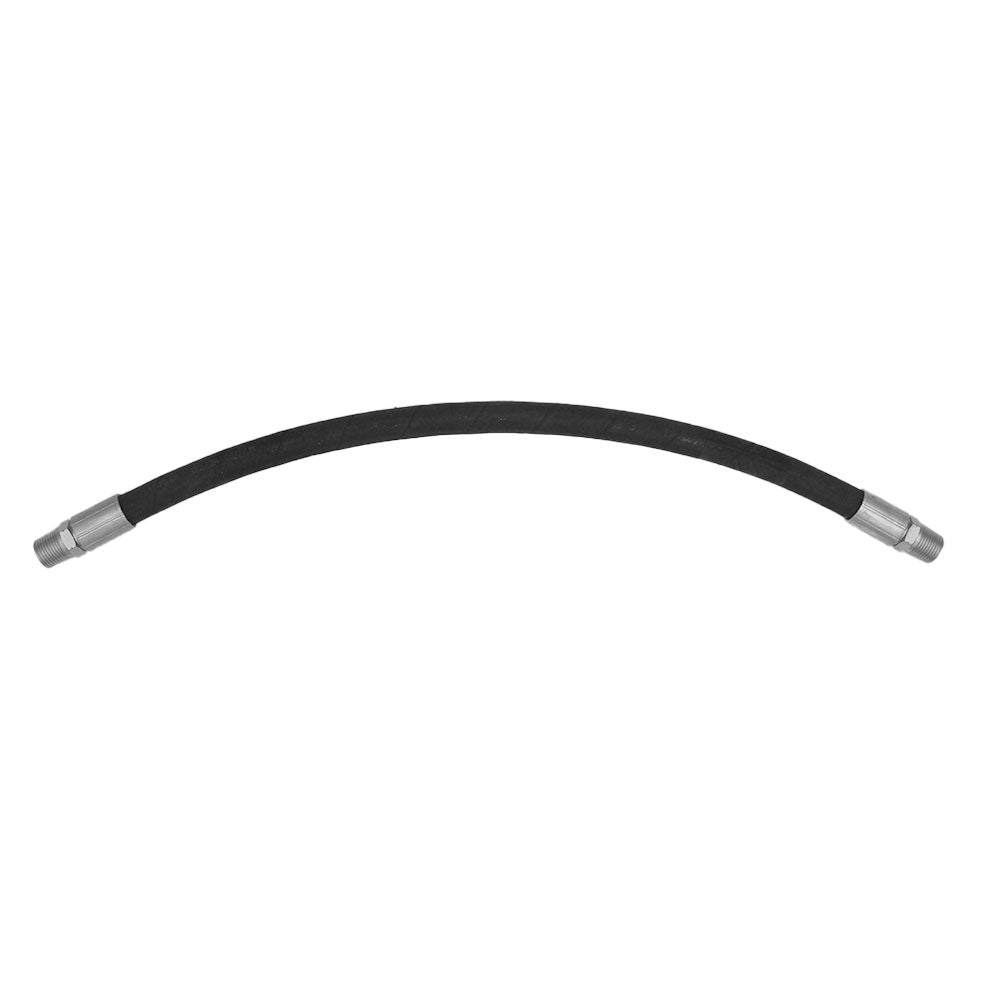

A-PHA2W1224-AI 1/2" Hydraulic Hose Assembly, Rigid x Rigid Male NPT, 24" – additional image 2A-PHA2W1224-AI 1/2" Hydraulic Hose Assembly, Rigid x Rigid Male NPT, 24" – additional image 3

NC-057416 · Hoses

A-PHA2W1224-AI 1/2" Hydraulic Hose Assembly, Rigid x Rigid Male NPT, 24"

CAD 40.71

In stock

1/2" Hydraulic Hose Assembly, Rigid x Rigid Male NPT, 24" – reference A-PHA2W1224-AI. View photos, specifications, CAD pricing and delivery options from NorthCore.

Standard delivery: 3–7 business days. Other services and estimates are shown at checkout. Minimum online order: CAD 100 in parts, excluding shipping and tax. Add this part to your cart to calculate delivery and review your order.

Ask about this part

Part specifications and references

NorthCore code
NC-057416
Reference numbers
A-PHA2W1224-AI
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: 1/2" Hydraulic Hose Assembly, Rigid x Rigid Male NPT, 24".

Configuration: 1/2" Hydraulic Hose Assembly for Agricultural and Industrial EquipmentThis 1/2" SAE 100R16 hydraulic hose assembly features rigid male NPT fittings on both ends and measures 24" in overall length. Built with a two-wire steel braid reinforcement and an oil- and weather-resistant synthetic rubber cover, it delivers reliable high-pressure hydraulic fluid transmission in tractors, loaders, cylinders, pumps, and a wide range of agricultural and construction machinery. The rigid (non-swivel) NPT fittings on both ends thread directly into standard 1/2" NPT ports with no adapters required.
Specifications Hose Standard: SAE 100R16 Hose Size (ID): 1/2" Overall Length: 24" Maximum
Outside Diameter: 0.81" Minimum Bend Radius: 3.40" Wire Reinforcement: 2-Wire Steel Braid Thread: 1/2" NPT Male, Rigid (both ends) Working Pressure: 4,000 PSI Minimum Burst Pressure: 16,000 PSI Compatible ApplicationsUniversal Fit: Suitable for any agricultural, construction, lawn and garden, or industrial hydraulic system using standard 1/2" NPT porting. Common applications include hydraulic cylinders, gear pumps, power packs, front-end loaders, tractors, and skid steers.Replaces Part Number(s):A-PHA2W1224-AI, PHA2W1224New aftermarket replacement part - not remanufactured, not used.

Reference numbers: A-PHA2W1224-AI
Application notes
  • One New Aftermarket Replacement 1/2" Hydraulic Hose Assembly for Agricultural and Industrial EquipmentThis 1/2" SAE 100R16 hydraulic hose assembly features rigid male NPT fittings on both ends and measures 24" in overall length. Built with a two-wire steel braid reinforcement and an oil- and weather-resistant synthetic rubber cover, it delivers reliable high-pressure hydraulic fluid transmission in tractors, loaders, cylinders, pumps, and a wide range of agricultural and construction machinery. The rigid (non-swivel) NPT fittings on both ends thread directly into standard 1/2" NPT ports with no adapters required.Specifications Hose Standard: SAE 100R16 Hose Size (ID): 1/2" Overall Length: 24" Maximum Outside Diameter: 0.81" Minimum Bend Radius: 3.40" Wire Reinforcement: 2-Wire Steel Braid Thread: 1/2" NPT Male, Rigid (both ends) Working Pressure: 4,000 PSI Minimum Burst Pressure: 16,000 PSI Compatible ApplicationsUniversal Fit: Suitable for any agricultural, construction, lawn and garden, or industrial hydraulic system using standard 1/2" NPT porting. Common applications include hydraulic cylinders, gear pumps, power packs, front-end loaders, tractors, and skid steers.Replaces Part Number(s):A-PHA2W1224-AI, PHA2W1224New aftermarket replacement part - not remanufactured, not used.
