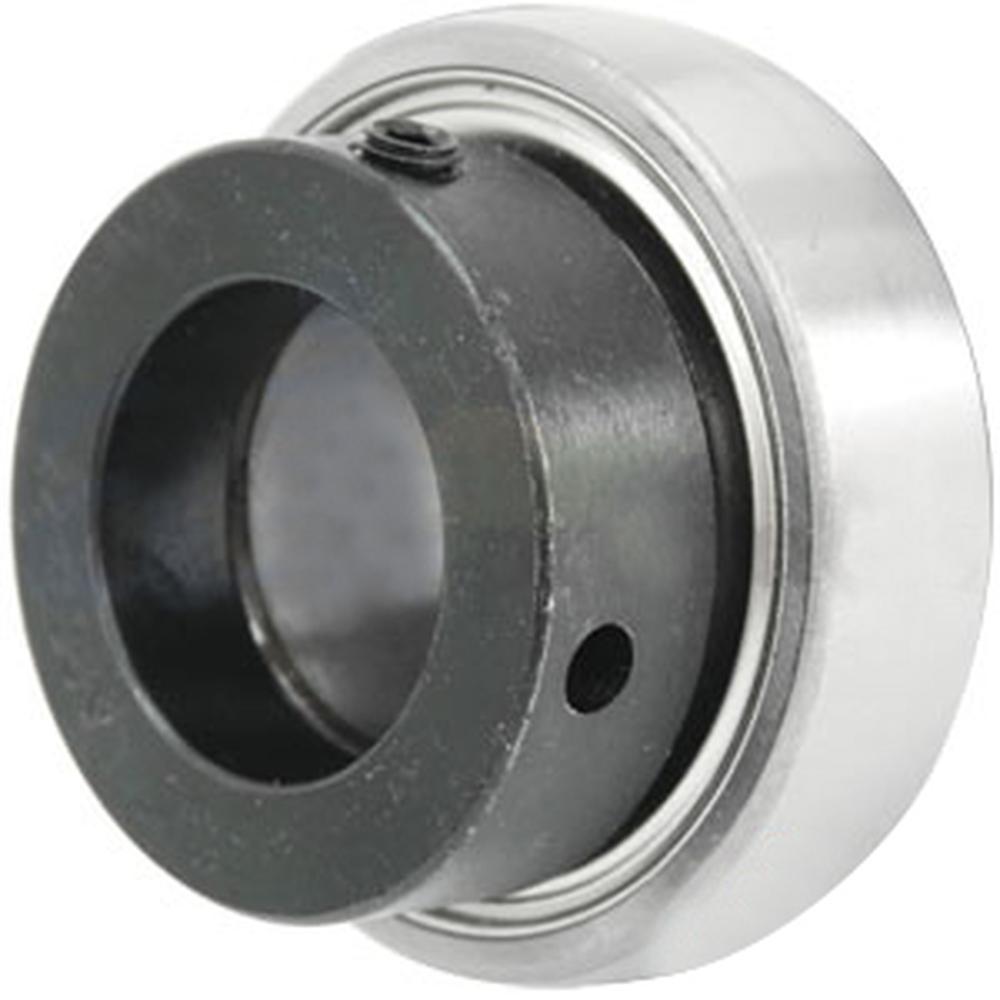

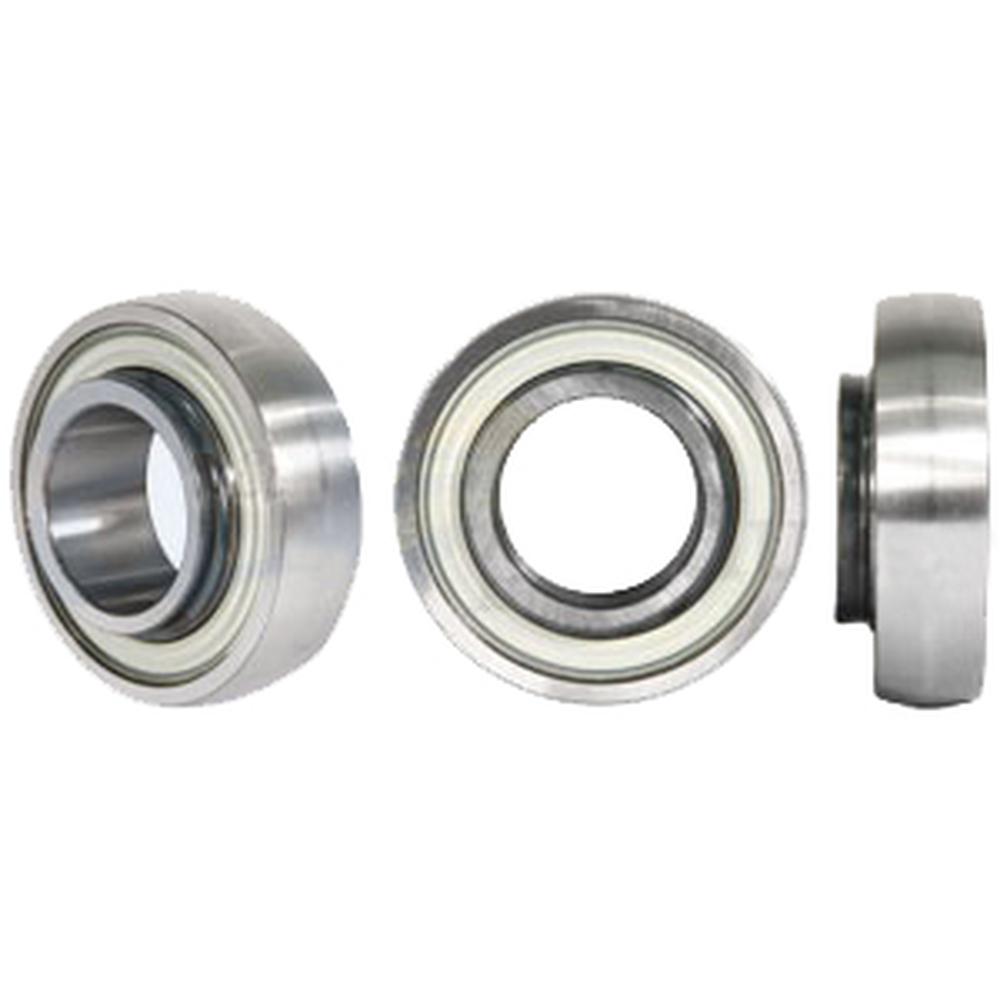

JD9209 BEARING, BALL

Quantity indicated in catalogue: 1

Replacement part: BEARING, BALL.

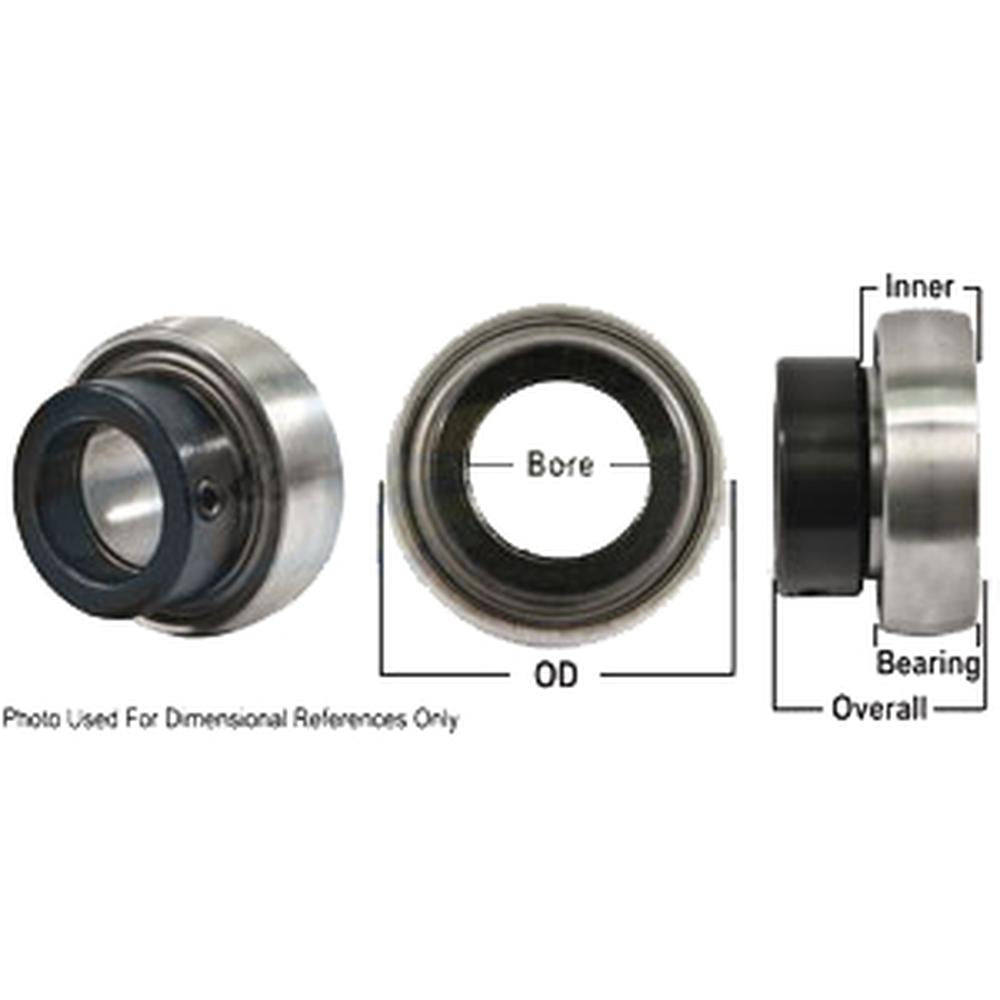

Configuration: Ball Bearing with Eccentric Locking Collar Fits John Deere, Fits Case/IH, Hesston, GEHL, Fits Massey Ferguson, Fits Ford/New Holland and Long EquipmentThis ball bearing insert features a spherical outer diameter and an eccentric locking collar (EL207-106) for secure shaft mounting. It is a standard-duty, double-sealed, non-relubricable bearing designed for use in cotton pickers, combines, hay balers, forage harvesters, windrowers/swathers, mower conditioners, manure spreaders, and tractors across multiple agricultural equipment brands. Replaces OEM part number JD9209 (Fits John Deere) and cross-references to Fafnir RA106RRB, Fits Case/IH 47066, and others listed below.Specifications Bore Diameter: 1.375 in (1-3/8 in), Round Bore Outside Diameter: 2.8346 in Overall Width: 1.531 in Inner Ring Width: 1.000 in Outer Ring Width: 0.748 in Locking Device: Eccentric Collar (EL207-106) Closure Type: Double Sealed (non-relubricable) Internal Clearance: C3 Operating Temperature Range: -40 to 250 degrees F Radial Dynamic Load Capacity: 5,800 lbf Radial Static Load Capacity: 3,450 lbf Max RPM: 4,200 Bearing Material: Through-Hardened Steel Industry Cross: NPS106RPC (NTN/BCA/National) Compatible Models
Fits John Deere Cotton Pickers: 7260, 7660, 7760, 9930, 9935, 9960, 9965, 9970, 9976, 9986, 9996, CP20, CP690
Fits John Deere Combines: 2188, 2366, 2377, 2388, 2577, 2588, 8820, 8830, 8840, 9720, TR70, TR75, TR85, TR87, TR95, TR97
Fits John Deere Round Balers: BR730, BR730A, BR740, BR740A, BR750, BR780, BR7050, BR7060, BR7070, BR7090
Fits John Deere Other: 22, 222, 303, 304, 316, 320, 321, 322, 326, 360N4, 360N4, 360N6, 403, 421, 422, 503, 505, 550, 621, 630, 634, 638, 782, 790, 848, 849, 851, 852, 853, 855, 858, 892, 914, 962, 1100, 1114, 1116, 1482, 1900, 1915, 2100
Fits Case/International Harvester: 315, 403, 421, 422, 505, 630, 1100, 1482, 1900, 1915Hesston: 500, 503, 550GEHL: 303, 304
Fits Massey Ferguson: 718, 782, 790, 914, 1114, 1116
Fits Ford/New Holland: 315, 316, 320, 321, 326Long: 403Additional machine types: Windrower/Swather, Forage Harvester, Mower Conditioner, Manure Spreader, Hay Baler
Replaces Part Number(s):JD9209, RA106RRB, RA106RRB-IMP, 308-RA106RRB, 851-SA20722, 833351M1, 571588R1, F50848, F51316, F90485, 990291, 520066, 520191, 1017A9, 147606, 050021Aftermarket Interchange NumbersNPS106RPC (NTN/BCA/National), EL207-106 (eccentric locking collar), JL207-106C3New aftermarket replacement part - not remanufactured, not used.

Reference numbers: JD9209, RA106RRB, RA106RRB-IMP, 308-RA106RRB, 851-SA20722, 833351M1, 571588R1, F50848, F51316, F90485, 990291, 520066, 520191, 1017A9, 147606

• One New Aftermarket Replacement Ball Bearing with Eccentric Locking Collar Fits John Deere, Fits Case/IH, Hesston, GEHL, Fits Massey Ferguson, Fits Ford/New Holland and Long EquipmentThis ball bearing insert features a spherical outer diameter and an eccentric locking collar (EL207-106) for secure shaft mounting. It is a standard-duty, double-sealed, non-relubricable bearing designed for use in cotton pickers, combines, hay balers, forage harvesters, windrowers/swathers, mower conditioners, manure spreaders, and tractors across multiple agricultural equipment brands. Replaces OEM part number JD9209 (Fits John Deere) and cross-references to Fafnir RA106RRB, Fits Case/IH 47066, and others listed below.Specifications Bore Diameter: 1.375 in (1-3/8 in), Round Bore Outside Diameter: 2.8346 in Overall Width: 1.531 in Inner Ring Width: 1.000 in Outer Ring Width: 0.748 in Locking Device: Eccentric Collar (EL207-106) Closure Type: Double Sealed (non-relubricable) Internal Clearance: C3 Operating Temperature Range: -40 to 250 degrees F Radial Dynamic Load Capacity: 5,800 lbf Radial Static Load Capacity: 3,450 lbf Max RPM: 4,200 Bearing Material: Through-Hardened Steel Industry Cross: NPS106RPC (NTN/BCA/National) Compatible Models Fits John Deere Cotton Pickers: 7260, 7660, 7760, 9930, 9935, 9960, 9965, 9970, 9976, 9986, 9996, CP20, CP690 Fits John Deere Combines: 2188, 2366, 2377, 2388, 2577, 2588, 8820, 8830, 8840, 9720, TR70, TR75, TR85, TR87, TR95, TR97 Fits John Deere Round Balers: BR730, BR730A, BR740, BR740A, BR750, BR780, BR7050, BR7060, BR7070, BR7090 Fits John Deere Other: 22, 222, 303, 304, 316, 320, 321, 322, 326, 360N4, 360N4, 360N6, 403, 421, 422, 503, 505, 550, 621, 630, 634, 638, 782, 790, 848, 849, 851, 852, 853, 855, 858, 892, 914, 962, 1100, 1114, 1116, 1482, 1900, 1915, 2100 Fits Case/International Harvester: 315, 403, 421, 422, 505, 630, 1100, 1482, 1900, 1915Hesston: 500, 503, 550GEHL: 303, 304 Fits Massey Ferguson: 718, 782, 790, 914, 1114, 1116 Fits Ford/New Holland: 315, 316, 320, 321, 326Long: 403Additional machine types: Windrower/Swather, Forage Harvester, Mower Conditioner, Manure Spreader, Hay Baler Replaces Part Number(s):JD9209, RA106RRB, RA106RRB-IMP, 308-RA106RRB, 851-SA20722, 833351M1, 571588R1, F50848, F51316, F90485, 990291, 520066, 520191, 1017A9, 147606, 050021Aftermarket Interchange NumbersNPS106RPC (NTN/BCA/National), EL207-106 (eccentric locking collar), JL207-106C3New aftermarket replacement part - not remanufactured, not used.
