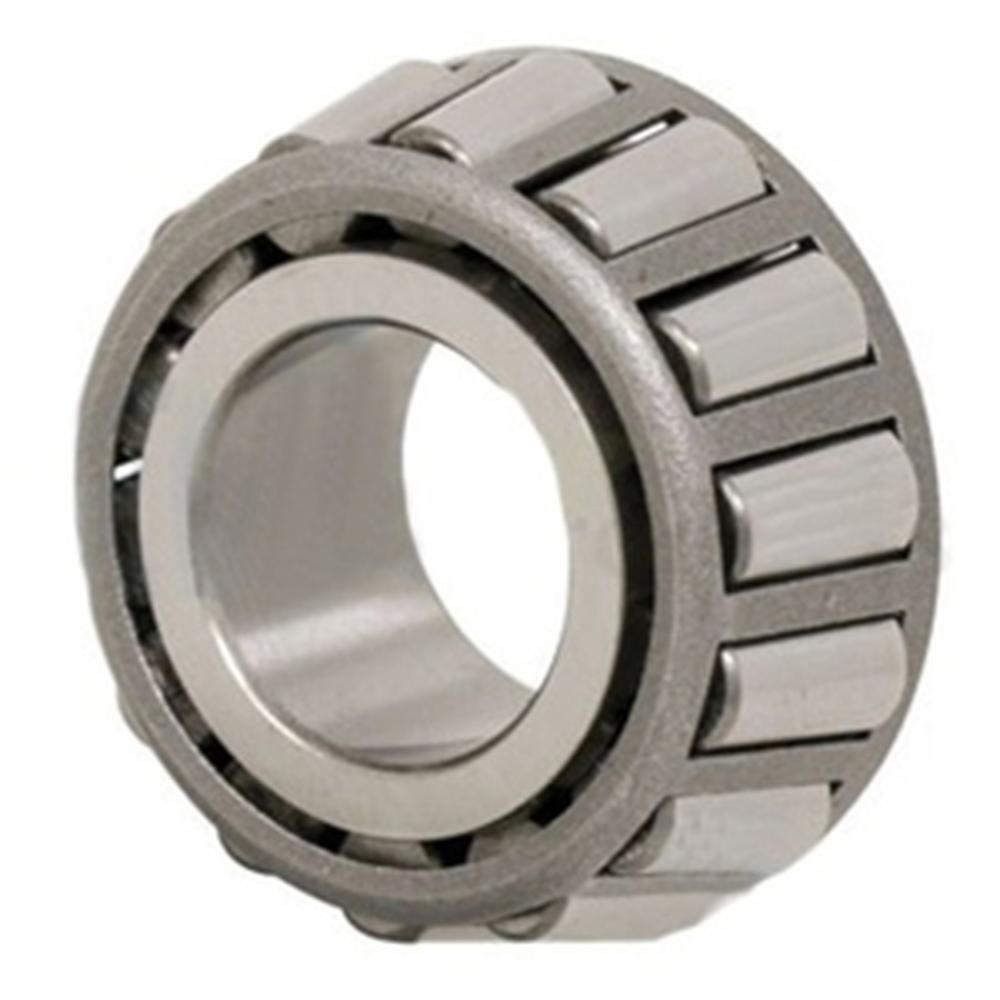

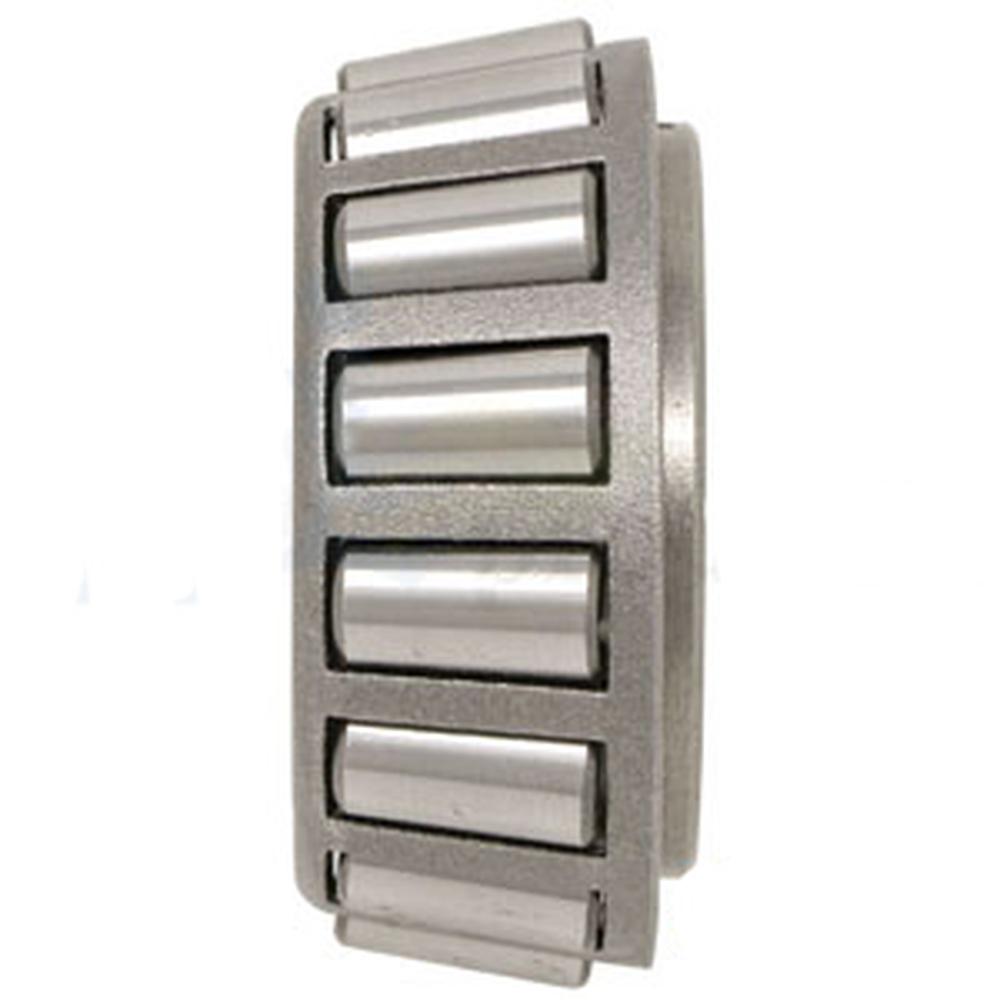

JD8188 Outer Cone

Quantity indicated in catalogue: 1

Replacement part: Outer Cone.

Configuration: Tapered Roller Bearing Cone (LM11949) Fits John Deere, Fits Massey Ferguson, Fits Ford, Fits Case/IH and MoreThis tapered roller bearing cone (industry standard number LM11949, Fits John Deere part number JD8188) is a widely used single-cone tapered roller bearing designed to support both radial and axial loads. It is used across a broad range of agricultural equipment -- tractors, combines, rotary cutters, round balers, greens mowers, forklifts, and cutting platforms -- on wheel hubs, spindles, and other rotating assemblies. The cone pairs with cup/race LM11910 to form a complete tapered roller bearing set.Specifications Bore (Inner Diameter): 0.750 in. Cone Width: 0.655 in. Corner Radius: 0.05 in. Type: Tapered Roller Bearing Cone (Single Cone) Pairs with Cup/Race: LM11910 Compatible Models
Fits John Deere: 66, 84, 110, 112, 120, 125, 130, 140, 160, 180, 200, 220, 230, 240, 261, 272, 300, 303, 305, 324, 327, 328, 337, 338, 347, 348, 360, 450, 468, 504, 509, 550, 609, 647, 655, 657, 660, 665, 667, 670, 673, 680, 681, 700, 705, 709, 717, 727, 737, 900, 972, 1008, 1018, 1200H, 1203, 1320, 1326, 1327, 1408, 1418, 1508, 1517, 1518, 1903, 1905, 2018, 2054, 2056, 2058, 2064, 2066, 2243, 2254, 2256, 2258, 2264, 2266, 2266E, 2400 PRECISIONCUT, 2500, 2500A, 2500B, 2500E, 2550, 2653, 2653A, 2653B, 2700, 2750, 3215, 3215B, 3225B, 3225C, 3235, 3235B, 3235C, 3245C, 3325, 3365, 6080A, 6500A, 7200, 7200A, 7400, 7400A, 7500, 7500A, 7700, 8000, 8000A, 8400, 8500, 8700, 8800, 8800A, 8900A, 9009ACX, CX15, CX20, E12, E15, FC10R, FC12E, FC15E, FC15M, FC15R, FC20M, FC20R, HX6, HX7, HX10, HX14, HX15, HX20, M15, M20, MX5, MX6, MX7, MX8, MX10, MX15, RC6R, RC7M, RC7R, RC8M, RC10M, RC10RFits Massey Ferguson: 135, 150, 165, 175, 180, 185, 200, 202, 203, 204, 205, 230, 231, 233, 234, 235, 240, 245, 255, 265, 275, 285, 335, 340, 1080, 1085
Fits Ford/New Holland: 2000, 2031, 2100, 2110, 2120, 2131, 2150, 2300, 2310, 2400A, 2404, 2424, 2444, 2500, 2504, 2600, 2610, 2653, 2810, 2910, 3000, 3055, 3100, 3110, 3120, 3150, 3190, 3230, 3300, 3310, 3330, 3550, 3600, 3610, 3900, 3910, 3930, 4000, 4031, 4100, 4110, 4120, 4130, 4131, 4190, 4330, 4340, 4410, 4500, 4600, 4610, 4630, 4830, 5030, 5110, 6000, 6610, 6710, 6810, 7410, 7610, 7700, 7710, 231, 333, 334, 403, 403F, 403G, 404, 424, 431, 444, 451, 454, 461, 470, 503, 503I, 504I, 504I SILAGE, 531, 541, 570, 601, 611, 615, 620, 621, 631, 640, 641, 650, 651, 660, 674, 915, Dexta, Super Dexta, 500B, 600 Series, 600B, 700 Series, 800 Series, 900 Series, 20CFits Case/International Harvester: 140, 230A, 424, 444, 504, 2404, 2444, 2504, 651815R1, PH13, PH15White: 2100, 2300, 2500Vermeer: 500B, 505IFits Woods: 615New Idea: 2653
Replaces Part Number(s):JD8188, LM11949, 831055M1, 1851799M91, 1650003, 1650005, 102840A, D5NN1215A, D5NN1216A, 204E1216A, 204E1217A, 36724, 8A1216B, 81708383, 81708395, 83910704, 83910705, 83992410, 651815R1, 651815R91, G10815Aftermarket Interchange NumbersLM11949, 4T-LM11949, 05404500, 05404400, 67334New aftermarket replacement part - not remanufactured, not used.

Reference numbers: JD8188, LM11949, 831055M1, 1851799M91, 1650003, 1650005, 102840A, D5NN1215A, D5NN1216A, 204E1216A, 204E1217A, 36724, 8A1216B, 81708383, 81708395, 83910704, 83910705, 83992410, 651815R1, 651815R91, 4T-LM11949, 05404500, 05404400

• One New Aftermarket Replacement Tapered Roller Bearing Cone (LM11949) Fits John Deere, Fits Massey Ferguson, Fits Ford, Fits Case/IH and MoreThis tapered roller bearing cone (industry standard number LM11949, Fits John Deere part number JD8188) is a widely used single-cone tapered roller bearing designed to support both radial and axial loads. It is used across a broad range of agricultural equipment -- tractors, combines, rotary cutters, round balers, greens mowers, forklifts, and cutting platforms -- on wheel hubs, spindles, and other rotating assemblies. The cone pairs with cup/race LM11910 to form a complete tapered roller bearing set.Specifications Bore (Inner Diameter): 0.750 in. Cone Width: 0.655 in. Corner Radius: 0.05 in. Type: Tapered Roller Bearing Cone (Single Cone) Pairs with Cup/Race: LM11910 Compatible Models Fits John Deere: 66, 84, 110, 112, 120, 125, 130, 140, 160, 180, 200, 220, 230, 240, 261, 272, 300, 303, 305, 324, 327, 328, 337, 338, 347, 348, 360, 450, 468, 504, 509, 550, 609, 647, 655, 657, 660, 665, 667, 670, 673, 680, 681, 700, 705, 709, 717, 727, 737, 900, 972, 1008, 1018, 1200H, 1203, 1320, 1326, 1327, 1408, 1418, 1508, 1517, 1518, 1903, 1905, 2018, 2054, 2056, 2058, 2064, 2066, 2243, 2254, 2256, 2258, 2264, 2266, 2266E, 2400 PRECISIONCUT, 2500, 2500A, 2500B, 2500E, 2550, 2653, 2653A, 2653B, 2700, 2750, 3215, 3215B, 3225B, 3225C, 3235, 3235B, 3235C, 3245C, 3325, 3365, 6080A, 6500A, 7200, 7200A, 7400, 7400A, 7500, 7500A, 7700, 8000, 8000A, 8400, 8500, 8700, 8800, 8800A, 8900A, 9009ACX, CX15, CX20, E12, E15, FC10R, FC12E, FC15E, FC15M, FC15R, FC20M, FC20R, HX6, HX7, HX10, HX14, HX15, HX20, M15, M20, MX5, MX6, MX7, MX8, MX10, MX15, RC6R, RC7M, RC7R, RC8M, RC10M, RC10RFits Massey Ferguson: 135, 150, 165, 175, 180, 185, 200, 202, 203, 204, 205, 230, 231, 233, 234, 235, 240, 245, 255, 265, 275, 285, 335, 340, 1080, 1085 Fits Ford/New Holland: 2000, 2031, 2100, 2110, 2120, 2131, 2150, 2300, 2310, 2400A, 2404, 2424, 2444, 2500, 2504, 2600, 2610, 2653, 2810, 2910, 3000, 3055, 3100, 3110, 3120, 3150, 3190, 3230, 3300, 3310, 3330, 3550, 3600, 3610, 3900, 3910, 3930, 4000, 4031, 4100, 4110, 4120, 4130, 4131, 4190, 4330, 4340, 4410, 4500, 4600, 4610, 4630, 4830, 5030, 5110, 6000, 6610, 6710, 6810, 7410, 7610, 7700, 7710, 231, 333, 334, 403, 403F, 403G, 404, 424, 431, 444, 451, 454, 461, 470, 503, 503I, 504I, 504I SILAGE, 531, 541, 570, 601, 611, 615, 620, 621, 631, 640, 641, 650, 651, 660, 674, 915, Dexta, Super Dexta, 500B, 600 Series, 600B, 700 Series, 800 Series, 900 Series, 20CFits Case/International Harvester: 140, 230A, 424, 444, 504, 2404, 2444, 2504, 651815R1, PH13, PH15White: 2100, 2300, 2500Vermeer: 500B, 505IFits Woods: 615New Idea: 2653 Replaces Part Number(s):JD8188, LM11949, 831055M1, 1851799M91, 2304WD, 1650003, 1650005, 102840A, D5NN1215A, D5NN1216A, 204E1216A, 204E1217A, 36724, 8A1216B, 81708383, 81708395, 83910704, 83910705, 83992410, 651815R1, 651815R91, G10815Aftermarket Interchange NumbersLM11949, 4T-LM11949, 05404500, 05404400, 67334New aftermarket replacement part - not remanufactured, not used.
