NPS106RPC Bearing ( )

Quantity indicated in catalogue: 1

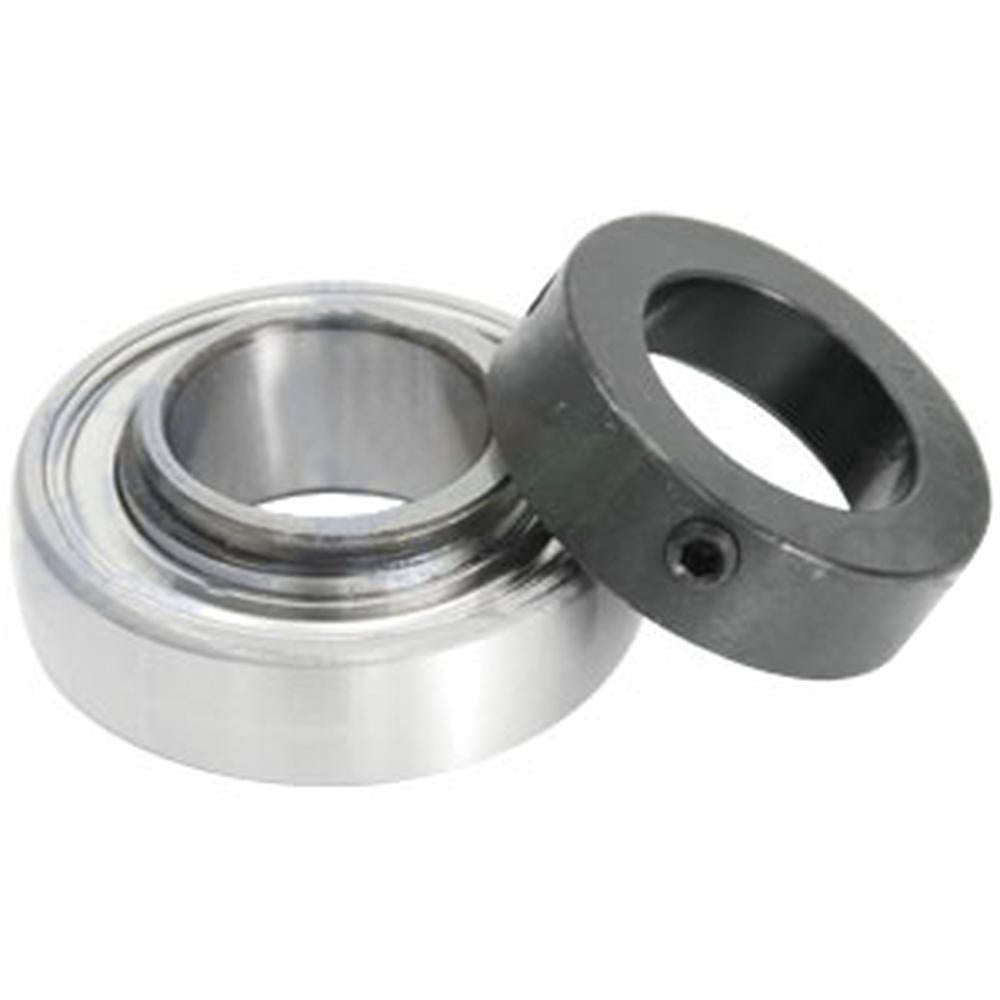

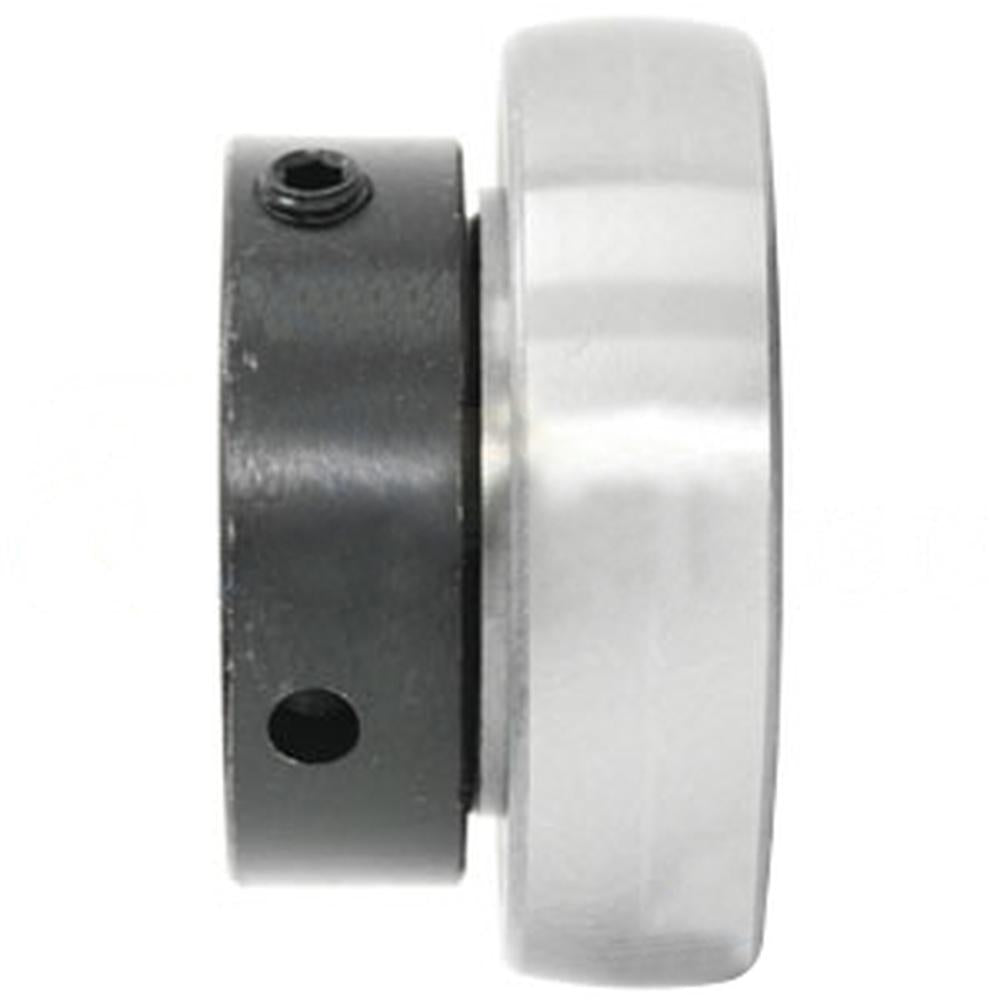

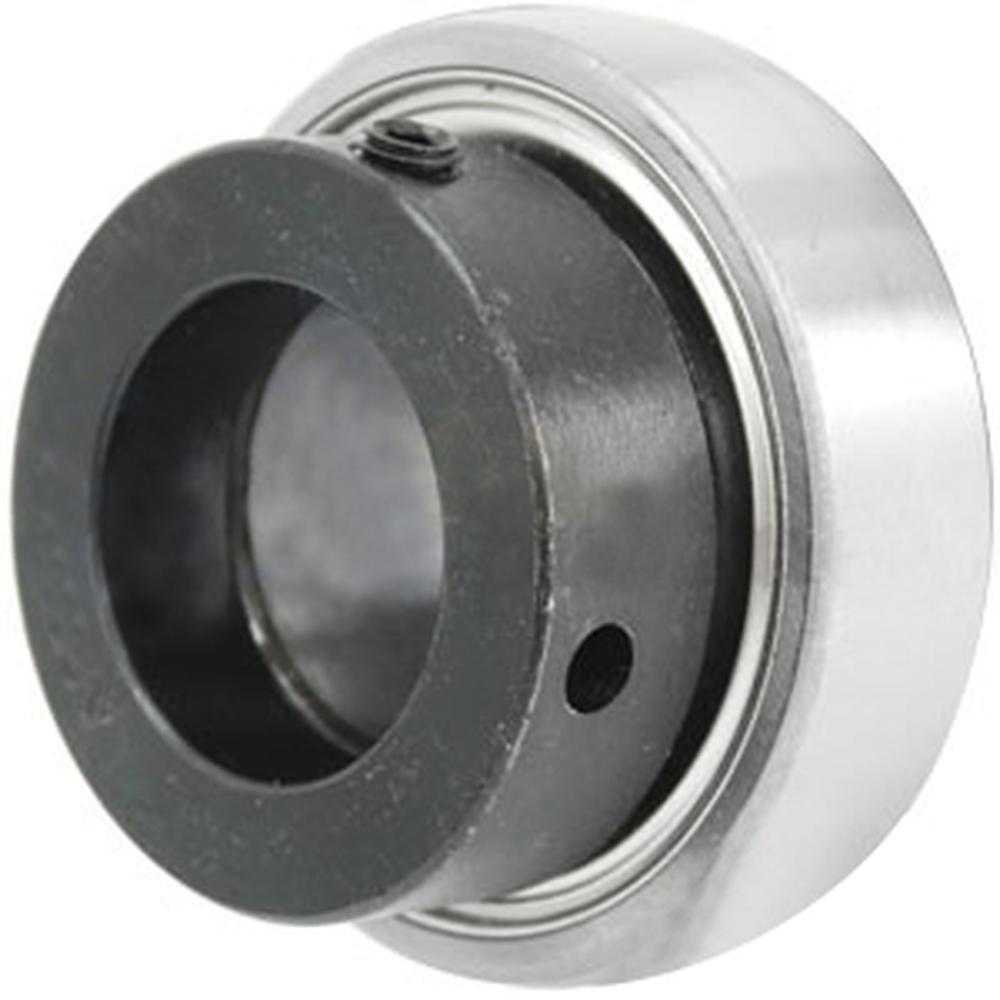

Replacement part: Bearing (NPS106RPC).

Configuration: Ball Bearing Insert with Eccentric Locking Collar for Hesston, GEHL, Fits Ford/New Holland, Fits John Deere, Fits Case/International Harvester, Fits Massey Ferguson, Long, and Universal Agricultural EquipmentThis aftermarket replacement ball bearing insert (NPS106RPC) features an eccentric locking collar and narrow inner ring with spherical outer diameter. It is a standard-duty, non-relubricable, double-sealed insert bearing designed for use in hay balers, combines, forage harvesters, windrowers, cotton pickers, manure spreaders, and swathers across multiple major agricultural equipment brands. The sealed design protects rolling elements from field debris and moisture for extended service life.Specifications Bore: 1-3/8 in (1.375 in) Outside Diameter: 2.8346 in Overall Width: 1.531 in Inner Width: 1.000 in Bearing Width (outer ring): 0.748 in Bore Type: Round Locking Device: Eccentric Collar Lube Type: Non-relubricable (pre-lubed, double sealed) Radial Dynamic Load Capacity: 5800 lbf Radial Static Load Capacity: 3450 lbf Max RPM: 4200 Operating Temperature Range: -40 to 250 deg F Bearing Material: Through-Hardened Steel Compatible Models
Fits Case/International Harvester Combines and Cotton Pickers: 1482, 1900, 2100, 2188, 2366, 2377, 2388, 2577, 2588, 9935, 9960, 9965, 9970, 9976, 9986, 9996, CP20, CP690
Fits John Deere Hay Balers and Combines: 303, 304, 316, 320, 321, 322, 326, 360N4, 360N6, 403, 421, 422, 503, 505, 550, 621, 630, 634, 638, 718, 782, 790, 848, 849, 851, 852, 853, 855, 858, 892, 914, 962, 1100, 1114, 1116, 7260, 7660, 7760, 8400, 8820, 8830, 8840, 8590, TR70, TR75, TR85, TR87, TR95, TR97, BR730, BR730A, BR740, BR740A, BR750, BR780, BR7050, BR7060, BR7070, BR7090Hesston / GEHL / Fits Massey Ferguson Mower Conditioners, Hay Balers, and Forage Harvesters: 22, 222, 315, 500, 1915
Fits Ford/New Holland Windrowers, Combines, and Balers: See models field - multiple windrower and hay equipment modelsLong Tractors: See models field for applicable models
Replaces Part Number(s):NPS106RPC, 1017A9, 571588R1, F50848, F51316, F90485, 990291, 520066, 520191, JD9209, 833351M1, 308-RA106RRB, 851-SA20722, RA106RRB, RA106RRB-IMP, 147606, 050021Aftermarket Interchange NumbersNational NPS-106-RPC, NTN NPS106RPC, BCA NPS106RPC, Fafnir RA106RRB, Fits John Deere JD9209, AGCO 050021, Fits Case-IH 47066 (ref: F90485)New aftermarket replacement part - not remanufactured, not used.

Reference numbers: NPS106RPC, 1017A9, 571588R1, F50848, F51316, F90485, 990291, 520066, 520191, JD9209, 833351M1, 308-RA106RRB, 851-SA20722, RA106RRB, RA106RRB-IMP, 147606

• One New Aftermarket Replacement Ball Bearing Insert with Eccentric Locking Collar for Hesston, GEHL, Fits Ford/New Holland, Fits John Deere, Fits Case/International Harvester, Fits Massey Ferguson, Long, and Universal Agricultural EquipmentThis aftermarket replacement ball bearing insert (NPS106RPC) features an eccentric locking collar and narrow inner ring with spherical outer diameter. It is a standard-duty, non-relubricable, double-sealed insert bearing designed for use in hay balers, combines, forage harvesters, windrowers, cotton pickers, manure spreaders, and swathers across multiple major agricultural equipment brands. The sealed design protects rolling elements from field debris and moisture for extended service life.Specifications Bore: 1-3/8 in (1.375 in) Outside Diameter: 2.8346 in Overall Width: 1.531 in Inner Width: 1.000 in Bearing Width (outer ring): 0.748 in Bore Type: Round Locking Device: Eccentric Collar Lube Type: Non-relubricable (pre-lubed, double sealed) Radial Dynamic Load Capacity: 5800 lbf Radial Static Load Capacity: 3450 lbf Max RPM: 4200 Operating Temperature Range: -40 to 250 deg F Bearing Material: Through-Hardened Steel Compatible Models Fits Case/International Harvester Combines and Cotton Pickers: 1482, 1900, 2100, 2188, 2366, 2377, 2388, 2577, 2588, 9935, 9960, 9965, 9970, 9976, 9986, 9996, CP20, CP690 Fits John Deere Hay Balers and Combines: 303, 304, 316, 320, 321, 322, 326, 360N4, 360N6, 403, 421, 422, 503, 505, 550, 621, 630, 634, 638, 718, 782, 790, 848, 849, 851, 852, 853, 855, 858, 892, 914, 962, 1100, 1114, 1116, 7260, 7660, 7760, 8400, 8820, 8830, 8840, 8590, TR70, TR75, TR85, TR87, TR95, TR97, BR730, BR730A, BR740, BR740A, BR750, BR780, BR7050, BR7060, BR7070, BR7090Hesston / GEHL / Fits Massey Ferguson Mower Conditioners, Hay Balers, and Forage Harvesters: 22, 222, 315, 500, 1915 Fits Ford/New Holland Windrowers, Combines, and Balers: See models field - multiple windrower and hay equipment modelsLong Tractors: See models field for applicable models Replaces Part Number(s):NPS106RPC, 1017A9, 571588R1, F50848, F51316, F90485, 990291, 520066, 520191, JD9209, 833351M1, 308-RA106RRB, 851-SA20722, RA106RRB, RA106RRB-IMP, 147606, 050021Aftermarket Interchange NumbersNational NPS-106-RPC, NTN NPS106RPC, BCA NPS106RPC, Fafnir RA106RRB, Fits John Deere JD9209, AGCO 050021, Fits Case-IH 47066 (ref: F90485)New aftermarket replacement part - not remanufactured, not used.
