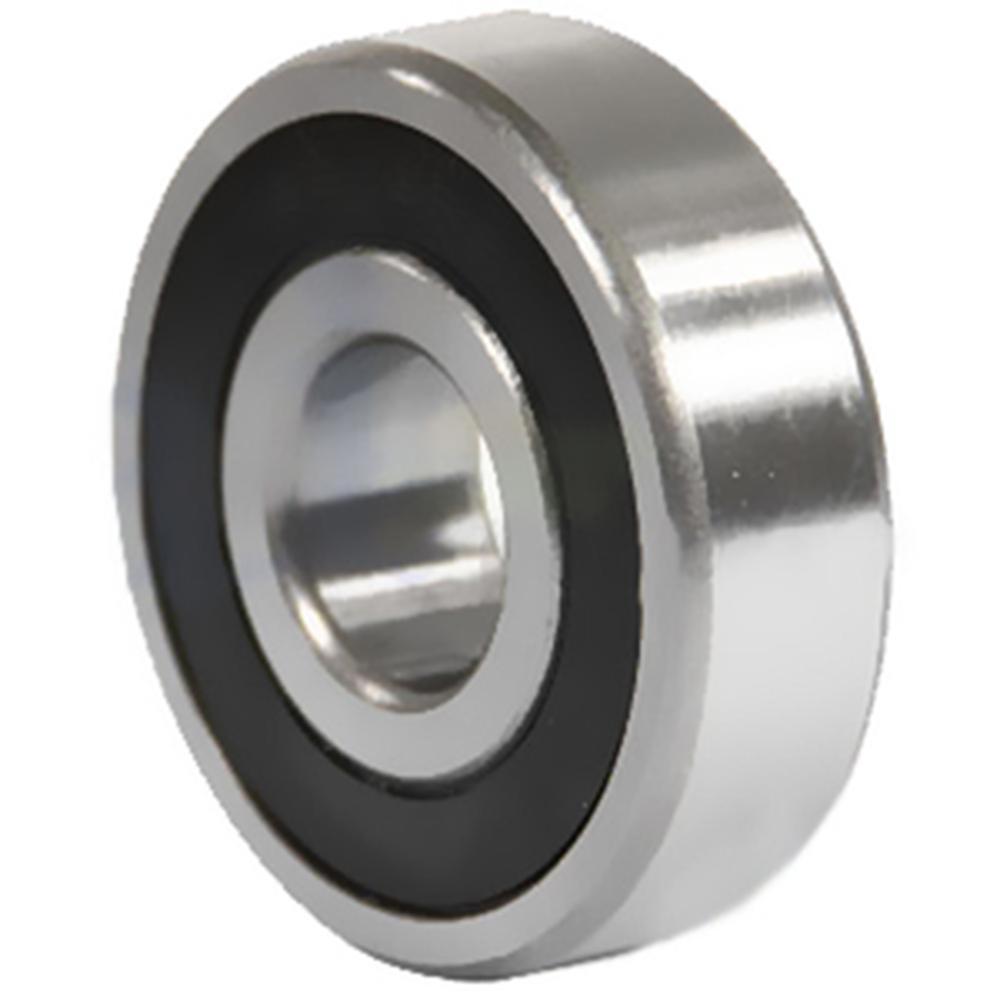

6203-2RS BEARING, CLUTCH PILOT

Quantity indicated in catalogue: 1

Replacement part: BEARING, CLUTCH PILOT.

Configuration: Clutch Pilot Bearing for Agricultural TractorsThis sealed deep-groove ball bearing serves as the clutch pilot bearing in the clutch/flywheel assembly of a wide range of agricultural tractors. Installed in the rear of the engine crankshaft bore or the center of the flywheel, it supports and centers the transmission input shaft, allowing the input shaft to rotate independently when the clutch is disengaged. Replacing this bearing during any clutch service is recommended best practice.Specifications Bearing Type: Single-row deep-groove ball bearing, double rubber-sealed (2RS) Inner Diameter (ID): 21/32 in. Outer Diameter (OD): 1-9/16 in. Height/Width: 15/32 in. Dimensions (metric): 17 mm ID x 40 mm OD x 12 mm wide Seals: Rubber seals on both sides, pre-greased Compatible Models
Fits John Deere Tractors: 135, 150, 165, 175, 180, 202, 230, 231, 233, 234, 250C, 260C, 333, 420, 600, 700, 800, 900, 1800, 2000, 2010, 2030, 2110, 2110 LCG, 2120, 2130, 2300, 2310, 2355, 2440, 2510, 2600, 2610, 2810, 2910, 3000, 3010, 3020, 3055, 3100, 3120, 3150, 3190, 3230, 3300, 3310, 3330, 3400, 3430, 3500, 3550, 3600, 3610, 3910, 3930, 4000, 4010, 4020, 4031, 4100, 4110, 4120, 4121, 4130, 4200, 4330, 4340, 4400, 4410, 4500, 4600, 4610, 4630, 4830, 5030, 445, 445A, 455, 515, 535, 540, 540A, 540B, 545, 340A, 340B, 345C, 345DFits Ford/New Holland Tractors: NAA, 9N, 2N, 8N, 600, 800, 900, 1800, 1801, 1811, 1821, 1841, 1871, 1881, 2000, 2100, 2110, 2120, 2150, Dexta, Super Dexta, Major, Super Major
Fits Massey Ferguson / AGCO Tractors: TO35; AGCO/Fits Allis Chalmers 160, 5020, 6040, 8745, 8765, LT70, LT85, ST35, ST45, ST45H, ST55Challenger Tractors: MT295, MT297, MT444, MT454, MT455, MT464, MT465
Fits International Harvester / Fits Case IH and additional multi-brand agricultural tractor applications
Replaces Part Number(s):6203-2RS, 6203-2RS-I, 53206040, JD9449, JD9394, JD92, C5NN7600A, 828123M2, 832953M3, 832960M3, 836203, ESL10692, CLB10-0018, TPJD9281, TP-JD9449, 741-0524, 741-0524P, 201-019, M04-25-01, VPG5010New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 6203-2RS, 6203-2RS-I, 53206040, JD9449, JD9394, JD92, C5NN7600A, 828123M2, 832953M3, 832960M3, 836203, ESL10692, CLB10-0018, TPJD9281, TP-JD9449, 741-0524, 741-0524P, 201-019, M04-25-01

• One New Aftermarket Replacement Clutch Pilot Bearing for Agricultural TractorsThis sealed deep-groove ball bearing serves as the clutch pilot bearing in the clutch/flywheel assembly of a wide range of agricultural tractors. Installed in the rear of the engine crankshaft bore or the center of the flywheel, it supports and centers the transmission input shaft, allowing the input shaft to rotate independently when the clutch is disengaged. Replacing this bearing during any clutch service is recommended best practice.Specifications Bearing Type: Single-row deep-groove ball bearing, double rubber-sealed (2RS) Inner Diameter (ID): 21/32 in. Outer Diameter (OD): 1-9/16 in. Height/Width: 15/32 in. Dimensions (metric): 17 mm ID x 40 mm OD x 12 mm wide Seals: Rubber seals on both sides, pre-greased Compatible Models Fits John Deere Tractors: 135, 150, 165, 175, 180, 202, 230, 231, 233, 234, 250C, 260C, 333, 420, 600, 700, 800, 900, 1800, 2000, 2010, 2030, 2110, 2110 LCG, 2120, 2130, 2300, 2310, 2355, 2440, 2510, 2600, 2610, 2810, 2910, 3000, 3010, 3020, 3055, 3100, 3120, 3150, 3190, 3230, 3300, 3310, 3330, 3400, 3430, 3500, 3550, 3600, 3610, 3910, 3930, 4000, 4010, 4020, 4031, 4100, 4110, 4120, 4121, 4130, 4200, 4330, 4340, 4400, 4410, 4500, 4600, 4610, 4630, 4830, 5030, 445, 445A, 455, 515, 535, 540, 540A, 540B, 545, 340A, 340B, 345C, 345DFits Ford/New Holland Tractors: NAA, 9N, 2N, 8N, 600, 800, 900, 1800, 1801, 1811, 1821, 1841, 1871, 1881, 2000, 2100, 2110, 2120, 2150, Dexta, Super Dexta, Major, Super Major Fits Massey Ferguson / AGCO Tractors: TO35; AGCO/Fits Allis Chalmers 160, 5020, 6040, 8745, 8765, LT70, LT85, ST35, ST45, ST45H, ST55Challenger Tractors: MT295, MT297, MT444, MT454, MT455, MT464, MT465 Fits International Harvester / Fits Case IH and additional multi-brand agricultural tractor applications Replaces Part Number(s):6203-2RS, 6203-2RS-I, 53206040, JD9449, JD9394, JD92, C5NN7600A, 828123M2, 832953M3, 832960M3, 836203, ESL10692, CLB10-0018, TPJD9281, TP-JD9449, 741-0524, 741-0524P, 201-019, M04-25-01, VPG5010New aftermarket replacement part - not remanufactured, not used.
