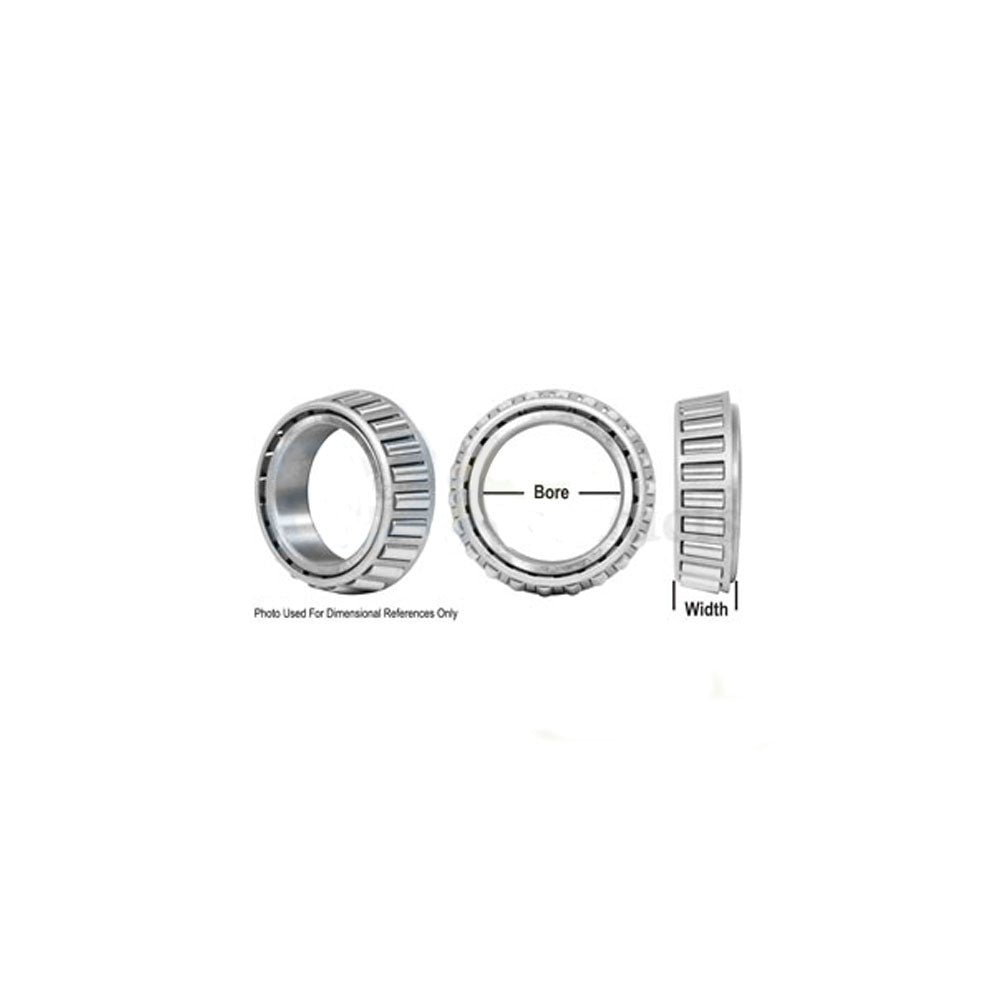

1716039 Bearing, Taper Cone

Quantity indicated in catalogue: 1

Replacement part: Bearing, Taper Cone.

Configuration: Taper Cone Bearing (LM501349) Fits Massey Ferguson, Fits John Deere, Fits Case/IH, Fits Ford/New Holland and MoreThis tapered roller bearing cone (LM501349) is a widely used single-row tapered roller bearing cone in the LM501300 series, designed to handle both radial and axial loads in wheel hubs, axle components, and steering assemblies across a broad range of agricultural equipment. The cone pairs with compatible cups including LM501310, LM501311, and LM501314 and is typically mounted in opposing pairs on a shaft.Specifications Bearing Type: Tapered Roller Bearing Cone (Single Row) Series: LM501300 Bore (Inner Diameter): 1.625 in (41.275 mm) Outer Diameter: 2.891 in (73.431 mm) Cone Width: 0.780 in (19.812 mm) Fillet Radius: 0.14 in (3.56 mm) Material: 52100 Bearing Grade Chromium Steel Compatible Cups: LM501310, LM501311, LM501314 Compatible Models
Fits Massey Ferguson: 1345, 1355, 1363, 1365, 1366, 1373, 1376, 1383, 1386, 1395, 1460, 1480, 1482, 1550, 1555, 1600, 1655, 1660, 1666, 1680, 1682, 1688, 1745, 1750, 2166, 2188, 2344, 2366, 2377, 2388, 2440, 2577, 2588, 2640, 2745, 2946, 2946A, 2956, 2956A, 8412, 8415, 8570, 8680, 8780, 8780XP, 9540, 9545, 9560, 9565, 9690, 9695, 9790, 9795, 9831, 9895, MX80C, MX90CFits John Deere: 7000, 7100
Fits Case/International Harvester: 300, 410, 510, 540, 550, 550C, 660, 660B, 670, 670B, 680B, 750, 760, 770, 850, 855, 860, 865, 880
Fits Ford/New Holland: 2-44, 2-446, 2-4412, 2-4413, 2-4413L, 2-4414, 3230, 3600, 3930, 3930N, 3930NO, 4100, 4130, 4130NO, 4600, 4610N, 4630, 4630N, 4630NO, 4630O, 5000, 5100, 5110, 5600, 5610, 5610S, 5640, 5700, 5900, 6410, 6600, 6610, 6610S, 6700, 6710, 6810, 7600, 7610, 7610S, 7700, 7710, 7710 5100, 7740, 7815, 7840, T7 SUPERWhite Oliver: 62, 72, 77, 78, 82, 84, 88, 92 SUPER, SUPER 55, 205GEHL: 604J, 605JVermeer: 750, 760 (round baler)
Fits Woods: (rotary cutter / mower conditioner applications)Challenger: (applicable Challenger tractor models)Also used in Wheel Hub, Axle Component, and Steering Assembly applications across the above equipment lines.Replaces Part Number(s): 1716039, LM501349, LM501349-I, 831728M1, 74254700, W102846A, 102729A, 102846A, 042163, WAA4221A, 67370, JD8902, 663557R1Aftermarket Interchange NumbersSET45, SET69, VKHB 2153, 663557R91, 144079C91, 202521C91, 3221283R91, 598757R91, 671075R91, 102846A, 35A513, B7A4221A, CFT20400, WAA4221A0W, 4T-LM501349, BR45, KLM501349, TMLM501349, TX5715A, BT501349LM, WB01055, WB1055New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 1716039, LM501349, LM501349-I, 831728M1, 74254700, W102846A, 102729A, 102846A, 042163, WAA4221A, 67370, JD8902, SET69, 663557R91, 144079C91, 202521C91, 3221283R91, 598757R91, 671075R91, 35A513, B7A4221A, CFT20400, WAA4221A0W, 4T-LM501349, BR45, KLM501349, TMLM501349, TX5715A, BT501349LM, WB01055

• One New Aftermarket Replacement Taper Cone Bearing (LM501349) Fits Massey Ferguson, Fits John Deere, Fits Case/IH, Fits Ford/New Holland and MoreThis tapered roller bearing cone (LM501349) is a widely used single-row tapered roller bearing cone in the LM501300 series, designed to handle both radial and axial loads in wheel hubs, axle components, and steering assemblies across a broad range of agricultural equipment. The cone pairs with compatible cups including LM501310, LM501311, and LM501314 and is typically mounted in opposing pairs on a shaft.Specifications Bearing Type: Tapered Roller Bearing Cone (Single Row) Series: LM501300 Bore (Inner Diameter): 1.625 in (41.275 mm) Outer Diameter: 2.891 in (73.431 mm) Cone Width: 0.780 in (19.812 mm) Fillet Radius: 0.14 in (3.56 mm) Material: 52100 Bearing Grade Chromium Steel Compatible Cups: LM501310, LM501311, LM501314 Compatible Models Fits Massey Ferguson: 1345, 1355, 1363, 1365, 1366, 1373, 1376, 1383, 1386, 1395, 1460, 1480, 1482, 1550, 1555, 1600, 1655, 1660, 1666, 1680, 1682, 1688, 1745, 1750, 2166, 2188, 2344, 2366, 2377, 2388, 2440, 2577, 2588, 2640, 2745, 2946, 2946A, 2956, 2956A, 8412, 8415, 8570, 8680, 8780, 8780XP, 9540, 9545, 9560, 9565, 9690, 9695, 9790, 9795, 9831, 9895, MX80C, MX90CFits John Deere: 7000, 7100 Fits Case/International Harvester: 300, 410, 510, 540, 550, 550C, 660, 660B, 670, 670B, 680B, 750, 760, 770, 850, 855, 860, 865, 880 Fits Ford/New Holland: 2-44, 2-446, 2-4412, 2-4413, 2-4413L, 2-4414, 3230, 3600, 3930, 3930N, 3930NO, 4100, 4130, 4130NO, 4600, 4610N, 4630, 4630N, 4630NO, 4630O, 5000, 5100, 5110, 5600, 5610, 5610S, 5640, 5700, 5900, 6410, 6600, 6610, 6610S, 6700, 6710, 6810, 7600, 7610, 7610S, 7700, 7710, 7710 5100, 7740, 7815, 7840, T7 SUPERWhite Oliver: 62, 72, 77, 78, 82, 84, 88, 92 SUPER, SUPER 55, 205GEHL: 604J, 605JVermeer: 750, 760 (round baler) Fits Woods: (rotary cutter / mower conditioner applications)Challenger: (applicable Challenger tractor models)Also used in Wheel Hub, Axle Component, and Steering Assembly applications across the above equipment lines.Replaces Part Number(s):1716039, LM501349, LM501349-I, 831728M1, 74254700, W102846A, 102729A, 102846A, 11114WD, 042163, WAA4221A, 67370, JD8902, 663557R1Aftermarket Interchange NumbersSET45, SET69, VKHB 2153, 663557R91, 144079C91, 202521C91, 3221283R91, 598757R91, 671075R91, 102846A, 35A513, B7A4221A, CFT20400, WAA4221A0W, 4T-LM501349, BR45, KLM501349, TMLM501349, TX5715A, BT501349LM, WB01055, WB1055New aftermarket replacement part - not remanufactured, not used.
