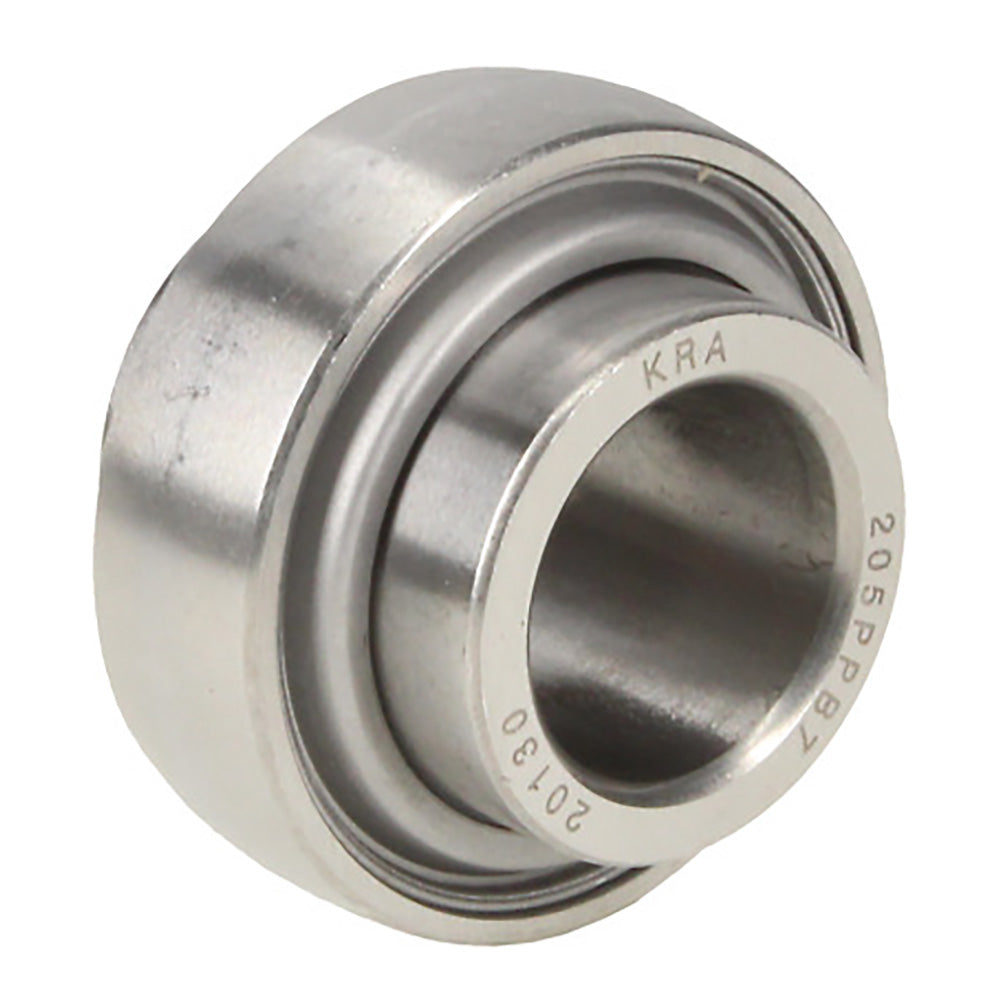

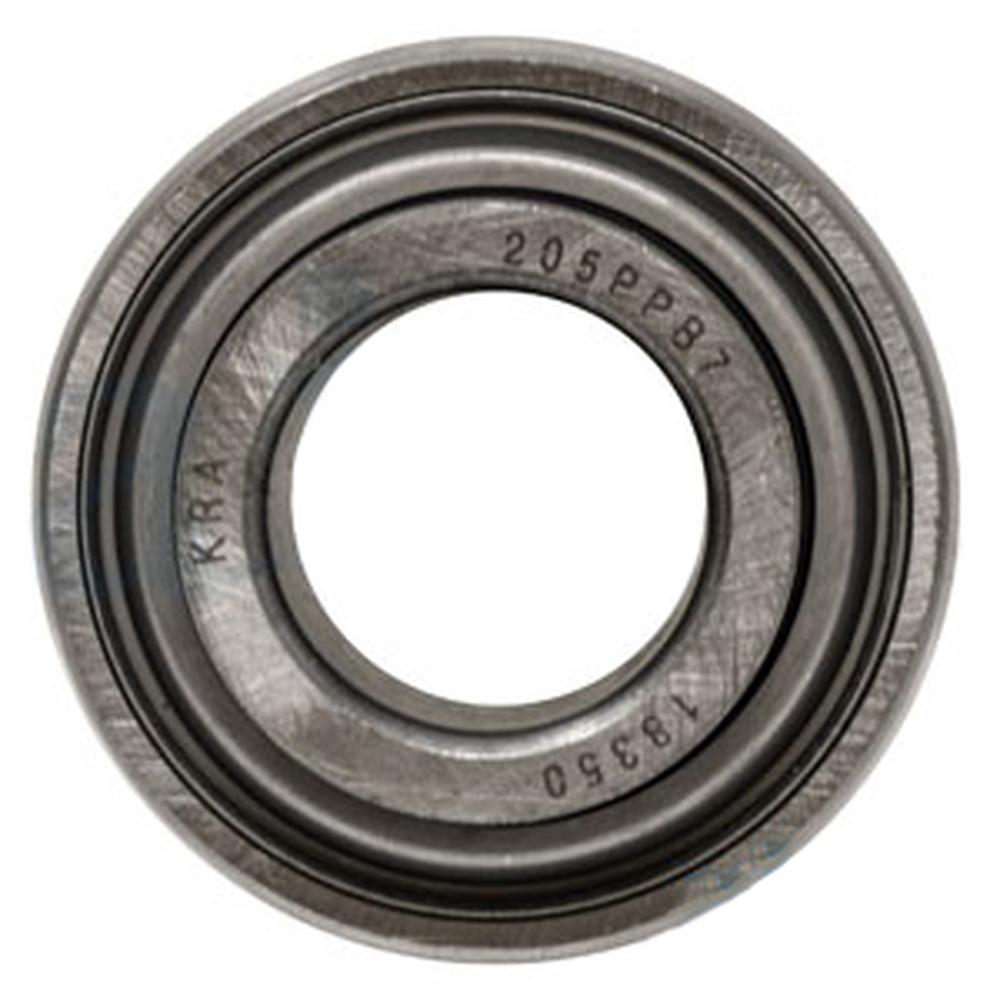

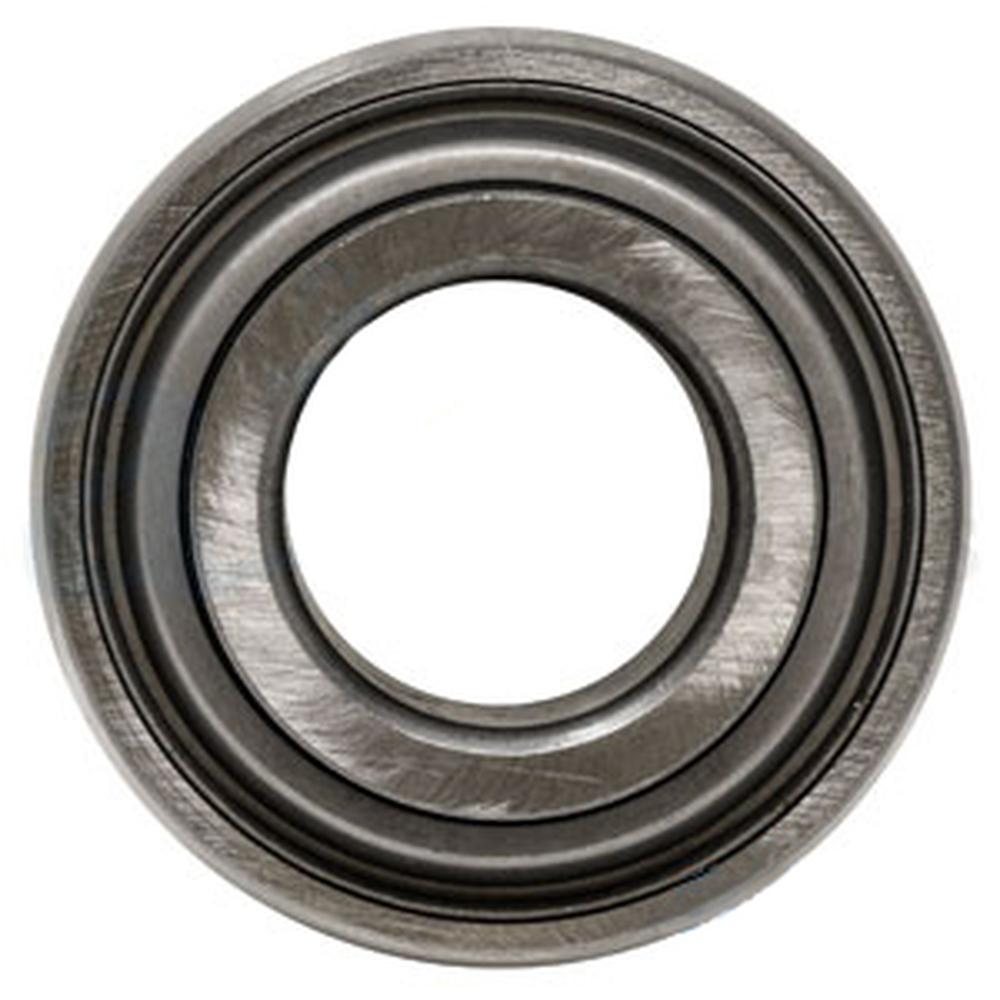

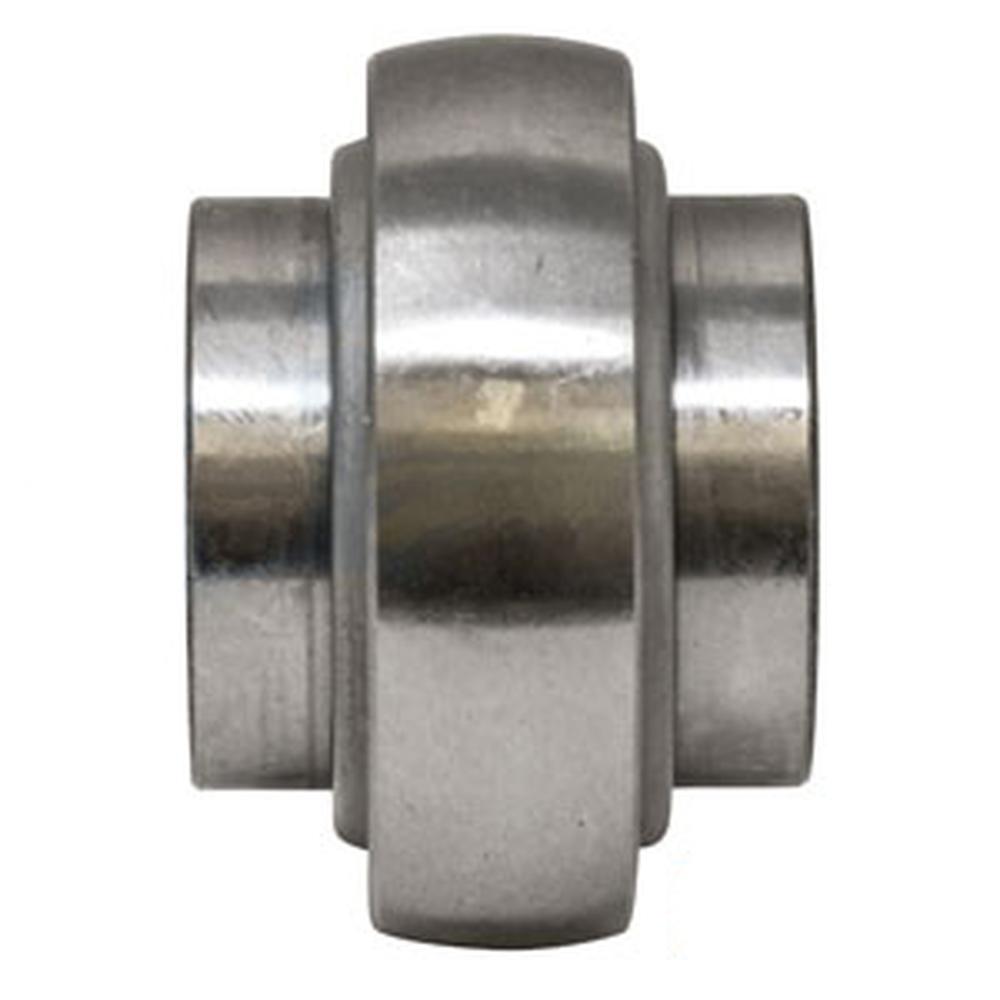

04A51001 Bearing
04A51001 Bearing – additional image 204A51001 Bearing – additional image 304A51001 Bearing – additional image 4

NC-056829 · Bearings, Bushings, Seals

04A51001 Bearing

CAD 30.30

In stock

Bearing – reference 04A51001. View photos, specifications, CAD pricing and delivery options from NorthCore.

Standard delivery: 3–7 business days. Other services and estimates are shown at checkout. Minimum online order: CAD 100 in parts, excluding shipping and tax. Add this part to your cart to calculate delivery and review your order.

Ask about this part

Part specifications and references

NorthCore code
NC-056829
Reference numbers
04A51001, 04A51001IMP, 2050020, 2050020IMP, 2061001, 2061001IMP, 205PPB7, 205TTHN, F205TTH
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Bearing.

Configuration: Ball Bearing for Lilliston and Kelly Mfg. Rolling CultivatorsThis special agricultural deep-groove ball bearing features a double-extended inner ring and straight outer ring with a round bore, designed for use on Lilliston rolling cultivators and Kelly Mfg. rolling cultivators. The extended inner ring width accommodates the shaft configurations common to these row-crop cultivation machines.Specifications Type: Special Agricultural Deep-Groove Ball Bearing Bore: 0.9375 in (15/16 in) Round Outside Diameter: 2.0472 in (52 mm) Inner Ring Width: 1.375 in (35 mm) Outer Ring Width: 0.5906 in (15 mm) Inner Ring Style: Double Extended Outer Ring Style: Straight Compatible EquipmentLilliston: Rolling Cultivators (15/16 in bore models)Kelly Mfg. (KMC): Rolling CultivatorsRiverside Tractor: Compatible cultivator applications
Replaces Part Number(s):04A51001, 04A51001IMP, 2050020, 2050020IMP, 2061001, 2061001IMP, 205PPB7, 205TTHAftermarket Interchange NumbersFAFNIR/Timken: 205PPB7 | BCA/Federal: 205TTH, 205TTHN, F205TTH, FS1833 | Link-Belt: BS217948N, BS217948E3 | NTN: SBX05A56 | SKF: 6205VSP49 | Mcquay-Norris: BB1833AS | Rhino: 70514 | Kelly: 04-051-001 | Lilliston: 20-50-20, 20-61-001New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 04A51001, 04A51001IMP, 2050020, 2050020IMP, 2061001, 2061001IMP, 205PPB7, 205TTHN, F205TTH
Application notes
  • One New Aftermarket Replacement Ball Bearing for Lilliston and Kelly Mfg. Rolling CultivatorsThis special agricultural deep-groove ball bearing features a double-extended inner ring and straight outer ring with a round bore, designed for use on Lilliston rolling cultivators and Kelly Mfg. rolling cultivators. The extended inner ring width accommodates the shaft configurations common to these row-crop cultivation machines.Specifications Type: Special Agricultural Deep-Groove Ball Bearing Bore: 0.9375 in (15/16 in) Round Outside Diameter: 2.0472 in (52 mm) Inner Ring Width: 1.375 in (35 mm) Outer Ring Width: 0.5906 in (15 mm) Inner Ring Style: Double Extended Outer Ring Style: Straight Compatible EquipmentLilliston: Rolling Cultivators (15/16 in bore models)Kelly Mfg. (KMC): Rolling CultivatorsRiverside Tractor: Compatible cultivator applications Replaces Part Number(s):04A51001, 04A51001IMP, 2050020, 2050020IMP, 2061001, 2061001IMP, 205PPB7, 205TTHAftermarket Interchange NumbersFAFNIR/Timken: 205PPB7 | BCA/Federal: 205TTH, 205TTHN, F205TTH, FS1833 | Link-Belt: BS217948N, BS217948E3 | NTN: SBX05A56 | SKF: 6205VSP49 | Mcquay-Norris: BB1833AS | Rhino: 70514 | Kelly: 04-051-001 | Lilliston: 20-50-20, 20-61-001New aftermarket replacement part - not remanufactured, not used.
