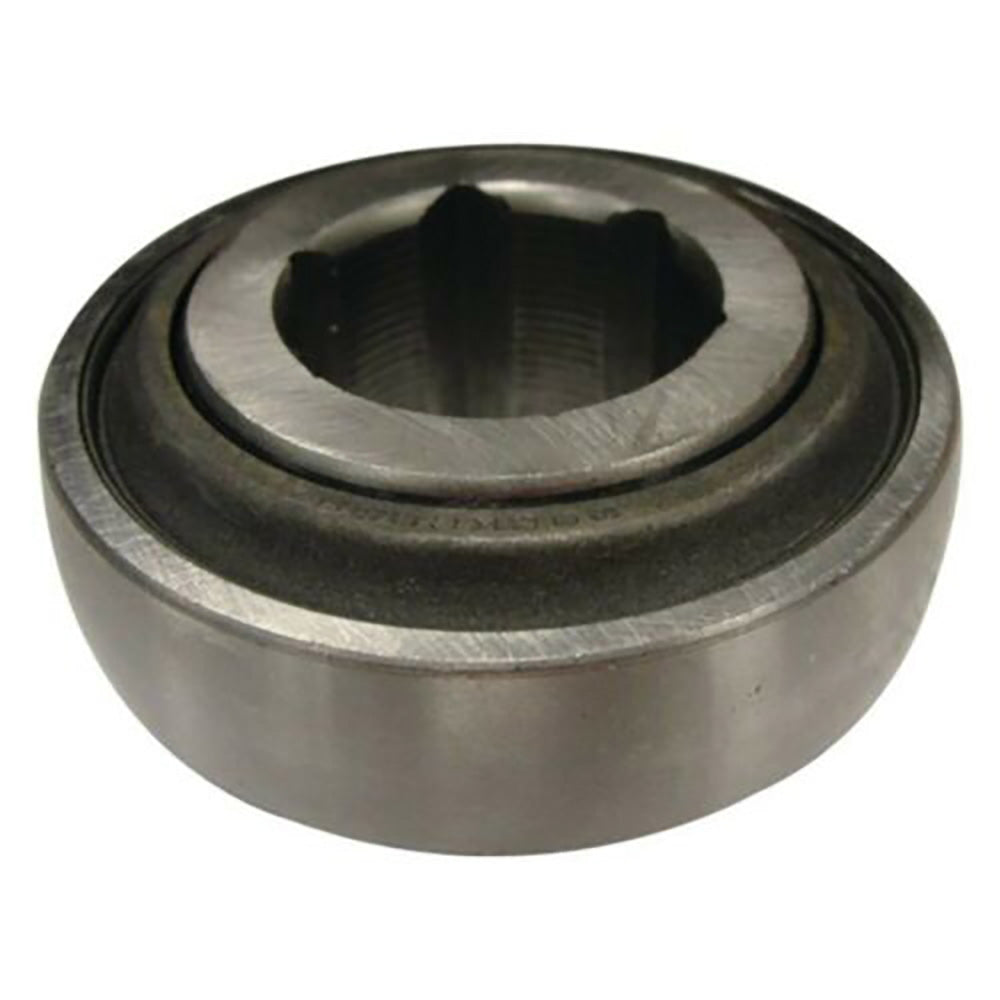

713172 Bearing ( )

Quantity indicated in catalogue: 1

Replacement part: Bearing (HPS100GP).

Configuration: Hex Bore Spherical Ball Bearing (HPS100GP) Fits John Deere, Fits Case IH, Hesston, GEHL, and Fits New Holland Agricultural EquipmentThis spherical, double-sealed hex bore farm implement bearing fits directly to a hex shaft without the need for a separate locking device, simplifying installation. It is designed for moderate-load, low-speed agricultural applications including combines, round balers, square balers, cotton pickers, cotton strippers, forage harvesters, hay cutting equipment, grain drills, mower conditioners, and cornhead/cutting platform assemblies. The spherical outer ring accommodates minor shaft misalignment, and the pre-lubricated, double-sealed design helps protect against dirt, debris, and moisture in demanding field conditions.Specifications Bore: 1.000" Hex Outside Diameter: 2.4409" (62 mm) Outer Ring Width: 0.630" Inner Ring Width: 0.9449" (24.000 mm) Overall Width: 1.5940" (40.488 mm) Outer Ring Design: Spherical Closure: Double Sealed Seal Material: Nitrile Rubber Lubrication: Pre-lubricated (non-relubricatable) Bearing Material: Through Hardened Steel Dynamic Load Capacity: 4,400 lbf (19,500 N) Static Load Capacity: 2,540 lbf Operating Temperature: -40 to 250 degrees F ISO Precision Class: 0 (ABEC 1) Compatible Models
Fits John Deere Combines: CTS, CTS II, 6600, 6620, 6622, 7722 Hillside, 9400, 9410, 9450, 9500, 9500 SH, 9501, 9510, 9510 SH, 9550, 9550 SH, 9560, 9560 SH, 9600, 9610, 9650, 9650 CTS, 9660, 9660 CTSFits John Deere Round Balers: 327, 330, 335, 337, 338, 347, 348, 375, 385, 430, 435, 446, 447, 456, 457, 466, 467, 468, 468S, 530, 535, 546, 547, 556, 557, 565, 566, 567, 572, 575, 582
Fits John Deere Harvesters/Cotton Equipment: 280, 282, 283, 484, 3800, 5200, 5400, 5440, 5460, 5720, 5730, 5820, 5830, 7440, 7445, 7450, 7460, 7760, 9900, 9910, 9920, 9930, 9935, 9940, 9950, 9976, 9986, 9996
Fits John Deere Hay Cutting/Square Balers: 220, 240, 530, 535, 550, 1380, 1400, 1424, 1800, 2052, 2062, 2305, 2555, 2720
Fits John Deere Grain Drills/Headers: 770, 780, 785
Fits John Deere Compact Tractors: 3120, 3320, 3520, 4115
Fits Case IH Combines: 1644, 1660, 1666, 1670, 1680, 1682, 1688, 2144, 2166, 2188, 2344, 2366, 2377, 2388, 2577, 2588
Fits Case IH/Fits International Harvester: CS690, CS770Hesston: 50 Series, 50A SeriesGEHL: 95
Replaces Part Number(s):713172, 713-172, 771-4603, 044260, 44260, 053719, 053719GV, 211587C91, JD9313, JD9332, JD9407, AN220534, AN100348, HPS100GP, 16KG206N, 206KRRB6, 206KRRB6-I, 206KRRB-6AG, G206KRRB6GV, 308-206KPP4Aftermarket Interchange NumbersNTN HPS100GP, BCA HPS100GP, Fafnir 206KRRB6, Link-Belt 16K206N, NTN 2AH06-1, Kewanee A5636, Fits New Holland 135241, Long 9-90325, Hesston 7714603New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 713172, 771-4603, 044260, 44260, 053719, 053719GV, 211587C91, JD9313, JD9332, JD9407, AN220534, AN100348, HPS100GP, 16KG206N, 206KRRB6, 206KRRB6-I, 206KRRB-6AG, G206KRRB6GV

• One New Aftermarket Replacement Hex Bore Spherical Ball Bearing (HPS100GP) Fits John Deere, Fits Case IH, Hesston, GEHL, and Fits New Holland Agricultural EquipmentThis spherical, double-sealed hex bore farm implement bearing fits directly to a hex shaft without the need for a separate locking device, simplifying installation. It is designed for moderate-load, low-speed agricultural applications including combines, round balers, square balers, cotton pickers, cotton strippers, forage harvesters, hay cutting equipment, grain drills, mower conditioners, and cornhead/cutting platform assemblies. The spherical outer ring accommodates minor shaft misalignment, and the pre-lubricated, double-sealed design helps protect against dirt, debris, and moisture in demanding field conditions.Specifications Bore: 1.000" Hex Outside Diameter: 2.4409" (62 mm) Outer Ring Width: 0.630" Inner Ring Width: 0.9449" (24.000 mm) Overall Width: 1.5940" (40.488 mm) Outer Ring Design: Spherical Closure: Double Sealed Seal Material: Nitrile Rubber Lubrication: Pre-lubricated (non-relubricatable) Bearing Material: Through Hardened Steel Dynamic Load Capacity: 4,400 lbf (19,500 N) Static Load Capacity: 2,540 lbf Operating Temperature: -40 to 250 degrees F ISO Precision Class: 0 (ABEC 1) Compatible Models Fits John Deere Combines: CTS, CTS II, 6600, 6620, 6622, 7722 Hillside, 9400, 9410, 9450, 9500, 9500 SH, 9501, 9510, 9510 SH, 9550, 9550 SH, 9560, 9560 SH, 9600, 9610, 9650, 9650 CTS, 9660, 9660 CTSFits John Deere Round Balers: 327, 330, 335, 337, 338, 347, 348, 375, 385, 430, 435, 446, 447, 456, 457, 466, 467, 468, 468S, 530, 535, 546, 547, 556, 557, 565, 566, 567, 572, 575, 582 Fits John Deere Harvesters/Cotton Equipment: 280, 282, 283, 484, 3800, 5200, 5400, 5440, 5460, 5720, 5730, 5820, 5830, 7440, 7445, 7450, 7460, 7760, 9900, 9910, 9920, 9930, 9935, 9940, 9950, 9976, 9986, 9996 Fits John Deere Hay Cutting/Square Balers: 220, 240, 530, 535, 550, 1380, 1400, 1424, 1800, 2052, 2062, 2305, 2555, 2720 Fits John Deere Grain Drills/Headers: 770, 780, 785 Fits John Deere Compact Tractors: 3120, 3320, 3520, 4115 Fits Case IH Combines: 1644, 1660, 1666, 1670, 1680, 1682, 1688, 2144, 2166, 2188, 2344, 2366, 2377, 2388, 2577, 2588 Fits Case IH/Fits International Harvester: CS690, CS770Hesston: 50 Series, 50A SeriesGEHL: 95 Replaces Part Number(s):713172, 713-172, 771-4603, 044260, 44260, 053719, 053719GV, 211587C91, JD9313, JD9332, JD9407, AN220534, AN100348, HPS100GP, 16KG206N, 206KRRB6, 206KRRB6-I, 206KRRB-6AG, G206KRRB6GV, 308-206KPP4Aftermarket Interchange NumbersNTN HPS100GP, BCA HPS100GP, Fafnir 206KRRB6, Link-Belt 16K206N, NTN 2AH06-1, Kewanee A5636, Fits New Holland 135241, Long 9-90325, Hesston 7714603New aftermarket replacement part - not remanufactured, not used.
