812823 Brush Generator Kits

NC-047981 · Alternator/Generator

812823 Brush Generator Kits

CAD 64.51

Availability to confirm

Brush Generator Kits – reference 812823. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-047981
Reference numbers
812823, D1634, 109966, 112-0423, 38-7820, 702581, 10467830, 10469092, 10473403, 12320060, 16-7503, 1974861, 2995036, 3203-1, 3203-2, 3203S1446, 900529, 904751, 904759, 905920, 907503, 907996, 908419, 954298, 954378, 954938, Z9503, Z99503, Z99503-6, Z99503XR, 1878249, 1906917, 1906937, 1906946, 1906956, 1906965, 1906970, 1923295, 1932506, D704, D705, 100RX58S, 1509760M1, 1509790M1, 1509870M1, 1754877M91, 231313, 231998, 70231998, GDR7501, GDR7512, 1458SM, R51, 1850786, GDR7100, Z99503XR1C, 1878209, 100-1048
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Brush Generator Kits Fits Delco Replaces 10467830.

Configuration: 2 Brush Generator Kits

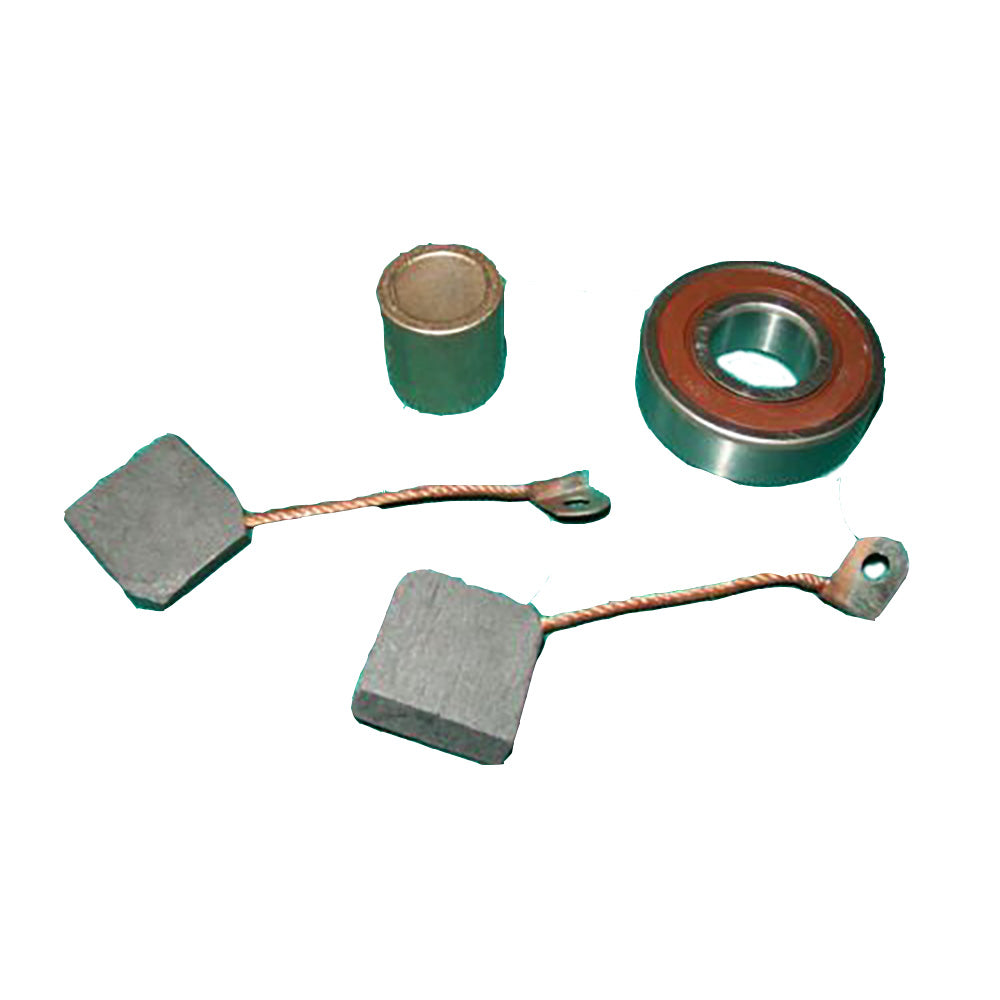

Tech Info: -(1) Generator Bushing: -Bushing Size: Standard -Inner Diameter: 0.563" (14.300 mm) -Location Used: CE Housing -Outer Diameter: 0.783" (19.900 mm) -Width: 0.801" (20.350 mm) -Replaces Part Numbers: -1850786, 812823, D1634, GDR7100 - -(1) Sealed Ball Bearing (Econ Version): -Inner Diameter: 0.669" (17mm) -Outer Diameter: 1.575" (40mm) -Width: 0.472" (12mm) -Bearing Type: Double Sealed -Replaces Part Numbers: -100-1048, 109966, 112-0423, 38-7820, 702581, 10467830, 10469092, 10473403, 12320060, 16-7503, 1974861, 2995036, 3203-1, 3203-2, 3203S1446, 900529, 904751, 904759, 905920, 907503, 907996, 908419, 954298, 954378, 954938, Z9503, Z99503, Z99503-6, Z99503XR, Z99503XR1C - -(2) Generator Brush: -Height: 0.256" (6.500 mm) -Lead Length: 1.720" (43.700mm) -Length: 0.925" (23.500 mm) -Width: 0.866" (22 mm) -Replaces Part Numbers: -1878209, 1878249, 1906917, 1906937, 1906946, 1906956, 1906965, 1906970, 1923295, 1932506, D704, D705, 100RX58S, 1509760M1, 1509790M1, 1509870M1, 1754877M91, 231313, 231998, 70231998, GDR7501, GDR7512, 1458SM, R51, R58Made to Fits Delco: Other (Misc)
Models: 1100021, 1100323, 1101866, 1102113, 1102661, 1102662, 1102663, 1102664, 1102665, 1102667, 1102668, 1102669, 1102670, 1102671, 1102672, 1102673, 1102674, 1102677, 1102678, 1102679, 1102680, 1102688, 1102691, 1102692, 1102693, 1102694, 1102697, 1102701, 1102708, 1102709, 1102712, 1102713, 1102714, 1102716, 1102718, 1102721, 1102722, 1102723, 1102724, 1102726, 1102730, 1102731, 1102732, 1102736, 1102738, 1102739, 1102741, 1102743, 1102746, 1102748, 1102751, 1102752, 1102754, 1102757, 1102761, 1102774, 1102776, 1102777, 1102799, 1102819, 1102976, 1102981, 1102985, 1102987, 1102996, 1103000, 1105851, 1105854, 1105855 Model Breaks: 1100021 (35 AMPS, Clockwise Rotation, 6 VOLT),1100323 (25 AMPS, Clockwise Rotation, 12 VOLT),1101866 (8 AMPS, Clockwise Rotation, 12 VOLT),1102113 (30 AMPS, Clockwise Rotation, 12 VOLT),1102661 (30 AMPS, Clockwise Rotation, 6 VOLT),1102662 (30 AMPS, Clockwise Rotation, 6 VOLT),1102663 (30 AMPS, Clockwise Rotation, 6 VOLT),1102664 (30 AMPS, Clockwise Rotation, 6 VOLT),1102665 (30 AMPS, Clockwise Rotation, 6 VOLT),1102667 (30 AMPS, Clockwise Rotation, 6 VOLT),1102668 (30 AMPS, Clockwise Rotation, 6 VOLT),1102669 (30 AMPS, Clockwise Rotation, 6 VOLT),1102670 (30 AMPS, Clockwise Rotation, 6 VOLT),1102671 (30 AMPS, Clockwise Rotation, 6 VOLT),1102672 (30 AMPS, Clockwise Rotation, 6 VOLT),1102673 (30 AMPS, Clockwise Rotation, 6 VOLT),1102674 (30 AMPS, Clockwise Rotation, 6 VOLT),1102677 (25 AMPS, Clockwise Rotation, 6 VOLT),1102678 (30 AMPS, Clockwise Rotation, 6 VOLT),1102679 (30 AMPS, Clockwise Rotation, 6 VOLT),1102680 (30 AMPS, Clockwise Rotation, 6 VOLT),1102688 (25 AMPS, Clockwise Rotation, 6 VOLT),1102691 (30 AMPS, Clockwise Rotation, 6 VOLT),1102692 (30 AMPS, Clockwise Rotation, 6 VOLT),1102693 (30 AMPS, Clockwise Rotation, 6 VOLT),1102694 (30 AMPS, Clockwise Rotation, 6 VOLT),1102697 (30 AMPS, Clockwise Rotation, 6 VOLT),1102701 (30 AMPS, Clockwise Rotation, 6 VOLT),1102708 (40 AMPS, Clockwise Rotation, 6 VOLT),1102709 (40 AMPS, Clockwise Rotation, 6 VOLT),1102712 (30 AMPS, Clockwise Rotation, 6 VOLT),1102713 (30 AMPS, Clockwise Rotation, 6 VOLT),1102714 (30 AMPS, Clockwise Rotation, 6 VOLT),1102716 (30 AMPS, Clockwise Rotation, 6 VOLT),1102718 (40 AMPS, Clockwise Rotation, 6 VOLT),1102721 (30 AMPS, Clockwise Rotation, 6 VOLT),1102722 (30 AMPS, Clockwise Rotation, 6 VOLT),1102723 (30 AMPS, Clockwise Rotation, 6 VOLT),1102724 (30 AMPS, Clockwise Rotation, 6 VOLT),1102726 (25 AMPS, Clockwise Rotation, 6 VOLT),1102730 (30 AMPS, Clockwise Rotation, 6 VOLT),1102731 (45 AMPS, Clockwise Rotation, 6 VOLT),1102732 (30 AMPS, Clockwise Rotation, 6 VOLT),1102736 (30 AMPS, Clockwise Rotation, 6 VOLT),1102738 (30 AMPS, Clockwise Rotation, 6 VOLT),1102739 (30 AMPS, Clockwise Rotation, 6 VOLT),1102741 (40 AMPS, Clockwise Rotation, 6 VOLT),1102743 (30 AMPS, Clockwise Rotation, 6 VOLT),1102746 (40 AMPS, Clockwise Rotation, 6 VOLT),1102748 (40 AMPS, Clockwise Rotation, 6 VOLT),1102751 (30 AMPS, Clockwise Rotation, 6 VOLT),1102752 (40 AMPS, Clockwise Rotation, 6 VOLT),1102754 (40 AMPS, Clockwise Rotation, 6 VOLT),1102757 (40 AMPS, Clockwise Rotation, 6 VOLT),1102761 (30 AMPS, Clockwise Rotation, 6 VOLT),1102774 (45 AMPS, Clockwise Rotation, 6 VOLT),1102776 (30 AMPS, Clockwise Rotation, 6 VOLT),1102777 (45 AMPS, Clockwise Rotation, 6 VOLT),1102799 (18 AMPS, Clockwise Rotation, 6 VOLT),1102819 (30 AMPS, Clockwise Rotation, 6 VOLT),1102976 (20 AMPS, Clockwise Rotation, 12 VOLT),1102981 (20 AMPS, Clockwise Rotation, 12 VOLT),1102985 (20 AMPS, Clockwise Rotation, 12 VOLT),1102987 (20 AMPS, Clockwise Rotation, 12 VOLT),1102996 (20 AMPS, Clockwise Rotation, 12 VOLT),1103000 (20 AMPS, Clockwise Rotation, 12 VOLT),1105851 (40 AMPS, Clockwise Rotation, 6 VOLT),1105854 (25 AMPS, Clockwise Rotation, 6 VOLT),1105855 (25 AMPS, Clockwise Rotation, 6 VOLT) Replaces Part Number(s): 1850786, 812823, D1634, GDR7100, 10467830, 10469092, 10473403, 12320060, 16-7503, 1974861, 2995036, 3203-1, 3203-2, 3203S1446, 900529, 904751, 904759, 905920, 907503, 907996, 908419, 954298, 954378, 954938, Z9503, Z99503, Z99503-6, Z99503XR, Z99503XR1C, 1878209, 1878249, 1906917, 1906937, 1906946, 1906956, 1906965, 1906970, 1923295, 1932506, D704, D705

Reference numbers: 812823, D1634, 109966, 112-0423, 38-7820, 702581, 10467830, 10469092, 10473403, 12320060, 16-7503, 1974861, 2995036, 3203-1, 3203-2, 3203S1446, 900529, 904751, 904759, 905920, 907503, 907996, 908419, 954298, 954378, 954938, Z9503, Z99503, Z99503-6, Z99503XR, 1878249, 1906917, 1906937, 1906946, 1906956, 1906965, 1906970, 1923295, 1932506, D704, D705, 100RX58S, 1509760M1, 1509790M1, 1509870M1, 1754877M91, 231313, 231998, 70231998, GDR7501, GDR7512, 1458SM, R51, 1850786, GDR7100, Z99503XR1C, 1878209, 100-1048
Application notes
  • One New Aftermarket 2 Brush Generator Kits
