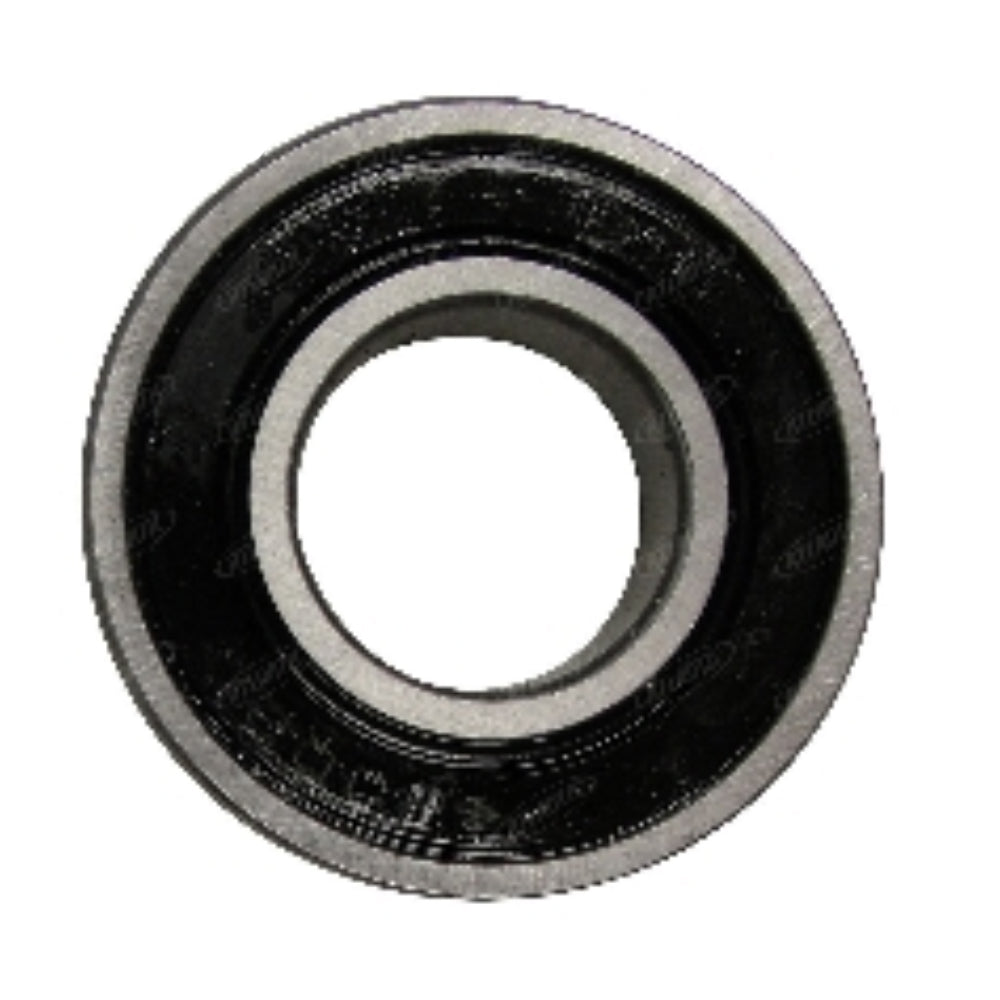

1273355C91 Pilot Bearing

Quantity indicated in catalogue: 1

Replacement part: Pilot Bearing Fits Case/International Tractor 1120 Others-1273355C91.

Configuration: Pilot Bearing for Case IH, International, Massey Ferguson, and Multi-Brand Compact Tractors
This clutch pilot bearing is installed in the crankshaft end to support and align the transmission input shaft during clutch engagement and disengagement. It is a direct-fit replacement for a wide range of compact and utility tractors across multiple brands, including Case IH (Case/International), Massey Ferguson, AGCO, Kubota, Hinomoto, Mitsubishi, Kioti, Mahindra, Deutz, Farmtrac, Allis Chalmers, White, Challenger, Cub Cadet, LS, and Montana. The OEM part number referenced in the title, 1273355C91, is a Case/International cross-reference for this bearing application.
Specifications
Inner Diameter (ID): 0.590"
Outer Diameter (OD): 1.260"
Width: 0.354"
Bearing Type: Sealed Ball Bearing (6002-RS equivalent)
Compatible Models
Massey Ferguson: 1010 (2WD sn 10906 and above, 4WD sn 40824 and above), 1020, 1030, 1035 (Double Clutch), 1120, 1205, 1210, 1215, 1220, 1230, 1240, 1250, 1260, 1417, 1428V, 1429, 1433, 1433V, 1440, 1440V, 1523, 1526, 1528, 1529, 1531, 1532, 1533, 1540, 1547, 1552, 1635, 1643, 1648, 1652, 1655, 1736, 1740, 1742, 1747, 1749, 1754, 2015, 2216, 2740, 2816, 3016, 3240, 3616, 5015, 5215, 5220, 5230, 7000, 7192, 7194, 7195, 7200, 7205, 7232, 7234, 7260, 7265, 7272, 7274, 7300, 7305, 7360, MT250, MT255, MT255B, MT265, MT265B, MT275, MT275B, MT285, MT285B, MT295B, MT300, MT300D, MT2001, MT2201, MT2301, MT2501
Case IH / International: 234, 235, 244, 245, 254, 255, 265, 270, 275, 320, 1030, 1030L
AGCO: ST28A, ST30, ST30X (8-1/2" Dual Stage Clutch; excludes hydrostatic models), ST33A, ST34A (w/ Independent PTO and Synchro Shuttle Transmission), ST35, ST35X, ST40, ST40X, ST41A (w/ Independent PTO and Synchro Shuttle Transmission), ST47A (excludes hydrostatic models), ST52A (excludes hydrostatic models)
Kubota: L185DT, L185F, L225, L225DT, L235, L245DT, L245F, L245H, L260P, L275, L285P, L285WP, L295DT, L295F, L305DT, L305F, L345, L345DT, L2050DT, L2050F, L2250DT, L2250F, L2350DT, L2350F, L2500DT, L2500F, L2501D, L2501DT, L2501F, L2501H, L2501HST, L2502DT, L2502F, L2502HST, L2550DT, L2550DTGST, L2550F, L2550TOW, L2600DT, L2600F, L2650DT, L2650DTGST, L2650F, L2800DT, L2800DTHST, L2800F, L2850DT, L2850DTGST, L2850F, L2950DT, L2950DTGST, L2950F, L3000DT, L3000F, L3200DT, L3200F, L3200H, L3250DT, L3250F, L3300DT (see L3301 series), L3301DT, L3301F, L3301H, L3301HST, L3350DT, L3400DT, L3400DTHST, L3400F, L3450DT, L3450DTGST, L3450F, L3650DT, L3650DTGST, L3650F, L3700SU, L3800DT, L3800F, L3800H, L3900, L3901DT, L3901F, L3901H, L3901HST, L3902, L3902DT, L3902H, L3902HST, L4350DT, LB2214, LK3054, L35
Hinomoto: E23, E230, E280, E1804, E2002, E2004, E2302, E2304, E2804
Kioti: CK25, D2000, D2050, D2300, D2350, D2500, D2650, D3250, S3010
Mitsubishi: MT250, MT265, MT275, MT285 (see Massey Ferguson MT series above for overlap models)
Montana: 3016, LB2214 (see also Kubota overlap models)
White: 2-40 Field Boss (16 Field Boss noted in catalog)
Allis Chalmers, Challenger, Cub Cadet, Deutz, Farmtrac, LS, Mahindra: See compatible models list. Verify fitment by part number match before ordering.
Note: The Massey Ferguson 1010 has serial number restrictions: 2WD sn 10906 and above, 4WD sn 40824 and above. Several AGCO ST-series models exclude hydrostatic transmission variants. Verify clutch type and transmission configuration before ordering.
Replaces Part Number(s):
1273355C91, 3435646M1, 3708600M1, 3756038M1, 3283513M1, 3756038M1, 6243123M1, 1440564X1, 08121-06002, 1-08121-06002, 812106002, 6002-RS, 72100719, 72103151, 7500560024, H830655, MD002613
Aftermarket Interchange Numbers
Hy-Capacity 830655; equivalent to standard 6002-RS sealed ball bearing (0.590" ID x 1.260" OD x 0.354" W)
New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 1273355C91, 3435646M1, 3708600M1, 3756038M1, 3283513M1, 6243123M1, 1440564X1, 08121-06002, 1-08121-06002, 812106002, 6002-RS, 72100719, 72103151, 7500560024, H830655, MD002613

• One New Aftermarket Replacement Pilot Bearing for Case IH, International, Massey Ferguson, and Multi-Brand Compact Tractors
• Massey Ferguson: 1010 (2WD sn 10906 and above, 4WD sn 40824 and above), 1020, 1030, 1035 (Double Clutch), 1120, 1205, 1210, 1215, 1220, 1230, 1240, 1250, 1260, 1417, 1428V, 1429, 1433, 1433V, 1440, 1440V, 1523, 1526, 1528, 1529, 1531, 1532, 1533, 1540, 1547, 1552, 1635, 1643, 1648, 1652, 1655, 1736, 1740, 1742, 1747, 1749, 1754, 2015, 2216, 2740, 2816, 3016, 3240, 3616, 5015, 5215, 5220, 5230, 7000, 7192, 7194, 7195, 7200, 7205, 7232, 7234, 7260, 7265, 7272, 7274, 7300, 7305, 7360, MT250, MT255, MT255B, MT265, MT265B, MT275, MT275B, MT285, MT285B, MT295B, MT300, MT300D, MT2001, MT2201, MT2301, MT2501
• Allis Chalmers, Challenger, Cub Cadet, Deutz, Farmtrac, LS, Mahindra: See compatible models list. Verify fitment by part number match before ordering.
• Note: The Massey Ferguson 1010 has serial number restrictions: 2WD sn 10906 and above, 4WD sn 40824 and above. Several AGCO ST-series models exclude hydrostatic transmission variants. Verify clutch type and transmission configuration before ordering.
• Aftermarket Interchange Numbers
• New aftermarket replacement part - not remanufactured, not used.
