3013-8109 Blade Bolt Kit 3" Long Under Head x 1.125" Thread x 1.5" Shoulder Farmer – Fits Bush Hog
3013-8109 Blade Bolt Kit 3" Long Under Head x 1.125" Thread x 1.5" Shoulder Farmer – Fits Bush Hog – additional image 23013-8109 Blade Bolt Kit 3" Long Under Head x 1.125" Thread x 1.5" Shoulder Farmer – Fits Bush Hog – additional image 3

NC-035330 · Rotary Cutter

3013-8109 Blade Bolt Kit 3" Long Under Head x 1.125" Thread x 1.5" Shoulder Farmer – Fits Bush Hog

CAD 44.10

Availability to confirm

Blade Bolt Kit 3" Long Under Head x 1.125" Thread x 1.5" Shoulder Farmer – reference 3013-8109. Catalogue-listed applications: Bush Hog 104, 105, 1050, 109, 1109, 1126, 1206. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-035330
Reference numbers
3013-8109, 3013-8109-A, 404-165300P, 404-165300P-A, 63607, 63607GV, BH2500, BH2500-A, BH2500GV, RE7919
Product information and configuration
Replacement part: Blade Bolt Kit 3" Long Under Head x 1.125" Thread x 1.5" Shoulder 63607 Farmer.

Configuration: Rotary Cutter Blade Bolt Kit
Fits: BUSH HOG, Land Pride, Shulte, Universal
Models: 104, 105, 1050, 109, 1109, 1126, 1206, 1207, 1209, 204 H, RZ60, SQ36, SQ42, SQ420, SQ48, SQ480

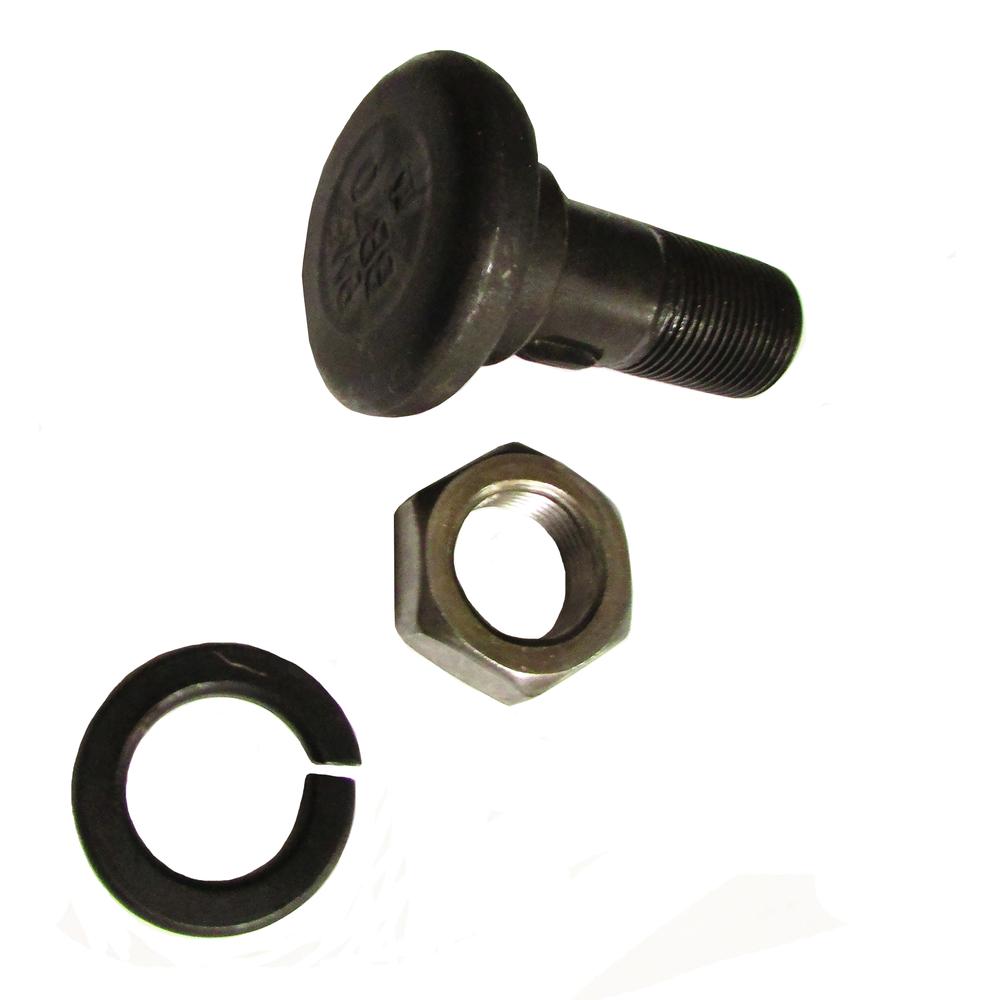

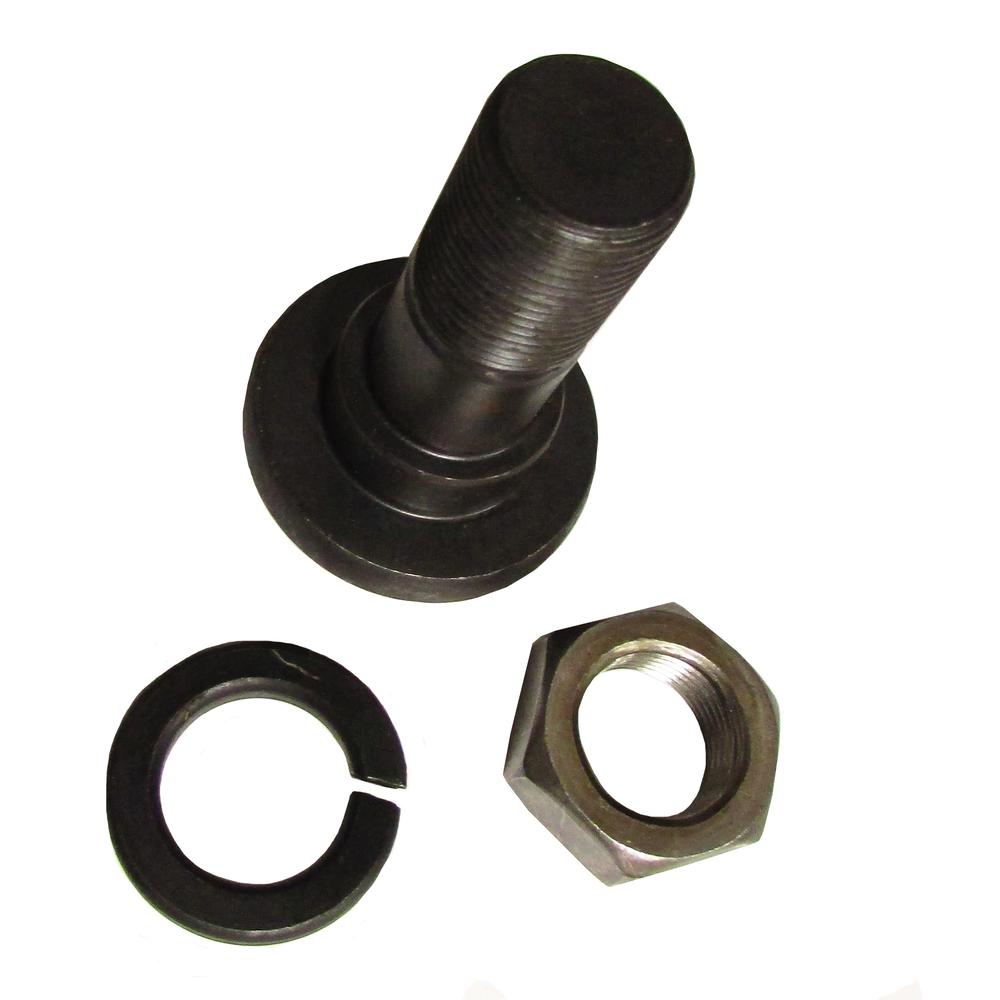

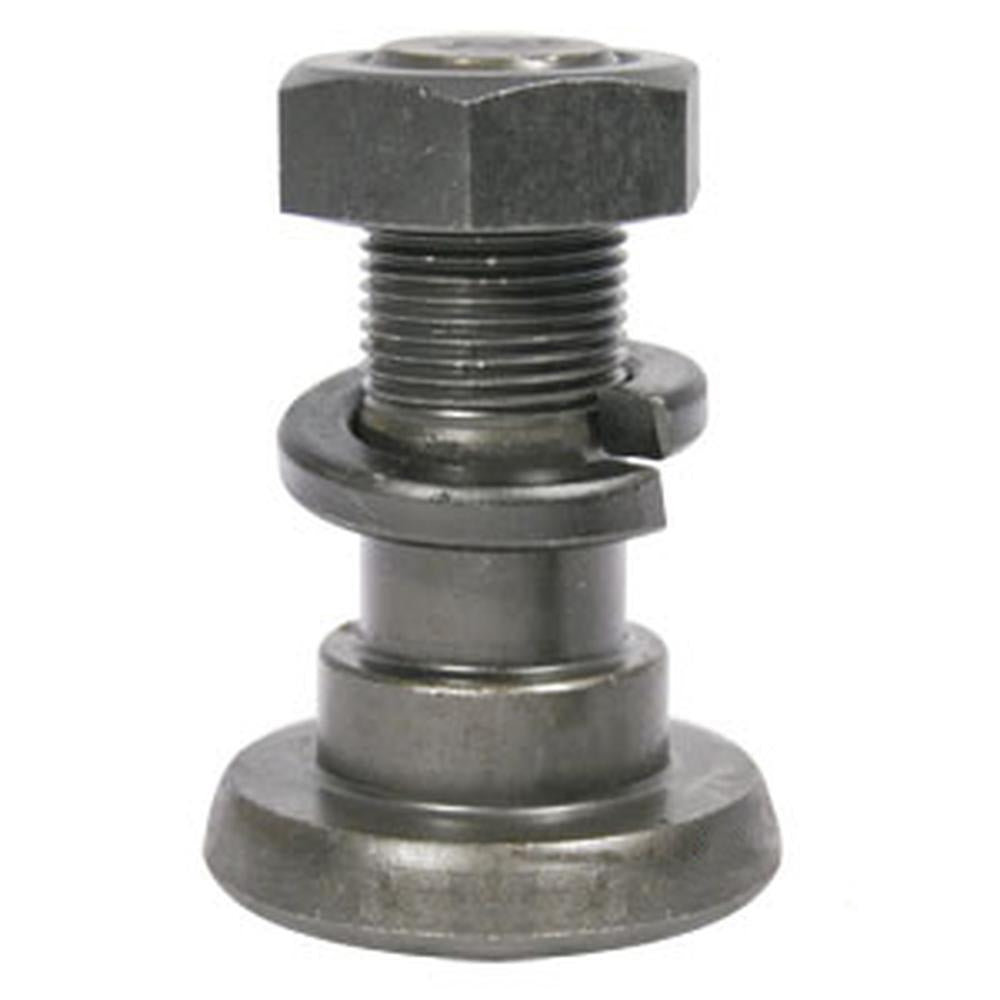

Contains 2 Each 7A4997 Bolts, Nuts & Lock Washers
Blade Mount Depth ( E ) 1/2 Inch
Blade Mount Diameter ( H ) 1-1/2 Inches
Bolt Shank Diameter ( I ) 1-1/8 Inches
Head Diameter ( G ) 2-1/2 Inches
Head Thickness ( F ) 1/2 Inch
Overall Length ( B ) 4-1/8 Inches
Shank Length thru Carrier ( D ) 7/8 Inch
Thread Length ( C ) 2 Inches
Thread Size ( A ) 1 Inch - 14 Thread
Replaces Part Number(s)3013-8109, 3013-8109-A, 404-165300P, 404-165300P-A, 63607, 63607GV, BH2500, BH2500-A, BH2500GV, RE7919

Reference numbers: 3013-8109, 3013-8109-A, 404-165300P, 404-165300P-A, 63607, 63607GV, BH2500, BH2500-A, BH2500GV, RE7919

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Bush Hog 104
  • Bush Hog 105
  • Bush Hog 1050
  • Bush Hog 109
  • Bush Hog 1109
  • Bush Hog 1126
  • Bush Hog 1206
  • Bush Hog 1207
  • Bush Hog 1209
  • Bush Hog 204 H
  • Bush Hog RZ60
  • Bush Hog SQ36
  • Bush Hog SQ42
  • Bush Hog SQ420
  • Bush Hog SQ48
  • Bush Hog SQ480
