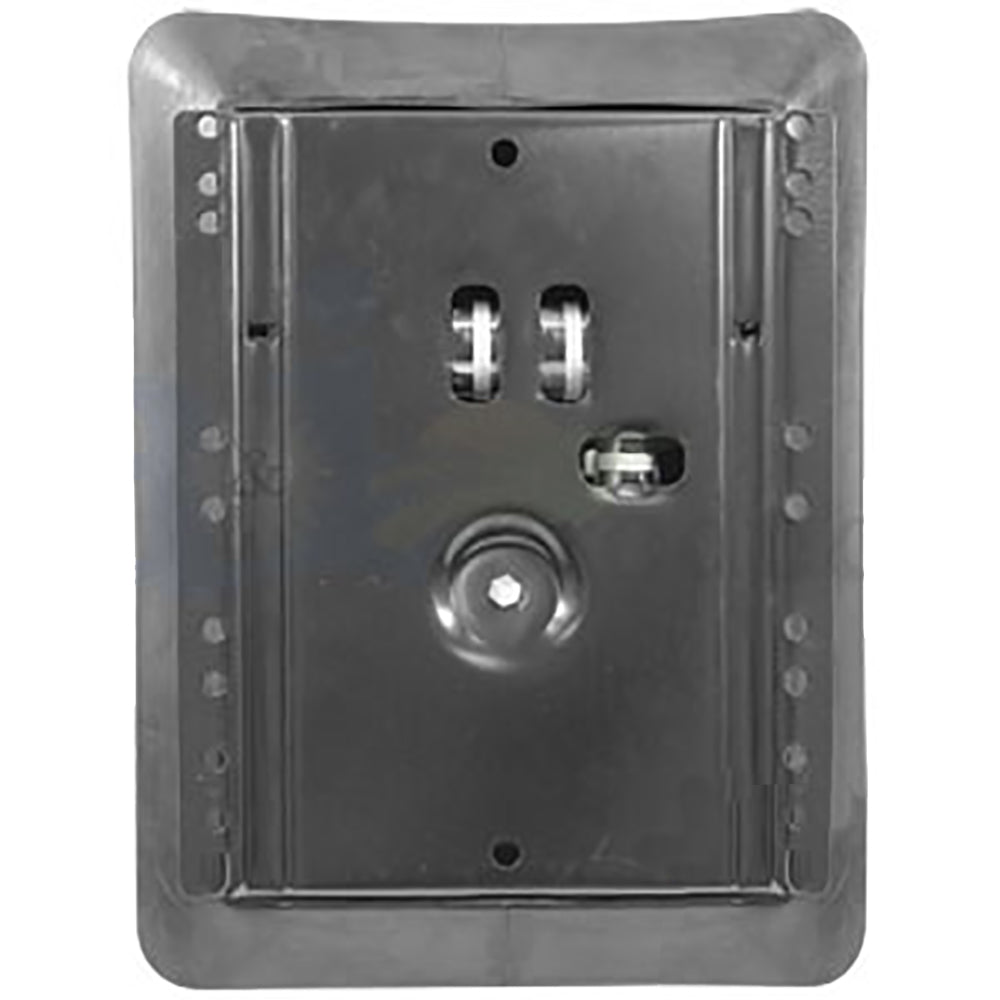

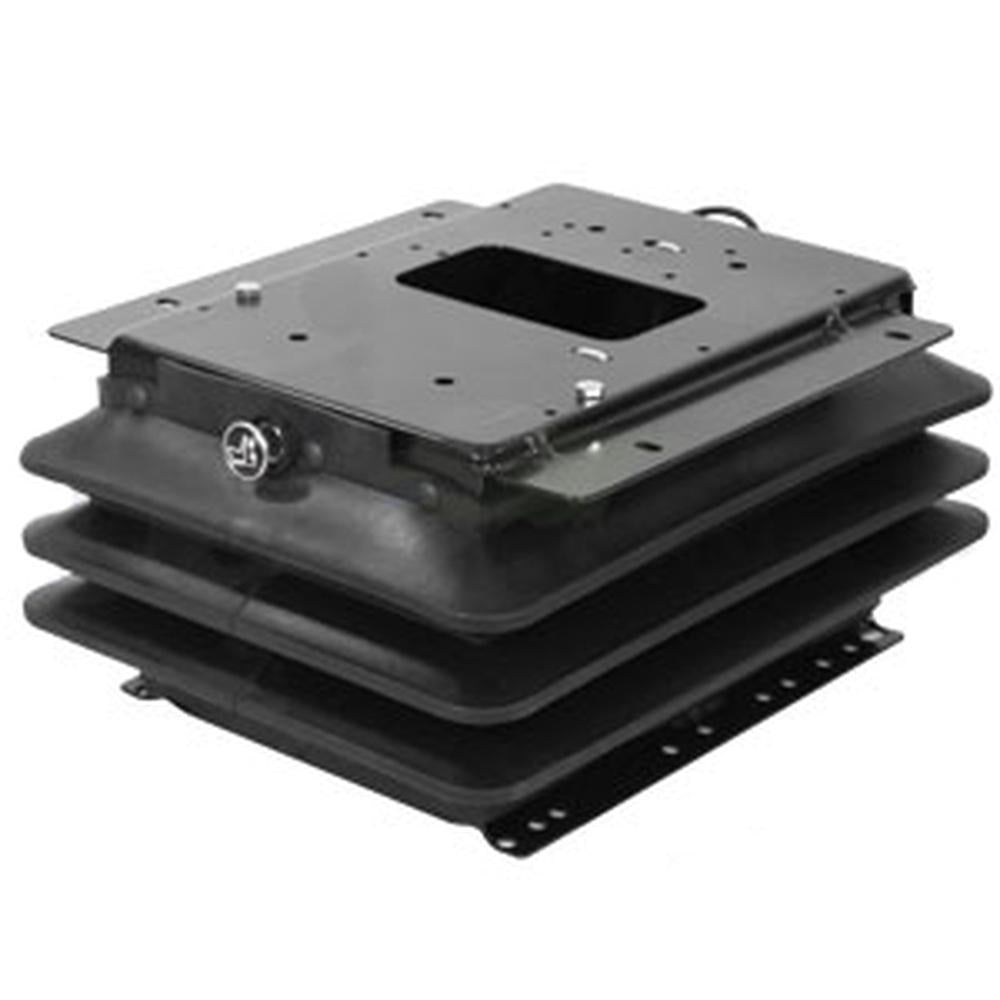

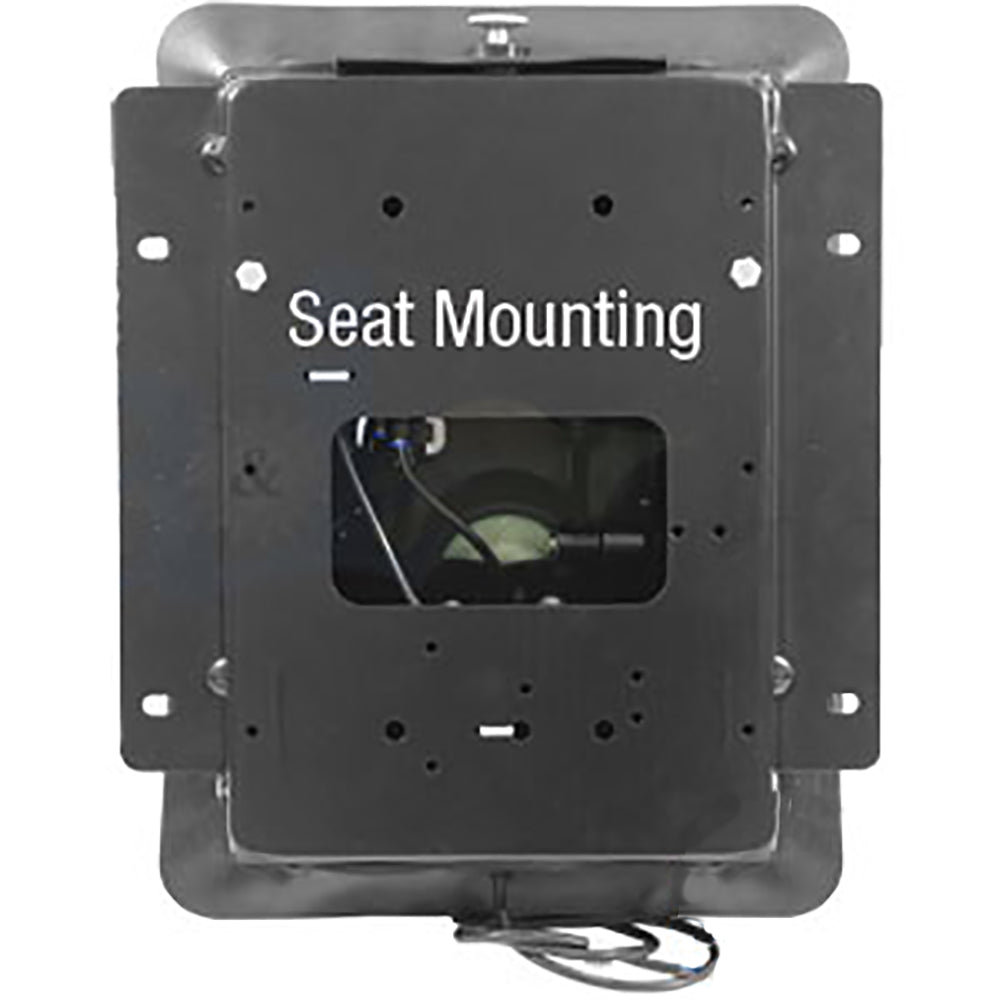

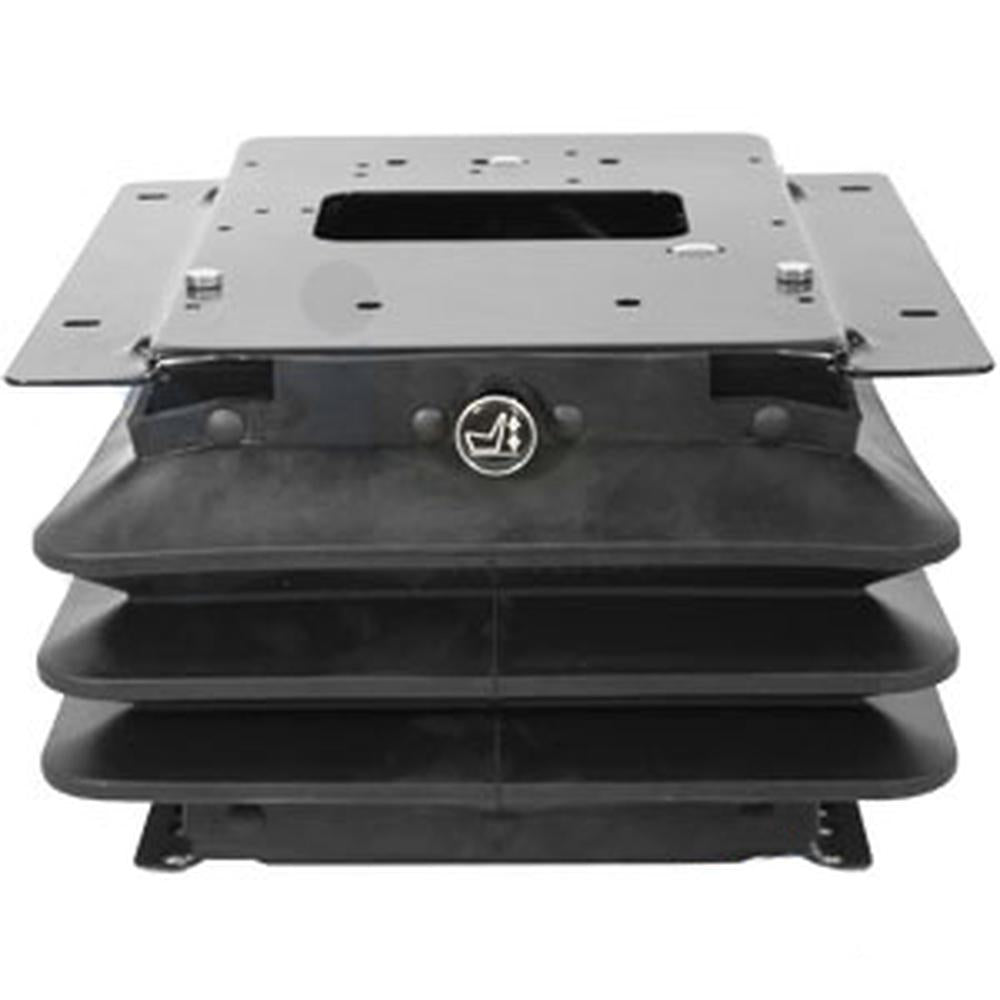

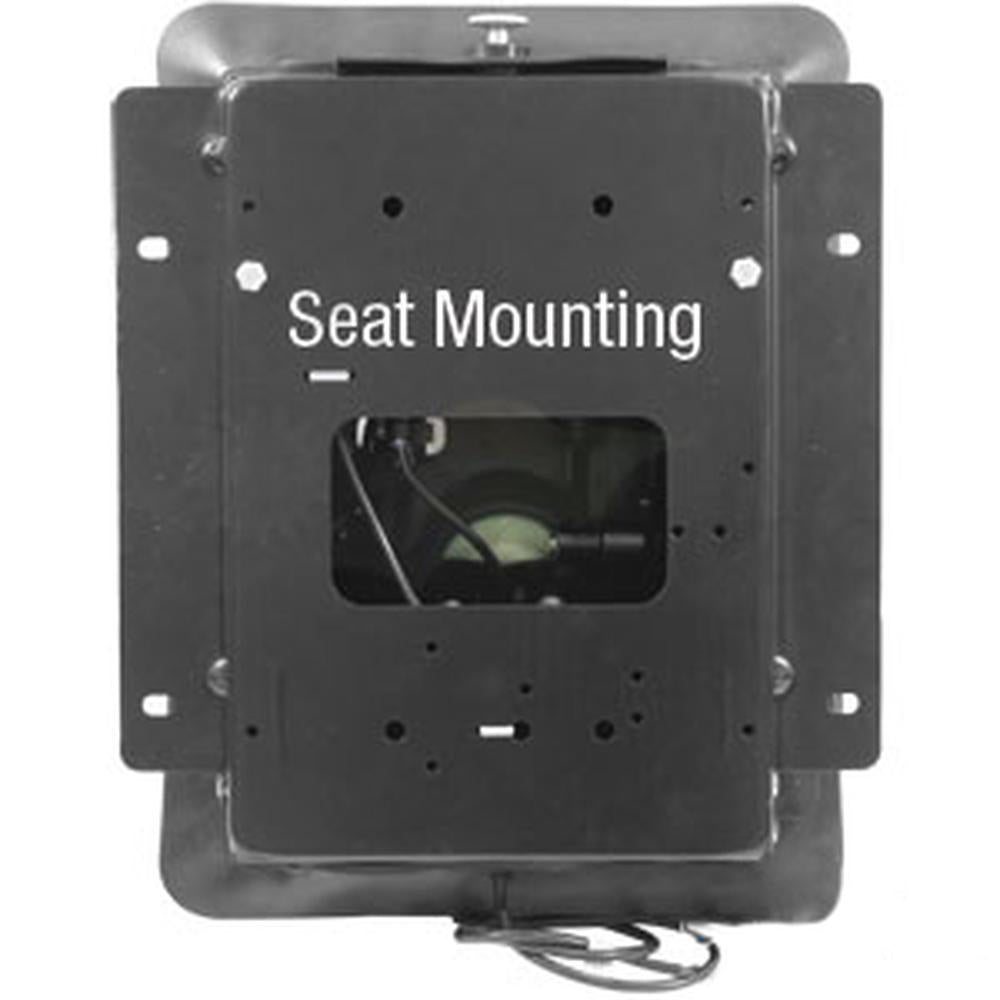

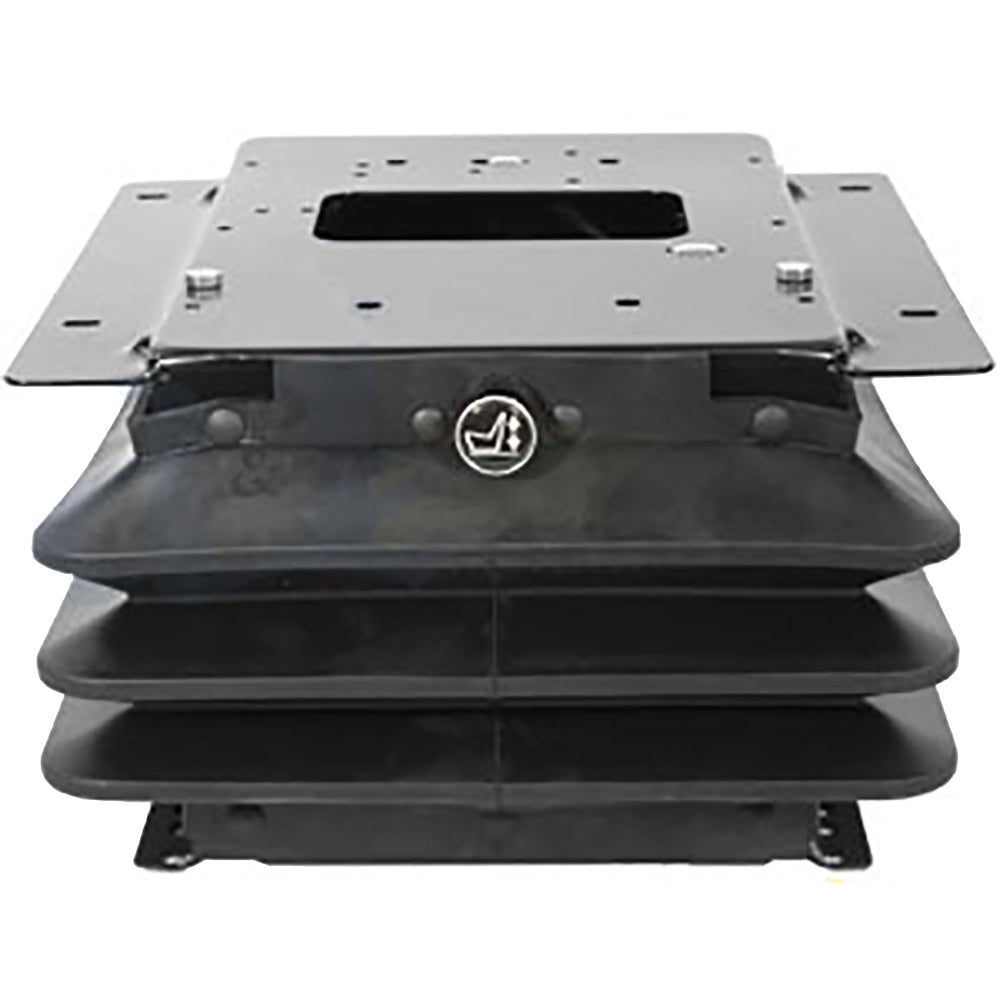

MA2C12 Wide Base Air Suspension Seat Base 12 volt

Quantity indicated in catalogue: 1

Replacement part: Wide Base Air Suspension Seat Base 12 volt Fits Several Models.

Configuration: Wide Base Air Suspension Seat Base (12 Volt) for Agco, Allis Chalmers, Case/IH, Ford/New Holland, John Deere, Massey Ferguson, McCormick, Deutz, and White Tractors
This universal 12-volt wide base air suspension seat base provides operator comfort and vibration isolation across a broad range of agricultural tractors and equipment. The pneumatic air ride system adjusts automatically to operator weight and is designed to mount on a flat surface -- slide tracks are not included. Compatible seats (sold separately) include models F20ST105, F20ST135, F20ST145, F20ST155, TMS444BL, TMS444YL, TMS444GR, T500BL, T500GY, FLS122BL, FLS322BL, and T122BL. A 12-volt electrical connection is required. Some applications may require drilling and bracket fabrication to mount. Verify all dimensions and specifications before ordering.
Specifications
Type: Air Suspension - Wide Base
Suspension Stroke: 4 in. / 100mm
Weight Adjustment Range: 110 - 330 lbs. / 50 - 150 kg
Voltage: 12V DC
Max Amperage: 9A
Slide Tracks: Not Included
Reference: ST87
Compatible Models
Agco: DT160, DT180, DT180A, DT200, DT200A, DT205B, DT220A, DT225, DT240A, DT250B, LT70, LT75, LT75A, LT85, LT85A, LT90, LT90A, LT95A, RT100, RT100A, RT110A, RT115, RT120, RT120A, RT130, RT135, RT140A, RT145, RT150, RT155A, XTX185, XTX215, ZTX230, ZTX260, ZTX280
Allis Chalmers: 100, 120, 125 WORKHORSE, 140, 145 WORKHORSE, 160, 170 WORKHORSE, 185, 195 WORKHORSE
Case/International Harvester: MAXXUM 110, MAXXUM 115, MAXXUM 120, MAXXUM 125, MAXXUM 130, MAXXUM 140, MX80C, MX90C, MX100, MX100C, MX110, MX120, MX135, MX150, MX170, MXM110, MXM115, MXM120, MXM125, MXM130, MXM140, MXU100, MXU110, MXU125, MXU130, MXU135, PUMA 115, PUMA 125, PUMA 140, PUMA 145, PUMA 155, PUMA 210, C100, CX50, CX60, CX70, CX75, CX80, CX85, CX90, CX95, CX100, CX105, CX110
Deutz: DX3.50, DX3.70, DX3.90
Ford/New Holland: TS90, TS100, TS110, TS115, TS115A, TS125A, TS130A, TS135A, T6070, T6080, T7030, T7040, T7050, T7060, T7070, TL70, TL80, TL90, TL100, TTX190, TTX210, TTX230
John Deere: 2640, 3060, 3070, 3075, 3120, 3315, 3325, 3330, 3340, 3350, 3355, 3525, 3545, 3625, 3635, 3645, 3650, 3660, 3680, 3690, 4225, 4235, 4240, 4243, 4245, 4253, 4255, 4260, 4263, 4265, 4270, 4325, 4335, 4345, 4355, 4360, 4370, 4835, 5065M, 5075M, 5085M, 5095M, 5095MH, 5105M, 5120, 5130, 5140, 5220, 5230, 5240, 5250, 5425, 5435, 5445, 5455, 5460, 5465, 5470, 5475, 5480, 6065, 6085, 6100, 6100D, 6105, 6110, 6110D, 6110L, 6115D, 6120, 6124, 6125, 6125D, 6130D, 6140D, 6144, 6145, 6150, 6170, 6175, 6180, 6190, 6195, 6200, 6210, 6210L, 6215, 6220, 6230, 6245, 6255, 6260, 6265, 6270, 6275, 6280, 6290, 6300, 6310, 6310L, 6310S, 6320, 6320L, 6330, 6400, 6410, 6410L, 6410S, 6415, 6420, 6420L, 6430, 6445, 6455, 6460, 6465, 6470, 6475, 6480, 6485, 6490, 6495, 6497, 6499, 6500, 6510, 6510L, 6510S, 6520L, 6615, 6635, 6710, 6715, 6810, 6920, 7085, 7110, 7120, 7130, 7145, 7220, 7230, 7320, 7330, 7420, 7430 PREMIUM, 7465, 7475, 7480, 7485, 7490, 7495, 7497, 7499, 7520, 7530 PREMIUM, 7635, 7740, 8110, 8120, 8140, 8150, 8160, 8210, 8220, 8240, 8250, 8270, 8310, 8410, 8450, 8460, 8470, 8480, 8510, 8560, 8610, 8630, 8650, 8660, 8670, 8680, 8690, 8710, 8745, 8765, 8775, 8785, 9110, 9120, 9130, 9150, 9170, 9180, 9190, 9191, 9435, 9455, 9630, 9635, 9650, 9655, 9670, 9675, 9690, 9695, 9735, 9745, 9755, 9765, 9815
Massey Ferguson: 5635, 6010, 6410 (also listed as 6410S/L), 669, 670, 690, 698, 699
McCormick: MC90, MC100, MC105, MC110, MC115, MC120, MC130, MC135, MTX110, MTX120, MTX125, MTX135, MTX140, MTX145, MTX150, MTX165, MTX175, MTX185, MTX200
White: 4835
Note: This is a universal air suspension designed for a flat mounting surface. Some installations may require drilling and bracket fabrication. Verify all dimensions before ordering. Slide tracks are not included.
Replaces Part Number(s):
MA2C12
Aftermarket Interchange Numbers
SEN10-0122, SEN100122, A-MA2C12, SLP78-74778T, A-MA2C12-AI
New aftermarket replacement part - not remanufactured, not used.

Reference numbers: MA2C12

• One New Aftermarket Replacement Wide Base Air Suspension Seat Base (12 Volt) for Agco, Allis Chalmers, Case/IH, Ford/New Holland, John Deere, Massey Ferguson, McCormick, Deutz, and White Tractors
• This universal 12-volt wide base air suspension seat base provides operator comfort and vibration isolation across a broad range of agricultural tractors and equipment. The pneumatic air ride system adjusts automatically to operator weight and is designed to mount on a flat surface -- slide tracks are not included. Compatible seats (sold separately) include models F20ST105, F20ST135, F20ST145, F20ST155, TMS444BL, TMS444YL, TMS444GR, T500BL, T500GY, FLS122BL, FLS322BL, and T122BL. A 12-volt electrical connection is required. Some applications may require drilling and bracket fabrication to mount. Verify all dimensions and specifications before ordering.
• Note: This is a universal air suspension designed for a flat mounting surface. Some installations may require drilling and bracket fabrication. Verify all dimensions before ordering. Slide tracks are not included.
• Aftermarket Interchange Numbers
• New aftermarket replacement part - not remanufactured, not used.
