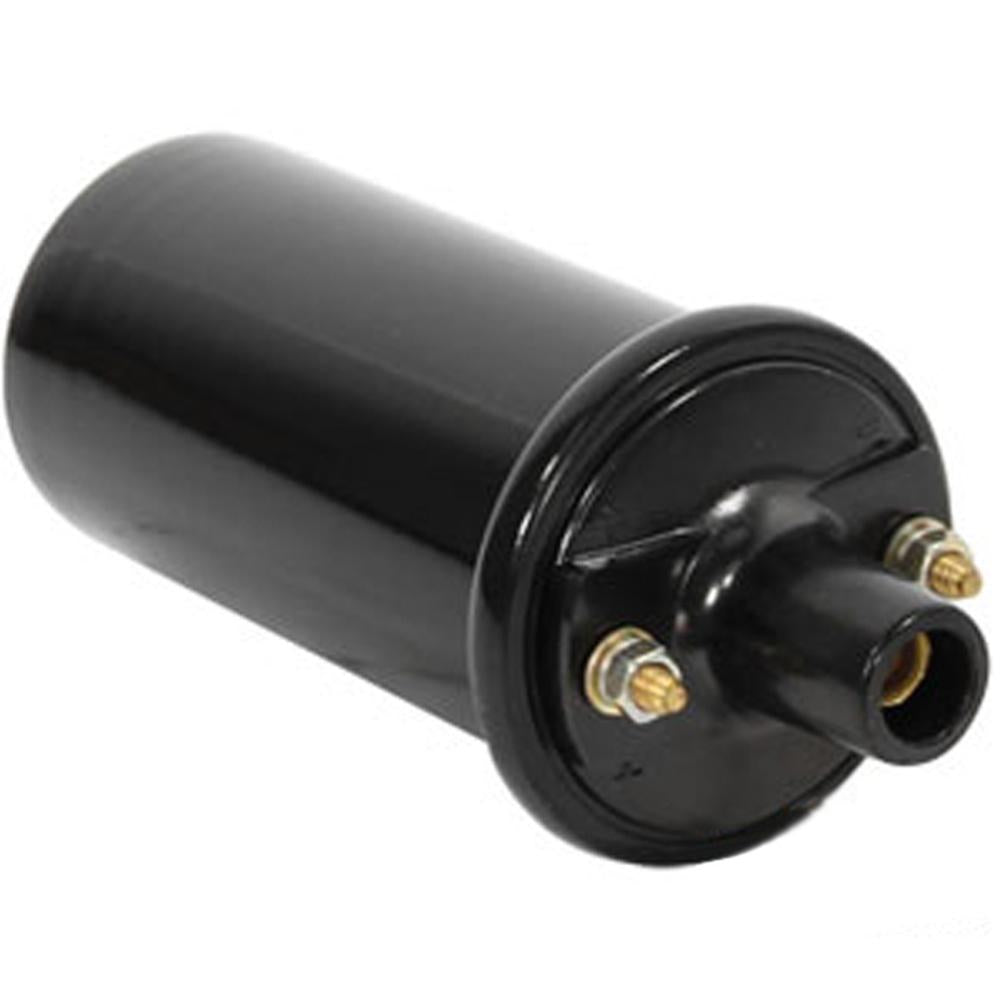

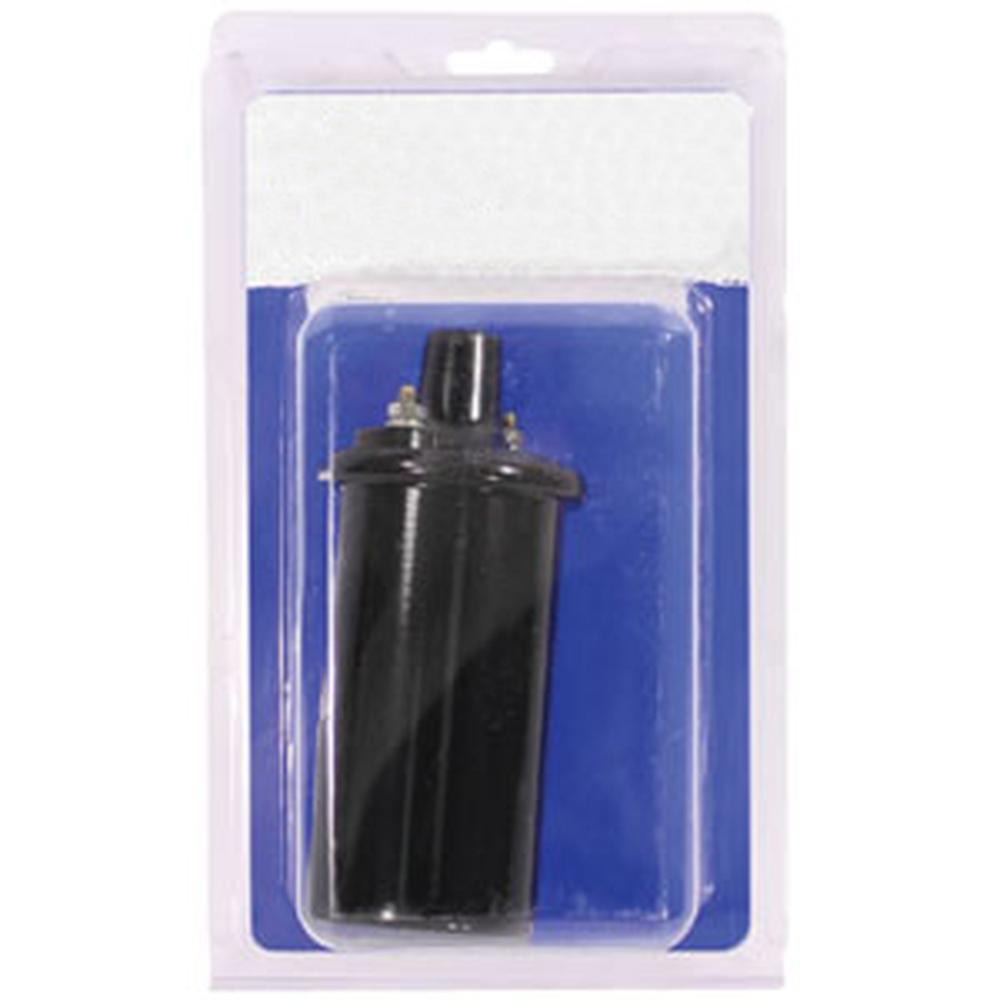

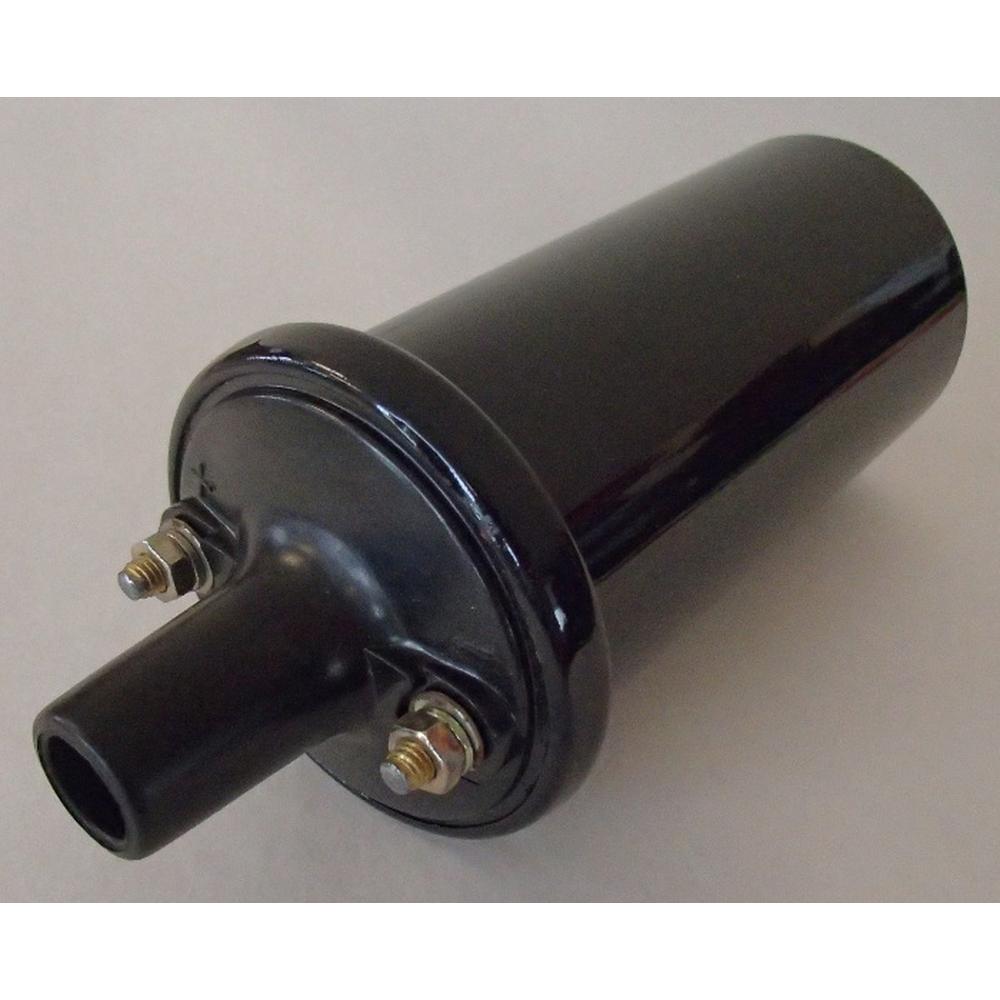

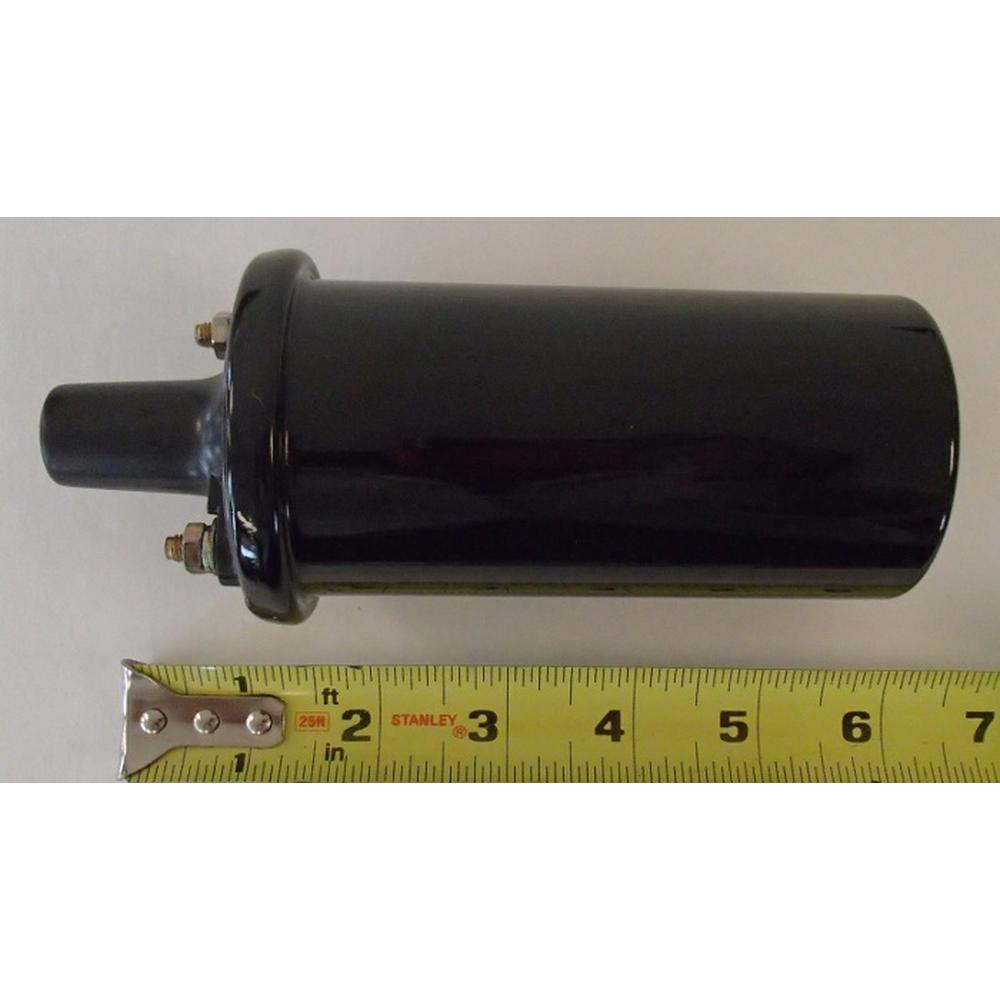

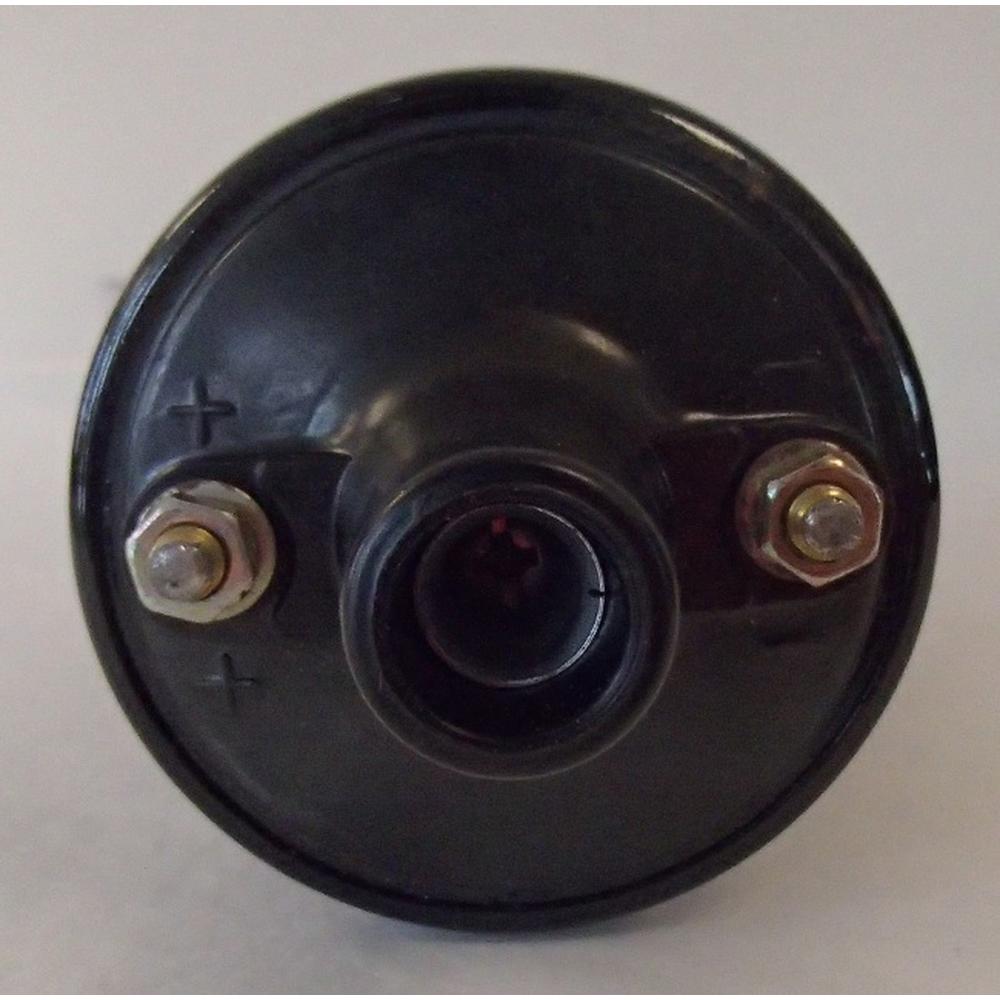

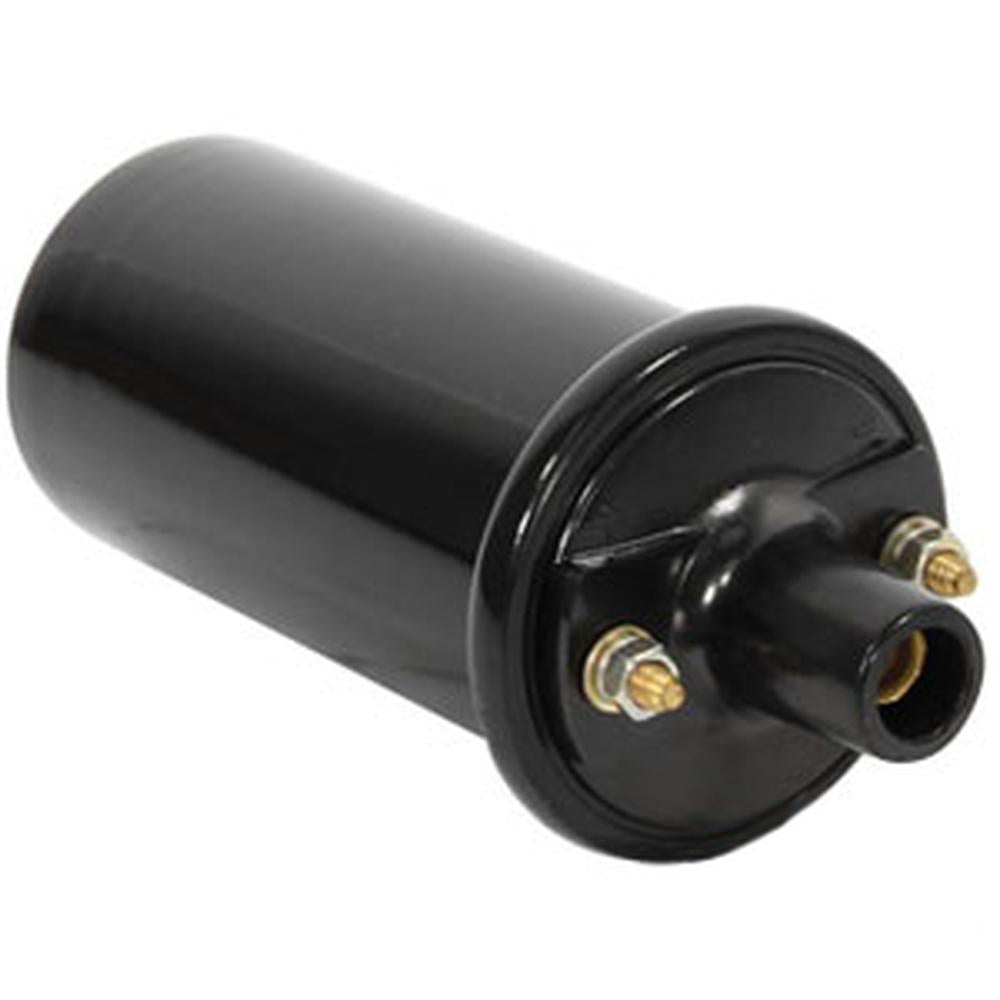

189673M1 Ignition Coil
189673M1 Ignition Coil – additional image 2189673M1 Ignition Coil – additional image 3189673M1 Ignition Coil – additional image 4189673M1 Ignition Coil – additional image 5189673M1 Ignition Coil – additional image 6

NC-031350 · Coils, Cables and Wiring Harness

189673M1 Ignition Coil

CAD 49.35

In stock

Ignition Coil – reference 189673M1. Catalogue-listed applications: Ford / New Holland, John Deere, Allis Chalmers 2000, 2110LCG, 230A, 231, 234, 2600, 2610. View photos, specifications, CAD pricing and delivery options from NorthCore.

Standard delivery: 3–7 business days. Other services and estimates are shown at checkout. Minimum online order: CAD 100 in parts, excluding shipping and tax. Add this part to your cart to calculate delivery and review your order.

Ask about this part

Part specifications and references

NorthCore code
NC-031350
Reference numbers
189673M1, 189673M92, 161861A, AA4879R, AA4983R, AT10399, 1115022, 1115043, 21A513, 353875R91, 395331R91, 395331R92, 396330R91, 396330R92, 396547R91, 396547R92, 396547R93, D2AF12029AA, D8JL12029A, 74515665, 74889580
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: NEW 396547R91 Ignition Coil Fits Ford New Holland 4000 5000 8N.

Configuration: 12 Volt Ignition Coil Fits Ford, Fits New Holland, Fits Case IH, Fits International Harvester, Fits Massey Ferguson, Fits John Deere, Fits Allis Chalmers and Other Tractors
This 12 volt ignition coil with internal resistor is designed for straight 12 volt systems without series resistance. It replaces the Fits Delco-style ignition coil used across a wide range of agricultural tractors from Fits Ford, Fits New Holland, Fits Case, Fits International Harvester (IH/Fits FARMALL), Fits Massey Ferguson, Fits John Deere, Fits Allis Chalmers, and White. The coil fits the distributor ignition system and provides reliable spark for gasoline engines converted to or originally built with 12 volt electrical systems.
Specifications
Voltage: 12 Volt
Resistor Type: Internal Resistor
For straight 12 volt systems without series resistance
Primary Resistance: 3.5 Ohm (approximate)
Compatible Models
Fits Ford/New Holland: 2000, 2110LCG, 230A, 231, 234, 2600, 2610, 3000, 334, 335, 340, 3400, 340A, 3500, 3550, 3600, 3610, 4000, 4110LCG, 420, 4400, 445, 4500, 4600, 4610, 5000, 515, 530A, 531, 535, 540, 540A, 545, 550, 555, 6600, 8N, NAA
Fits International Harvester / Fits Case IH / Fits FARMALL: 140, 150, 180, 202, 300, 350, 400, 410, 450, 454, 460, 464, 544, 560, 574, 606, 656, 660, 666, 674, 686, 706, 756, 766, 806, 826, 856, 2400A, 2400B, 2405B, 2410B, A, C123, C153, C157, C175, Fits Cub, Fits Cub 154, Fits Cub 154 Lo-Boy, Fits Cub 184, Fits Cub 185, Fits Cub 185 Lo-Boy, Fits Cub Lo-Boy, G, Hydro 70, Hydro 86, M, MV, O6, OS6, Super H, Super HV, Super M, Super MTA, Super W4, Super W6, Super W6TA, W400, W450, W6
Fits Massey Ferguson / Fits Massey Harris: 35, 50, 65, 85, 88, 105, 165, Super 90, Super 95, TO35
Fits John Deere: 3010, 3020
Fits Allis Chalmers: 60, 70
White / Oliver / Minneapolis-Moline: 88
Replaces Part Number(s):
189673M1, 189673M92, 161861A, AA4879R, AA4983R, AT10399, 1115022, 1115043, 21A513, 353875R91, 395331R91, 395331R92, 396330R91, 396330R92, 396547R91, 396547R92, 396547R93, D2AF12029AA, D8JL12029A, D8JL-12029-A, 74515665, 74889580
Aftermarket Interchange Numbers
Also known under interchange numbers: 160-01002 (Arrowhead/J&N), IDR0001, IDR0002 (DB Electrical), ELV70-0011, 17000544, 1700-0544, RFD471 (Regitar-USA). Alternative superseding part: D5TE12029AB.
New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 189673M1, 189673M92, 161861A, AA4879R, AA4983R, AT10399, 1115022, 1115043, 21A513, 353875R91, 395331R91, 395331R92, 396330R91, 396330R92, 396547R91, 396547R92, 396547R93, D2AF12029AA, D8JL12029A, 74515665, 74889580

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Ford / New Holland 2000
  • Ford / New Holland 2110LCG
  • Ford / New Holland 230A
  • Ford / New Holland 231
  • Ford / New Holland 234
  • Ford / New Holland 2600
  • Ford / New Holland 2610
  • Ford / New Holland 3000
  • Ford / New Holland 334
  • Ford / New Holland 335
  • Ford / New Holland 340
  • Ford / New Holland 3400
  • Ford / New Holland 340A
  • Ford / New Holland 3500
  • Ford / New Holland 3550
  • Ford / New Holland 3600
  • Ford / New Holland 3610
  • Ford / New Holland 4000
  • Ford / New Holland 4110LCG
  • Ford / New Holland 420
  • Ford / New Holland 4400
  • Ford / New Holland 445
  • Ford / New Holland 4500
  • Ford / New Holland 4600
  • Ford / New Holland 4610
  • Ford / New Holland 5000
  • Ford / New Holland 515
  • Ford / New Holland 530A
  • Ford / New Holland 531
  • Ford / New Holland 535
  • Ford / New Holland 540
  • Ford / New Holland 540A
  • Ford / New Holland 545
  • Ford / New Holland 550
  • Ford / New Holland 555
  • Ford / New Holland 6600
  • Ford / New Holland 8N
  • Ford / New Holland NAA
  • John Deere 3010
  • John Deere 3020
  • Allis Chalmers 60
  • Allis Chalmers 70
  • Case IH 140
  • Case IH 150
  • Case IH 180
  • Case IH 202
  • Case IH 300
  • Case IH 350
  • Case IH 400
  • Case IH 410
  • Case IH 450
  • Case IH 454
  • Case IH 460
  • Case IH 464
  • Case IH 544
  • Case IH 560
  • Case IH 574
  • Case IH 606
  • Case IH 656
  • Case IH 660
  • Case IH 666
  • Case IH 674
  • Case IH 686
  • Case IH 706
  • Case IH 756
  • Case IH 766
  • Case IH 806
  • Case IH 826
  • Case IH 856
  • Case IH 2400A
  • Case IH 2400B
  • Case IH 2405B
  • Case IH 2410B
  • Case IH A
  • Case IH C123
  • Case IH C153
  • Case IH C157
  • Case IH C175
  • Case IH G
  • Case IH Hydro 70
  • Case IH Hydro 86
  • Case IH M
  • Case IH MV
  • Case IH O6
  • Case IH OS6
  • Case IH Super W4
  • Case IH Super W6
  • Case IH Super W6TA
  • Case IH W400
  • Case IH W450
  • Case IH W6
  • Massey Harris 35
  • Massey Harris 50
  • Massey Harris 65
  • Massey Harris 85
  • Massey Harris 88
  • Massey Harris 105
  • Massey Harris 165
  • Massey Harris Super 90
  • Massey Harris Super 95
  • Massey Harris TO35
Application notes
  • One New Aftermarket Replacement 12 Volt Ignition Coil Fits Ford, Fits New Holland, Fits Case IH, Fits International Harvester, Fits Massey Ferguson, Fits John Deere, Fits Allis Chalmers and Other Tractors
  • This 12 volt ignition coil with internal resistor is designed for straight 12 volt systems without series resistance. It replaces the Fits Delco-style ignition coil used across a wide range of agricultural tractors from Fits Ford, Fits New Holland, Fits Case, Fits International Harvester (IH/Fits FARMALL), Fits Massey Ferguson, Fits John Deere, Fits Allis Chalmers, and White. The coil fits the distributor ignition system and provides reliable spark for gasoline engines converted to or originally built with 12 volt electrical systems.
  • For straight 12 volt systems without series resistance
  • Aftermarket Interchange Numbers
  • New aftermarket replacement part - not remanufactured, not used.
