312410 Kit

NC-031349 · Driveline Assembly

312410 Kit

CAD 93.79

Availability to confirm

Kit – reference 312410. Catalogue-listed applications: John Deere, Massey Ferguson, New Holland 606, 608, 612, 615F, 615R, 618F, 618R. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-031349
Reference numbers
312410, W312410, AW312410A, AH232127, AW23611, 171-980, 200-7676, PM200-7676, 22421, 658-22421, 343-1206, 350000, 350000M, 35.00.00M, 4242000, 41120080, 500-124-34, 510505801, 25553001, 26092001, A2007676, B150120, WCB035, 6713-38563, 734264
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Kit 312410 fits Land Pride RC2572 RC2584 RC35120 RC3560 RC3572 RC3584 RC45180.

Configuration: Cross and Bearing Kit for Land Pride Rotary Cutters and Walterscheid PTO Drivelines

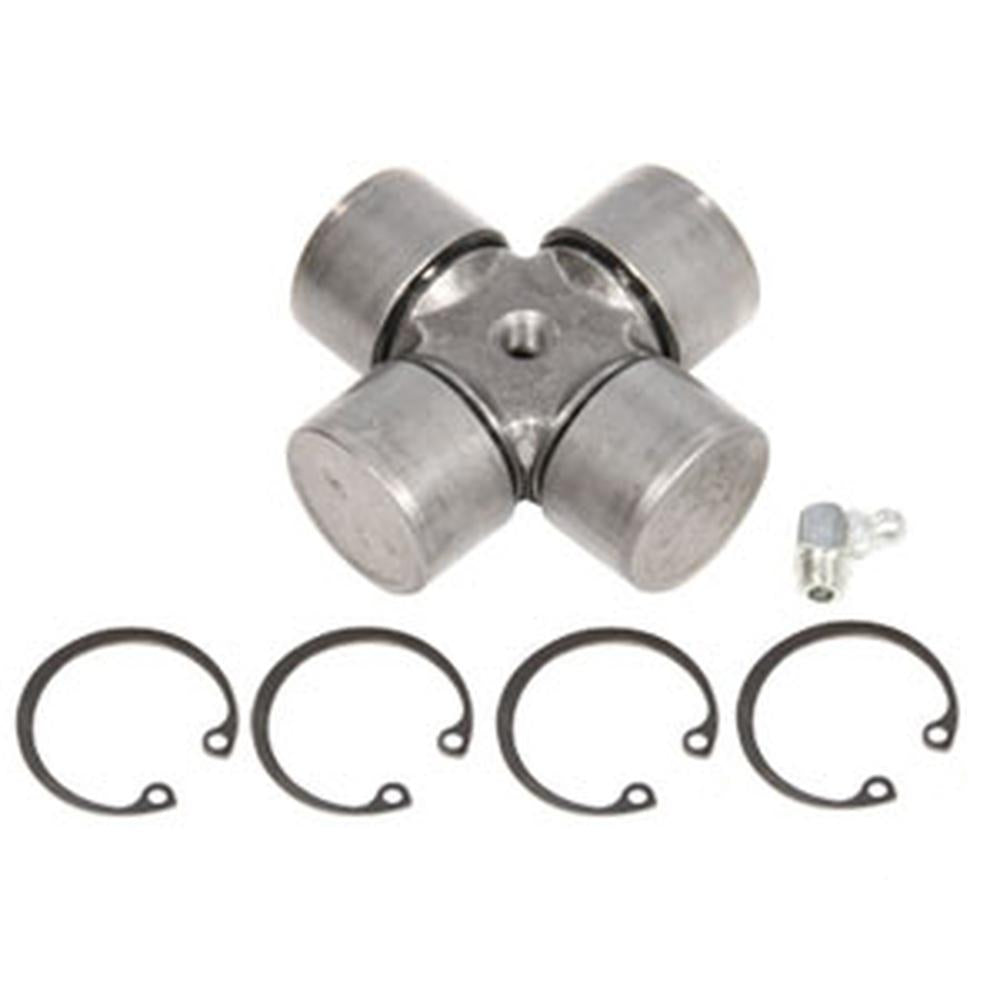

This cross and bearing kit (universal joint kit) is a direct replacement for the PTO driveline U-joint found on Land Pride rotary cutters, John Deere headers, Massey Ferguson and Hesston hay equipment, Vermeer balers, New Holland balers, and Walterscheid W Series and WWE Series driveshafts. It features external snap rings, a center-located grease zerk, and is rated for use at 53 HP at 540 RPM or 83 HP at 1,000 RPM. Fits Walterscheid W 2400 and WWE 2480 series PTO shafts.
Specifications
Part Type: Cross and Bearing Kit (Universal Joint Kit)
Cap Diameter (A/B): 32.0 mm
Cross Height (C/D): 76.0 mm
Snap Ring Location: External
Grease Zerk Location: Center
HP Rating: 53 HP @ 540 RPM / 83 HP @ 1,000 RPM
Compatible Models
Land Pride Rotary Cutters: RC2560, RC2572, RC2584, RC3560, RC3572, RC3584, RC35120, RC45180
John Deere Headers: 606, 608, 612, 615F, 615R, 618F, 618R, 620F, 620R, 622F, 622R, 625D, 630F, 630R, 635D, 635F, 635R
Massey Ferguson: 164, 166
Hesston / New Idea: 3222, 3229, 3322, 3329, 411, 412, 415
New Holland Balers: D800, D1000
Vermeer Balers: 504I, 504L, 504M, 505L, 505M, 554XL, 555XL, 604K, 604L, 604M, 604XL, 605J, 605K, 605L, 605M, 605XL
Walterscheid PTO Drivelines: W Series 2400, WWE Series 2480
Kuhn / FC / GMD Series: FC300G, FC300GT, FC300RG, FC300RGT, FC301G, FC302, FC302G, FC302GI, FC302GV, FC302MN, FC302RG, FC313, FC313D, FC313DF, FC313F, FC313RF, FC313TG, FC350, FC350G, FC350GT, FC350RG, FC352G, FC352MN, FC352RG, GMD240, GMD240HD, GMD280, GMD280HD, GMD310, GMD310HD, GMD310-FF, GMD313TG, GMD3110, GMD3150TL, GMD3510, GMD350, GMD3550TL, GMD4010, GMD4050TL, GMD4410, GMD500S, GMD500SHD, GMD600GII, GMD600GII HD, GMD602, GMD602GII, GMD700GII, GMD700GII HD, GMD702, GMD702GII, GMD77HD, GMD800GII, GMD800GII HD, GMD802, GMD8730, GMD902, FC3160TLD, FC3160TLR, GMD2810, GMD2850TL
Replaces Part Number(s):
312410, W312410, AW312410A, AH232127, AW23611, 171-980, 200-7676, PM200-7676, 22421, 658-22421, 65822421, 343-1206, 350000, 350000M, 35.00.00M, 4242000, 41120080, 500-124-34, 50012434, 510505801, 25553001, 26092001, A2007676, B150120, B15-0120, WCB035, AW23611, 6713-38563, 734264, 343-1206
Aftermarket Interchange Numbers
Also interchanges with: WCB035 (TISCO), AW23611 / PM200-7676 (John Deere), 350000 / A-350000 (Massey Ferguson), 734264 (Ford/New Holland), 25553001 / 510505801 / 26092001 (Vermeer), 6713-38563 (John Day), 41120080 (Kuhn), 4242000
New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 312410, W312410, AW312410A, AH232127, AW23611, 171-980, 200-7676, PM200-7676, 22421, 658-22421, 343-1206, 350000, 350000M, 35.00.00M, 4242000, 41120080, 500-124-34, 510505801, 25553001, 26092001, A2007676, B150120, WCB035, 6713-38563, 734264

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • John Deere 606
  • John Deere 608
  • John Deere 612
  • John Deere 615F
  • John Deere 615R
  • John Deere 618F
  • John Deere 618R
  • John Deere 620F
  • John Deere 620R
  • John Deere 622F
  • John Deere 622R
  • John Deere 625D
  • John Deere 630F
  • John Deere 630R
  • John Deere 635D
  • John Deere 635F
  • John Deere 635R
  • Massey Ferguson 164
  • Massey Ferguson 166
  • New Holland D800
  • New Holland D1000
  • New Holland 504L
  • New Holland 504M
  • New Holland 505L
  • New Holland 505M
  • New Holland 554XL
  • New Holland 555XL
  • New Holland 604K
  • New Holland 604L
  • New Holland 604M
  • New Holland 604XL
  • New Holland 605J
  • New Holland 605K
  • New Holland 605L
  • New Holland 605M
  • New Holland 605XL
  • New Holland FC300GT
  • New Holland FC300RG
  • New Holland FC300RGT
  • New Holland FC301G
  • New Holland FC302
  • New Holland FC302G
  • New Holland FC302GI
  • New Holland FC302GV
  • New Holland FC302MN
  • New Holland FC302RG
  • New Holland FC313
  • New Holland FC313D
  • New Holland FC313DF
  • New Holland FC313F
  • New Holland FC313RF
  • New Holland FC313TG
  • New Holland FC350
  • New Holland FC350G
  • New Holland FC350GT
  • New Holland FC350RG
  • New Holland FC352G
  • New Holland FC352MN
  • New Holland FC352RG
  • New Holland GMD240
  • New Holland GMD240HD
  • New Holland GMD280
  • New Holland GMD280HD
  • New Holland GMD310
  • New Holland GMD310HD
  • New Holland GMD310-FF
  • New Holland GMD313TG
  • New Holland GMD3110
  • New Holland GMD3150TL
  • New Holland GMD3510
  • New Holland GMD350
  • New Holland GMD3550TL
  • New Holland GMD4010
  • New Holland GMD4050TL
  • New Holland GMD4410
  • New Holland GMD500S
  • New Holland GMD500SHD
  • New Holland GMD600GII
  • New Holland GMD600GII HD
  • New Holland GMD602
  • New Holland GMD602GII
  • New Holland GMD700GII
  • New Holland GMD700GII HD
  • New Holland GMD702
  • New Holland GMD702GII
  • New Holland GMD77HD
  • New Holland GMD800GII
  • New Holland GMD800GII HD
  • New Holland GMD802
  • New Holland GMD8730
  • New Holland GMD902
  • New Holland FC3160TLD
  • New Holland FC3160TLR
  • New Holland GMD2810
  • New Holland GMD2850TL
Application notes
  • One New Aftermarket Replacement Cross and Bearing Kit for Land Pride Rotary Cutters and Walterscheid PTO Drivelines
  • Aftermarket Interchange Numbers
  • Also interchanges with: WCB035 (TISCO), AW23611 / PM200-7676 (John Deere), 350000 / A-350000 (Massey Ferguson), 734264 (Ford/New Holland), 25553001 / 510505801 / 26092001 (Vermeer), 6713-38563 (John Day), 41120080 (Kuhn), 4242000
  • New aftermarket replacement part - not remanufactured, not used.
