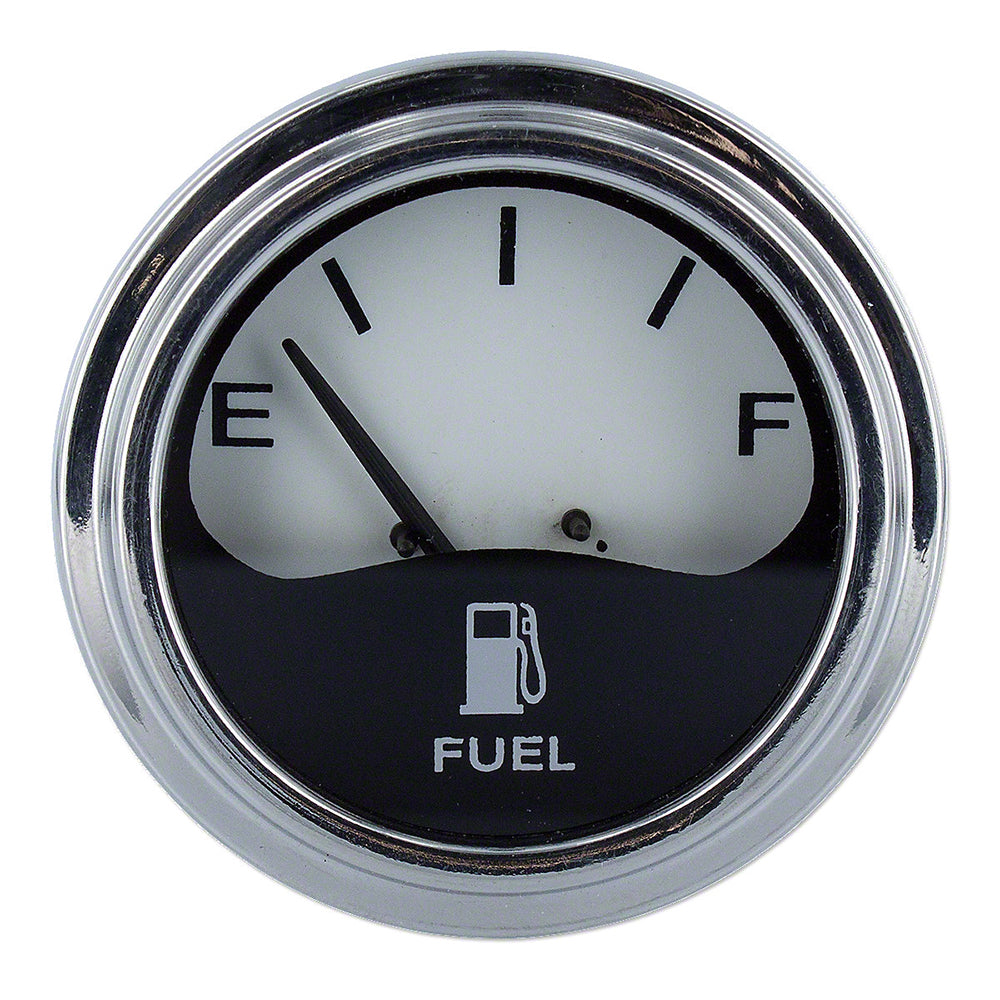

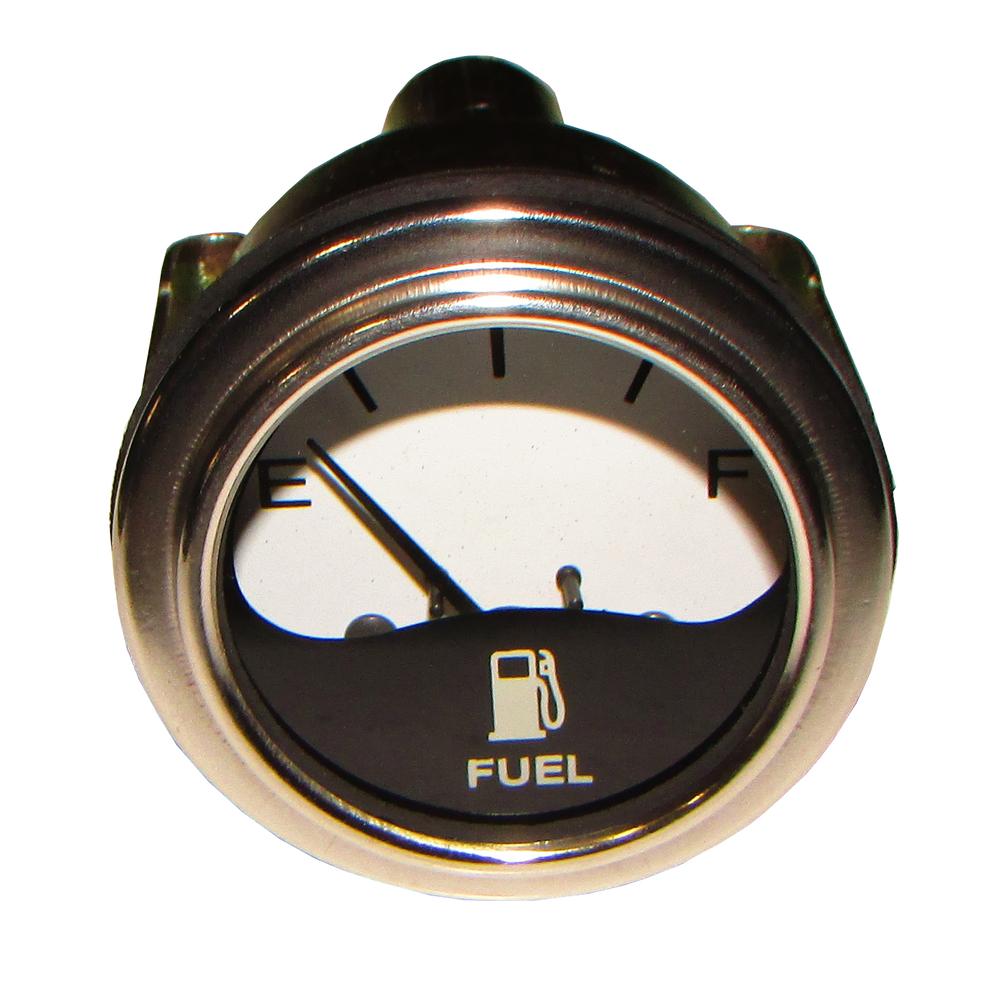

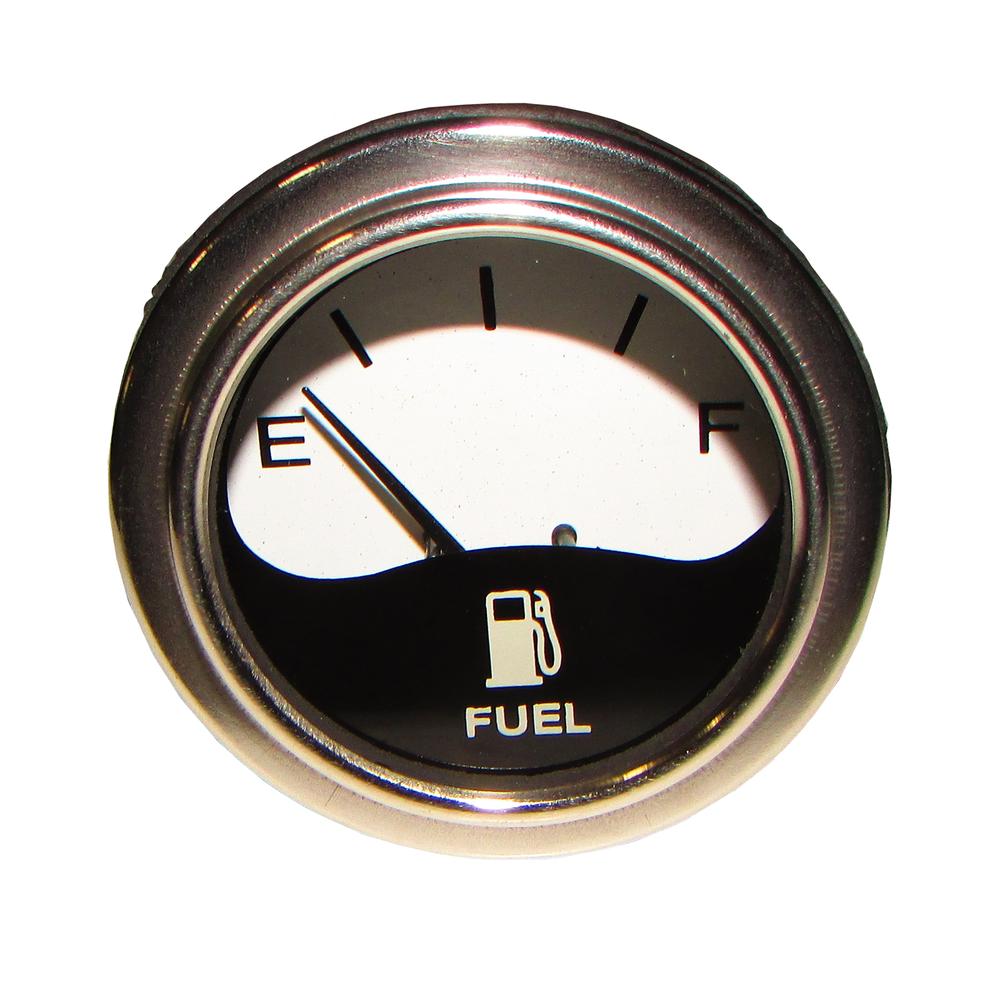

533992R1 Fuel Gauge - White Face
533992R1 Fuel Gauge - White Face – additional image 2533992R1 Fuel Gauge - White Face – additional image 3533992R1 Fuel Gauge - White Face – additional image 4

NC-030811 · Gauges

533992R1 Fuel Gauge - White Face

CAD 115.32

Availability to confirm

Fuel Gauge - White Face – reference 533992R1. Catalogue-listed applications: Case IH, Case / International Harvester, International Harvester 460, 560, 660, 766, 966, 1066, 1466. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-030811
Reference numbers
533992R1, H142794, 378426R91, A24079
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Fuel Gauge - White Face Fits International 766 966 1066 1466 1468 1566 533992R1.

Configuration: Fuel Gauge (White Face) Fits International Harvester (IH) / Fits Case IH Tractors

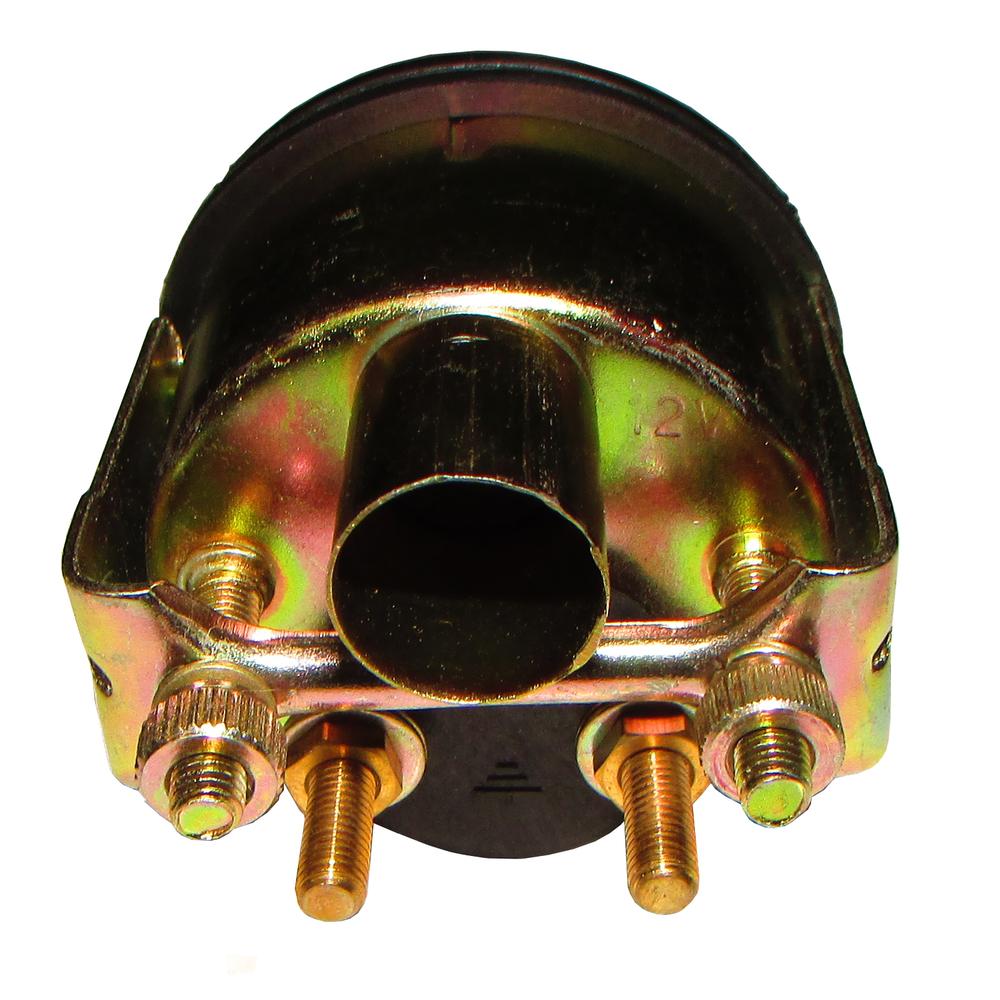

This white-face fuel gauge is a direct replacement Fits International Harvester and Fits Case IH tractors. It mounts to the instrument panel dash and works with the tractor's original fuel sending unit. The gauge operates on a 12-volt negative ground system and requires a proper chassis ground to function correctly -- in some cases an additional ground wire from the clamp terminal to an existing bolt may be needed.
Specifications
Voltage: 12 Volt, Negative Ground
Resistance Range: 32-244 Ohms
Number of Terminals: 2
Terminal Type: Screw
Mounting: Bolt-on
Gauge Diameter: 2 in / 52 mm
Face Color: White
Compatible Models
Fits International Harvester (IH) / Fits Case IH -- 60 Series (with Stewart Warner sending unit): 460, 560, 660
Fits International Harvester (IH) / Fits Case IH -- 66 Series: 766, 966, 1066, 1466, 1566, 4366
Fits International Harvester (IH) / Fits Case IH -- 68 Series: 1468, 1568, 4568
Fits International Harvester (IH) / Fits Case IH -- Large Frame: 4386, 4586
Fits International Harvester (IH) / Fits Case IH -- Hydro Series: Hydro 100
Replaces Part Number(s):
533992R1, H142794, 378426R91, A24079
New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 533992R1, H142794, 378426R91, A24079

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Case IH 460
  • Case IH 560
  • Case IH 660
  • Case IH 766
  • Case IH 966
  • Case IH 1066
  • Case IH 1466
  • Case IH 1566
  • Case IH 4366
  • Case IH 1468
  • Case IH 1568
  • Case IH 4568
  • Case IH 4386
  • Case IH 4586
  • Case IH Hydro 100
Application notes
  • One New Aftermarket Replacement Fuel Gauge (White Face) Fits International Harvester (IH) / Fits Case IH Tractors
  • This white-face fuel gauge is a direct replacement Fits International Harvester and Fits Case IH tractors. It mounts to the instrument panel dash and works with the tractor's original fuel sending unit. The gauge operates on a 12-volt negative ground system and requires a proper chassis ground to function correctly -- in some cases an additional ground wire from the clamp terminal to an existing bolt may be needed.
  • Fits International Harvester (IH) / Fits Case IH -- 60 Series (with Stewart Warner sending unit): 460, 560, 660
  • New aftermarket replacement part - not remanufactured, not used.
