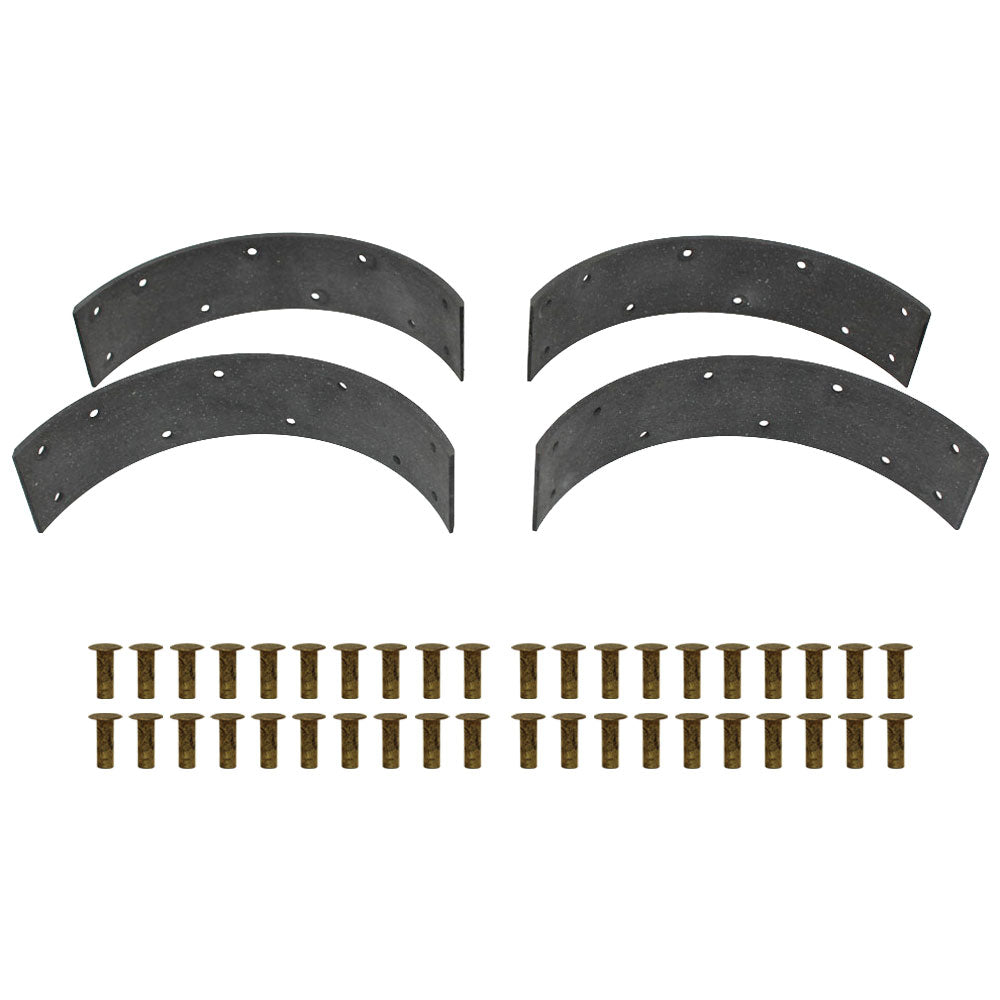

AF2866R Lining – Fits John Deere

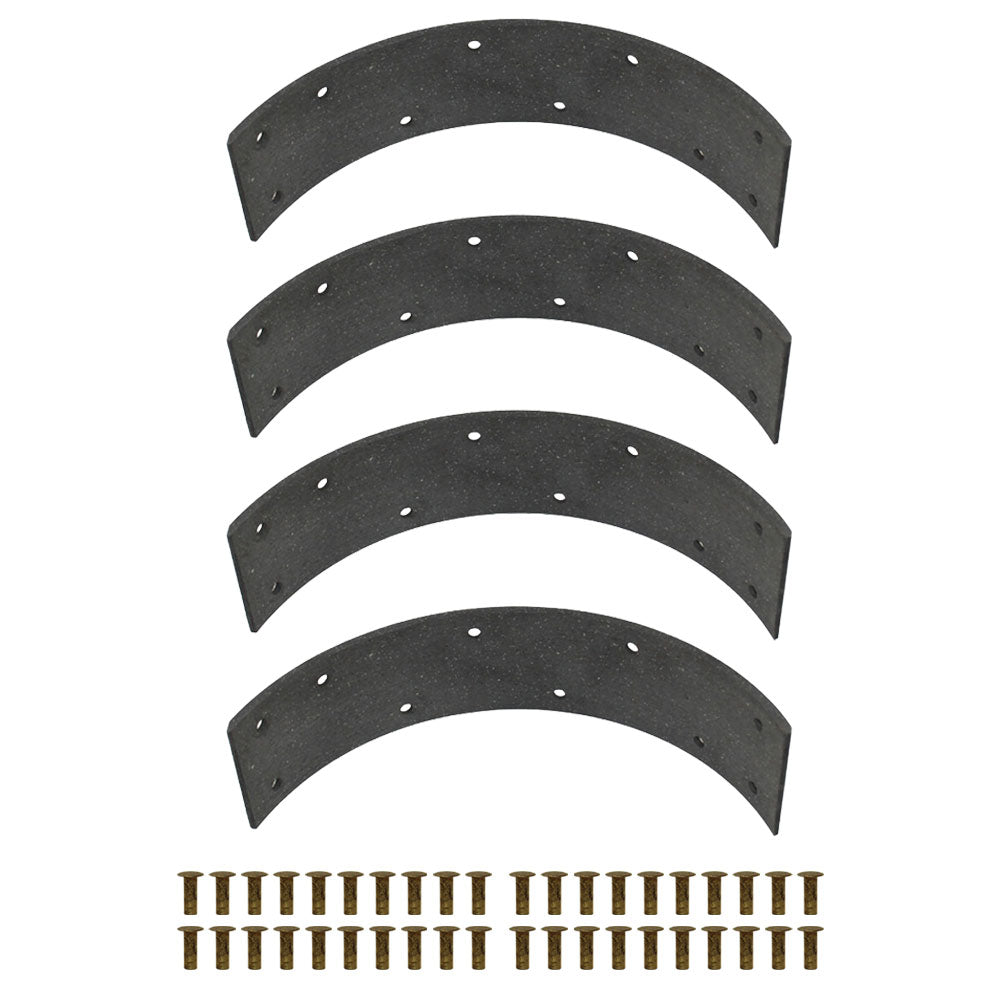

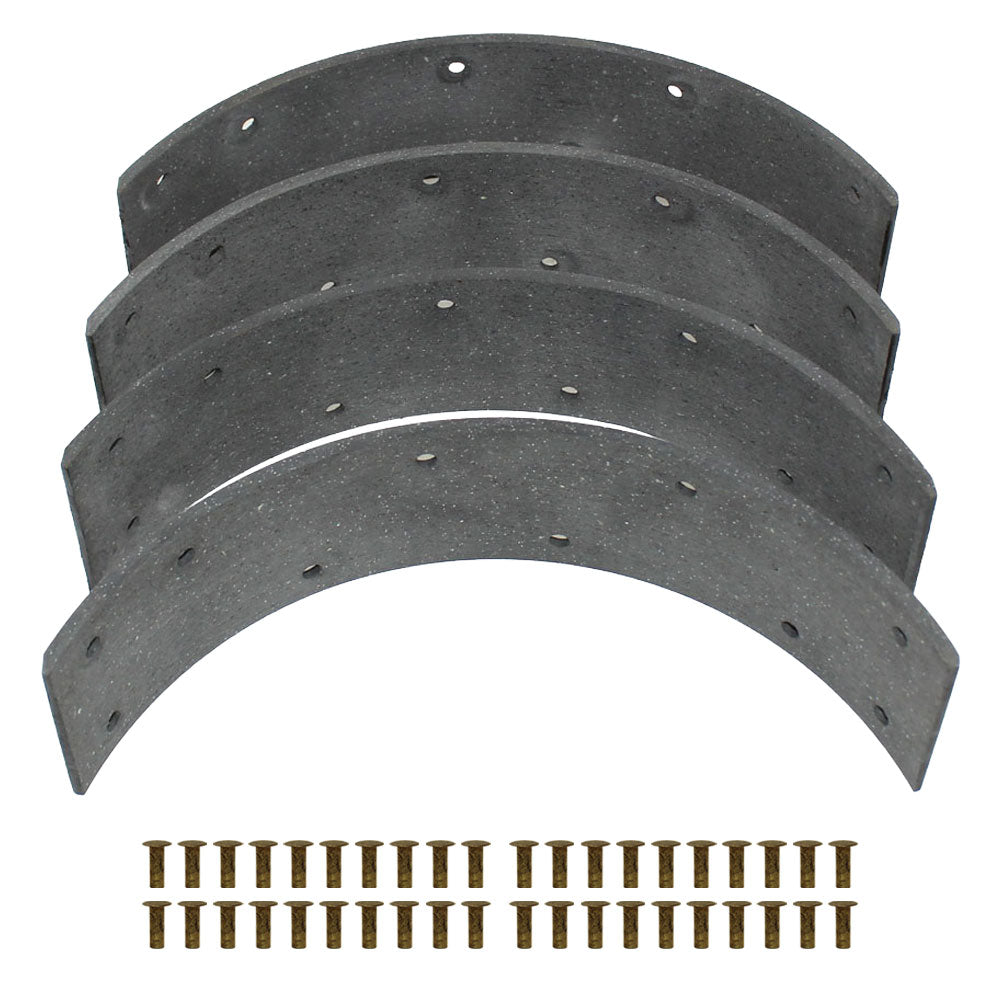

AF2866R Lining – Fits John Deere – additional image 2AF2866R Lining – Fits John Deere – additional image 3AF2866R Lining – Fits John Deere – additional image 4

NC-030517 · Shoes, Discs, Drums

AF2866R Lining – Fits John Deere

CAD 36.69

In stock

Lining – reference AF2866R. Catalogue-listed applications: John Deere 720, 730 (standard, not Hi-Crop), 80, 820 (2-cylinder), 830 (2-cylinder), 840. View photos, specifications, CAD pricing and delivery options from NorthCore.

Standard delivery: 3–7 business days. Other services and estimates are shown at checkout. Minimum online order: CAD 100 in parts, excluding shipping and tax. Add this part to your cart to calculate delivery and review your order.

Ask about this part

Part specifications and references

NorthCore code
NC-030517
Reference numbers
AF2866R, AF2866R-A, D2309R, RE227866
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Lining AF2866R Fits John Deere 720 730 80 820 830.

Configuration: Brake Lining Kit Fits John Deere 2-Cylinder Row Crop Tractors
This aftermarket replacement brake lining kit restores stopping performance on classic Fits John Deere two-cylinder tractors. The set of four flexible brake linings are riveted to the brake shoes and are designed for the drum brake system used on the 720, 730, 820, 830, and 840 series. Does NOT fit Hi-Crop variants of these models -- Hi-Crop models require a different lining with 10-1/4" outer curvature x 1-3/4" width. Verify your model's brake drum size before ordering.
Specifications
Quantity: 4 pieces per kit
Outer Curvature: 11-3/4"
Width: 2-1/4"
Type: Flexible brake lining with rivets
Compatible Models
Fits John Deere 2-Cylinder Tractors: 720, 730 (standard, not Hi-Crop), 80, 820 (2-cylinder), 830 (2-cylinder), 840
Replaces Part Number(s):
AF2866R, AF2866R-A, D2309R, RE227866
New aftermarket replacement part - not remanufactured, not used.

Reference numbers: AF2866R, AF2866R-A, D2309R, RE227866

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • John Deere 720
  • John Deere 730 (standard, not Hi-Crop)
  • John Deere 80
  • John Deere 820 (2-cylinder)
  • John Deere 830 (2-cylinder)
  • John Deere 840
Application notes
  • One New Aftermarket Replacement Brake Lining Kit Fits John Deere 2-Cylinder Row Crop Tractors
  • This aftermarket replacement brake lining kit restores stopping performance on classic Fits John Deere two-cylinder tractors. The set of four flexible brake linings are riveted to the brake shoes and are designed for the drum brake system used on the 720, 730, 820, 830, and 840 series. Does NOT fit Hi-Crop variants of these models -- Hi-Crop models require a different lining with 10-1/4" outer curvature x 1-3/4" width. Verify your model's brake drum size before ordering.
  • Type: Flexible brake lining with rivets
  • New aftermarket replacement part - not remanufactured, not used.
