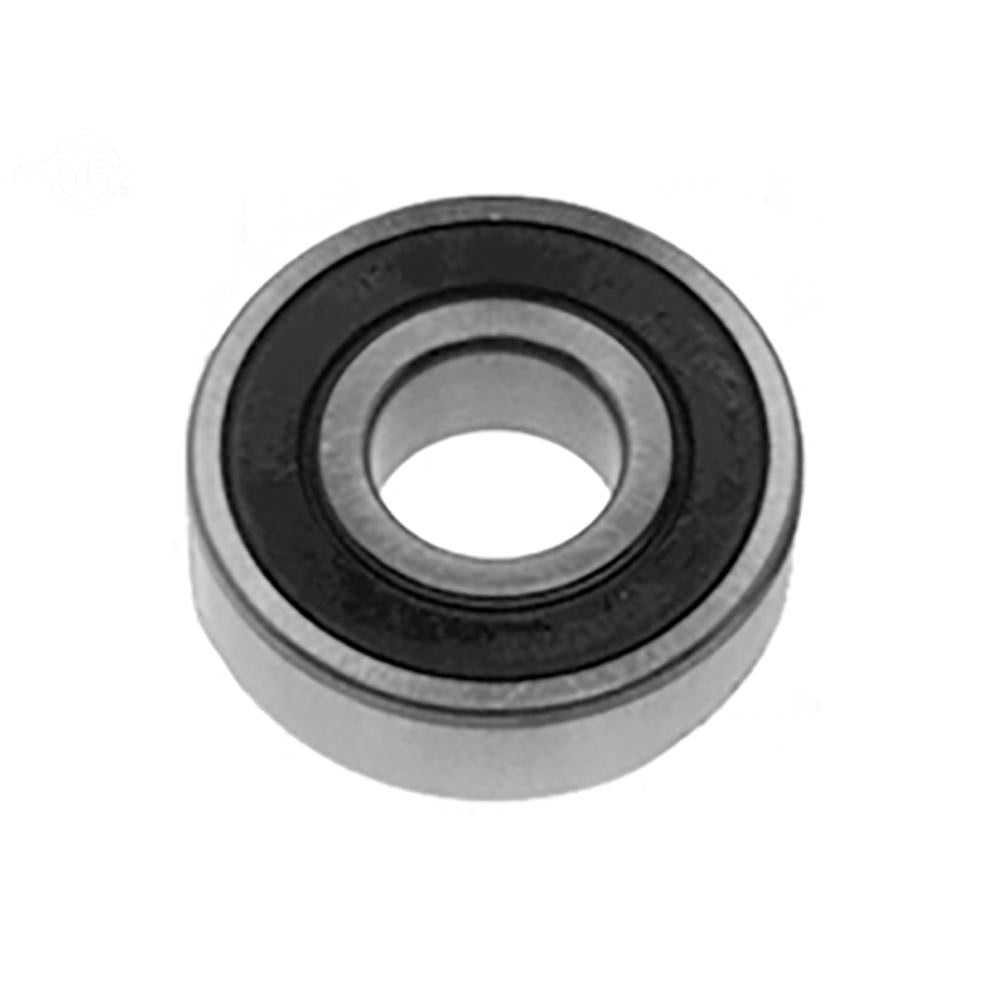

037602300 ZNL 6206-2RS C3 DEEP GROOVE BALL BEARING DOUBLE SEALED 30MM x 62MM x 16MM

Quantity indicated in catalogue: 1

Replacement part: ZNL 6206-2RS C3 DEEP GROOVE BALL BEARING DOUBLE SEALED 30MM x 62MM x 16MM.

Configuration: Deep Groove Ball Bearing for Bad Boy and Jacobsen Mowers
This 6206-2RS C3 deep groove ball bearing is a direct replacement for the deck spindle and front clutch PTO assemblies on Bad Boy and Jacobsen lawn mowers. The double rubber seal (2RS) keeps grease in and contaminants out, while the C3 clearance rating provides increased internal clearance for high-speed operation and resistance to heat buildup -- making it well suited to the demanding conditions of mower deck spindle applications. Constructed from chrome steel (52100 alloy). Note: Bad Boy OEM part number 037-6023-00 has been superseded by 037-6029-00; this aftermarket bearing remains the correct replacement for all original-design spindle assemblies.
Specifications
Type: Deep Groove Ball Bearing, Single Row, Double Sealed (2RS)
Clearance: C3 (increased internal clearance)
Inner Diameter (Bore): 30 mm (1.180")
Outer Diameter: 62 mm (2.440")
Width: 16 mm (0.627")
Material: Chrome Steel (52100 alloy)
Lubrication: Pre-greased
Compatible Models
Bad Boy (Spindle and PTO Assemblies): Pup, Lightning, ZT, ZT Elite, CZT, CZT Elite, Outlaw, Outlaw Extreme, Outlaw XP, Compact Outlaw, AOS, Diesel (1100cc and 1500cc), Maverick, Revolt, Stand-On (2004 and later models with 30mm spindle shaft; 48", 50", 52", and 60" decks)
Jacobsen (200 and 400 Series, Turfcat 72): 200 Series, 400 Series, Turfcat 72
Case / Case IH (200 and 400 Series): 200 Series, 400 Series
Replaces Part Number(s):
Bad Boy: 037-6023-00, 037602300, 037-6023-00-A
Case / Case IH: 836206, C29735
Jacobsen: 122294, 131201, 21-350759, 350759, 358672, S21-2350759
Kubota: 08141-06206
Stens: 230-141
Aftermarket Interchange Numbers
6206, 6206-2RS, 6206-2RS-C3
New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 037602300, 037-6023-00-A, C29735, 131201, 21-350759, 350759, 358672, S21-2350759, 08141-06206

• One New Aftermarket Replacement Deep Groove Ball Bearing for Bad Boy and Jacobsen Mowers
• This 6206-2RS C3 deep groove ball bearing is a direct replacement for the deck spindle and front clutch PTO assemblies on Bad Boy and Jacobsen lawn mowers. The double rubber seal (2RS) keeps grease in and contaminants out, while the C3 clearance rating provides increased internal clearance for high-speed operation and resistance to heat buildup -- making it well suited to the demanding conditions of mower deck spindle applications. Constructed from chrome steel (52100 alloy). Note: Bad Boy OEM part number 037-6023-00 has been superseded by 037-6029-00; this aftermarket bearing remains the correct replacement for all original-design spindle assemblies.
• Bad Boy (Spindle and PTO Assemblies): Pup, Lightning, ZT, ZT Elite, CZT, CZT Elite, Outlaw, Outlaw Extreme, Outlaw XP, Compact Outlaw, AOS, Diesel (1100cc and 1500cc), Maverick, Revolt, Stand-On (2004 and later models with 30mm spindle shaft; 48", 50", 52", and 60" decks)
• Aftermarket Interchange Numbers
• New aftermarket replacement part - not remanufactured, not used.
