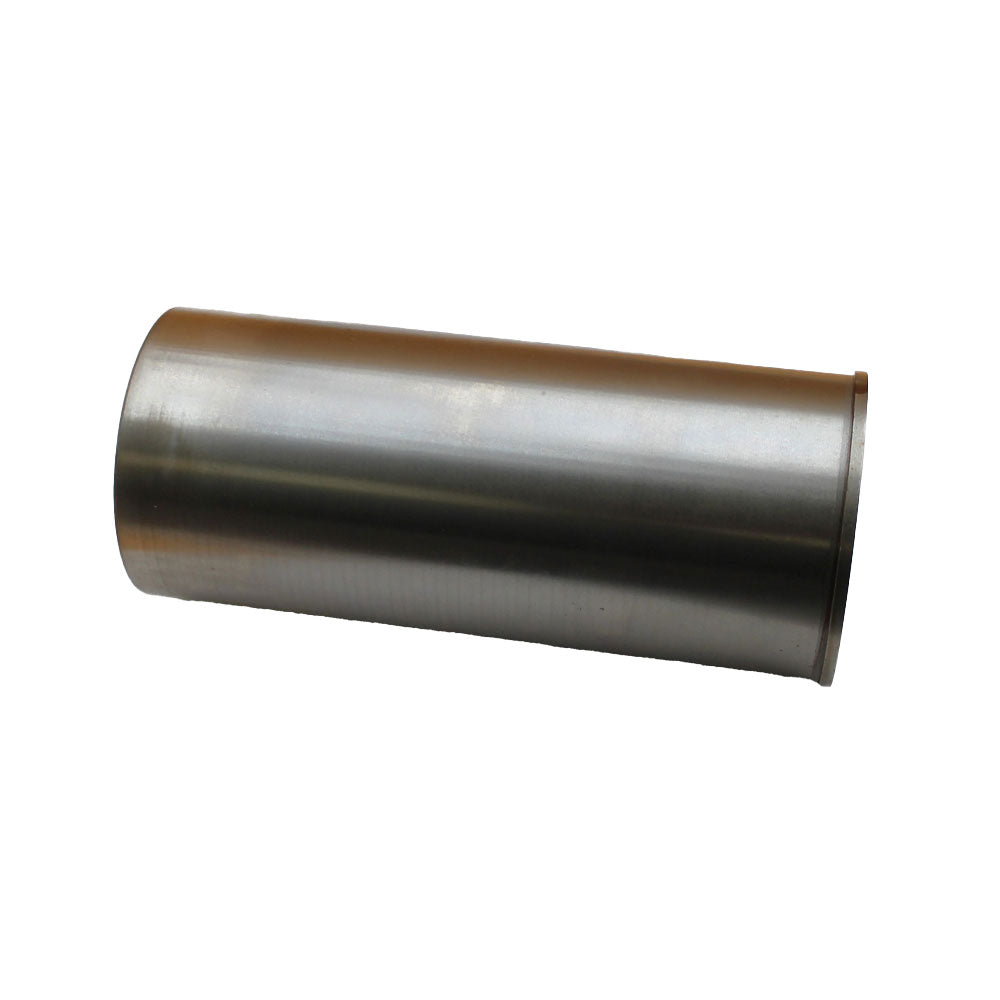

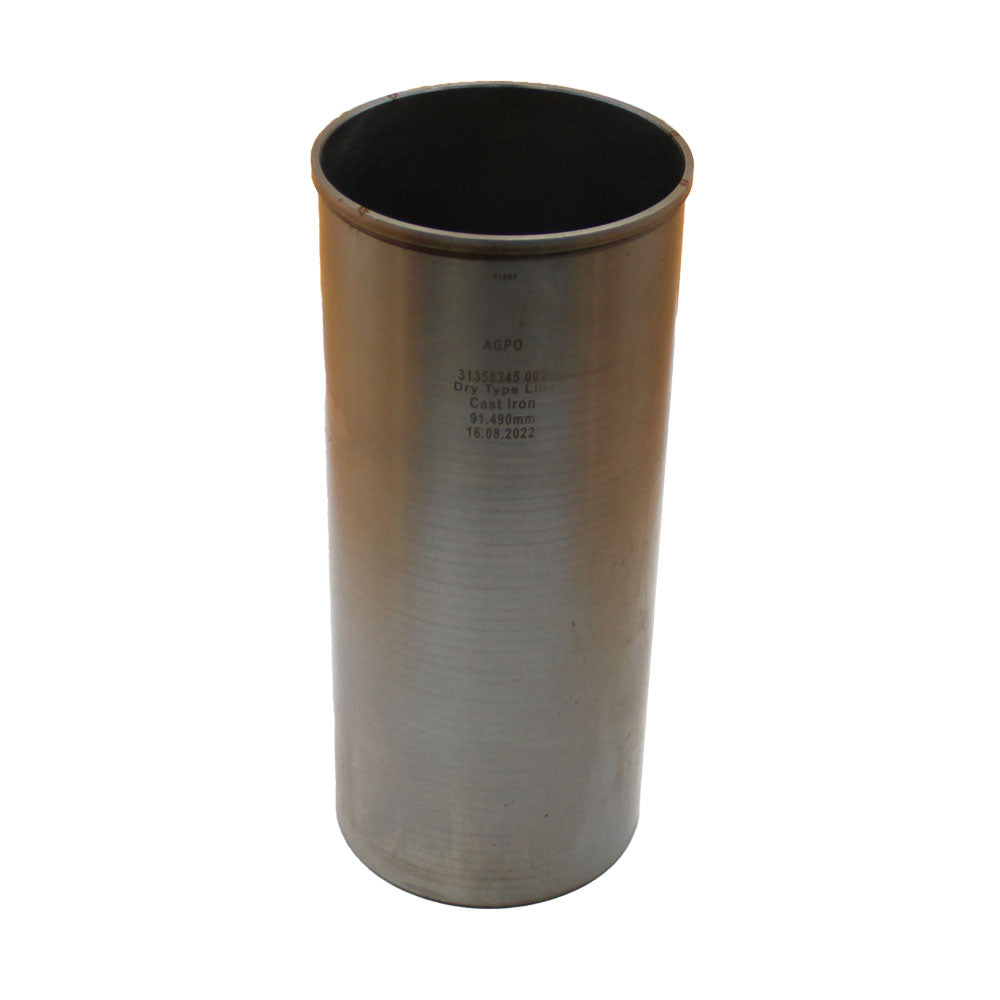

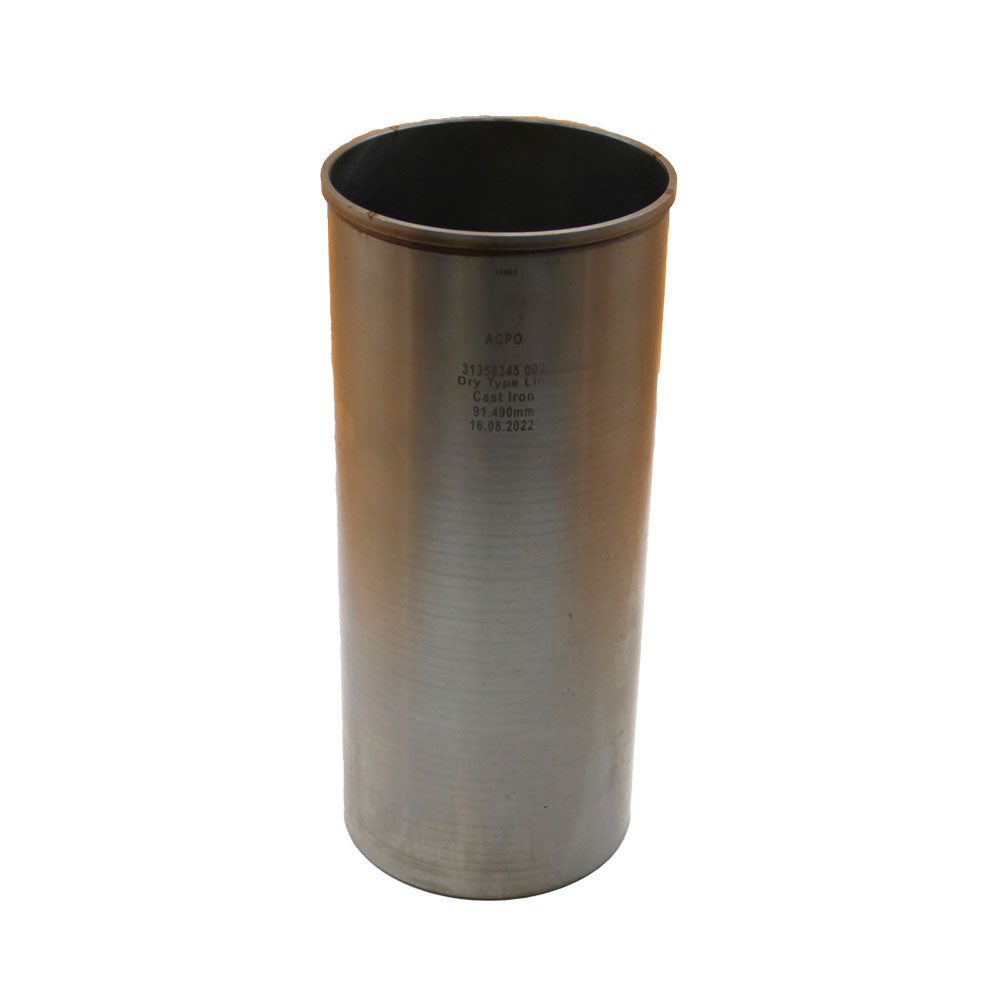

739043M1 Cylinder Sleeve

Quantity indicated in catalogue: 1

Replacement part: Cylinder Sleeve Fits Massey Ferguson fits Landini Fits New Holland fits Perkins.

Configuration: Cylinder Sleeve (Piston Liner) for Massey Ferguson, Perkins, Landini, New Holland, Allis Chalmers, Ford, and Leyland Tractors
This cast cylinder sleeve (piston liner) is a standard-bore, finished replacement for Perkins A3.152, AD3.152, AG3.152, T3.152, A4.203, and AD4.203 engines -- the 152 CID 3-cylinder and 203 CID 4-cylinder gas and diesel units found across a wide range of Massey Ferguson and compatible-brand tractors, industrial equipment, and forklifts. Sold individually. Fits late engines with 0.150" flange cast liners. Note: fitting to early engines with 0.040" flange chrome liners requires machining the block to increase liner counterbore depth.
Specifications
Bore Diameter: 3.6" (91.49mm) -- Standard
Flange Thickness: 0.150" (3.8mm)
Flange Diameter: 3.8" (96.72mm)
Height: 8.4" (215.77mm)
Construction: Cast iron
Finish: Finished bore
Compatible Models
Massey Ferguson Tractors: 20, 30, 35, 35X, 40, 50, 65, 135, 135 US Built, 140, 148, 150, 152, 154, 154-4, 154C, 155, 158, 160, 164, 165, 165 US Built, 203, 203X, 205, 205X, 230, 230 US Built, 231, 233, 234, 234C, 235, 240, 244CF, 245, 250, 253, 254, 254-4, 254C, 255, 260, 263, 264, 264C, 320, 333, 334, 340, 342, 350, 352, 353, 353LX, 354, 360, 400, 430, 550, 560, 765, 2135, 2200, 2203, 2205, 2500, 3165, 3303, 3305, 4000, 4500, 4530, 5000, 5500, 5530, 5560, 5830, 5840, 5860, 5870, 6000, 6030, 6040, 6060, 6070, 7000, SUPER DEXTA, 35 US Built, 65 US Built
Massey Ferguson Backhoe Loaders / Industrial: 20, 20B, 20C, 20E, 20F, 30, 30B, 30D, 30E, 30H, 40, 40B, 50, 65, 200, 203, 205, 302, 304, 356, 2135, 2200, 2244, 2500, 3165, 4500
Massey Ferguson Forklifts: 2500, 4500
Landini Tractors: 134, 134C, 145, 148, ADVANTAGE 55, BLIZZARD 50, BLIZZARD 60, C4500, C4830, C5000, C5030, C5500, C5830, C6000, CF4830, CF5030, CF5830, CF6030, GLOBUS 50, REX 55, REX 60, TREKKER 60, 4000, 4530, 5000, 5500, 5530, 5560, 5830, 5840, 5860, 5870, 6030, 6040, 6060, 6070, 7000
Allis Chalmers Tractors: 160, 6040, 6060
Ford / New Holland Tractors: Super Dexta (block machining required for 0.150" flange)
Leyland Tractors: 245, 253
Perkins Engines: A3.152 (from s/n 1935854), AD3.152 (CE), AG3.152, T3.152.4 (CN), A4.203, AD4.203 (JE, from s/n 2939036 and all 203UA), A4.203 (from s/n 2820093)
Replaces Part Number(s):
739043M1, 734175M1, 1434175M1, 31358345, 31358322, 72080003, AHM2186, 8N7996, PH31358345, 131358345, 28057
New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 739043M1, 734175M1, 1434175M1, 31358345, 31358322, 72080003, AHM2186, 8N7996, PH31358345, 131358345, 28057

• One New Aftermarket Replacement Cylinder Sleeve (Piston Liner) for Massey Ferguson, Perkins, Landini, New Holland, Allis Chalmers, Ford, and Leyland Tractors
• This cast cylinder sleeve (piston liner) is a standard-bore, finished replacement for Perkins A3.152, AD3.152, AG3.152, T3.152, A4.203, and AD4.203 engines -- the 152 CID 3-cylinder and 203 CID 4-cylinder gas and diesel units found across a wide range of Massey Ferguson and compatible-brand tractors, industrial equipment, and forklifts. Sold individually. Fits late engines with 0.150" flange cast liners. Note: fitting to early engines with 0.040" flange chrome liners requires machining the block to increase liner counterbore depth.
• Perkins Engines: A3.152 (from s/n 1935854), AD3.152 (CE), AG3.152, T3.152.4 (CN), A4.203, AD4.203 (JE, from s/n 2939036 and all 203UA), A4.203 (from s/n 2820093)
• New aftermarket replacement part - not remanufactured, not used.
